Description

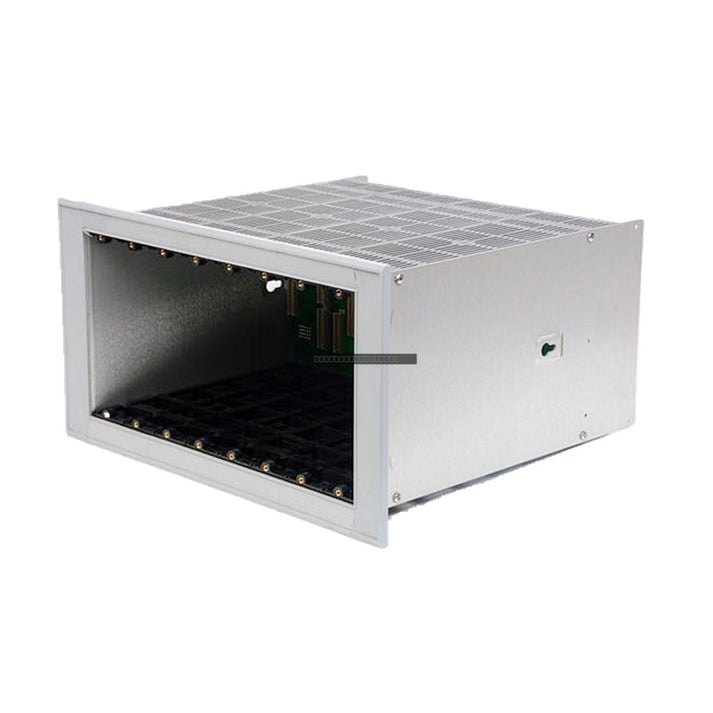

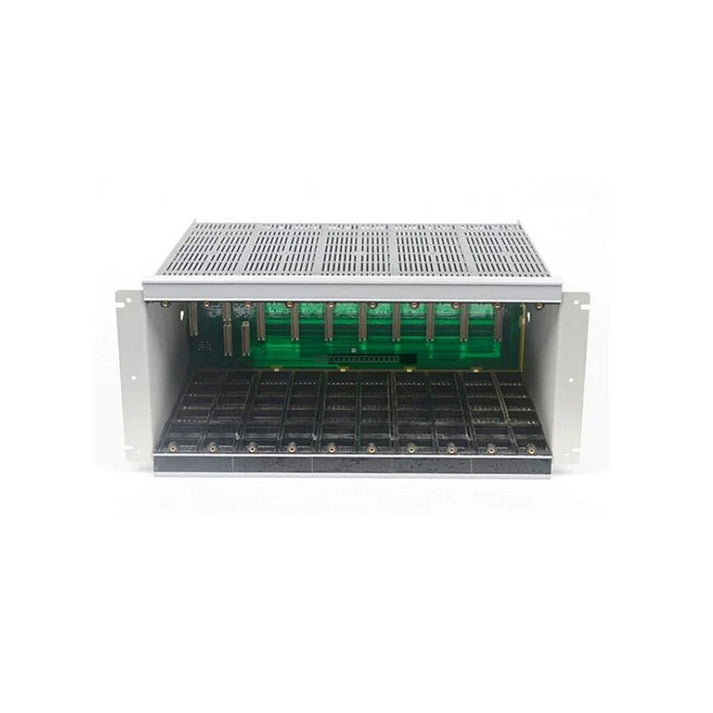

The Bently Nevada 3300/05-26-00-00 is a robust 12-slot rack chassis designed to serve as the foundational infrastructure for the 3300 series machinery protection system. This rack provides the necessary mechanical support, integrated backplane communication, and power distribution required for high-reliability monitoring of industrial rotating equipment. It is engineered to house various 3300 series modules, including vibration, thrust, eccentricity, and temperature monitors, ensuring precise alignment and reliable signal integrity across the system.

Features

• 12-slot capacity for flexible system configuration and modular expansion.
• Integrated backplane for seamless communication between monitoring modules and power supplies.
• Rugged mechanical design for secure mounting in industrial control panels.
• Compatible with standard 3300 series power supply modules for redundant or primary power needs.
• Designed for high-reliability operation in critical machinery protection environments.

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted in a clean, vibration-dampened environment to prevent mechanical stress on the backplane.
• Verify that the rack is properly grounded to the cabinet chassis to minimize electromagnetic interference (EMI).
• Ensure adequate ventilation around the rack to maintain operating temperatures within the 0 to 60 degC range.
• Always power down the system before inserting or removing any monitoring modules to prevent damage to the backplane connectors.
• Check that all module locking mechanisms are fully engaged to ensure electrical continuity and physical stability.

FAQ

What is the primary function of the 3300/05-26-00-00 rack?

This rack serves as the main housing and backplane for the Bently Nevada 3300 series, providing the mechanical and electrical framework for installing monitoring modules and power supplies.

Can this rack support all 3300 series modules?

Yes, the 12-slot chassis is designed to accommodate standard 3300 series modules including vibration, thrust, and temperature monitoring units, provided the total power and slot requirements are within the system's capacity.

Is this unit suitable for hazardous area installations?

The 00 suffix in the agency approval field indicates this is the standard version. Please verify your specific site requirements against the original Bently Nevada 3300 series documentation for hazardous area suitability.
