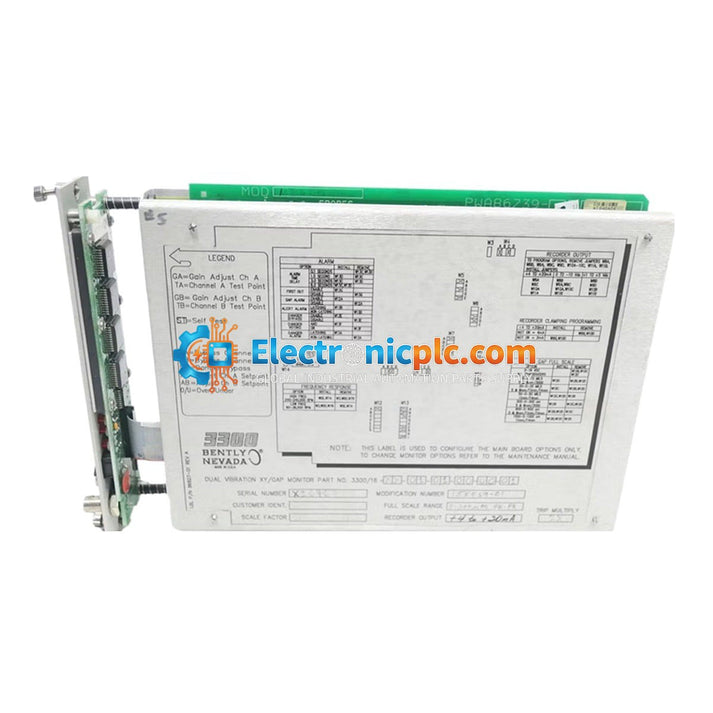

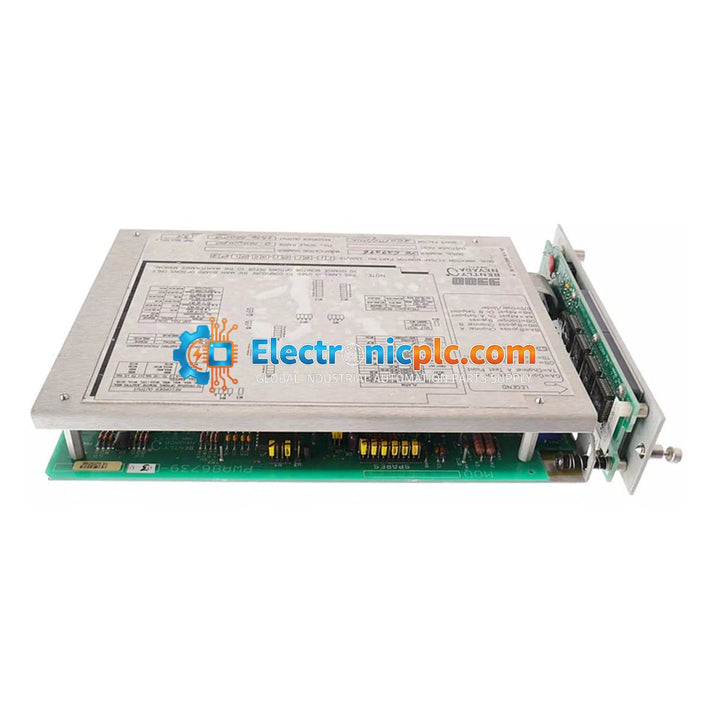

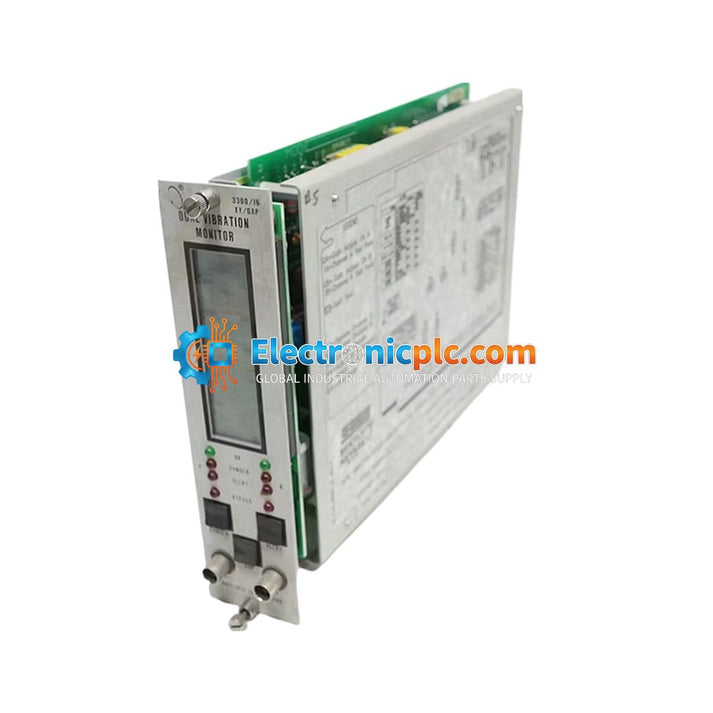

Bently Nevada 3300/16-15-01-01-00-00-00 Dual Vibration Monitor

Bently Nevada 3300/16-15-01-01-00-00-00 Dual Vibration Monitor

Description

The Bently Nevada 3300/16 Dual Vibration Monitor is a rack-mounted module designed to measure radial shaft vibration in critical rotating machinery, such as turbines and compressors. The 15 suffix...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 3300/16-15-01-01-00-00-00
Proveedora: Bently Nevada
tipo: Vibration Monitor Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 3300/16 Dual Vibration Monitor is a rack-mounted module designed to measure radial shaft vibration in critical rotating machinery, such as turbines and compressors. The 15 suffix option specifies a dual-channel XY vibration configuration, enabling simultaneous monitoring of two orthogonal vibration signals. This monitor continuously compares vibration parameters against user-defined alarm setpoints, providing early warning of mechanical issues and supporting predictive maintenance strategies.

Features

  • Dual-channel XY vibration monitoring for comprehensive shaft analysis.
  • Continuous signal conditioning and comparison against Alert and Danger setpoints.
  • Integrated LED status indicators for OK, Bypass, Alert, and Danger conditions.
  • Standard relay outputs for alarm annunciation.
  • Compatible with standard Bently Nevada proximity probe and Proximitor sensor systems.

Applications

This module is primarily used in industrial protection systems for monitoring radial vibration on rotating shafts in power generation, oil and gas, and petrochemical facilities. It is designed for integration into the Bently Nevada 3300 Monitoring System rack.

Technical Specifications

Model 3300/16-15-01-01-00-00-00
Brand Bently Nevada
Series 3300
Operating Temperature 0 to 60 degC
Power Consumption ~1.5 W
Signal Sensitivity 200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Accuracy +/- 0.33% typical, +/- 1% max at 25 degC
Output Signals +4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC

Installation Guidelines

  • Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
  • Verify that the module is fully seated in the rack slot and that the front panel screws are tightened to ensure proper grounding and mechanical stability.
  • Use shielded cabling for all transducer inputs to minimize EMI/RFI interference.
  • Ensure proper ventilation within the cabinet to maintain the operating temperature between 0 and 60 degC.
  • Handle with ESD-safe precautions to protect sensitive internal electronic components.

FAQ

What does the 15 suffix represent in this model code?
The 15 suffix indicates the measurement configuration is set for XY dual vibration, allowing the monitor to process two orthogonal vibration signals simultaneously.

Is this module compatible with standard proximity probes?
Yes, this model is configured for use with standard Bently Nevada proximity probes and their associated Proximitor sensors.
