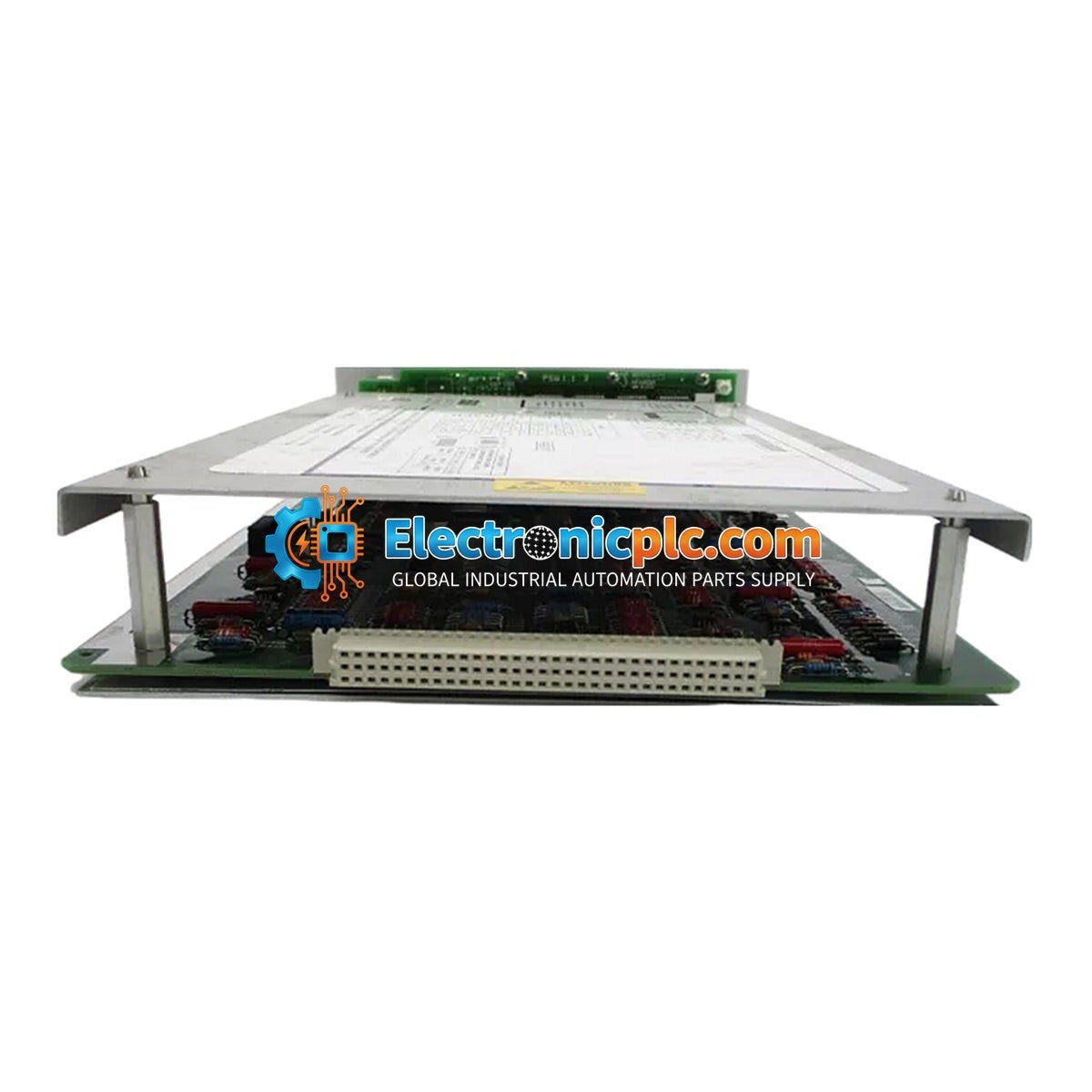

Bently Nevada 3300/35-03-02-02-01-00 6-Channel Temperature Monitor

Bently Nevada 3300/35-03-02-02-01-00 6-Channel Temperature Monitor

Description

The Bently Nevada 3300/35-03-02-02-01-00 is a 6-channel Temperature Monitor designed for the 3300 Series rack system. This module provides continuous, high-reliability monitoring of multiple temperature points in critical rotating machinery,...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 3300/35-03-02-02-01-00
Proveedora: Bently Nevada
tipo: Temperature Monitor Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 3300/35-03-02-02-01-00 is a 6-channel Temperature Monitor designed for the 3300 Series rack system. This module provides continuous, high-reliability monitoring of multiple temperature points in critical rotating machinery, such as turbines, compressors, and large motors. By comparing sensor inputs against user-defined alarm setpoints, the module facilitates predictive maintenance and provides essential machinery protection by triggering relay outputs during abnormal temperature conditions.

Features

  • Six independent monitoring channels for high-density temperature data acquisition.
  • Compatible with standard industrial RTDs (Pt100, Pt1000) and thermocouples (J, K, T types).
  • Provides proportional 4 to 20 mA and 1 to 5 VDC outputs for integration with external control systems.
  • Integrated relay outputs for Alert and Danger alarm conditions.
  • Front-panel LED indicators for quick status verification of OK, Bypass, Alert, and Danger states.

Applications

  • Bearing temperature monitoring in rotating equipment.
  • Stator winding temperature sensing for large motors and generators.
  • Casing temperature monitoring for industrial compressors and turbines.
  • General-purpose multi-point temperature data acquisition in process plants.

Technical Specifications

Model 3300/35-03-02-02-01-00
Series 3300
Product Type 6-Channel Temperature Monitor
Operating Temperature -35 degC to +65 degC
Power Consumption Approx. 2 W
Inputs 6 Channels (RTD/Thermocouple)
Outputs 4-20 mA, 1-5 VDC, Relay

Installation Guidelines

  • Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
  • The module must be seated firmly in the rack slot to ensure proper backplane communication and power distribution.
  • Use shielded cabling for all sensor inputs to minimize EMI/RFI interference in industrial environments.
  • Ensure proper grounding of the 3300 rack chassis to a common plant ground.
  • Handle with standard ESD precautions; avoid touching the module's backplane connector pins.

FAQ

What types of sensors are compatible with this module?

The 3300/35-03-02-02-01-00 supports RTDs including Pt100 and Pt1000, as well as J, K, and T type thermocouples.

Does this module provide alarm outputs?

Yes, the module includes integrated relay outputs configured for Alert and Danger alarm conditions, allowing for direct interface with shutdown or alarm systems.
