Description

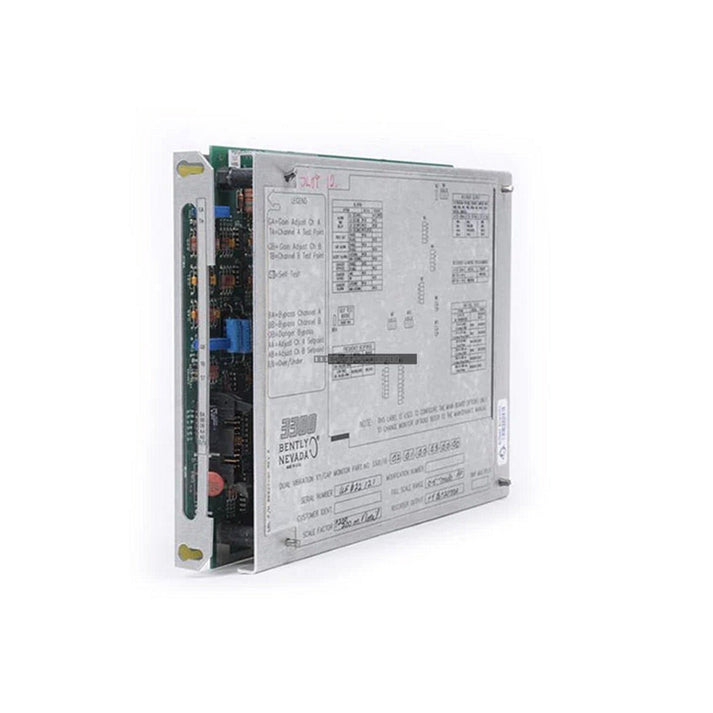

The Bently Nevada 3300/55 Dual Velocity Monitor is a rack-mounted module within the 3300 Series monitoring system, engineered to provide continuous casing vibration velocity measurements. Utilizing Velomitor piezo-velocity sensors, this module is specifically configured for critical turbomachinery protection, ensuring reliable monitoring of vibration levels and precise alarm coordination.

Features

• Dual-channel independent velocity measurement.
• Compatible with Velomitor piezo-velocity sensors.
• Proportional 4-20 mA outputs for integration with external control systems.
• Integrated relay logic for Alert and Danger alarm conditions.

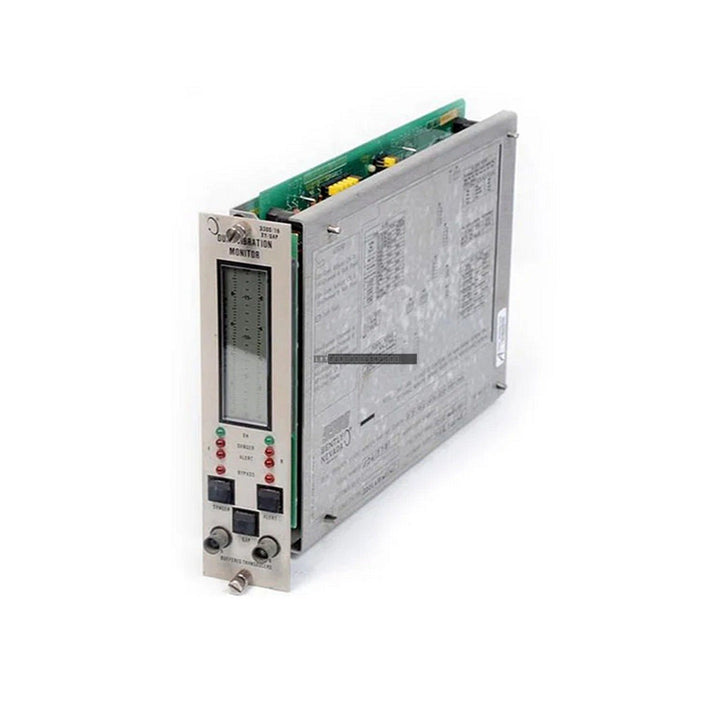

• Front-panel LED indicators for system status, including OK, Bypass, Alert, and Danger.
• Enhanced input scaling and diagnostic capabilities.

Applications

This module is designed for use in industrial environments requiring high-reliability vibration monitoring, such as steam turbines, gas turbines, centrifugal compressors, and large pumps. It provides the necessary signal processing to detect machinery degradation and trigger protective actions before critical failures occur.

Technical Specifications

Installation Guidelines

• Ensure the 3300 Series rack is properly grounded according to site safety protocols.
• Handle the module using ESD-safe procedures to prevent damage to internal electronic components.
• Verify that the module is fully seated in the rack slot before applying power.
• Use shielded cabling for sensor inputs to minimize EMI/RFI interference.
• Always power down the rack or follow hot-swap procedures (if supported by the specific system revision) before inserting or removing the module.
• Ensure ventilation clearances are maintained around the rack to prevent overheating.

FAQ

What is the primary function of the 3300/55 module?

The module is designed to monitor casing vibration velocity in critical rotating machinery using two independent channels, providing both local alarm status and proportional 4-20 mA signals for external monitoring systems.

Is this module compatible with standard Velomitor sensors?

Yes, the 3300/55-01-04-12-12-00-00-05-00 configuration is specifically designed to interface with Velomitor piezo-velocity sensors.

What do the LED indicators on the front panel represent?

The LEDs provide visual confirmation of the module's health and alarm status, specifically indicating OK (system health), Bypass, Alert, and Danger conditions.
