Description

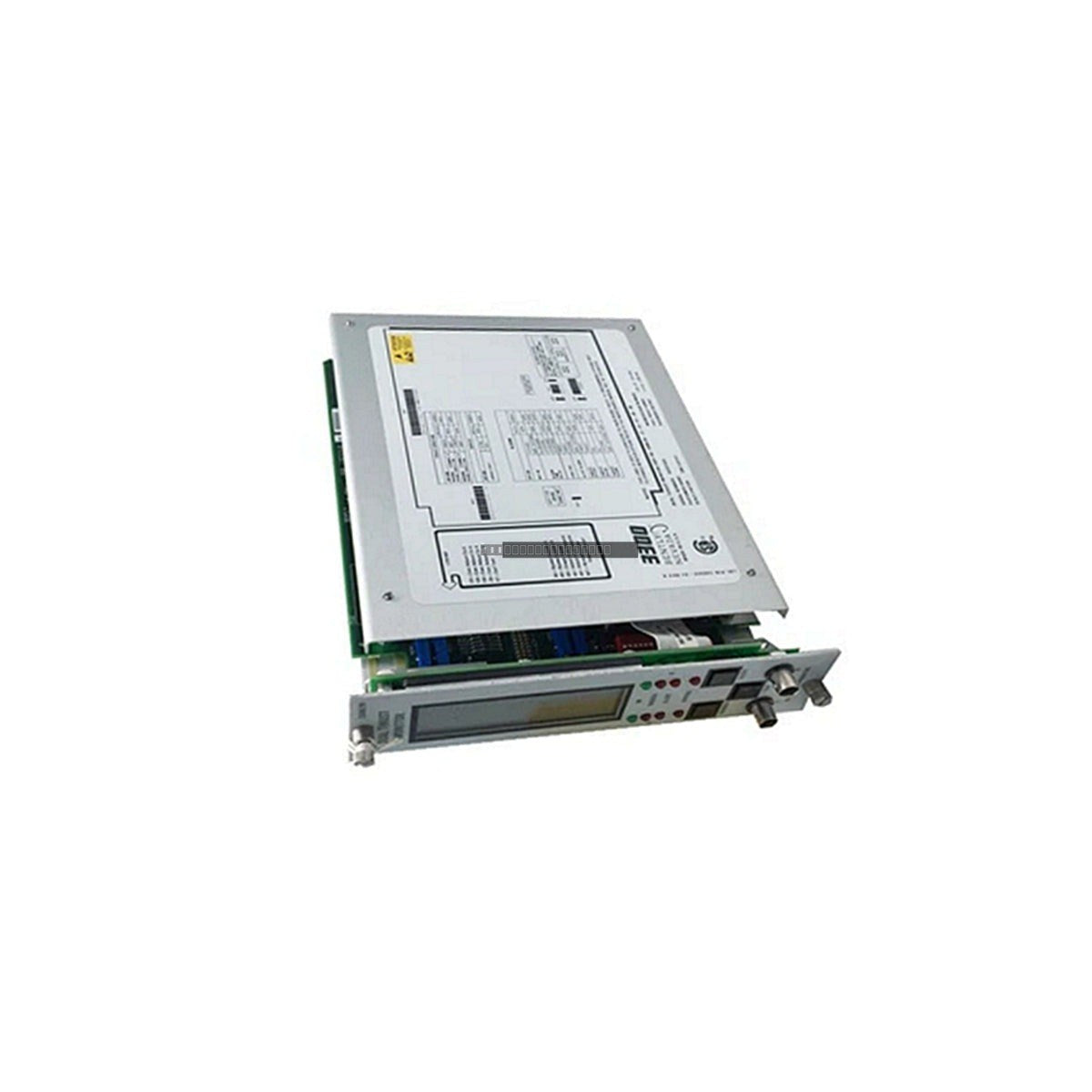

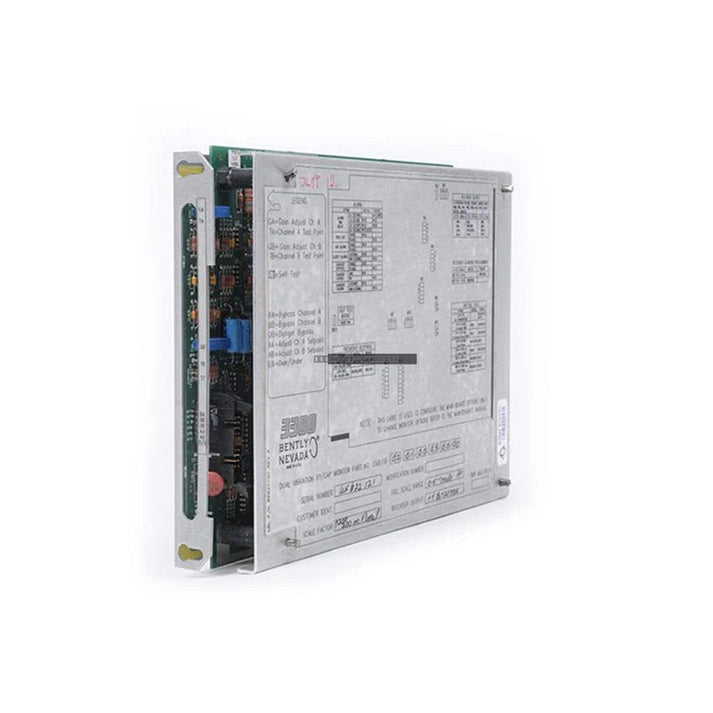

The Bently Nevada 3300/55-01-04-02-02-03-00-05-00 is a specialized Dual Velocity Monitor module engineered for the 3300 series rack-based monitoring system. This module provides two independent channels for measuring casing vibration velocity, specifically optimized for integration with Velomitor piezo-velocity sensors. It serves a critical role in machinery protection by continuously monitoring vibration levels and triggering relay outputs when pre-defined Alert or Danger setpoints are exceeded.

Features

• Dual-channel architecture for independent monitoring of two vibration points.
• Direct compatibility with Velomitor piezo-velocity transducers.
• Integrated Alert and Danger relay logic for automated machinery protection.
• Proportional 4-20 mA outputs for integration with external DCS or PLC systems.

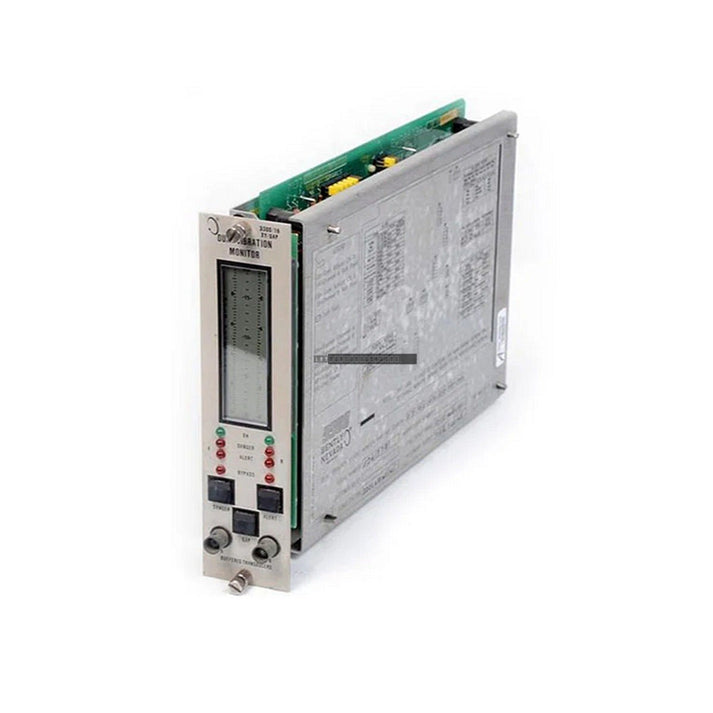

• Front-panel LED indicators providing real-time status for OK, Bypass, Alert, and Danger conditions.
• Designed for integration with intrinsic safety barriers for hazardous area applications.

Technical Specifications

Installation Guidelines

• Ensure the 3300 rack is properly grounded before inserting the module to prevent electrostatic discharge (ESD) damage.
• Verify that all field wiring is routed according to site-specific hazardous area requirements, especially when using intrinsic safety barriers.
• Power down the rack slot before hot-swapping or installing the module to prevent electrical faults.
• Use shielded twisted-pair cabling for transducer inputs to minimize EMI interference in industrial environments.
• Ensure adequate airflow within the cabinet to maintain the operating temperature between 0 and 60 degC.

FAQ

What does the 3300/55-01-04-02-02-03-00-05-00 configuration represent?

This specific part number includes the base 3300/55 monitor with dual velocity channels, agency approval for safety compliance, Velomitor sensor input compatibility, dual relay outputs, intrinsic safety barrier configuration, and standard scaling/output options.

Is this module compatible with other Bently Nevada systems?

This module is specifically designed for the 3300 series rack system. It is not interchangeable with 3500 or 7200 series monitoring equipment.

What is the primary function of the relay outputs?

The relays are typically utilized to trigger automated shutdowns or alarms in the event that vibration levels exceed the configured Alert or Danger thresholds, protecting rotating machinery from damage.
