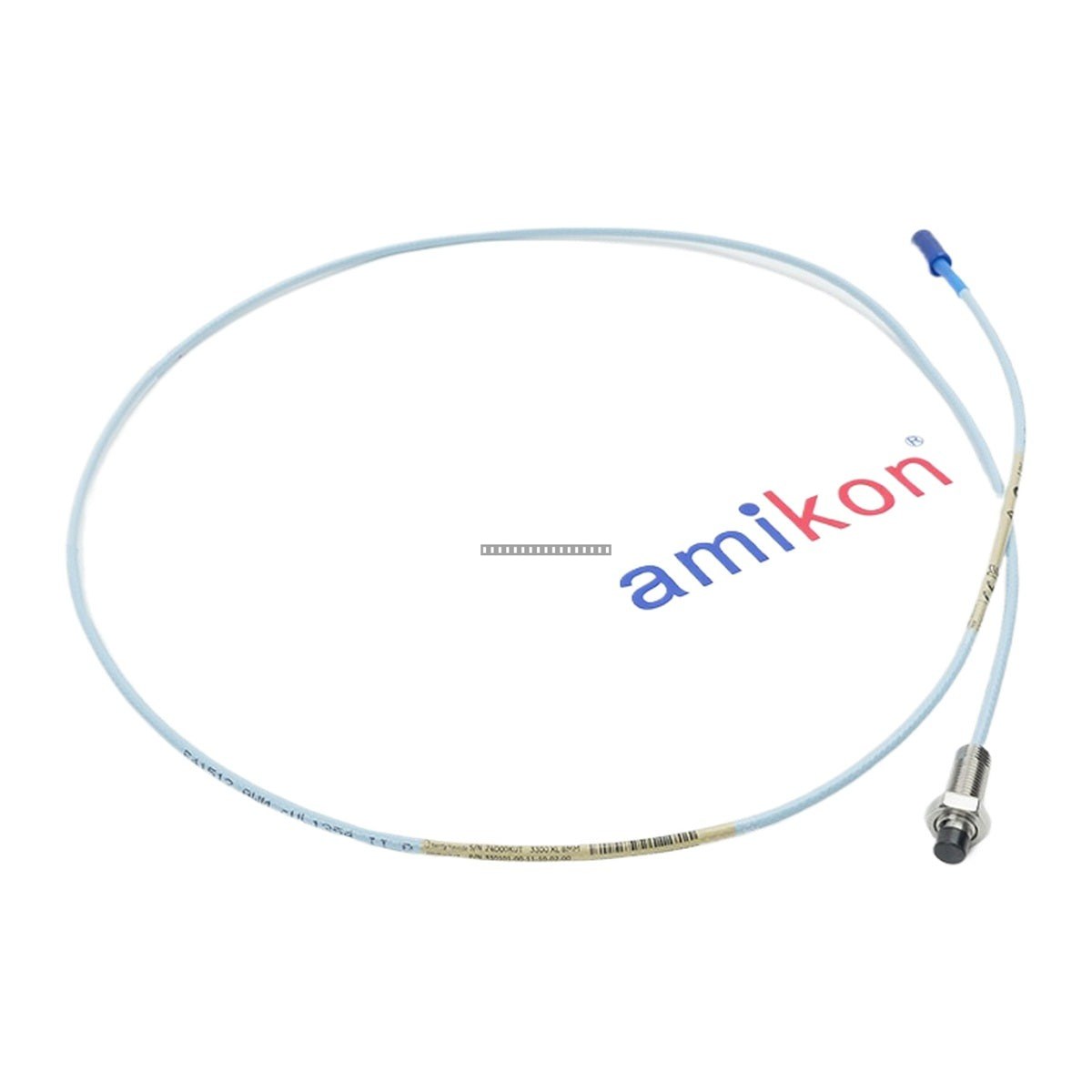

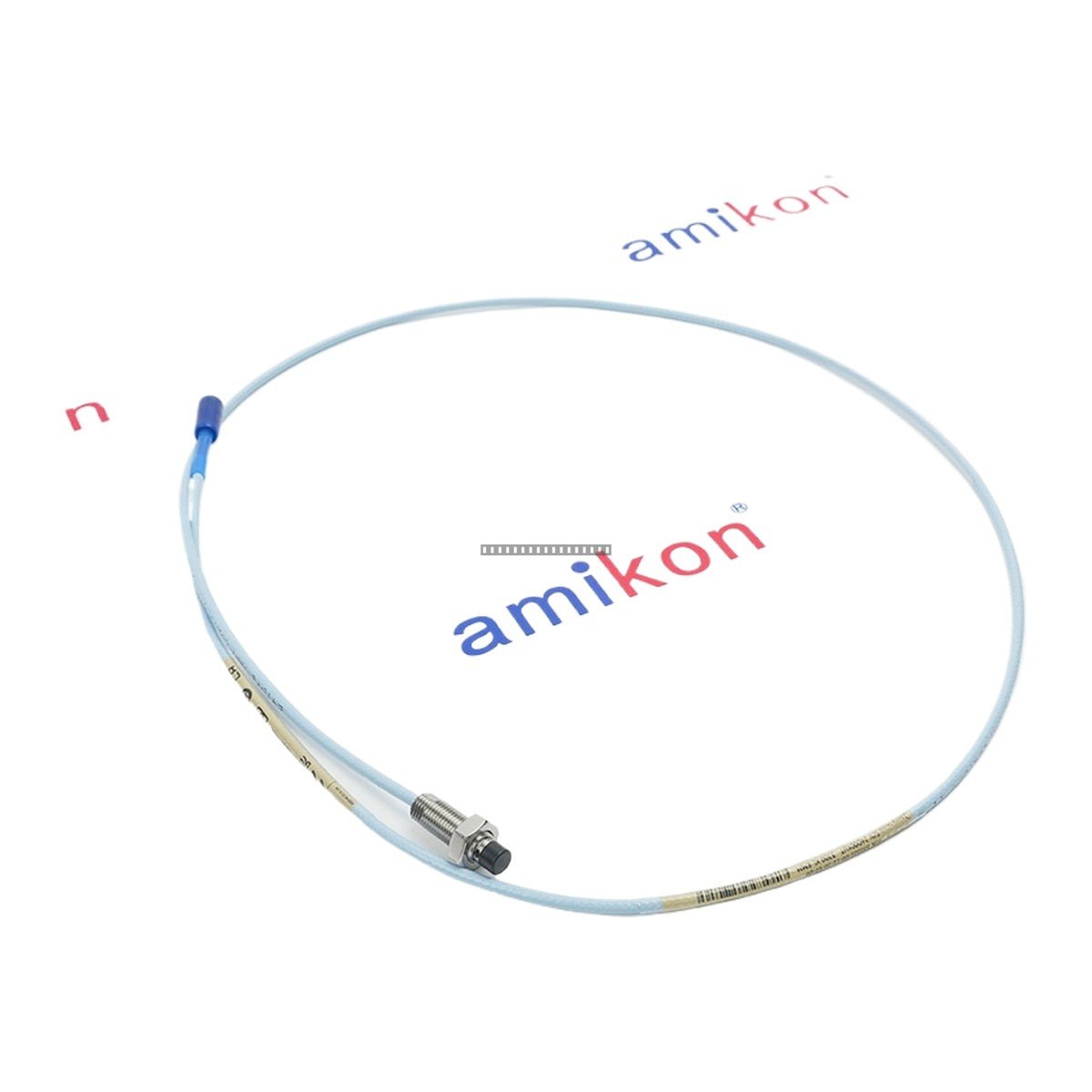

Bently Nevada 330101-00-11-10-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-11-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-11-10-02-00 is a high-performance 3300 XL 8 mm proximity probe designed for use within eddy current transducer systems. This probe provides precise measurement of static and dynamic...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 330101-00-11-10-02-00
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330101-00-11-10-02-00 is a high-performance 3300 XL 8 mm proximity probe designed for use within eddy current transducer systems. This probe provides precise measurement of static and dynamic displacement, making it an essential component for monitoring shaft vibration and position in critical rotating machinery.

Features

  • Designed for the 3300 XL 8 mm transducer system, ensuring advanced performance and signal integrity.
  • Fully compliant with API 670 standards for mechanical configuration, linear range, and accuracy.
  • Complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
  • Equipped with a miniature coaxial ClickLoc connector for reliable signal transmission.
  • Standard cable configuration for versatile installation.

Applications

  • Vibration and position monitoring for fluid-film bearing machines.
  • Keyphasor reference and speed measurement applications.
  • Centrifugal and reciprocating compressor monitoring in oil and gas facilities.
  • Steam turbine and generator bearing vibration analysis in power generation plants.
  • Monitoring of high-speed fans, pumps, and large industrial gearboxes.

Technical Specifications

Model Number 330101-00-11-10-02-00
Probe Series 3300 XL 8 mm
Thread Size 3/8-24 UNF
Total Length 1.0 meter (3.3 feet)
Minimum Case Length 1.1 inches
Unthreaded Length 0.0 inches
Connector Type Miniature coaxial ClickLoc
Armor None
Target Material AISI 4140 Steel (Standard)

Installation Guidelines

  • Ensure the probe is mounted securely to prevent mechanical resonance.
  • The unthreaded length should be at least 0.8 inches less than the total case length to ensure proper seating.
  • Handle with care to avoid damage to the probe tip and the pressure seal.
  • Avoid exposing the probe to temperatures below -34 degC (-30 degF) to maintain the integrity of the pressure seal.
  • Ensure all connections are clean and properly tightened to maintain signal accuracy.

FAQ

What is the primary purpose of the 330101-00-11-10-02-00 probe?

This probe is used to measure the distance between the probe tip and a conductive surface, providing data on shaft position (static) and vibration (dynamic) for rotating machinery.

Is this probe compatible with other 3300 XL components?

Yes, the 3300 XL system is designed for complete interchangeability, allowing you to replace probes, extension cables, or Proximitor sensors without requiring individual system recalibration.

What target material is required for these specifications?

These performance specifications are based on an AISI 4140 steel target. Using different metals may alter the scale factor and overall measurement accuracy.
