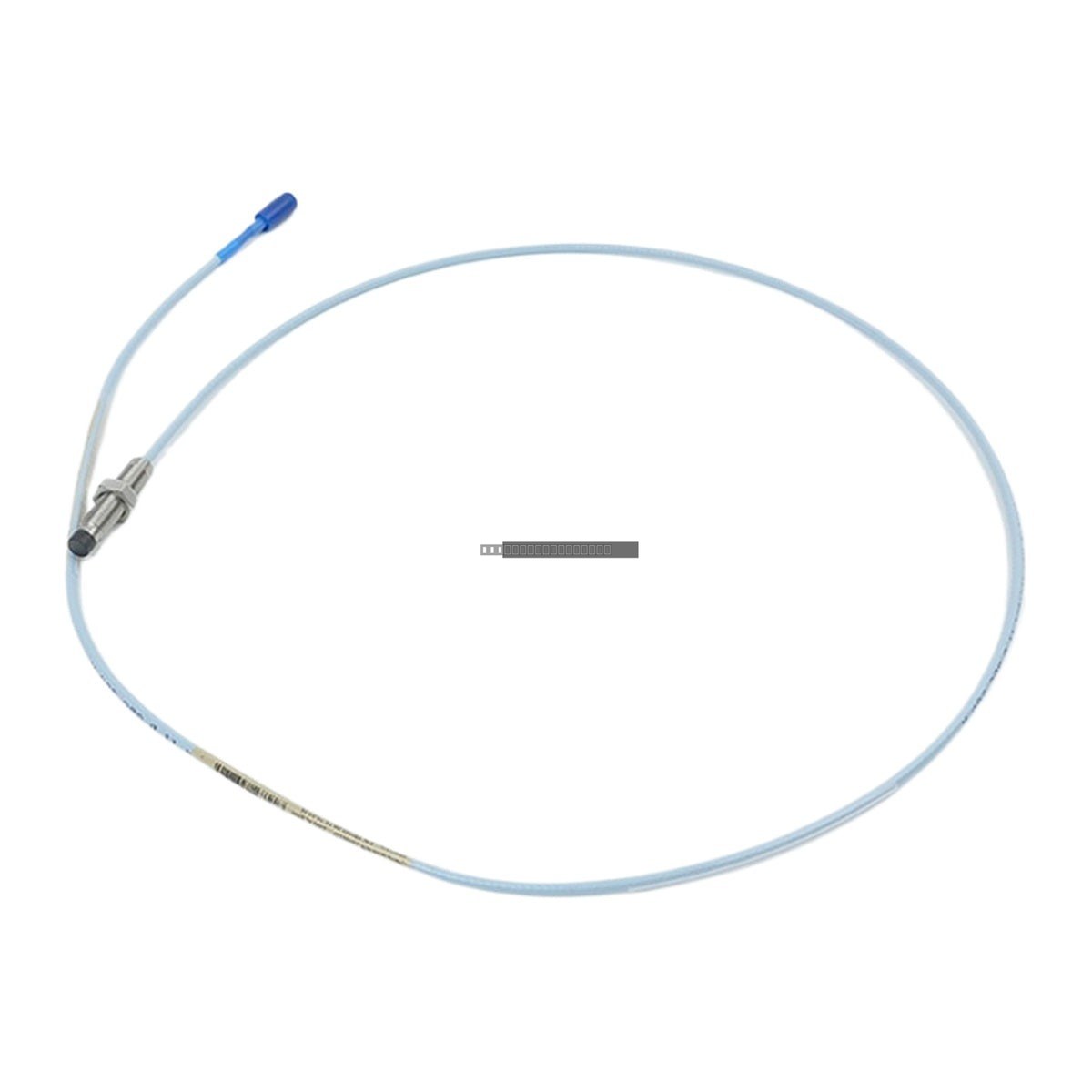

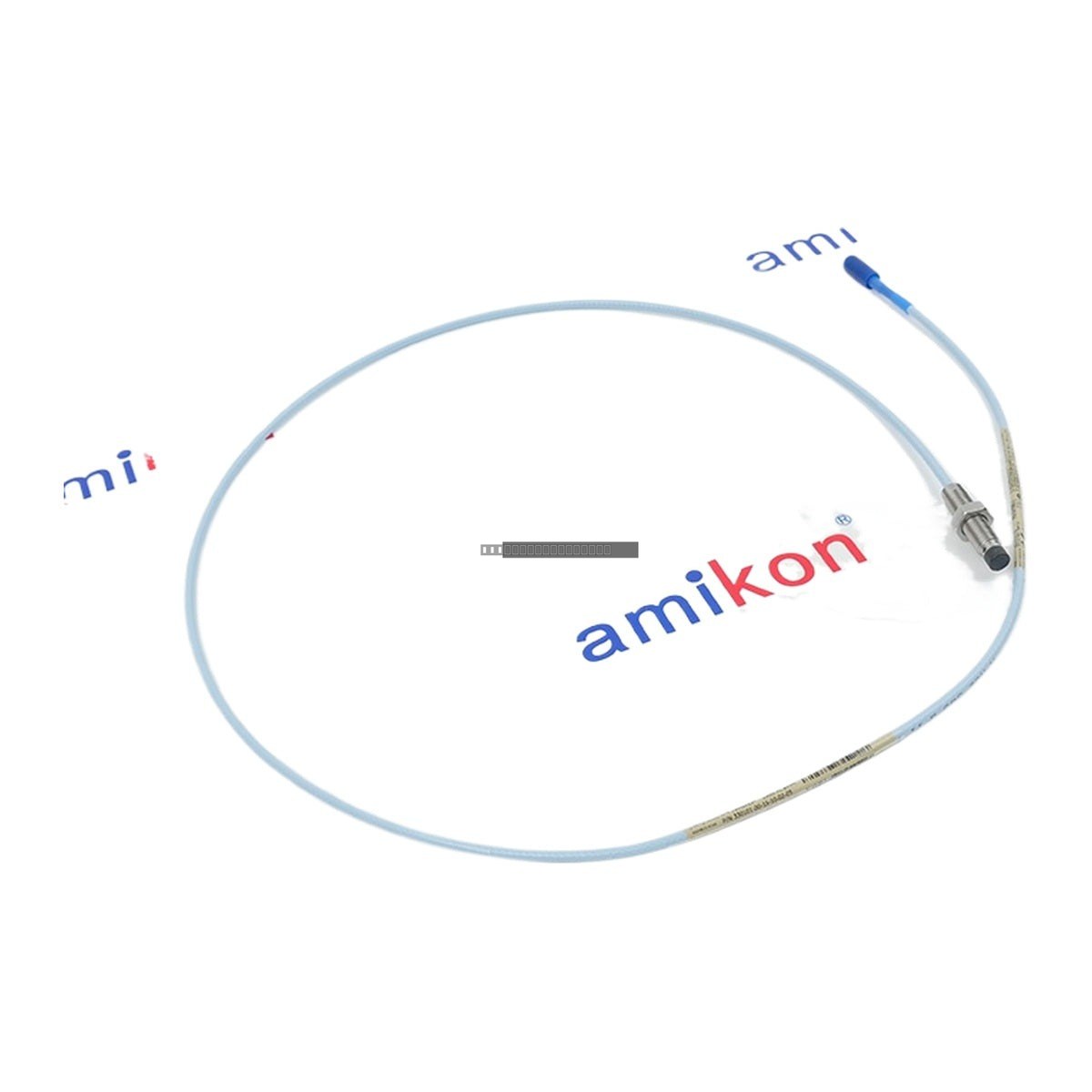

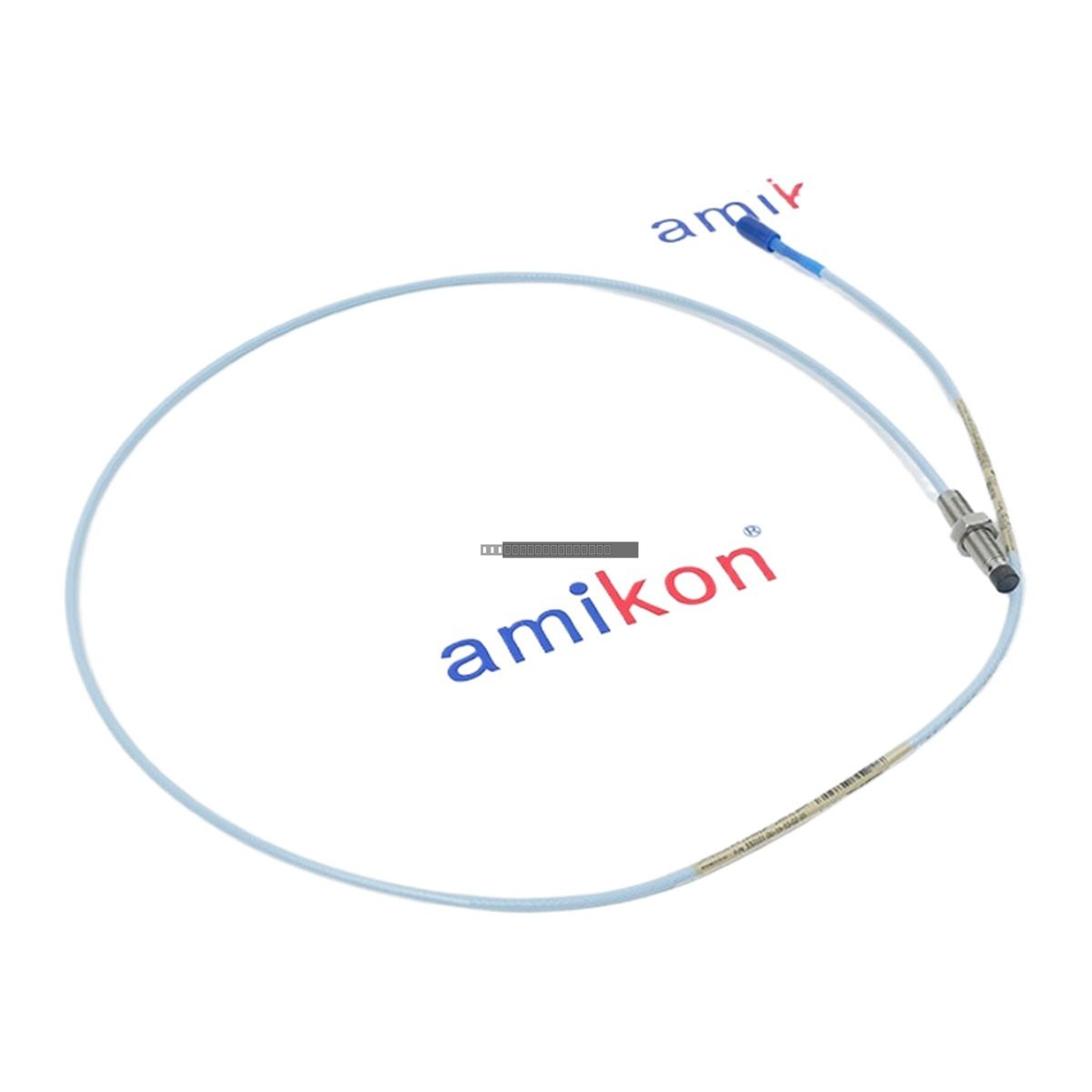

Bently Nevada 330101-00-15-10-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-15-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-15-10-02-05 is a high-precision 3300 XL 8 mm proximity probe engineered for non-contact measurement of shaft vibration, position, and eccentricity in industrial rotating machinery. As a core...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: 330101-00-15-10-02-05
Proveedora: Bently Nevada
tipo: Vibration Monitor Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330101-00-15-10-02-05 is a high-precision 3300 XL 8 mm proximity probe engineered for non-contact measurement of shaft vibration, position, and eccentricity in industrial rotating machinery. As a core component of the 3300 XL transducer system, this probe utilizes eddy-current technology to provide reliable, continuous monitoring of shaft motion, supporting critical machinery protection and diagnostic functions.

Features

  • Eddy-Current Sensing: Provides accurate, non-contact measurement of dynamic (vibration) and static (position) parameters.
  • Robust Construction: Features a 3/8-24 UNF threaded body with a 1.5-inch case length and a 1.0-meter integrated cable.
  • Advanced Design: Incorporates TipLoc and CableLoc technologies to ensure a secure, durable bond between the probe tip, body, and cable.
  • Interchangeability: Fully compatible with other 3300 XL series components and backward compatible with non-XL 3300 series 5 mm and 8 mm systems.
  • System Integration: Designed for use with 3300 XL Proximitor sensors and extension cables to form a complete, calibrated transducer loop.

Applications

  • Gas & Steam Turbines: Monitoring shaft vibration, thrust, and differential expansion.
  • Centrifugal Compressors: High-speed monitoring for refinery and pipeline operations.
  • Hydroelectric Generators: Tracking rotor movement and vibration.
  • Industrial Pumps & Motors: Detecting mechanical seal or bearing wear in critical process equipment.
  • Gearboxes: Monitoring shaft alignment and vibration in heavy-duty drive trains.

Technical Specifications

Model 330101-00-15-10-02-05
Probe Type 3300 XL 8 mm Proximity Probe
Thread Size 3/8-24 UNF
Case Length 1.5 inches (38.1 mm)
Cable Length 1.0 meter (3.3 feet)
Connector Miniature coaxial ClickLoc
Armor None
Linear Range 0.25 to 2.3 mm (10 to 90 mils)
Target Material AISI 4140 Steel (default calibration)

Installation Guidelines

  • Handling: Ensure the probe tip is protected from impact. Use ESD-safe practices during installation.
  • Mounting: Maintain a minimum side-view clearance (counterbore) of 13 mm (0.5 in) to prevent interference from housing walls.
  • Gap Setting: For radial vibration, set the initial gap to 1.27 mm (50 mils), corresponding to approximately -9 Vdc.
  • Connections: Use finger-tight torque for ClickLoc connectors; do not over-tighten with tools.
  • Environment: Ensure the installation area is free from excessive metallic debris that could interfere with the eddy-current field.

FAQ

What is the primary function of this probe?

It measures the displacement and vibration of rotating shafts, providing essential data for machinery health monitoring and protection systems.

Is this probe compatible with older 3300 series systems?

Yes, the 3300 XL series is designed to be electrically and physically interchangeable with non-XL 3300 series 5 mm and 8 mm transducer components.

What is the standard operating gap voltage?

When properly installed within its linear range, the probe typically operates at a DC gap voltage between -9 V and -11 V.
