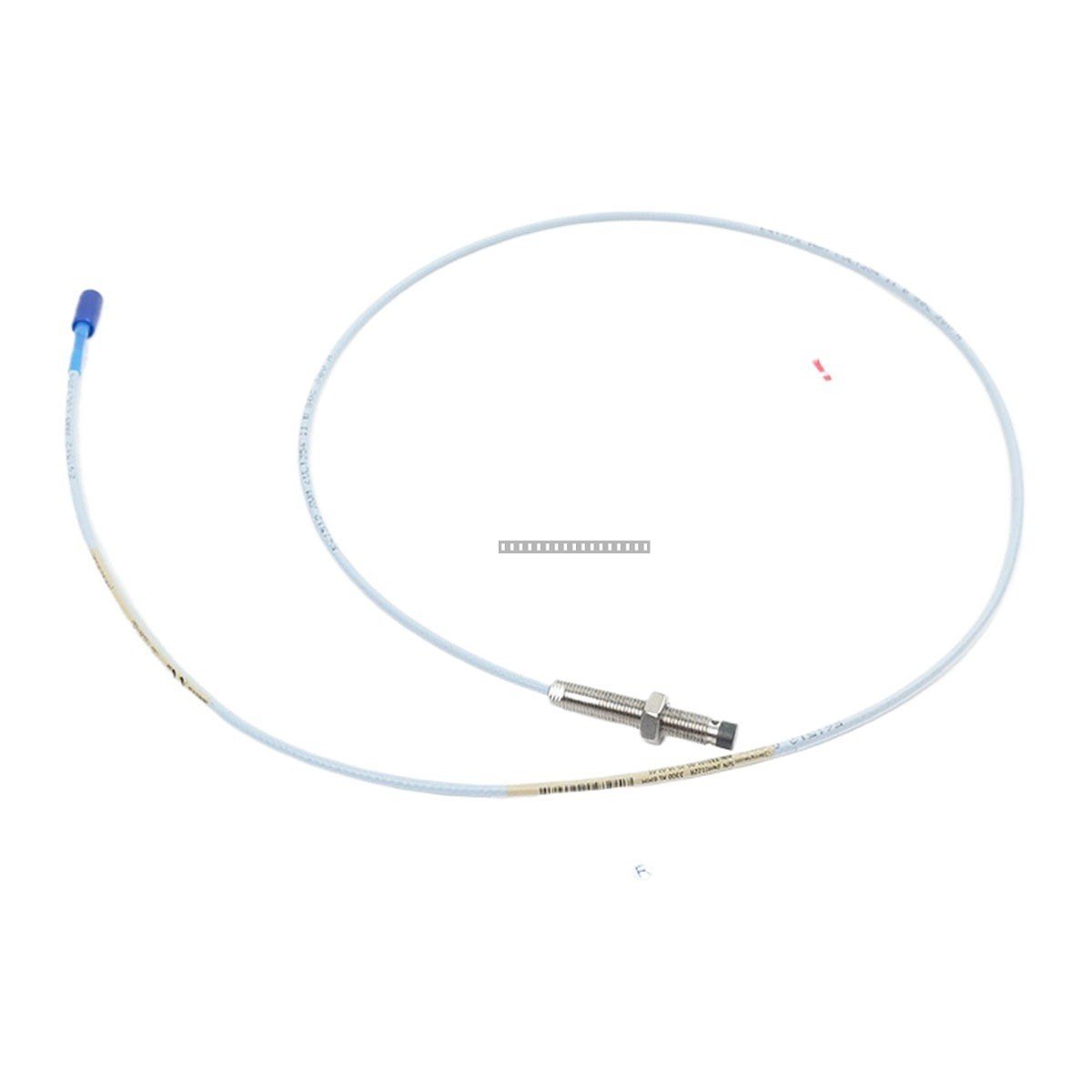

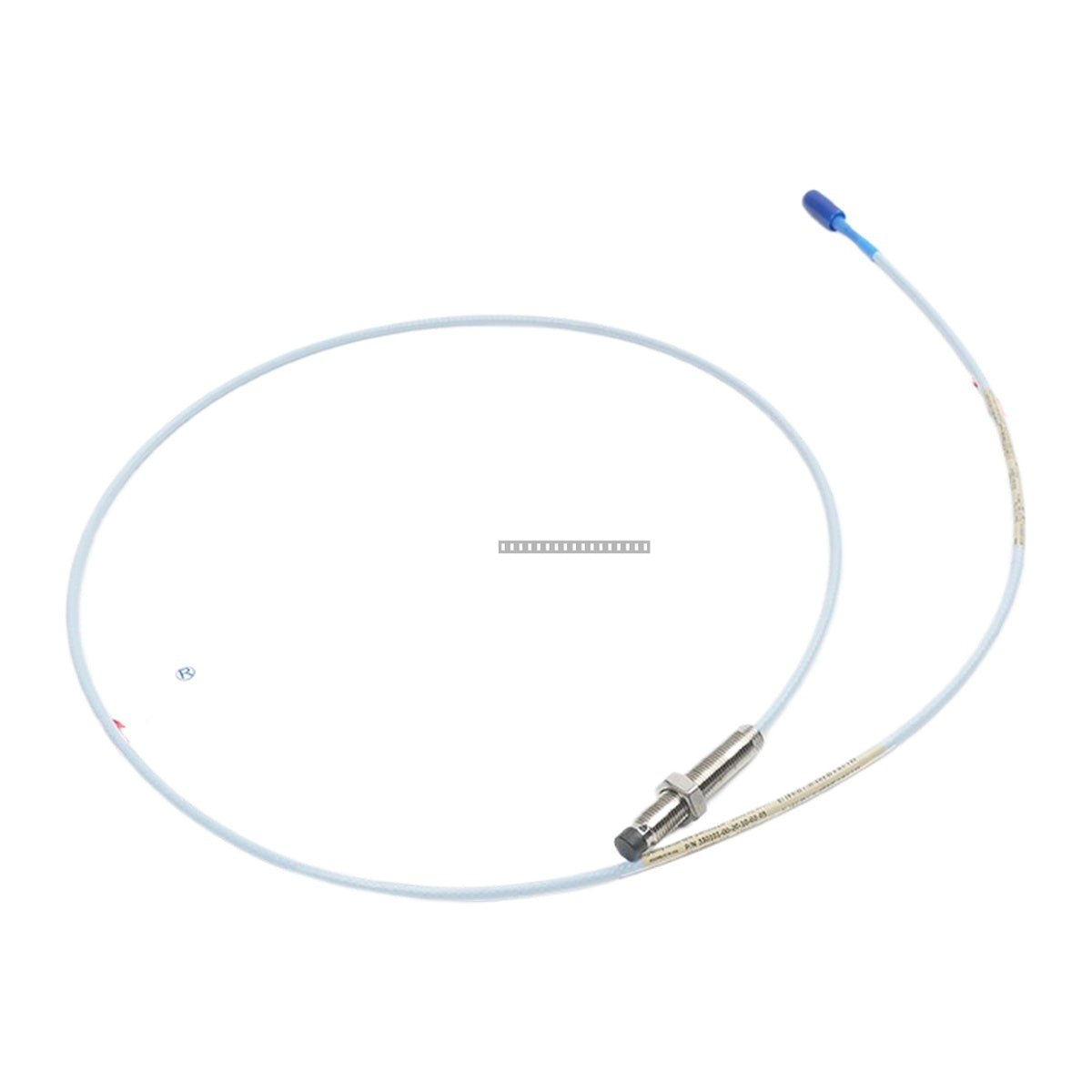

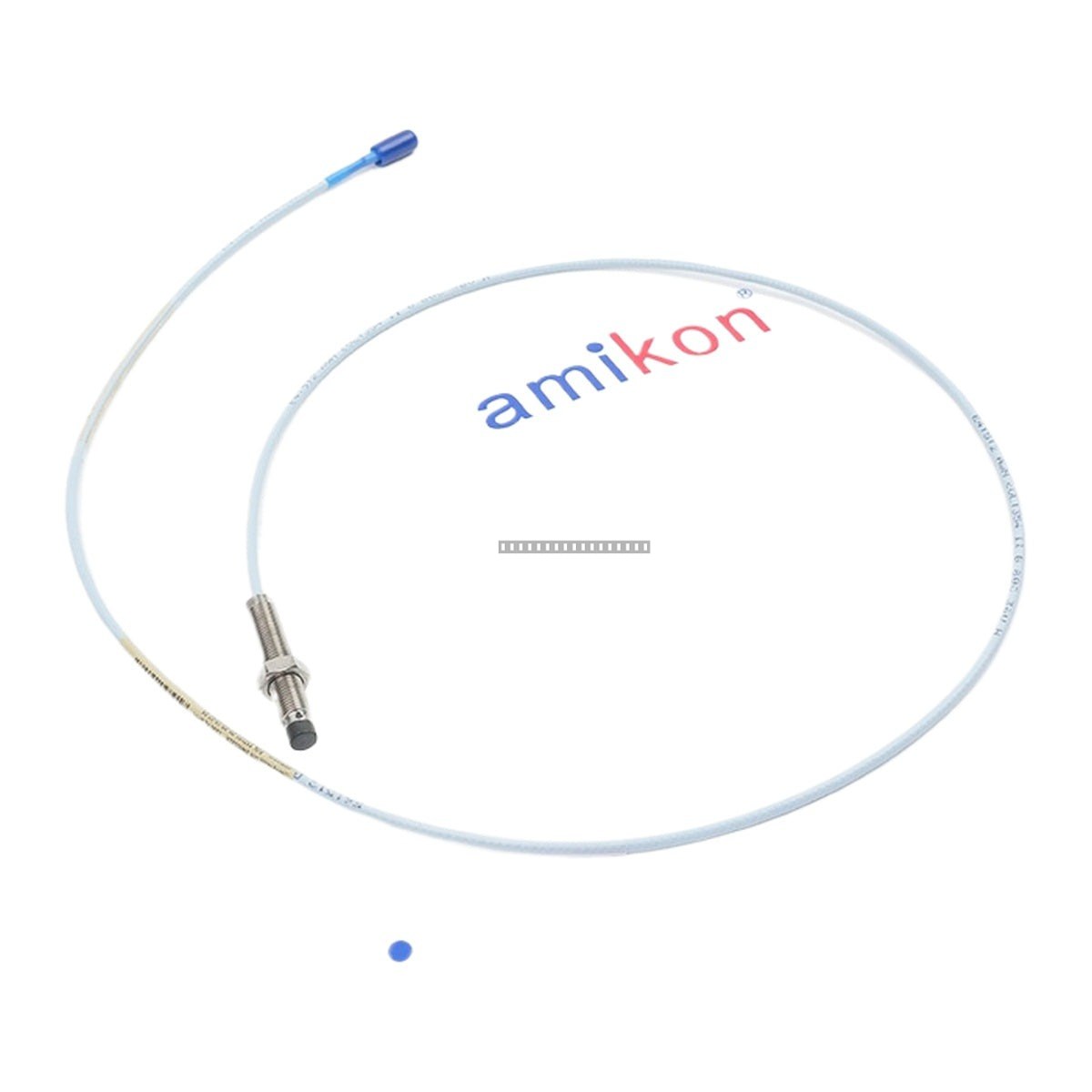

Bently Nevada 330101-00-20-10-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-20-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-20-10-02-05 is a high-performance 3300 XL 8 mm proximity probe designed for use in critical machinery protection applications. As part of the 3300 XL transducer system, this...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 330101-00-20-10-02-05
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330101-00-20-10-02-05 is a high-performance 3300 XL 8 mm proximity probe designed for use in critical machinery protection applications. As part of the 3300 XL transducer system, this probe provides accurate, reliable measurement of vibration and position data for fluid-film bearing machines, including turbines, compressors, and pumps.

Features

  • System Compatibility: Fully compatible with the Bently Nevada 3300 XL Proximity Transducer System.
  • Interchangeability: Designed for complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component bench calibration.
  • Robust Design: Features a 3/8-24 UNF thread and a 2.0-inch case length, built to withstand demanding industrial environments.
  • ClickLoc Connector: Equipped with a miniature coaxial ClickLoc connector for secure, reliable signal transmission.
  • Agency Approvals: Includes CSA, ATEX, and IECEx certifications for hazardous area compliance.

Applications

  • Power Generation: Monitoring shaft vibration and position in steam, gas, and hydro turbines.
  • Process Industry: Vibration tracking for centrifugal and process gas compressors in refineries and chemical plants.
  • Rotating Equipment: Essential for monitoring high-criticality pumps, fans, and high-speed gearboxes.

Technical Specifications

Model Number 330101-00-20-10-02-05
Probe Diameter 8 mm
Thread Size 3/8-24 UNF
Case Length 2.0 inches
Unthreaded Length 0.0 inches
Total Length 1.0 meter
Connector Type Miniature coaxial ClickLoc
Approvals CSA, ATEX, IECEx

Installation Guidelines

  • Connection: Join the probe lead to the extension cable by pushing and turning the connector until a tactile "click" is felt, ensuring a secure lock.
  • Environmental Protection: Always apply the provided silicone tape to the connector interface to prevent environmental contamination and loosening due to machine vibration.
  • System Matching: Ensure the total system length (probe plus extension cable) matches the calibration requirements of the Proximitor sensor.
  • Handling: Handle with care to avoid damage to the probe tip or connector pins. Ensure the system is powered down before disconnecting or connecting components.

FAQ

What is the primary function of the 330101-00-20-10-02-05?

This probe is used to measure static and dynamic vibration and position data on rotating machinery, serving as a critical component in the 3300 XL eddy-current transducer system.

Does this probe require bench calibration?

No, the 3300 XL 8 mm system is designed for complete interchangeability, allowing components to be replaced without the need for individual bench calibration.

What does the -05 suffix indicate?

The -05 suffix indicates that the unit is configured with CSA, ATEX, and IECEx agency approvals for use in hazardous locations.
