• Bently Nevada 330101-00-43-15-02-CN
  • Bently Nevada 330101-00-43-15-02-CN
  • Bently Nevada 330101-00-43-15-02-CN
1 3

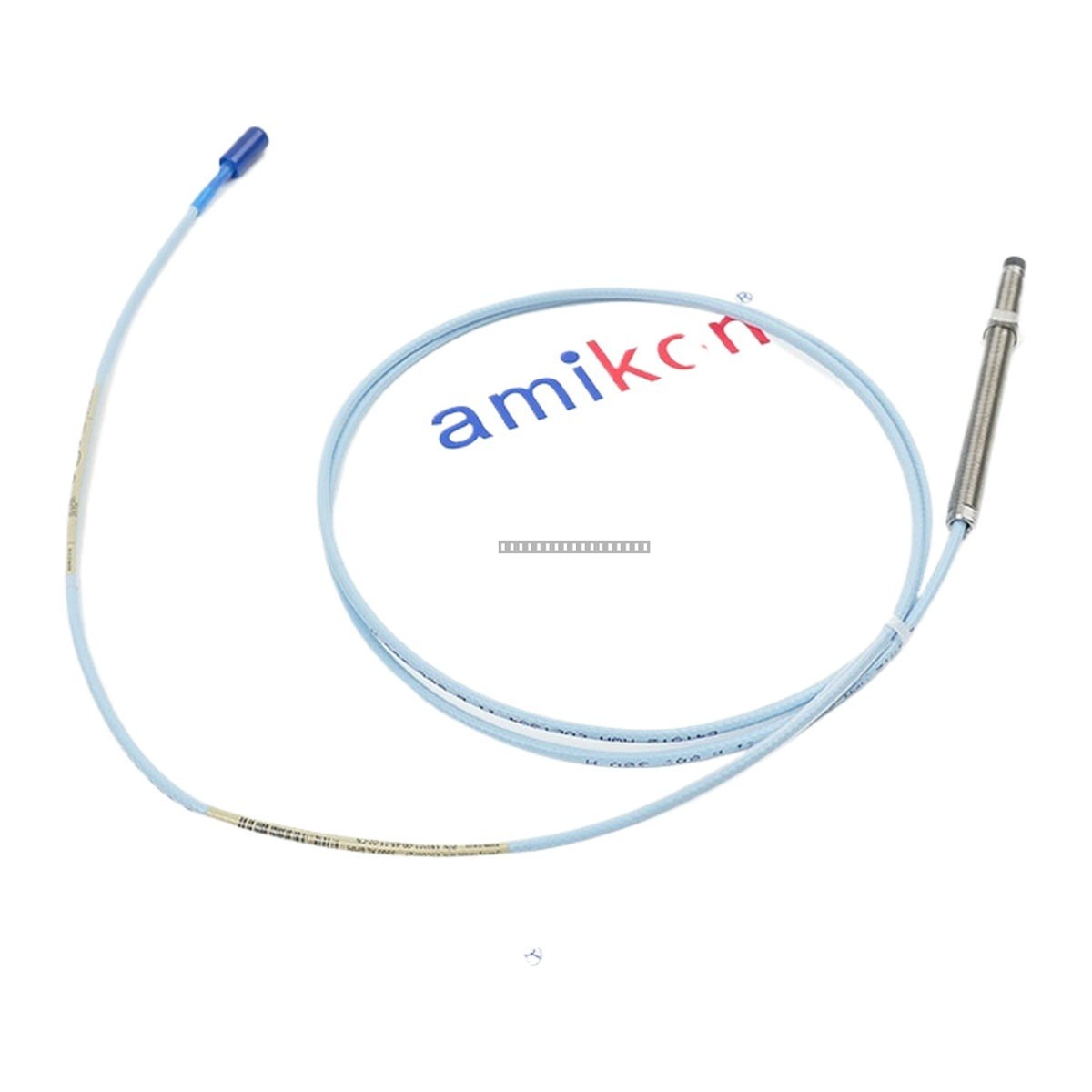

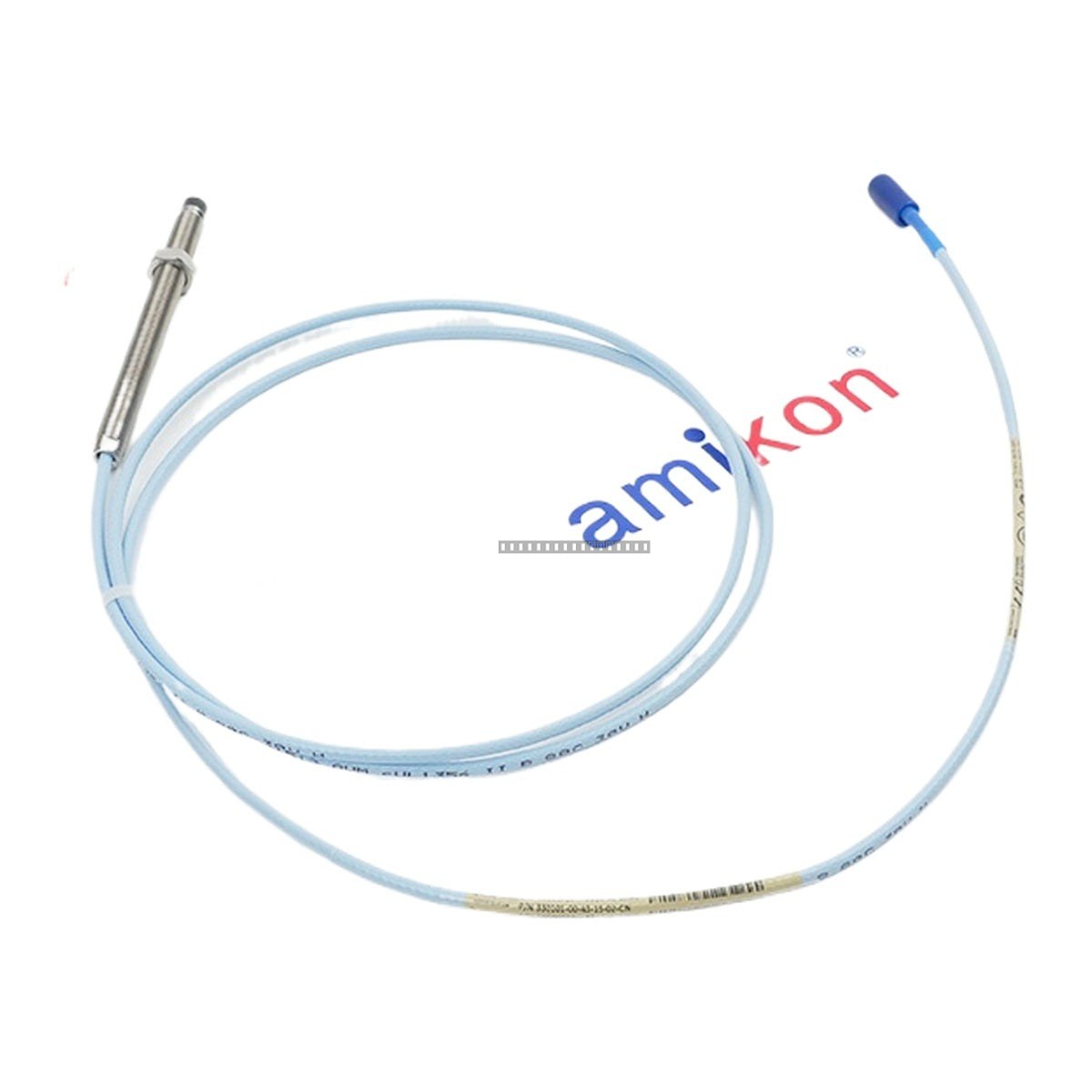

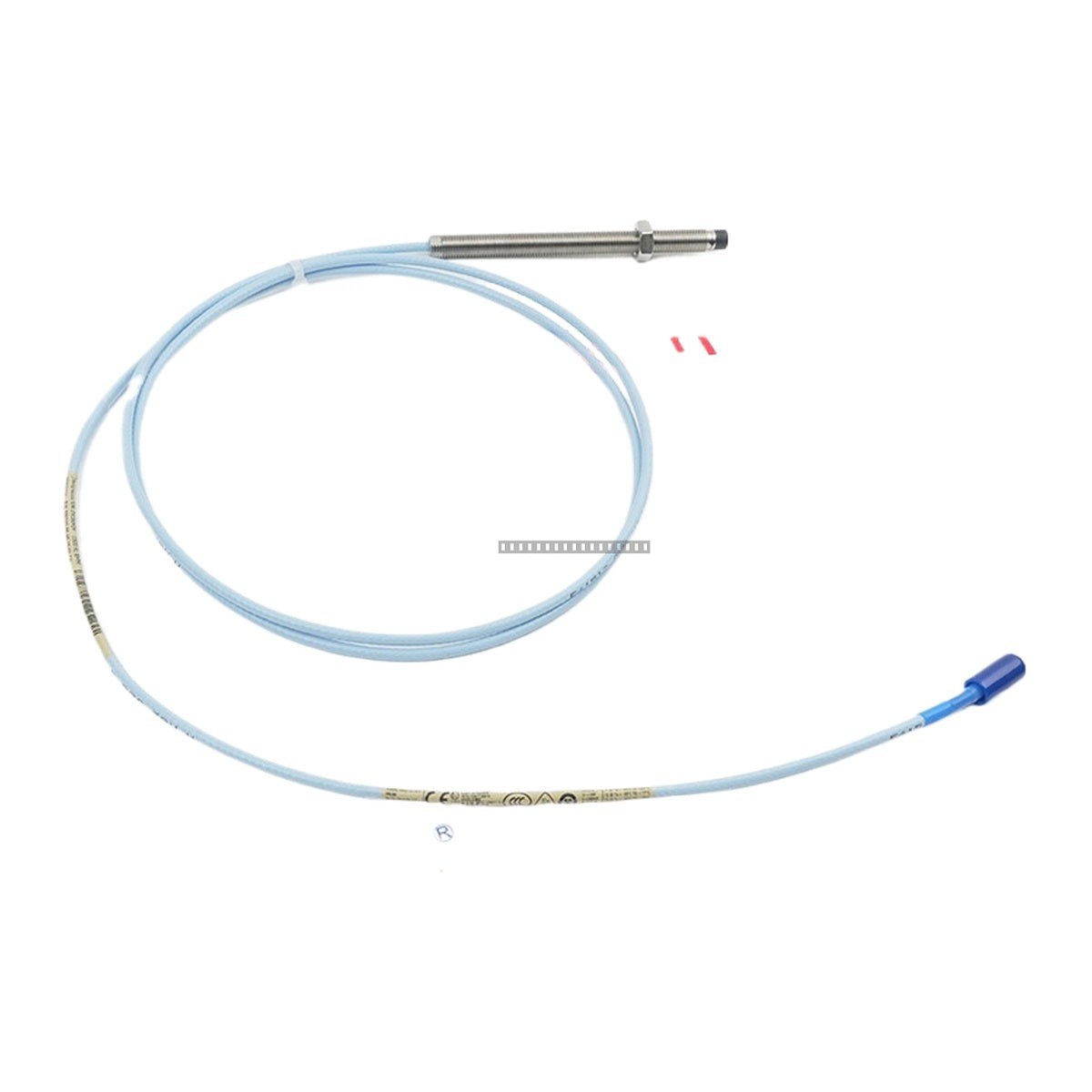

Bently Nevada 330101-00-43-15-02-CN 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-43-15-02-CN 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-43-15-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for non-contact vibration and position monitoring in industrial rotating machinery. As part of the 3300 XL...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 330101-00-43-15-02-CN
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330101-00-43-15-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for non-contact vibration and position monitoring in industrial rotating machinery. As part of the 3300 XL transducer system, this probe utilizes eddy current technology to provide precise measurements of shaft displacement, vibration, and eccentricity.

Features

  • Advanced eddy current proximity transducer system performance.
  • Complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
  • Complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
  • Miniature coaxial ClickLoc connector for secure and reliable signal transmission.
  • Designed for harsh industrial environments with robust construction.

Applications

  • Gas and Steam Turbines: Monitoring radial vibration and axial thrust to prevent rotor-stator contact.
  • Centrifugal and Axial Compressors: Ensuring shaft stability for process gas and air compressors.
  • Large Industrial Pumps: Monitoring boiler feed pumps and high-pressure fluid systems.
  • Electric Motors and Generators: Protecting large sleeve-bearing units in power generation.
  • Gearboxes: Monitoring shaft eccentricity and misalignment in high-speed gear systems.

Technical Specifications

Product Model 330101-00-43-15-02-CN
Probe Type 3300 XL 8 mm Proximity Probe
Thread Size 3/8-24 UNF
Unthreaded Length 0.0 in
Case Length 4.3 in
Cable Length 1.5 meter (4.9 feet)
Connector Type Miniature coaxial ClickLoc
Agency Approvals CSA, ATEX, IECEx
Manufacturer Bently Nevada

Installation Guidelines

  • Ensure the probe is mounted in a stable, vibration-resistant bracket to maintain accurate gap measurements.
  • Handle the probe tip with care to avoid physical damage or contamination, which can affect eddy current performance.
  • Use shielded coaxial cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Maintain the minimum permissible cable bend radius during installation to prevent damage to the internal conductors.
  • Always power down the associated Proximitor sensor before connecting or disconnecting the probe cable.
  • Verify proper grounding of the transducer system to ensure measurement integrity and safety.

FAQ

Is this product brand new?

Yes, the Bently Nevada 330101-00-43-15-02-CN is a brand new, original, and unused component.

What is the main function of this probe?

It measures shaft displacement and vibration, which is critical for predictive maintenance and protecting rotating machinery from catastrophic failure.

What is the operating principle?

The probe utilizes the eddy current (electromagnetic induction) principle to measure the distance between the probe tip and a conductive target surface.
