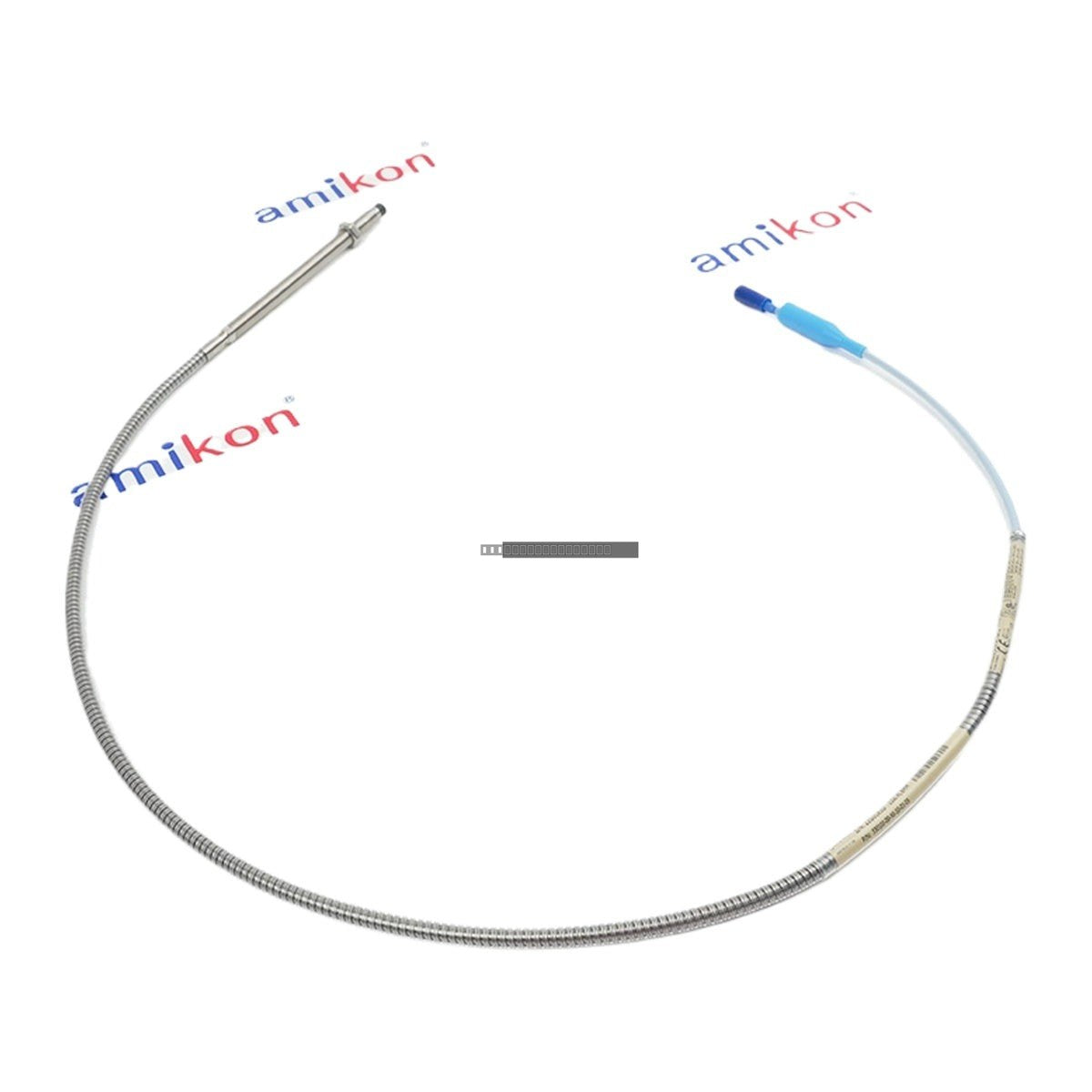

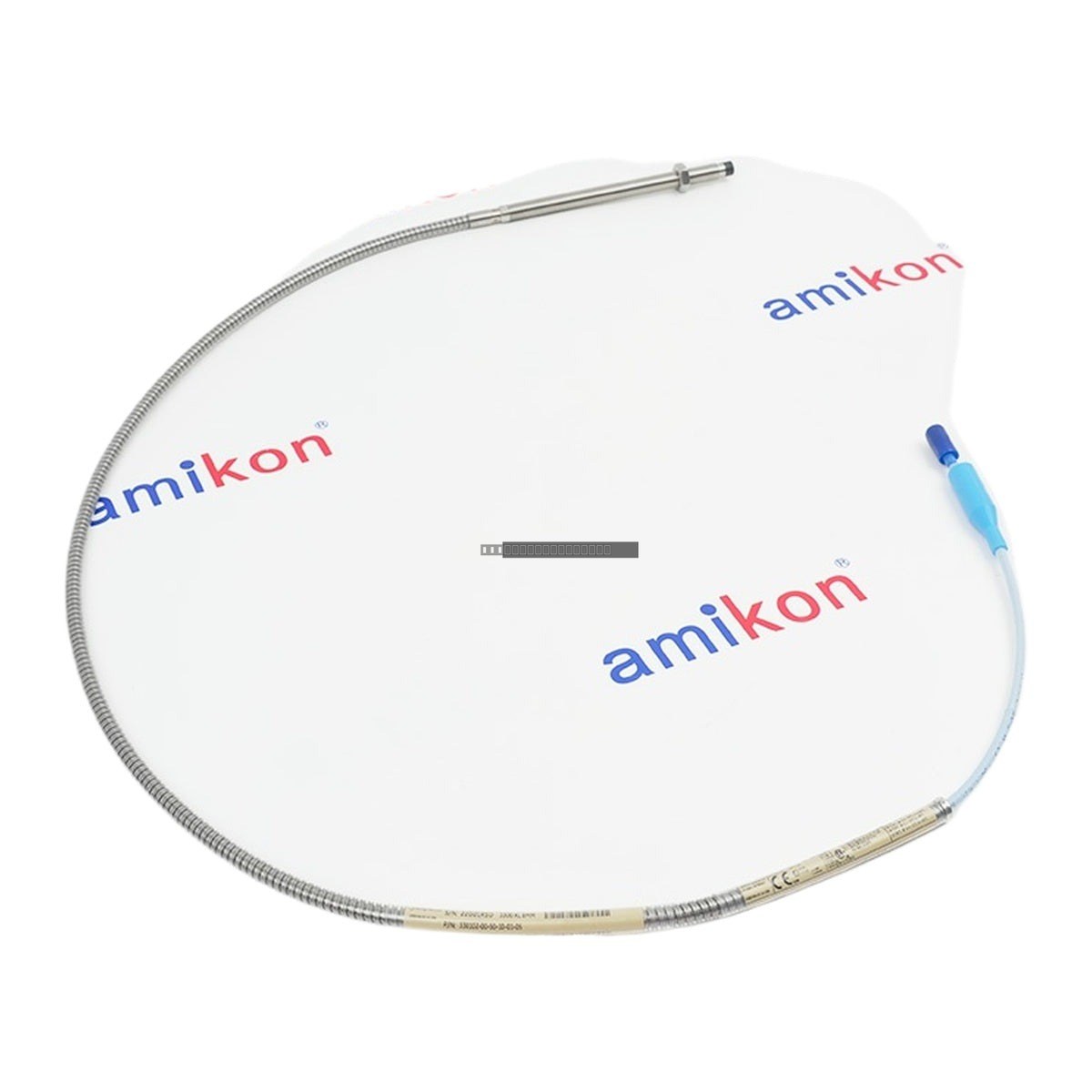

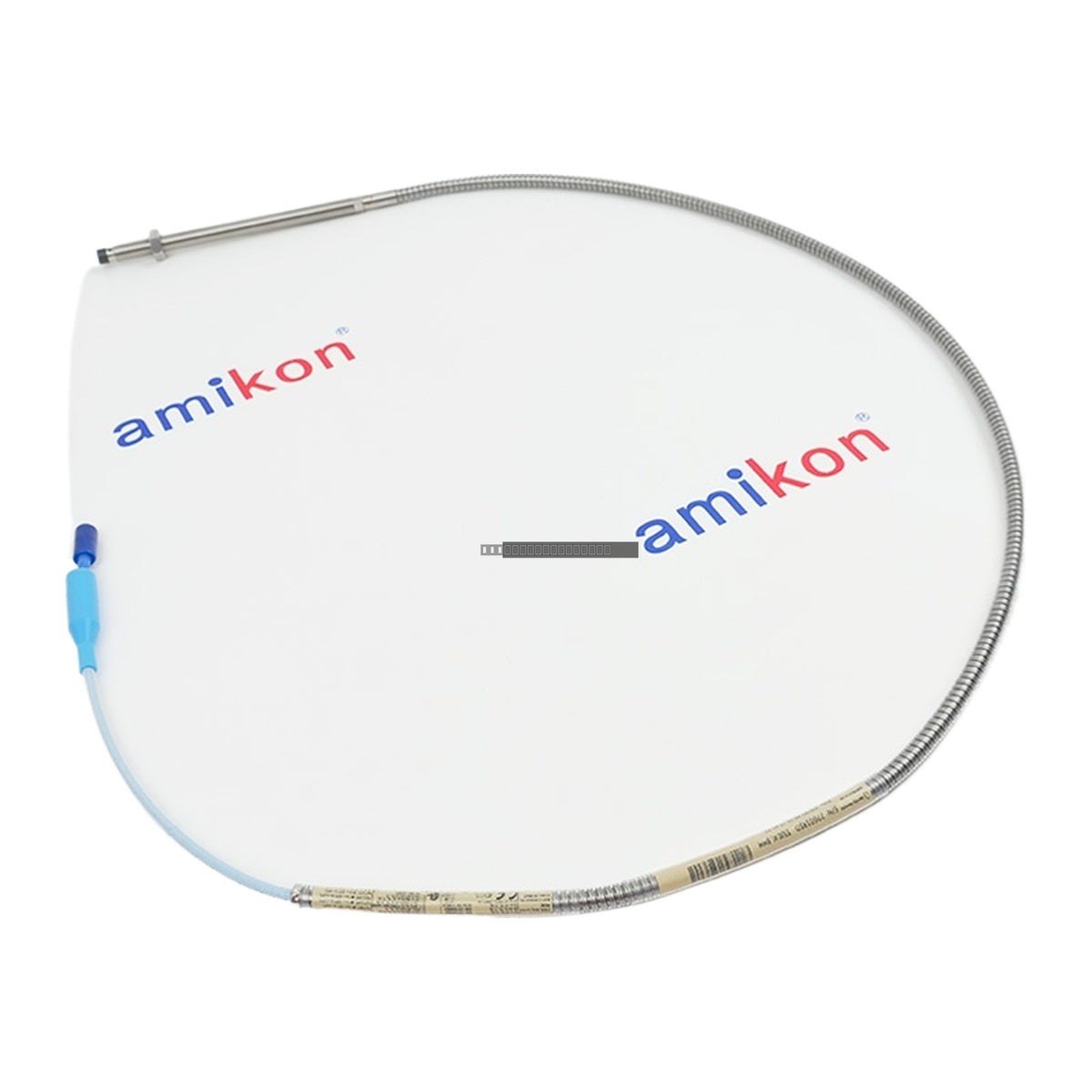

Bently Nevada 330102-00-50-10-01-05 3300 XL 8 mm Proximity Transducer

Bently Nevada 330102-00-50-10-01-05 3300 XL 8 mm Proximity Transducer

The Bently Nevada 330102-00-50-10-01-05 is a high-performance 3300 XL 8 mm proximity probe designed for critical machinery monitoring. As a core component of the 3300 XL transducer system, this probe...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 330102-00-50-10-01-05
Proveedora: Bently Nevada
tipo: Proximity Transducer
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330102-00-50-10-01-05 is a high-performance 3300 XL 8 mm proximity probe designed for critical machinery monitoring. As a core component of the 3300 XL transducer system, this probe provides precise, non-contact measurement of radial vibration, axial position, and speed in industrial rotating equipment.

Features

  • System Compatibility: Fully compatible with Bently Nevada 3300 XL Proximitor sensors and extension cables, allowing for complete interchangeability without the need for individual component calibration.
  • Robust Design: Features a 3/8-24 UNF thread with integrated armor for enhanced mechanical protection in demanding industrial environments.
  • Agency Approvals: Certified for hazardous locations including CSA, ATEX, and IECEx standards.
  • Advanced Performance: Complies with API 670 standards for linear range, accuracy, and temperature stability.

Applications

  • Steam and gas turbines in power generation facilities.
  • Centrifugal and reciprocating compressors in oil and gas processing.
  • High-capacity industrial motors and generators.
  • Critical process pumps in chemical and manufacturing plants.

Technical Specifications

Model Number 330102-00-50-10-01-05
Probe Type 3300 XL 8 mm Proximity Probe
Unthreaded Length 0.0 in
Overall Case Length 5.0 in
Total Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc connector
Cable Protection Armored
Agency Approvals CSA, ATEX, IECEx
Weight 0.15 kg

Installation Guidelines

  • Initial Gapping: Rotate the probe into the mounting bracket while monitoring the DC voltage output from the Proximitor sensor. A standard gap of 1.27 mm (50 mils) typically corresponds to a -10.0 Vdc output.
  • Torque Requirements: Tighten the probe case to a recommended torque of 68 N-m (50 ft-lb) to ensure stability.
  • Handling: Ensure the probe tip remains free of contaminants and avoid mechanical shock to the ceramic tip.
  • Cable Routing: Use shielded cabling and route away from high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the 330102-00-50-10-01-05?

This probe is used to measure radial vibration and axial displacement in rotating machinery, providing essential data for condition monitoring and predictive maintenance systems.

Is this probe interchangeable with other 3300 XL components?

Yes, the 3300 XL system is designed for total component interchangeability, meaning probes, extension cables, and Proximitor sensors can be replaced without requiring bench calibration.

What is the linear range of this transducer system?

The system provides a linear range of approximately 2.0 mm (80 mils), starting from about 0.25 mm (10 mils) from the target.
