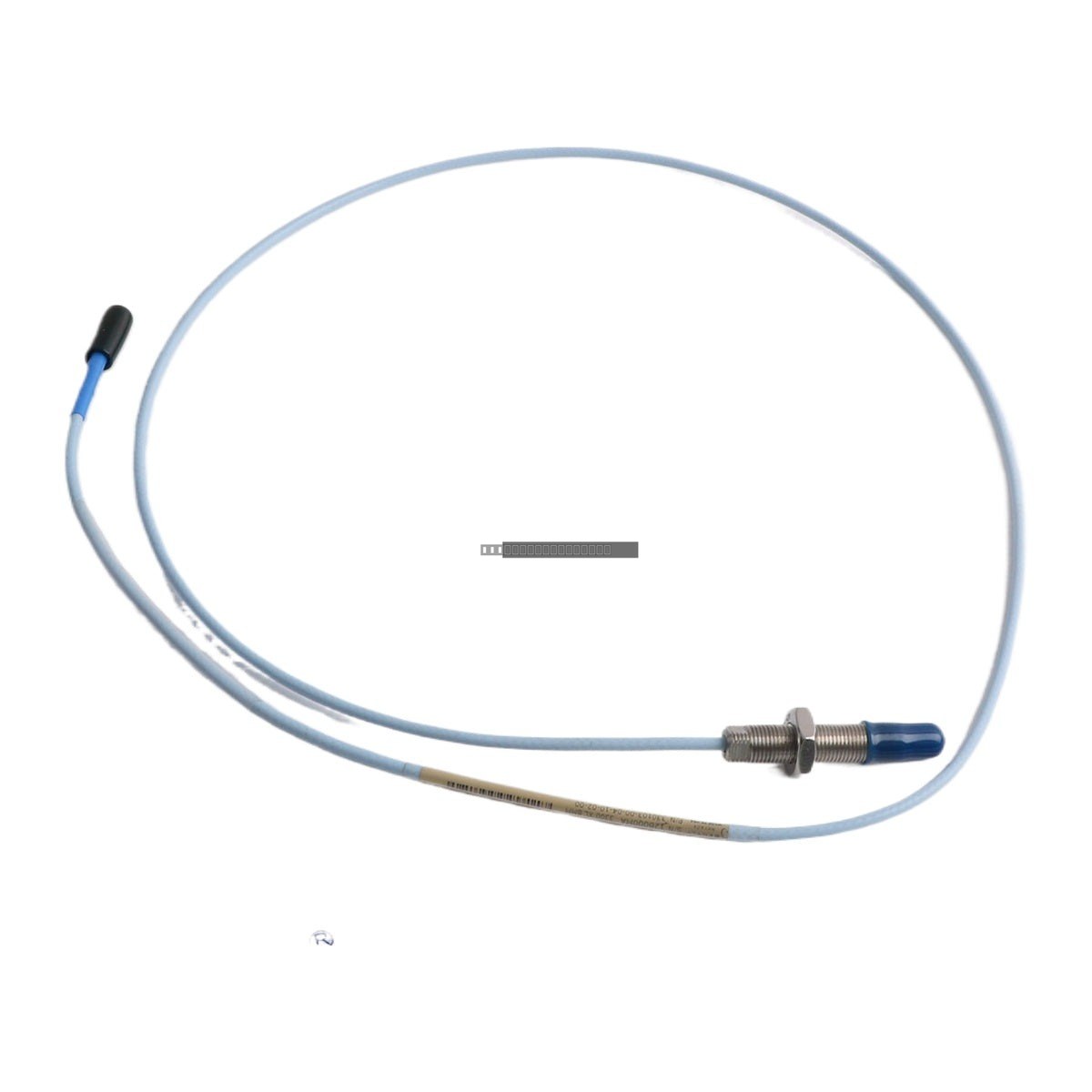

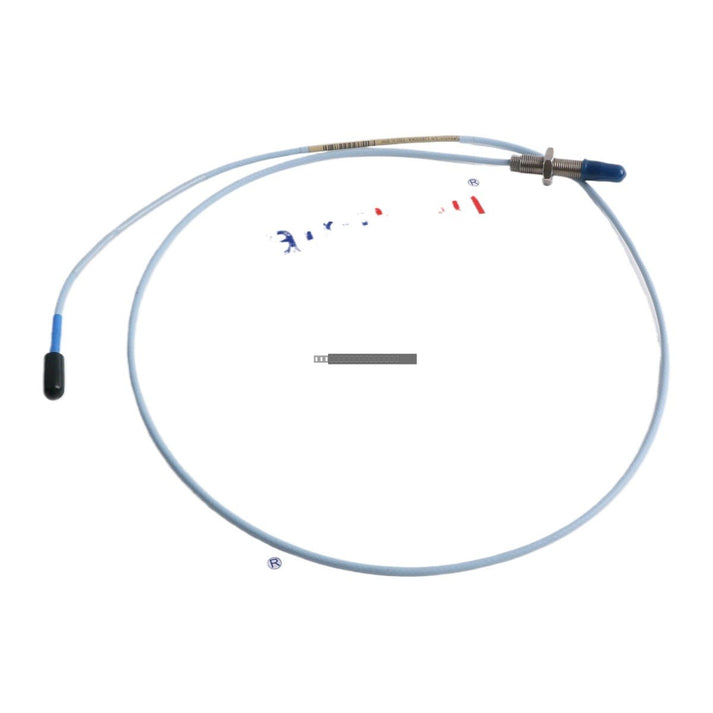

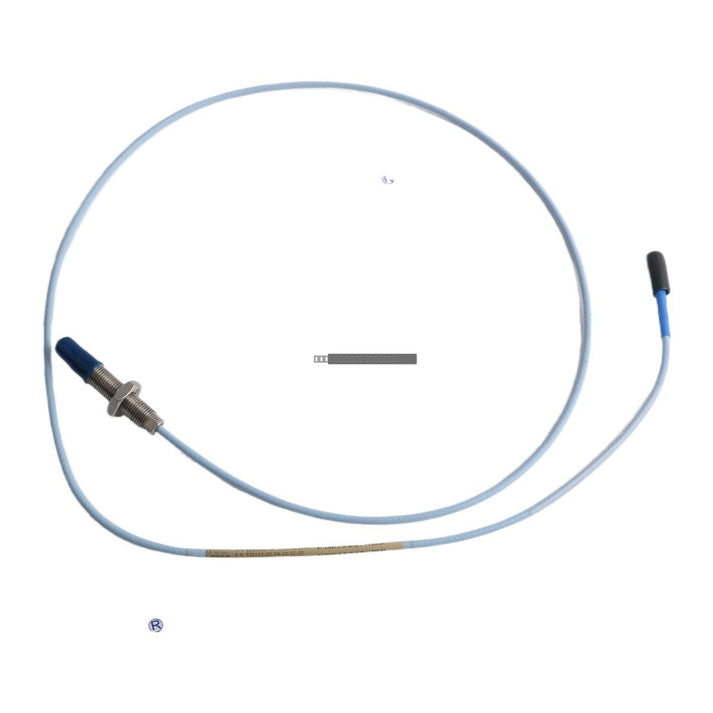

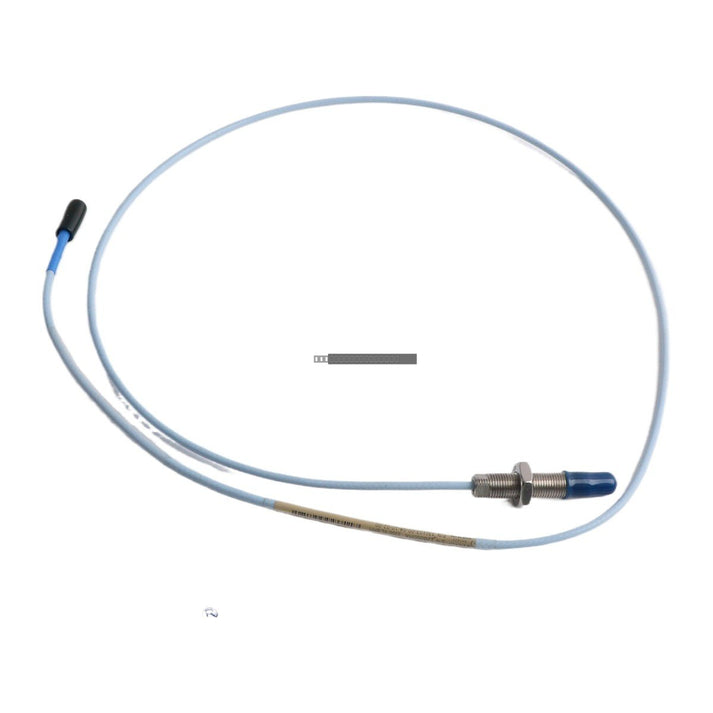

The Bently Nevada 330103-00-04-10-02-00 is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position measurement in industrial rotating machinery. As a core component of the 3300 XL transducer system, this probe provides reliable gap measurement between the probe tip and the observed shaft, ensuring accurate monitoring of radial vibration, axial position, and speed.

Features

• 8 mm probe tip diameter optimized for standard 3300 XL system compatibility.
• M10 x 1 thread configuration for secure mounting in probe holders.
• 1.0 meter (3.3 feet) cable length with standard construction.
• Equipped with a miniature coaxial ClickLoc connector for reliable signal transmission.
• Robust design suitable for demanding industrial environments.
• 40 mm overall case length with 0 mm unthreaded length.

Applications

This proximity probe is widely utilized in critical machinery protection and condition monitoring systems, including steam turbines, gas turbines, compressors, pumps, and large electric motors. It is essential for detecting shaft displacement, vibration amplitude, and phase reference signals.

Technical Specifications

Installation Guidelines

• Ensure the probe is installed in a rigid, vibration-free probe holder to prevent false readings.
• Use caution when tightening the M10 threads to avoid damaging the probe casing or tip.
• Route the coaxial cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Verify that the probe tip gap is set according to the specific machinery monitoring requirements during commissioning.
• Handle the probe with care to avoid scratching or impacting the tip, as damage to the tip can affect the linearity and accuracy of the transducer output.

FAQ

What is the primary function of the 330103-00-04-10-02-00 probe?
This probe is designed to measure the distance between the probe tip and a conductive target, typically a rotating shaft, to provide vibration and position data to a Bently Nevada monitoring system.

Does this probe require specific agency approvals?
This specific part number (330103-00-04-10-02-00) is configured without agency approvals. Please verify your site's safety requirements for hazardous area installations.
