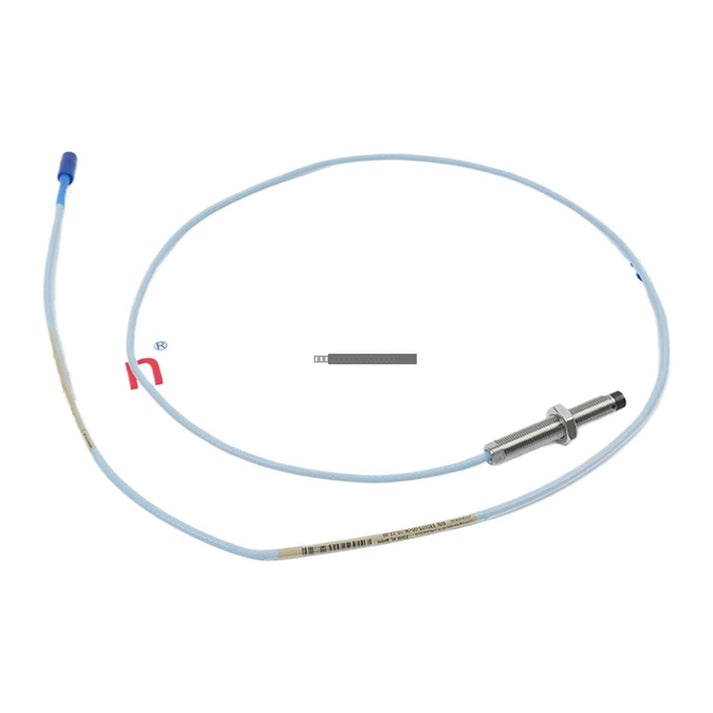

Bently Nevada 330103-00-06-10-12-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-00-06-10-12-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-06-10-12-00 is a high-performance 3300 XL 8 mm proximity probe designed for precision vibration and position monitoring in critical rotating machinery. This transducer system provides a voltage...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 330103-00-06-10-12-00
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330103-00-06-10-12-00 is a high-performance 3300 XL 8 mm proximity probe designed for precision vibration and position monitoring in critical rotating machinery. This transducer system provides a voltage output proportional to the distance between the probe tip and a conductive target, enabling accurate measurement of both static displacement and dynamic vibration.

Features

  • Advanced eddy current transducer technology for high-accuracy measurement.
  • FluidLoc cable design prevents liquid wicking through the cable jacket.
  • ClickLoc miniature coaxial connector for secure, vibration-resistant connectivity.
  • Total system interchangeability: probes, extension cables, and Proximitor sensors can be replaced without the need for individual bench calibration.
  • Compliant with API 670 standards for mechanical configuration and signal stability.

Applications

  • Vibration and position monitoring for fluid-film bearing machines.
  • Turbomachinery protection, including turbines, compressors, fans, and motors.
  • Keyphasor and shaft rotational speed measurements.
  • Industrial process monitoring in oil and gas, petrochemical, and power generation facilities.

Technical Specifications

Model 330103-00-06-10-12-00
Probe Type 3300 XL 8 mm Proximity Probe
Unthreaded Length 0.0 in
Case Length 0.6 in
Total Length 1.0 meter (3.3 feet)
Connector/Cable Miniature coaxial ClickLoc, FluidLoc cable
Agency Approval Not required

Installation Guidelines

  • Gapping: For standard AISI 4140 steel targets, the probe should be gapped at 1.27 mm (50 mils) to center the linear range.
  • Gap Voltage: Expected output voltage is approximately -10.0 VDC (range: -9 to -11 VDC).
  • Cable Handling: Maintain a minimum cable bend radius of 25.4 mm (1.0 in) to prevent signal degradation.
  • Wiring: Use a 3-conductor shielded triad cable for connections between the Proximitor sensor and the monitoring system.
  • Safety: Ensure the system is powered down before installing or removing components to prevent electrical damage.

FAQ

What is the 330103-00-06-10-12-00?

The Bently Nevada 330103-00-06-10-12-00 is a 3300 XL 8 mm Proximity Probe used for industrial vibration and position monitoring in rotating machinery.

What is the primary function of this probe?

It measures both static (position) and dynamic (vibration) values on fluid-film bearing machines, making it essential for assessing the structural health of heavy industrial turbines, pumps, and compressors.

What are the FluidLoc cable and ClickLoc connector?

The FluidLoc cable design prevents oil, moisture, and other industrial liquids from wicking through the internal gap spaces of the cable jacket. The ClickLoc coaxial connector provides a secure, vibration-resistant connection point that does not easily loosen during standard operations.

Does this probe require calibration upon replacement?

No calibration is necessary. The 3300 XL series elements offer total interchangeability across matching system lengths, removing the requirement for individual bench calibration.
