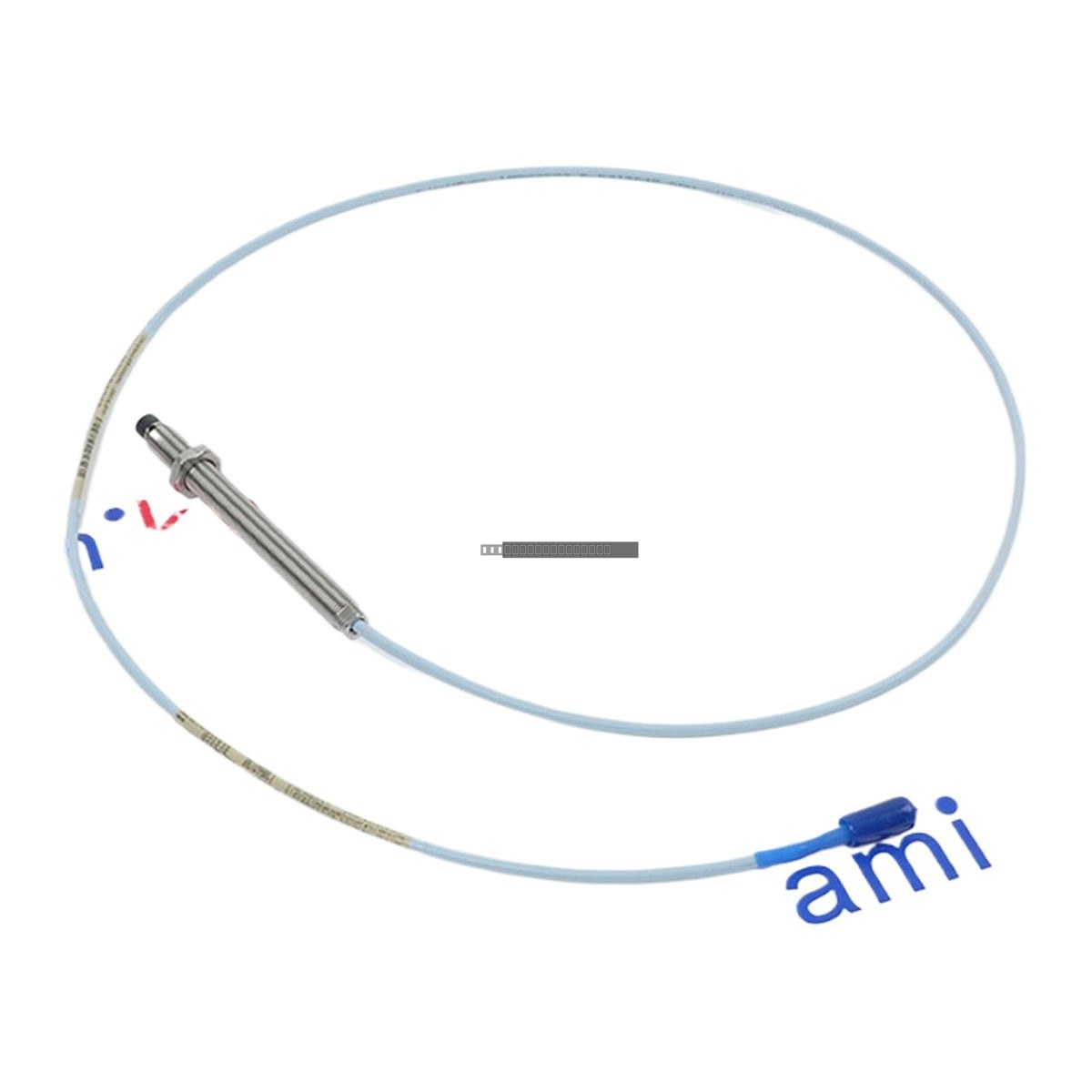

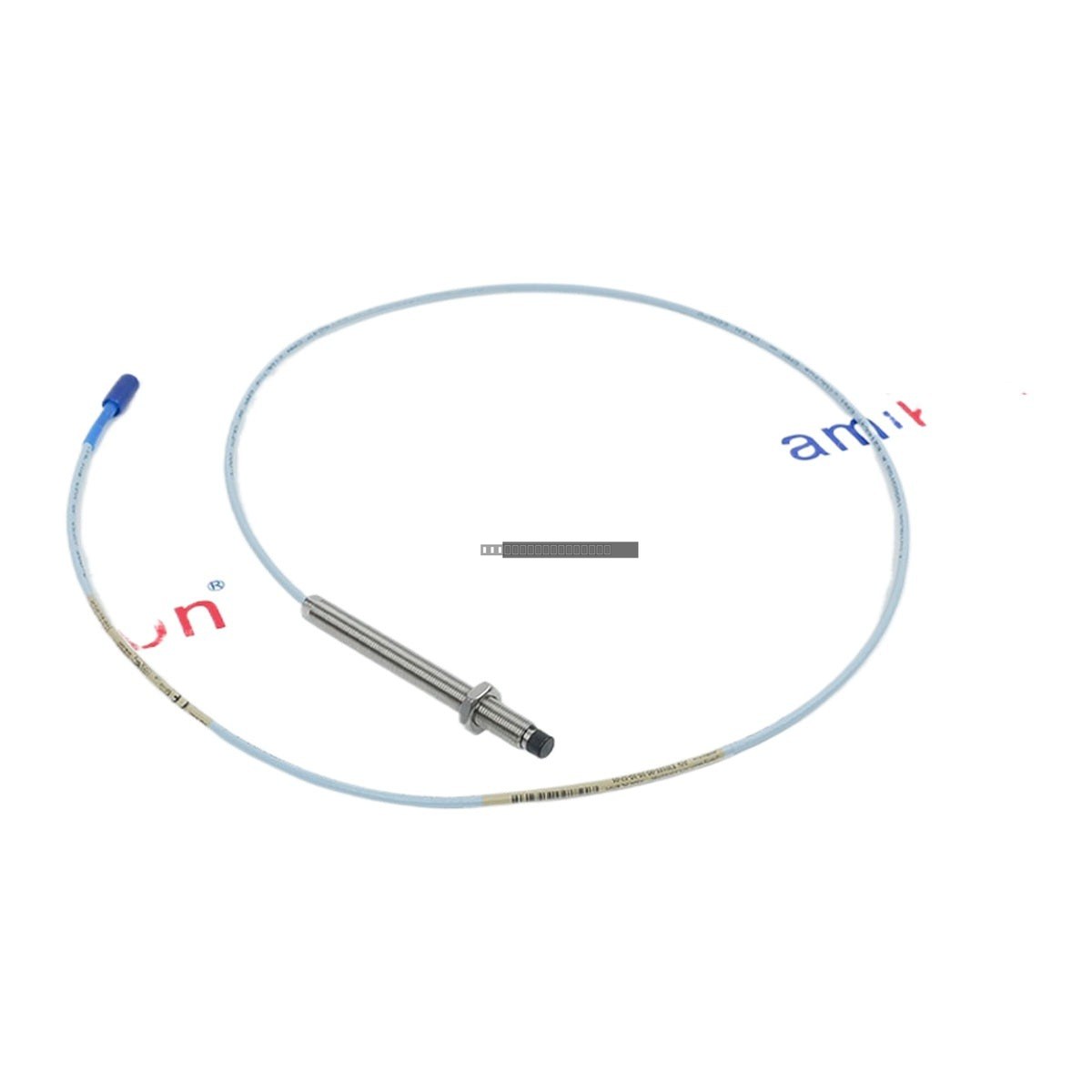

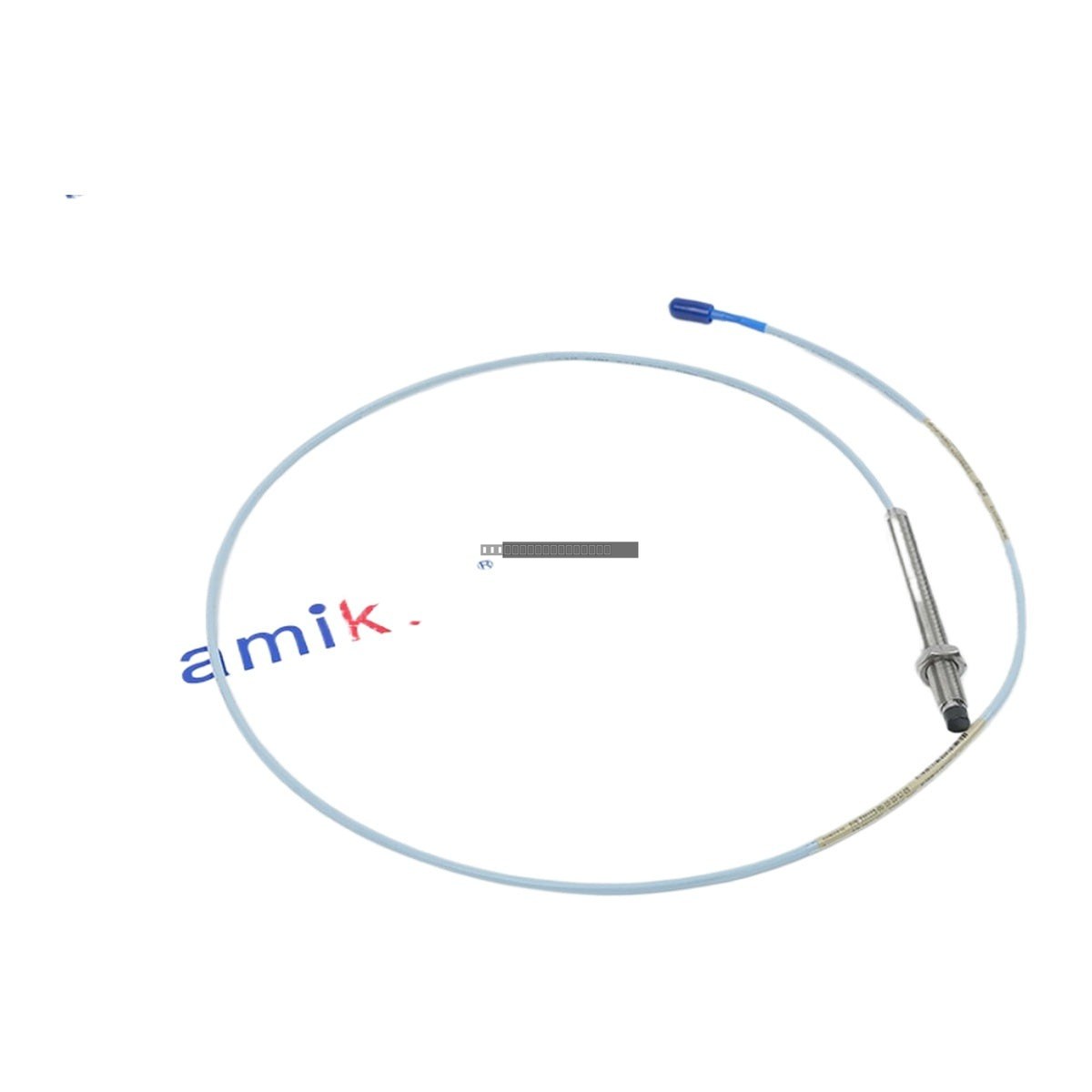

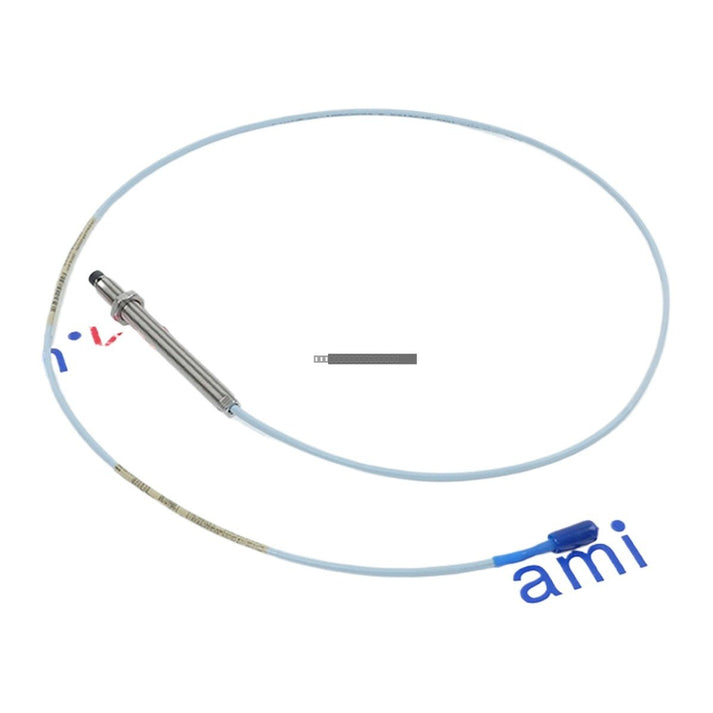

Bently Nevada 330103-00-10-10-12-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-00-10-10-12-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-10-10-12-05 is a high-performance 3300 XL 8 mm proximity probe designed for non-contacting vibration and position monitoring in industrial rotating machinery. This transducer system provides an output...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 330103-00-10-10-12-05
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330103-00-10-10-12-05 is a high-performance 3300 XL 8 mm proximity probe designed for non-contacting vibration and position monitoring in industrial rotating machinery. This transducer system provides an output voltage proportional to the gap between the probe tip and a conductive target, enabling precise measurement of both static position and dynamic vibration.

Features

  • Advanced eddy current transducer technology for high-accuracy displacement monitoring.
  • Patented TipLoc molding for a robust bond between the probe tip and body.
  • CableLoc design providing 330 N (75 lbf) pull strength for enhanced cable security.
  • FluidLoc cable option to prevent liquid leakage through the cable interior.
  • Full electrical and mechanical interchangeability with other 3300 XL series components.
  • Compliant with API 670 standards for mechanical configuration, linear range, and accuracy.

Applications

  • Fluid-film bearing machines
  • Centrifugal and process gas compressors
  • Turbo expanders
  • High-speed electric motors and generators
  • Centrifugal pumps and industrial fans
  • Keyphasor reference and speed measurement systems

Technical Specifications

Model 330103-00-10-10-12-05
Probe Diameter 8 mm
Thread Size M10 x 1
Unthreaded Length 0 mm
Case Length 10 mm
Total Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc
Cable Type FluidLoc
Approvals CSA, ATEX, IECEx

Installation Guidelines

  • Hole Preparation: Use a 0.332-inch drill and a Q-size tap drill for the 3/8-24 UNF threads.
  • Mounting: Ensure thread engagement does not exceed 0.562 inches to prevent the probe tip from bottoming out against the target.
  • Gapping: For standard AISI 4140 steel targets, set the gap to 1.27 mm (50 mils) to achieve the center of the linear range (-9 Vdc).
  • Torque: Apply a maximum tightening torque of 11.3 N·m (100 in·lb) to the probe case.
  • Handling: Always power down the system before disconnecting or installing probes to prevent electrical damage. Use ESD-safe practices when handling the connector.

FAQ

What is the 330103-00-10-10-12-05?

It is a specific configuration of the Bently Nevada 3300 XL 8 mm proximity probe used for non-contacting vibration and displacement measurement in industrial machinery.

What is the ideal gap voltage for this probe?

The ideal gap voltage is -9.0 VDC, corresponding to a 1.27 mm (50 mils) gap. The linear operating range is typically between -1.0 VDC and -17.0 VDC.

Is this probe interchangeable with older models?

Yes, the 3300 XL series is designed to be electrically and mechanically interchangeable with previous 3300 8 mm systems, though using 3300 XL probes with 3300 XL Proximitor sensors is recommended for optimal performance.
