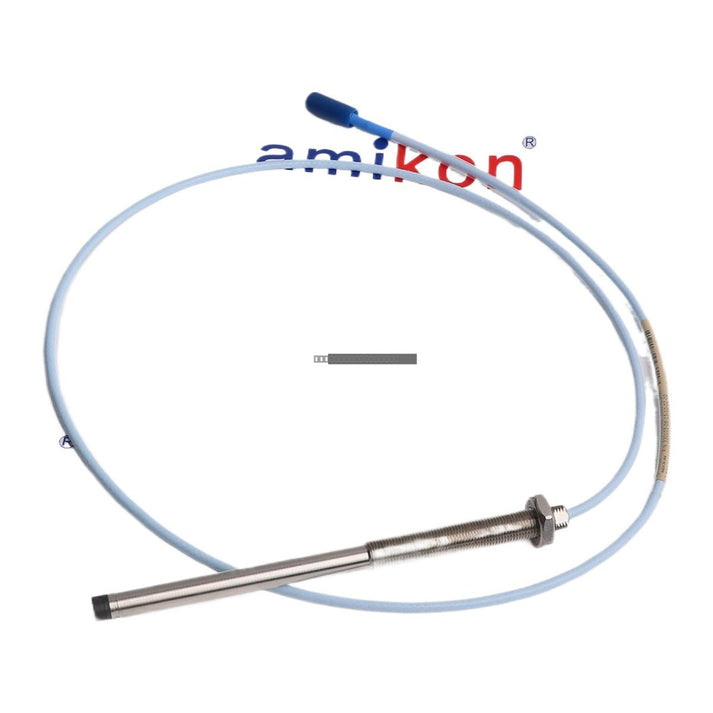

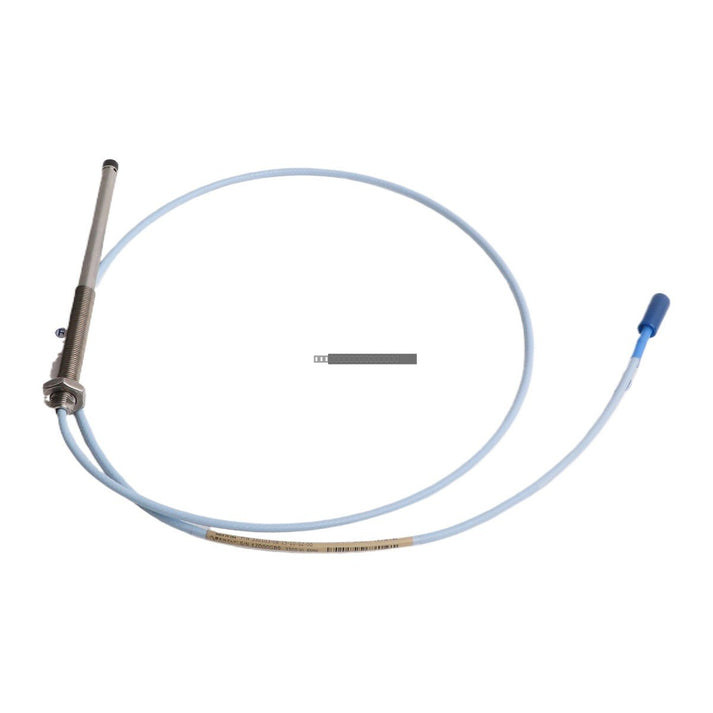

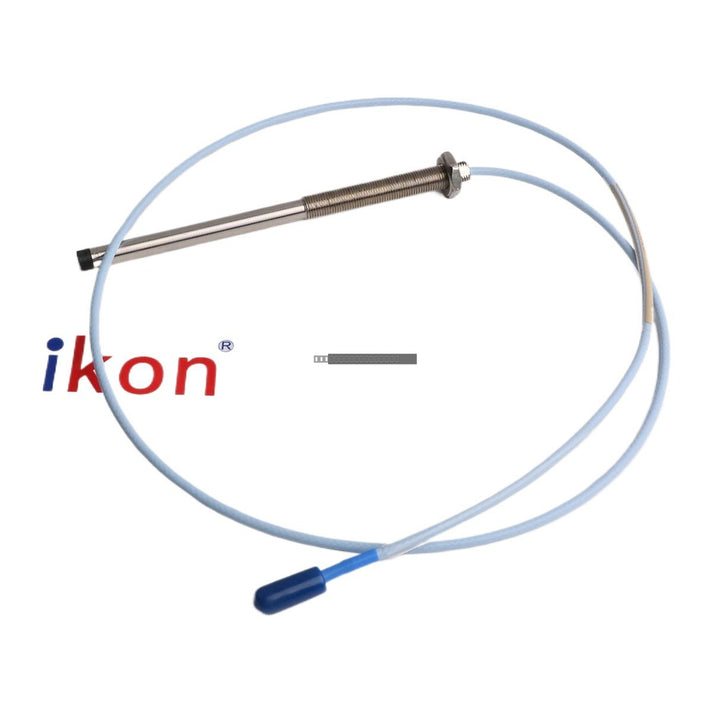

Bently Nevada 330103-08-15-10-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-08-15-10-02-00 3300 XL 8 mm Proximity Probe

Description

The Bently Nevada 330103-08-15-10-02-00 is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. This probe is engineered to provide...

23 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 330103-08-15-10-02-00
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330103-08-15-10-02-00 is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. This probe is engineered to provide accurate gap measurements between the probe tip and the observed target, essential for monitoring radial vibration, axial position, and speed in critical assets.

Features

  • Standard 8 mm probe tip diameter for broad compatibility with 3300 XL monitoring systems.
  • M10 x 1 thread configuration for secure mounting in standard probe holders.
  • Equipped with a miniature coaxial ClickLoc connector for reliable signal transmission.
  • Standard cable construction designed for durability in industrial environments.
  • Non-armored configuration for applications where external cable protection is managed via conduit or routing.

Technical Specifications

Model Number 330103-08-15-10-02-00
Probe Diameter 8 mm
Thread Size M10 x 1
Unthreaded Length 80 mm
Case Length 150 mm
Cable Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc
Armor None
Agency Approval Not required

Installation Guidelines

  • Ensure the probe is installed in a rigid, vibration-free holder to prevent false readings.
  • Handle the probe tip with care; avoid physical contact or damage to the plastic tip, as this can affect calibration and accuracy.
  • When routing the coaxial cable, maintain a minimum bend radius to avoid damaging the internal conductor or shielding.
  • Ensure the ClickLoc connector is fully seated and locked to prevent intermittent signal loss due to vibration.
  • Verify that the probe is properly gapped according to the specific machinery monitoring requirements before finalizing the installation.
  • Keep signal cables separated from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the 3300 XL 8 mm probe?

This probe is used to measure the distance (gap) between the probe tip and a metallic target, allowing the Bently Nevada monitoring system to calculate vibration amplitude and position data for rotating shafts.

Is this probe compatible with older 3300 series systems?

The 3300 XL probes are designed to be fully compatible with 3300 XL Proximitor sensors. Please consult your system documentation to ensure compatibility with your specific Proximitor model.
