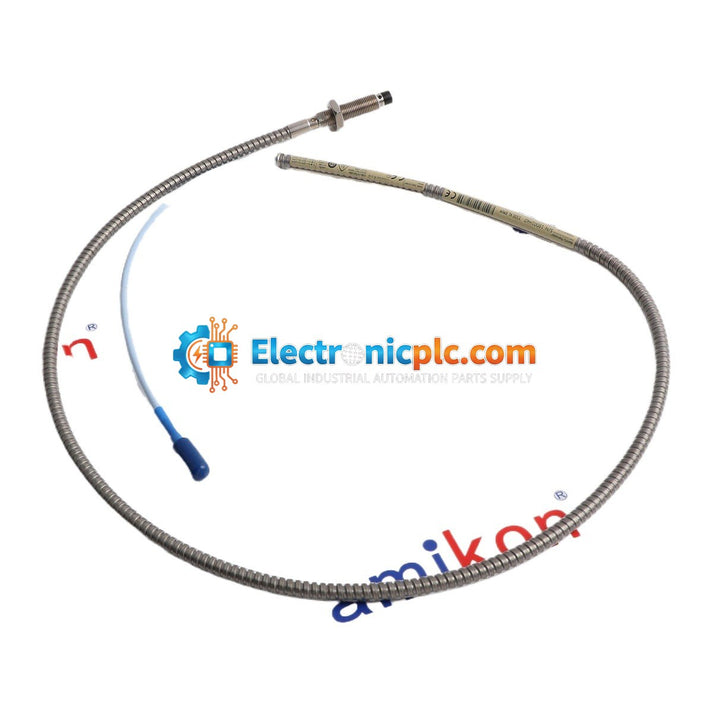

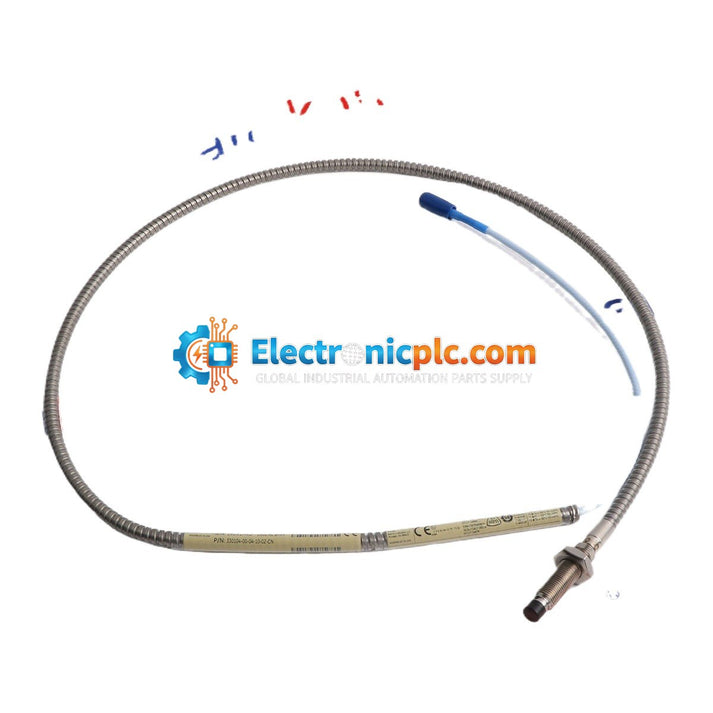

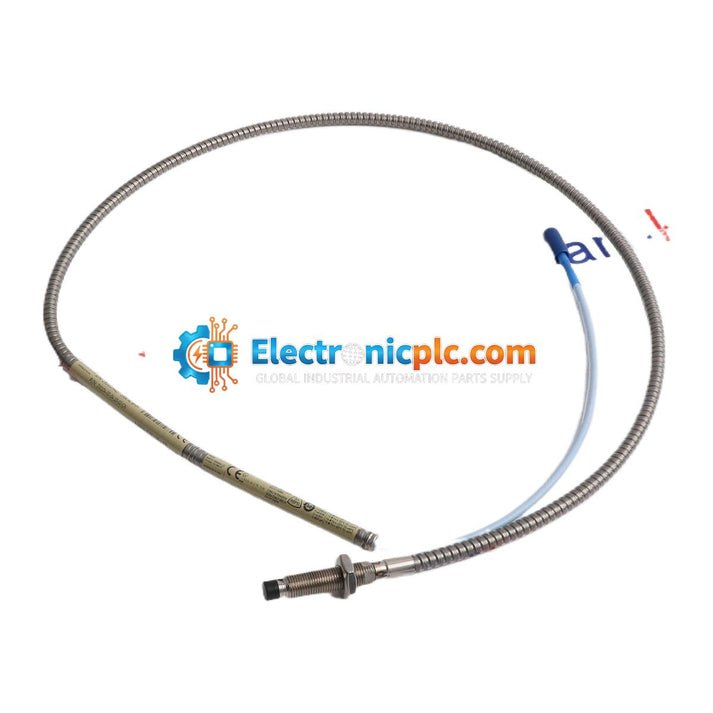

Bently Nevada 330104-00-04-10-02-CN 3300 XL 8 mm Proximity Probe

Bently Nevada 330104-00-04-10-02-CN 3300 XL 8 mm Proximity Probe

Description

The Bently Nevada 330104-00-04-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for accurate vibration and position measurement in industrial rotating machinery. As part of the Bently Nevada...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 330104-00-04-10-02-CN
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330104-00-04-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for accurate vibration and position measurement in industrial rotating machinery. As part of the Bently Nevada 3300 XL transducer system, this probe provides reliable, non-contact measurement of shaft displacement, position, and speed. The 3300 XL series is engineered to meet the rigorous demands of critical asset monitoring, offering excellent linearity and stability across a wide temperature range.

Features

  • 8 mm probe tip diameter for standard proximity sensing applications.
  • M10 x 1 thread configuration for secure mounting in probe holders.
  • Equipped with protective armor for enhanced durability in harsh industrial environments.
  • Features a miniature coaxial ClickLoc connector for reliable signal transmission.
  • Standard cable construction with a total length of 1.0 meter.
  • Certified for hazardous locations including CSA, ATEX, and IECEx approvals.

Technical Specifications

Model Number 330104-00-04-10-02-CN
Probe Diameter 8 mm
Thread Size M10 x 1
Unthreaded Length 0 mm
Case Length 40 mm
Cable Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc
Approvals CSA, ATEX, IECEx

Installation Guidelines

  • Ensure the probe is mounted in a rigid, vibration-free holder to prevent measurement errors.
  • Use caution when tightening the M10 x 1 threads to avoid damaging the probe housing or internal components.
  • Route the coaxial cable away from high-voltage power lines or sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Verify that the probe tip has sufficient clearance from the target surface as specified in the system documentation to avoid physical contact during operation.
  • Always perform a system calibration check after installation to ensure the transducer output matches the monitoring system requirements.

FAQ

What is the primary function of the 330104-00-04-10-02-CN probe?

This probe is used in conjunction with a 3300 XL Proximitor sensor to measure the static and dynamic distance between the probe tip and a conductive target, typically a rotating machine shaft, for vibration analysis and position monitoring.

Is this probe suitable for hazardous environments?

Yes, the -CN suffix indicates that this specific model carries CSA, ATEX, and IECEx approvals, making it suitable for use in designated hazardous areas when installed according to local and international safety standards.
