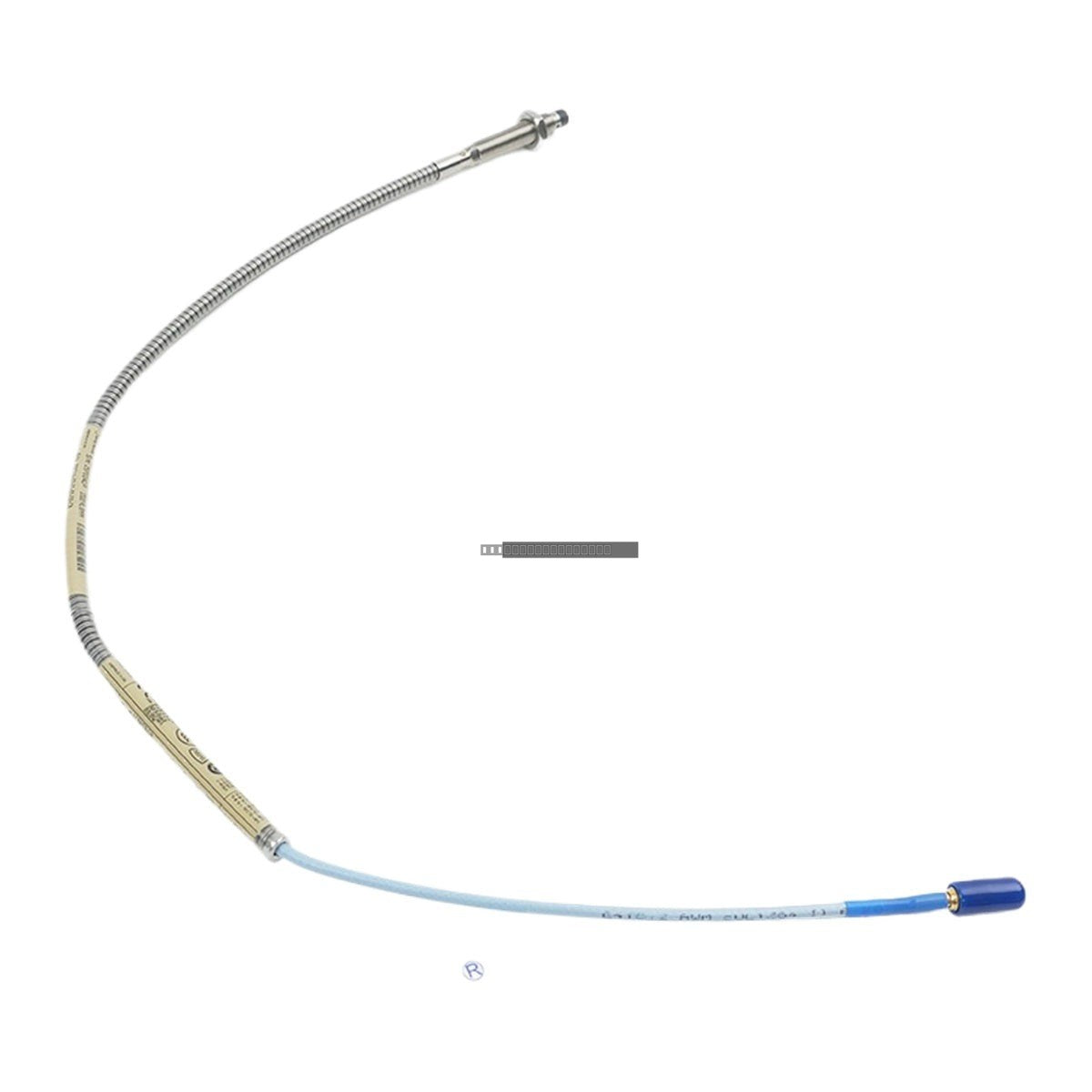

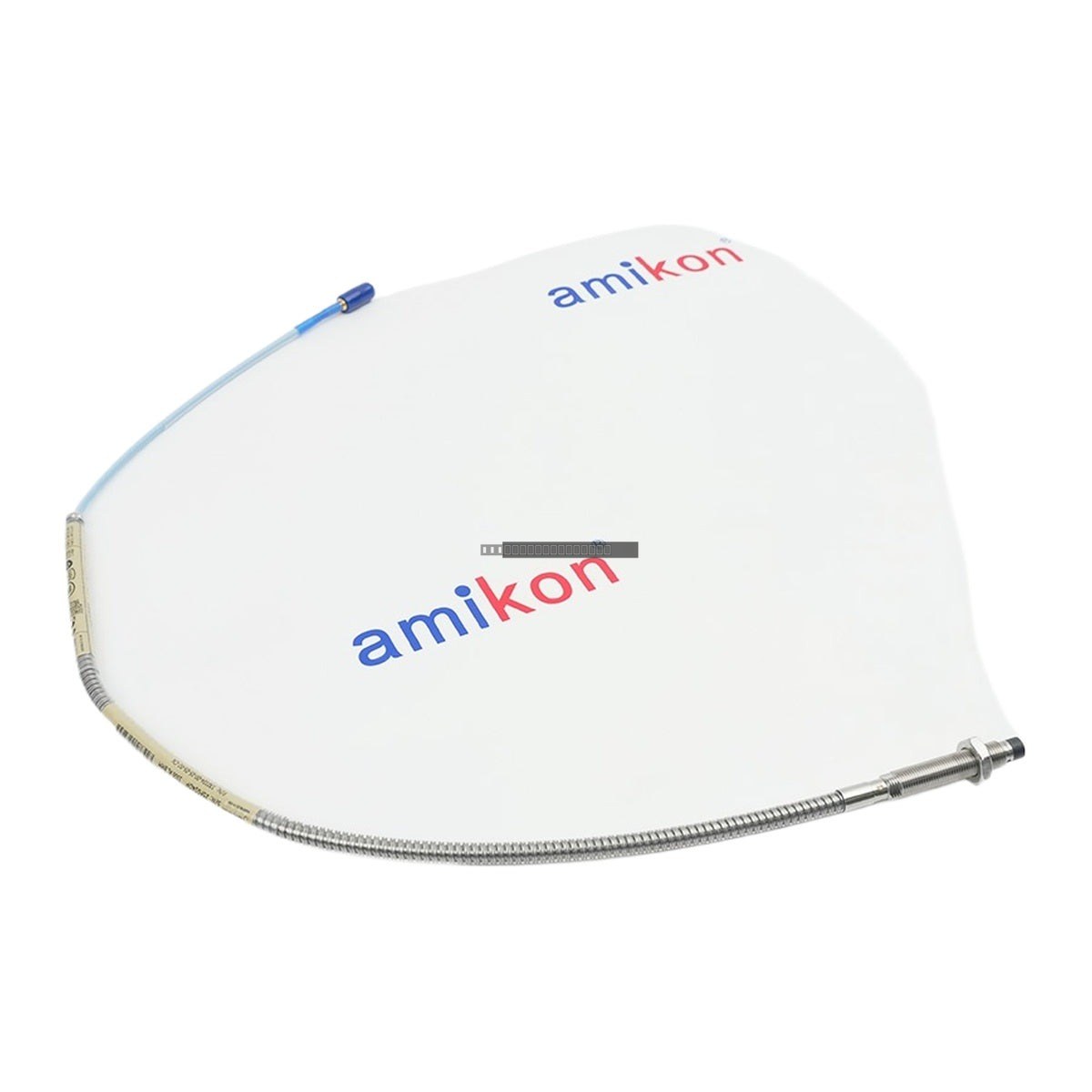

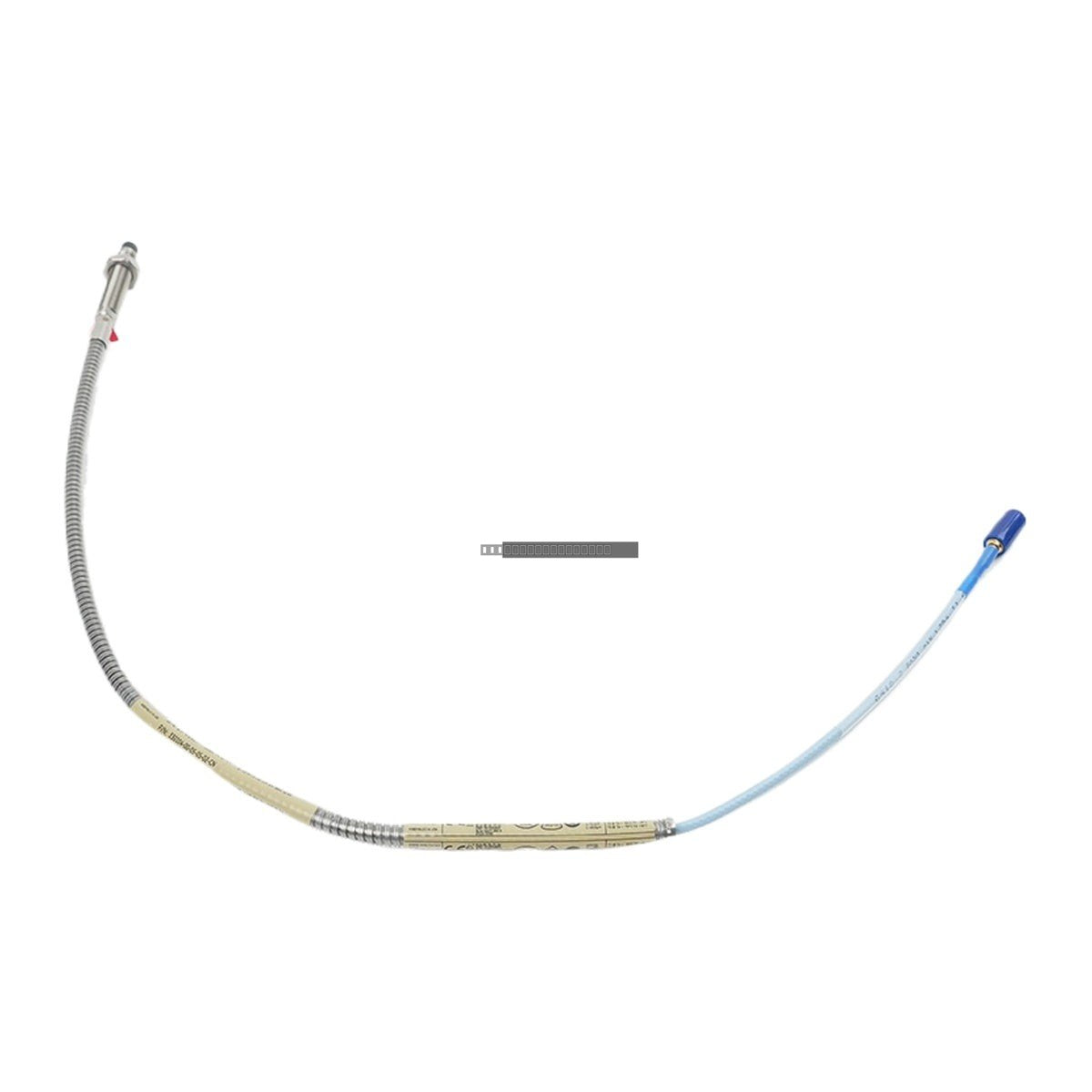

Bently Nevada 330104-00-05-05-02-CN 3300 XL 8mm Proximity Probe

Bently Nevada 330104-00-05-05-02-CN 3300 XL 8mm Proximity Probe

The Bently Nevada 330104-00-05-05-02-CN is a high-precision 3300 XL 8 mm proximity probe designed for critical machinery protection and condition monitoring. This probe is engineered to provide accurate, non-contact measurements...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 330104-00-05-05-02-CN
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330104-00-05-05-02-CN is a high-precision 3300 XL 8 mm proximity probe designed for critical machinery protection and condition monitoring. This probe is engineered to provide accurate, non-contact measurements of shaft vibration and position in rotating equipment, ensuring reliable data for predictive maintenance and operational safety.

Features

  • System Compatibility: Fully compatible with the Bently Nevada 3300 XL Proximitor Sensor system.
  • Interchangeability: Electrically and physically interchangeable with legacy 3300 5 mm and 8 mm components.
  • Robust Construction: Features an M10 x 1 thread with integrated armor for enhanced durability in harsh industrial environments.
  • ClickLoc Connector: Equipped with a miniature coaxial ClickLoc connector for secure, reliable signal transmission.
  • Global Compliance: Includes CSA, ATEX, and IECEx agency approvals for hazardous area operations.

Applications

  • Turbines: Monitoring radial vibration and axial thrust in steam and gas turbines.
  • Compressors: Preventing shaft-to-bearing contact in centrifugal and axial compressors.
  • Pumps and Fans: Tracking the health of large industrial pumps and cooling fans.
  • Generators and Motors: Ensuring stable operation for large rotating electric machinery.
  • Gearboxes: Detecting misalignment and bearing wear through shaft vibration analysis.

Technical Specifications

Model Number 330104-00-05-05-02-CN
Probe Diameter 8 mm
Thread Size M10 x 1
Unthreaded Length 0 mm
Case Length 50 mm
Total Length 0.5 meter
Connector Type Miniature coaxial ClickLoc
Approvals CSA, ATEX, IECEx
Linear Range Approx. 2 mm (80 mils)
Operating Temperature -35 degC to +200 degC

Installation Guidelines

  • Mounting: Ensure the probe is mounted in a stable, vibration-resistant bracket. The 3300 XL design fits standard 4-hole mounting patterns.
  • Gap Voltage: For optimal performance, calibrate the system to a gap voltage between -9 V and -11 V DC.
  • Cable Routing: Use shielded coaxial cabling and maintain a minimum permissible bend radius to prevent signal degradation or cable damage.
  • Environmental Protection: The probe tip utilizes a Viton O-ring to maintain a pressure seal; ensure the mounting surface is clean and free of debris during installation.
  • Handling: As a precision sensor, handle the probe tip with care to avoid mechanical impact or surface scratches that could affect linearity.

FAQ

What is the primary function of this probe?

The 330104-00-05-05-02-CN is used to monitor shaft position and vibration on critical rotating machinery, providing essential data for vibration analysis and machine protection systems.

What are the power requirements for the system?

The associated Proximitor sensor typically requires a supply voltage between -17.5 Vdc and -26 Vdc.

Is this probe compatible with older 3300 systems?

Yes, 3300 XL 8 mm components are designed to be both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.

What is the operating temperature range?

The probe tip is rated for operation between -52 degC and +218 degC, while the cable and connector assembly are rated for -51 degC to +260 degC.
