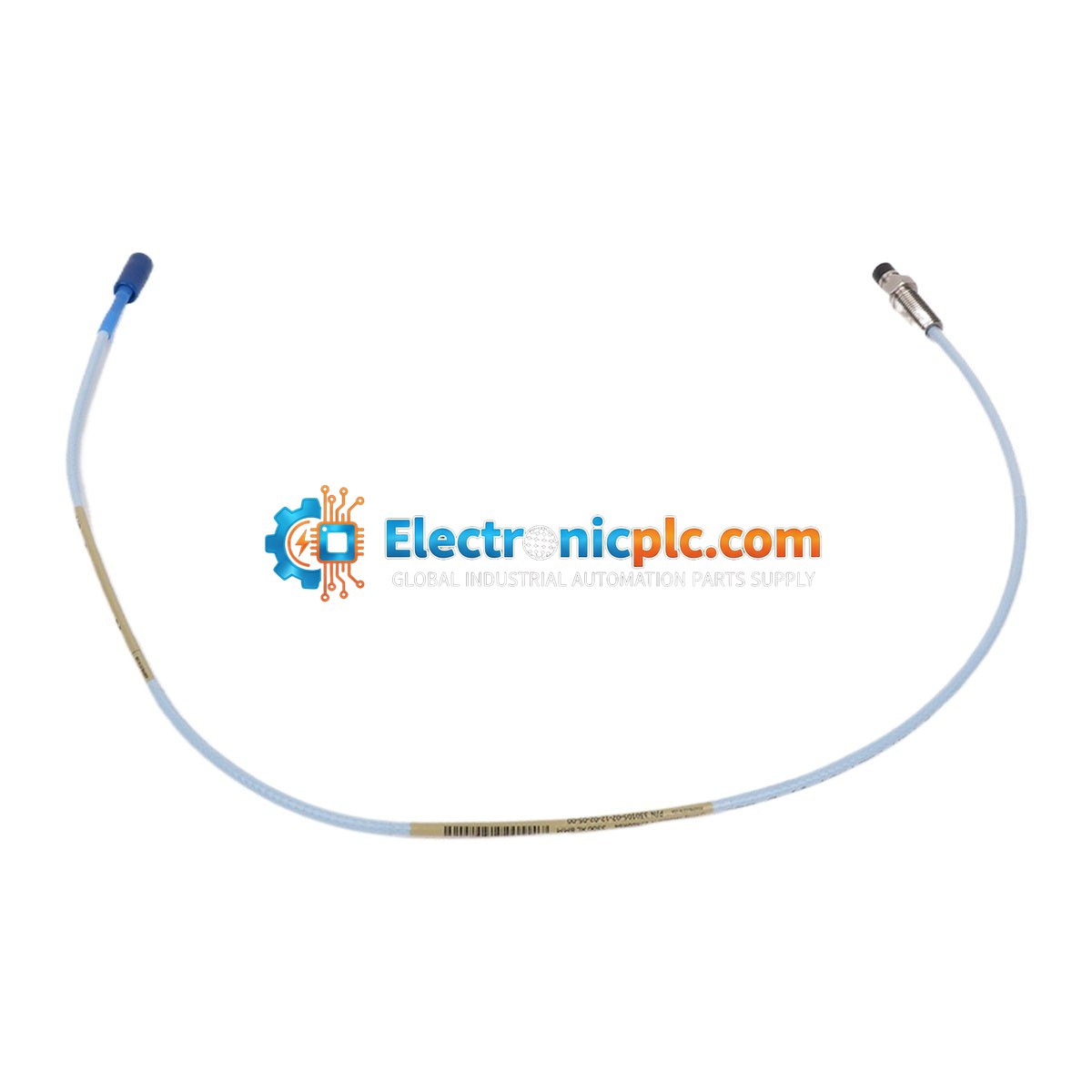

Bently Nevada 330105-02-12-02-05-00 3300 XL 8mm Reverse Mount Proximity Probe

Bently Nevada 330105-02-12-02-05-00 3300 XL 8mm Reverse Mount Proximity Probe

Description

The Bently Nevada 330105-02-12-02-05-00 is a high-performance 3300 XL 8mm reverse mount proximity probe. Designed for the 3300 XL Proximity Transducer System, this probe provides an output voltage directly...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: 330105-02-12-02-05-00
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330105-02-12-02-05-00 is a high-performance 3300 XL 8mm reverse mount proximity probe. Designed for the 3300 XL Proximity Transducer System, this probe provides an output voltage directly proportional to the distance between the probe tip and an observed conductive surface. It is essential for monitoring radial vibration, axial position, and rotor speed in critical rotating machinery.

Features

  • Reverse mount configuration for installation from the opposite side of the mounting surface.
  • 3/8-24 UNF thread for secure mechanical mounting.
  • Equipped with a miniature coaxial ClickLoc connector and protective armor.
  • Patented TipLoc and CableLoc designs for enhanced durability and pull strength.
  • Complies with API 670 standards for linear range, accuracy, and temperature stability.
  • Fully interchangeable with other 3300 XL system components without the need for individual bench calibration.

Applications

  • Steam and Gas Turbines: Monitoring radial vibration and axial thrust for turbine rotors.
  • Generator Bearings: Detecting oil whirl, friction, and misalignment in fluid-film journal bearings.
  • Centrifugal Compressors: Monitoring high-speed rotors for gas transport and reinjection.
  • Cooling Water Pumps and Forced Draft Fans: Safeguarding high-capacity auxiliary industrial equipment.
  • Turbo-Expanders: Maintaining shaft stability under varying temperature differentials.

Technical Specifications

Model 330105-02-12-02-05-00
System Type 3300 XL 8mm Proximity Transducer
Mounting Style Reverse Mount
Thread Size 3/8-24 UNF
Unthreaded Length 50 mm (2.0 in)
Overall Case Length 30 mm (1.2 in)
Total Length 2.0 meters
Temperature Range -52 degC to +177 degC (-62 degF to +350 degF)
Connector Miniature Coaxial ClickLoc

Installation Guidelines

  • Target Side Clearance: Maintain a counterbore diameter of at least 22.2 mm (0.875 inches) around the probe tip to prevent eddy current field bleeding into the surrounding casing.
  • Cross-Talk Prevention: When mounting multiple 8 mm probes in parallel, such as in dual-redundant thrust configurations, ensure probe tips are separated by a minimum of 25 mm (1.0 inch).
  • Handling: Use caution with the probe tip and cable assembly. Ensure the connector is clean and free of debris before mating.
  • System Power: Always de-energize the associated Proximitor sensor before connecting or disconnecting the probe cable.

FAQ

What is the primary function of this probe?
It measures the exact distance between the probe tip and a conductive surface to monitor vibration and position in rotating machinery.

Can I mix XL components with older non-XL 3300-series parts?
Yes, but system performance and measurement tolerances will be limited to the specifications of the older, non-XL hardware.

Does this probe require an extension cable?
This specific part is configured for a 2-meter system length. Extension cables are generally used to achieve 5-meter or 9-meter total system lengths.
