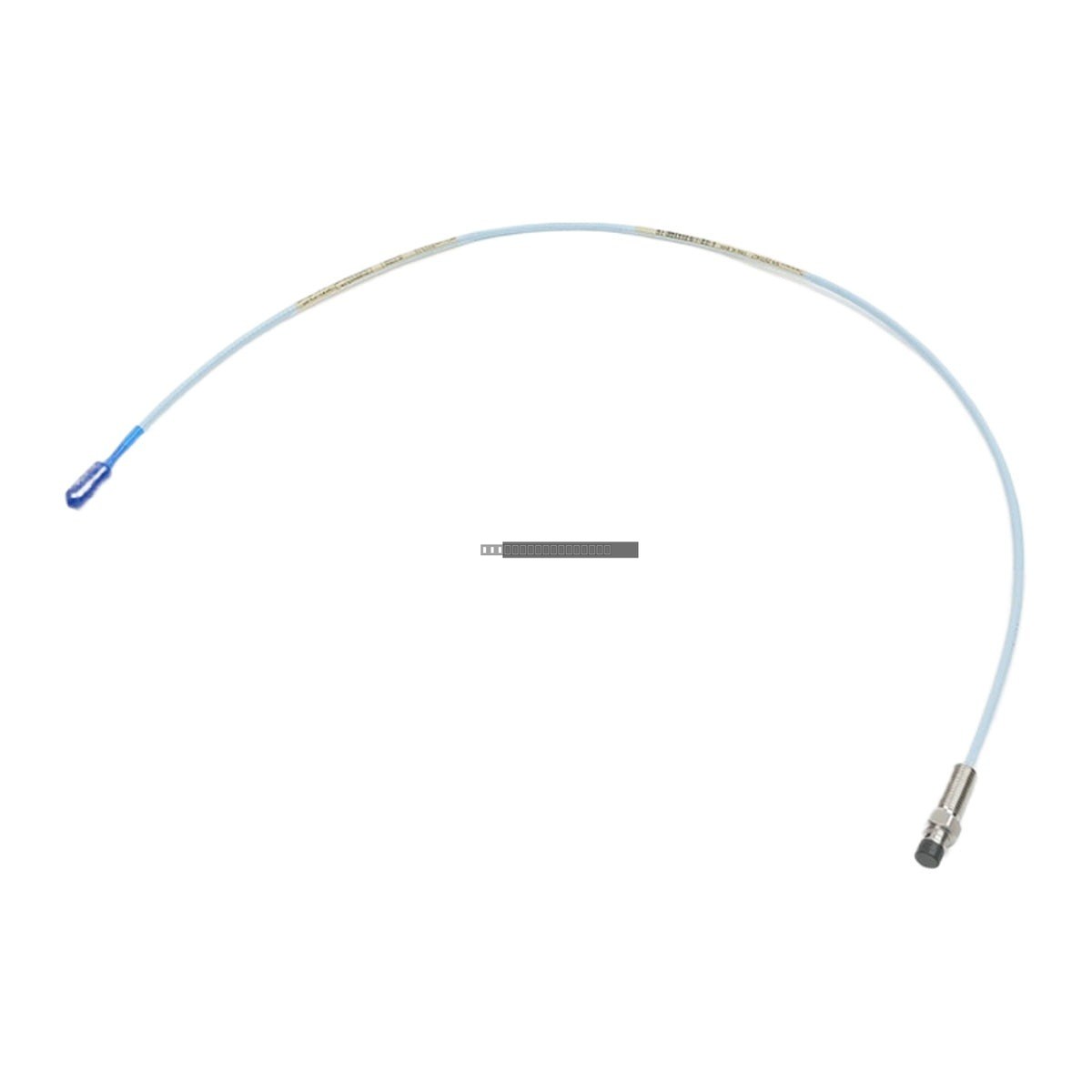

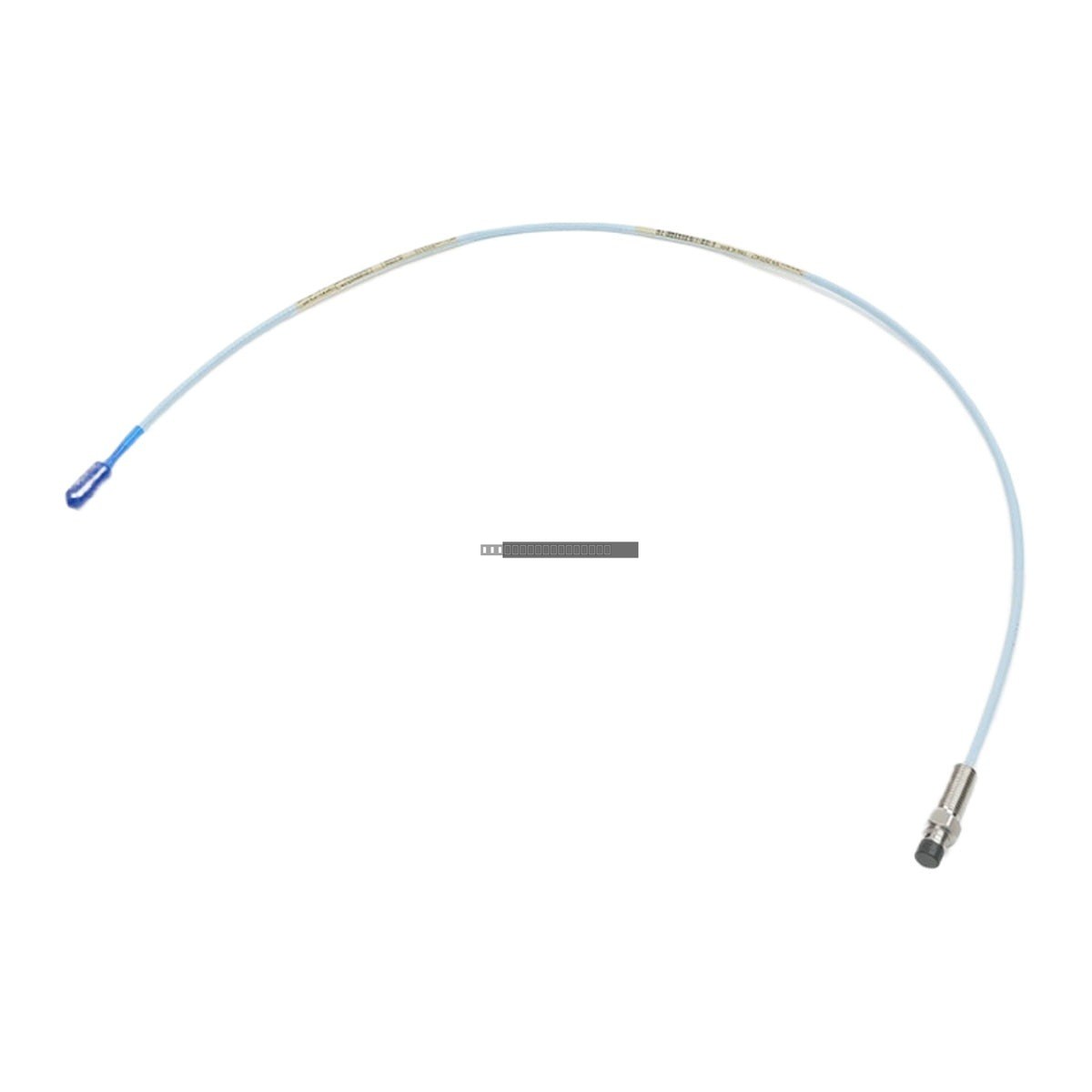

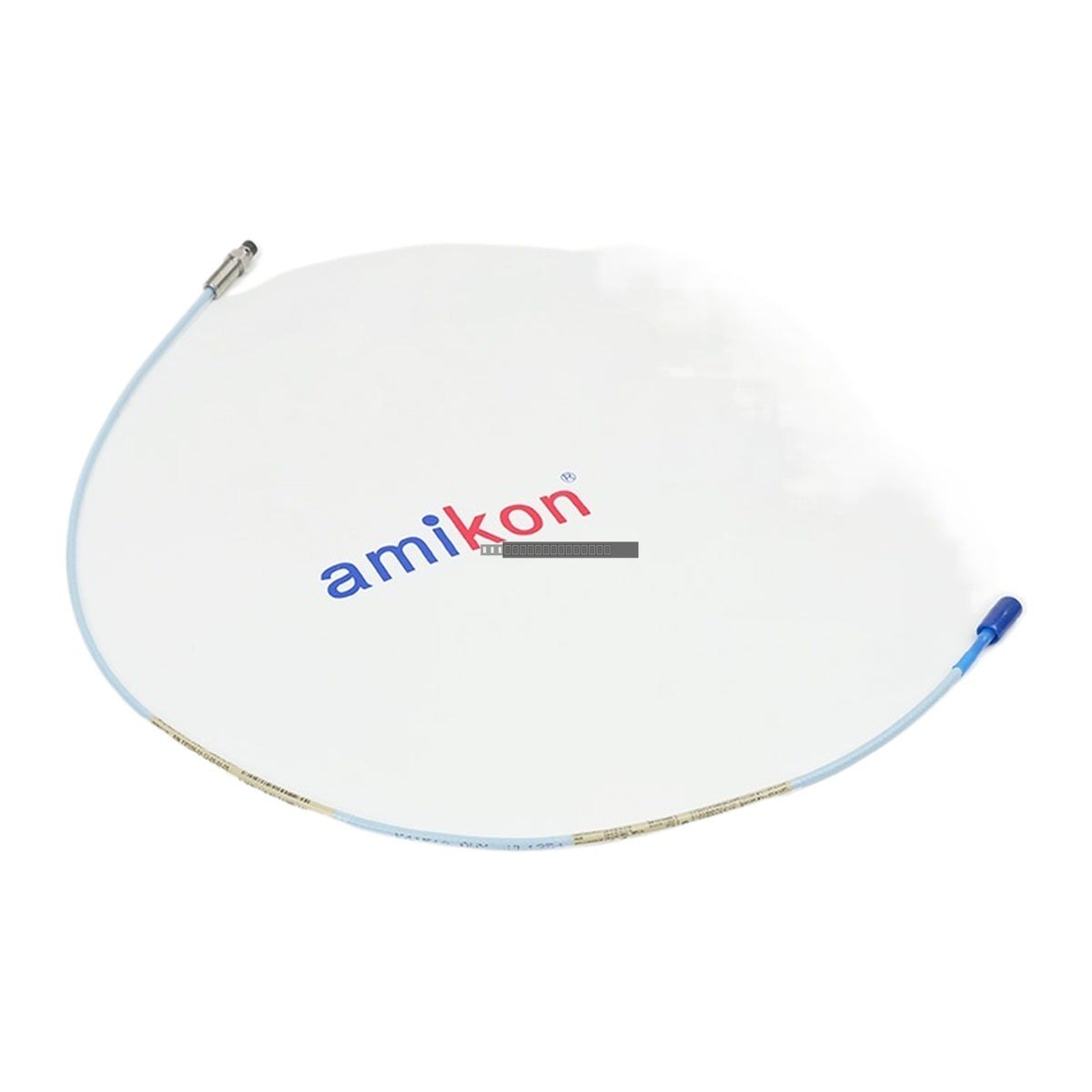

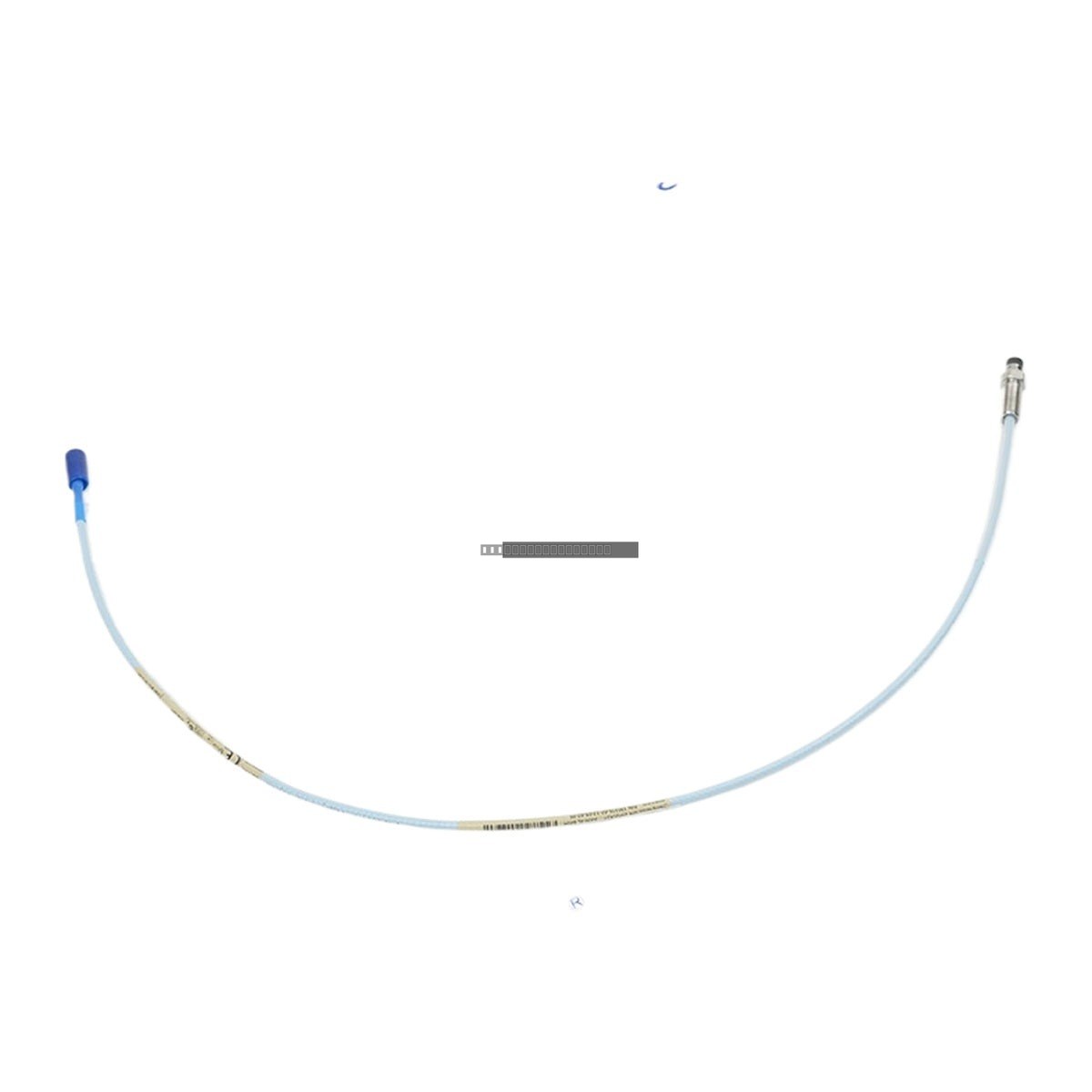

Bently Nevada 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Proximity Probe

Bently Nevada 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Proximity Probe

The Bently Nevada 330105-02-12-05-02-05 is a high-precision 3300 XL 8 mm reverse mount proximity probe designed for use within industrial proximity transducer systems. This sensor provides accurate, non-contact measurements of...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 330105-02-12-05-02-05
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330105-02-12-05-02-05 is a high-precision 3300 XL 8 mm reverse mount proximity probe designed for use within industrial proximity transducer systems. This sensor provides accurate, non-contact measurements of static position and dynamic vibration, serving as a critical component for machine protection and condition monitoring in rotating equipment.

Features

  • Designed for 3/8-24 UNF thread mounting configurations.
  • Features a Miniature ClickLoc coaxial connector for secure, reliable signal transmission.
  • Fully compatible with Bently Nevada 3300 XL series Proximitor sensors and extension cables.
  • Supports complete interchangeability of components, eliminating the need for individual bench calibration.
  • Compliant with API 670 standards for mechanical configuration, linear range, and temperature stability.

Applications

  • Power Generation: Monitoring shaft vibration and displacement in steam and gas turbines, as well as large feedwater pumps.
  • Oil & Gas: Providing mechanical protection for centrifugal and axial flow compressors and expanders.
  • Manufacturing: Monitoring bearing conditions in heavy-duty fans, blowers, and industrial gearboxes.
  • Petrochemical: Non-contact position measurement for high-speed rotating pump sets to prevent mechanical interference.

Technical Specifications

Model Number 330105-02-12-05-02-05
Probe Type 3300 XL 8 mm Reverse Mount
Thread Size 3/8-24 UNF
Cable Length 0.5 meter (1.6 feet)
Connector Type Miniature ClickLoc coaxial
Agency Approvals CSA, ATEX, IECEx
Probe Case Material AISI 303 or 304 Stainless Steel
Output Resistance 50 Ohm

Installation Guidelines

  • Ensure the probe is mounted in a stable, vibration-resistant location using the specified 3/8-24 UNF threads.
  • Handle the probe tip with care; avoid physical impact or contamination to maintain measurement accuracy.
  • Use only compatible Bently Nevada 3300 XL extension cables and Proximitor sensors to ensure system integrity.
  • Verify that all coaxial connections are properly seated and tightened to prevent signal noise or intermittent data.
  • Always power down the associated monitoring system before connecting or disconnecting the probe to prevent electrical damage.
  • Maintain proper cable routing away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQs

What is the primary function of this probe?

This probe measures non-contact displacement and vibration in rotating machinery, providing real-time data for condition monitoring and machine protection systems.

Is this model compatible with older Bently Nevada systems?

Yes, the 3300 XL series is designed for backward compatibility with non-XL 3300 series 5 mm and 8 mm transducer elements.

What does the 05 agency approval code signify?

The 05 code indicates that the unit carries CSA, ATEX, and IECEx certifications, making it suitable for use in hazardous environments where these standards are required.
