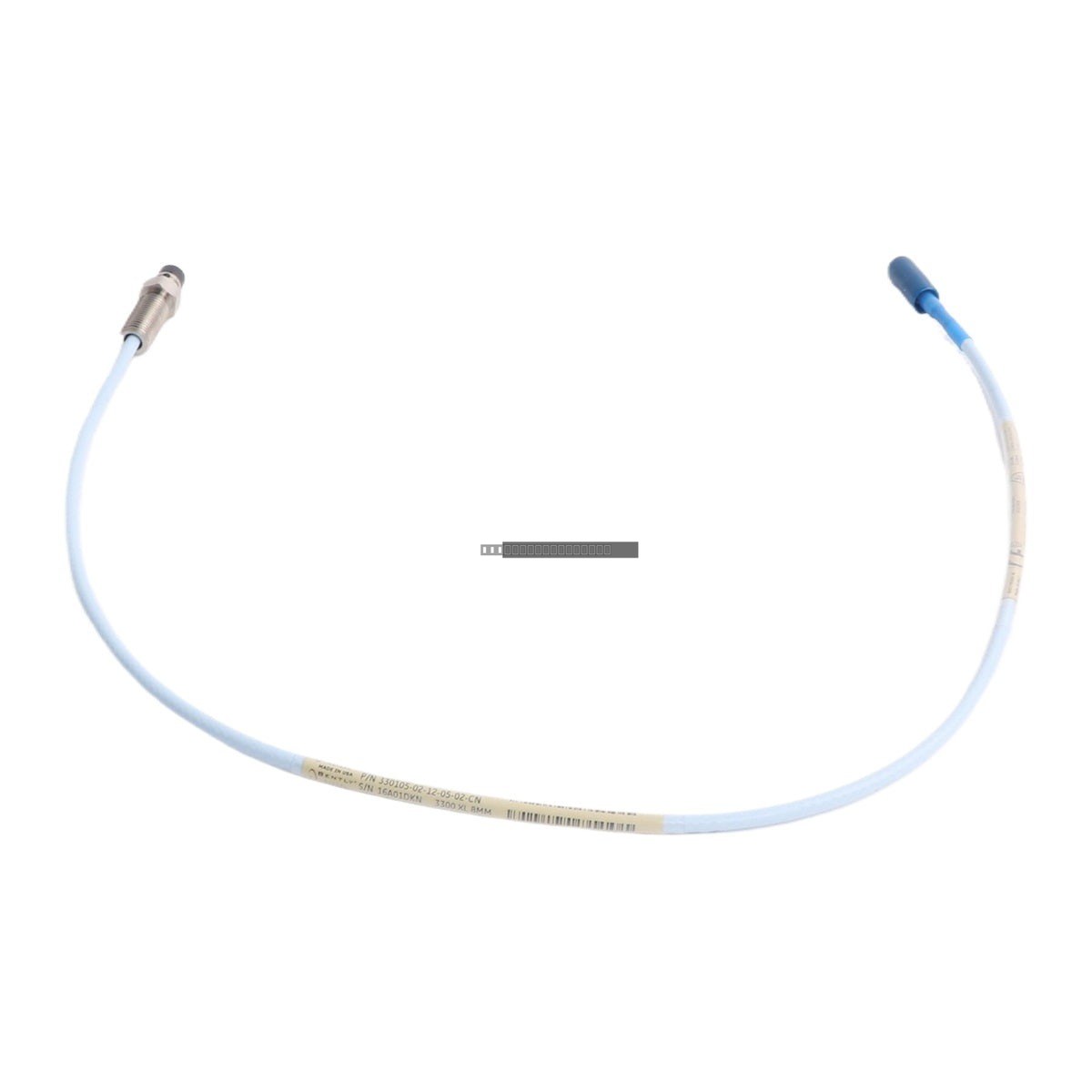

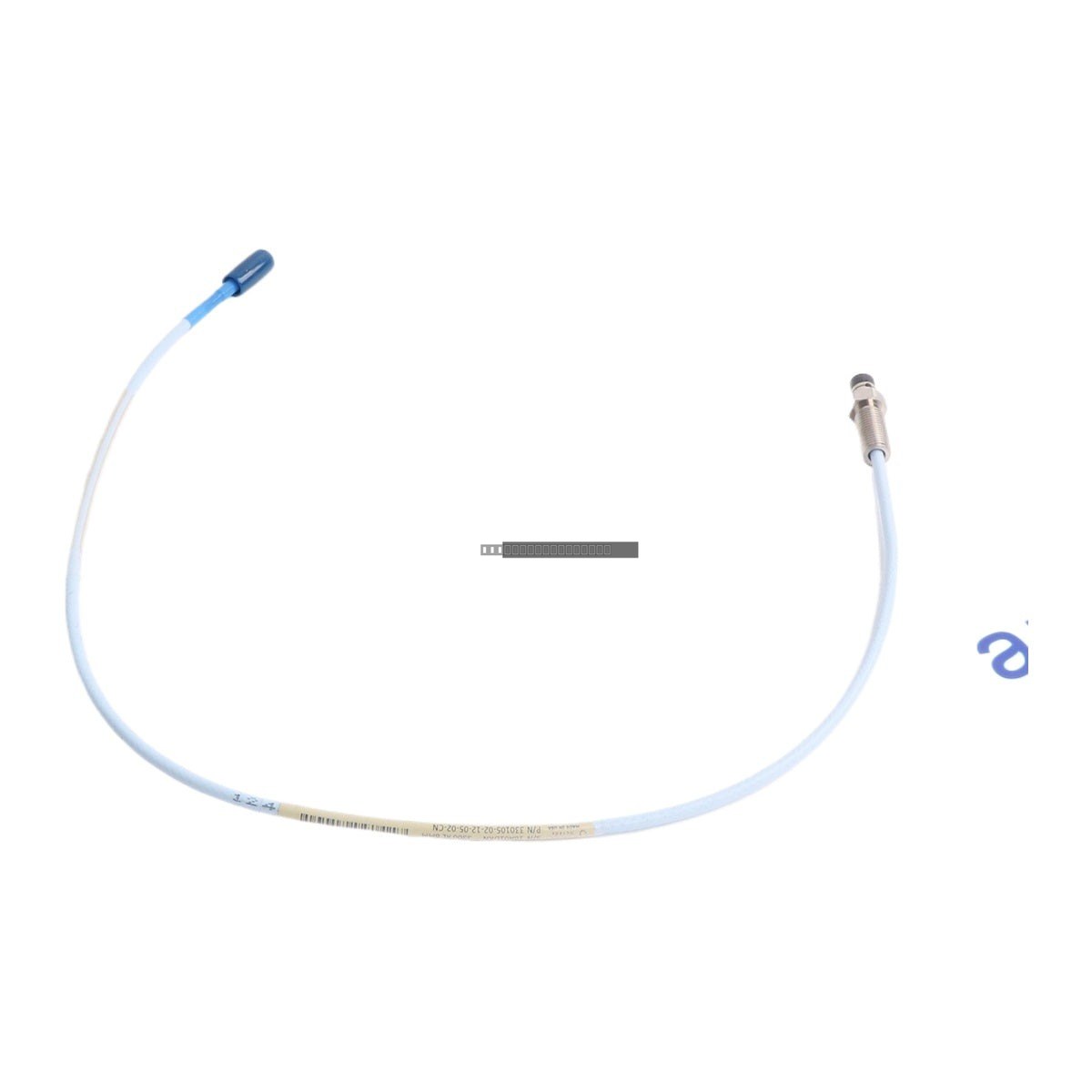

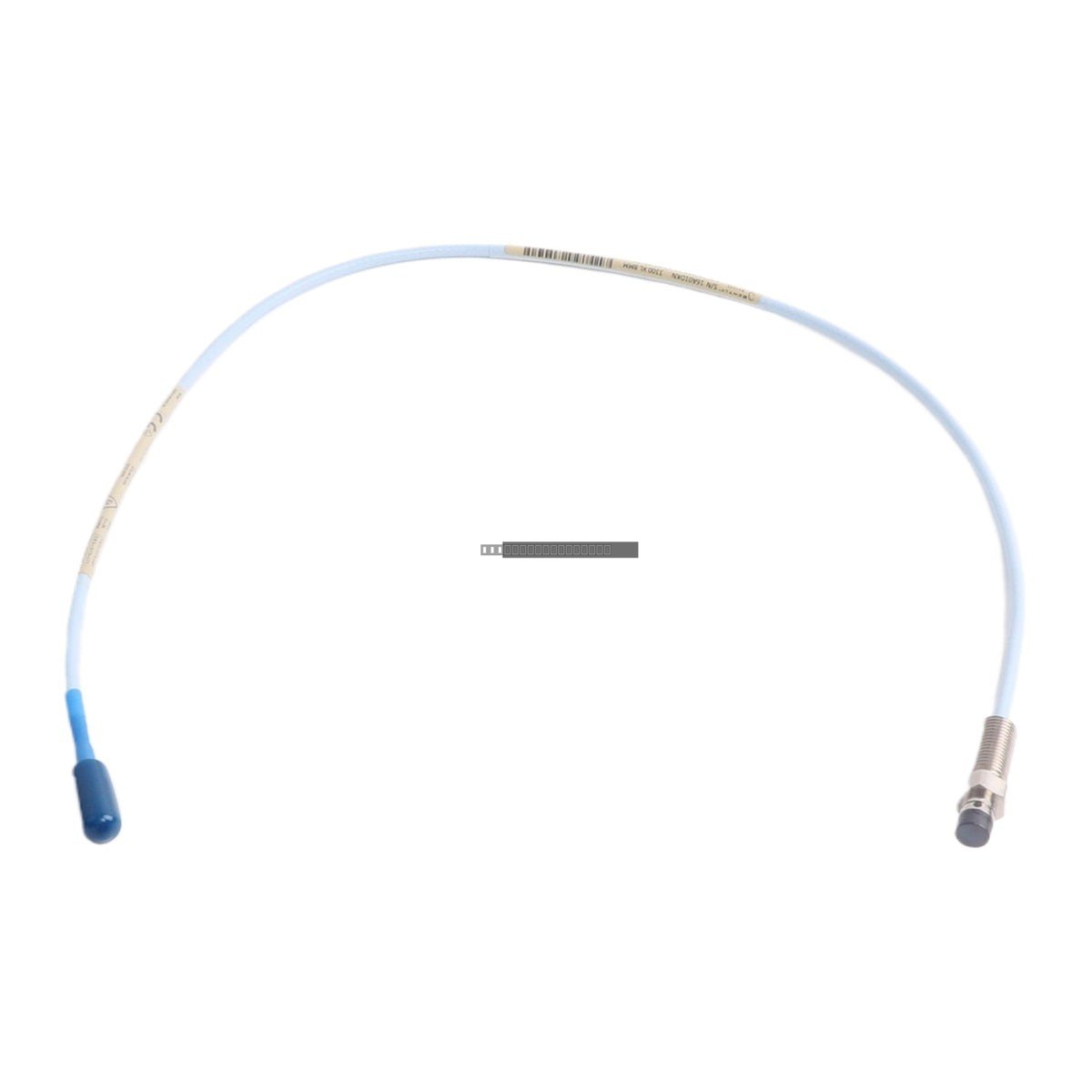

Bently Nevada 330105-02-12-05-02-CN 3300 XL 8 mm Reverse Mount Probe

Bently Nevada 330105-02-12-05-02-CN 3300 XL 8 mm Reverse Mount Probe

Description

The Bently Nevada 330105-02-12-05-02-CN is a 3300 XL 8 mm reverse mount proximity probe designed for high-precision vibration and position monitoring in industrial rotating machinery. This probe is a critical...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 330105-02-12-05-02-CN
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330105-02-12-05-02-CN is a 3300 XL 8 mm reverse mount proximity probe designed for high-precision vibration and position monitoring in industrial rotating machinery. This probe is a critical component of the 3300 XL transducer system, providing reliable non-contact measurement of shaft displacement, position, and speed in demanding environments.

Features

  • 8 mm probe tip diameter for standard proximity measurement applications.
  • Reverse mount configuration for specific mechanical installation requirements.
  • Integrated Miniature ClickLoc coaxial connector for secure, reliable signal transmission.
  • Agency approved for hazardous area installations including CSA, ATEX, and IECEx.
  • Designed for compatibility with 3300 XL series extension cables and proximity sensors.

Technical Specifications

Product Model 330105-02-12-05-02-CN
Probe Type 3300 XL 8 mm Reverse Mount
Total Length 0.5 meter (1.6 feet)
Connector Type Miniature ClickLoc coaxial
Agency Approvals CSA, ATEX, IECEx
Output Resistance 50 Ohm
Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical
Tariff Code 8537101190

Installation Guidelines

  • Ensure the probe is mounted in a rigid, vibration-free housing to maintain measurement accuracy.
  • Handle the probe tip with care; avoid physical impact or scratching of the sensing surface.
  • When connecting the Miniature ClickLoc connector, ensure it is fully seated and locked to prevent signal noise or intermittent contact.
  • Route coaxial cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Verify that the installation meets the requirements for the specified hazardous area certifications (CSA, ATEX, IECEx) if applicable.
  • Always power down the monitoring system before disconnecting or replacing transducer components.

FAQ

What is the primary function of the 330105-02-12-05-02-CN probe?

This probe is used to measure the dynamic and static distance between the probe tip and the observed conductive surface, typically a rotating machine shaft, as part of a Bently Nevada vibration monitoring system.

Is this probe suitable for hazardous environments?

Yes, this specific model includes CSA, ATEX, and IECEx approvals, making it suitable for use in designated hazardous locations when installed according to the relevant safety documentation.

What is the purpose of the ClickLoc connector?

The ClickLoc connector is designed to provide a secure, reliable connection that resists loosening due to mechanical vibration, ensuring consistent signal transmission in industrial environments.
