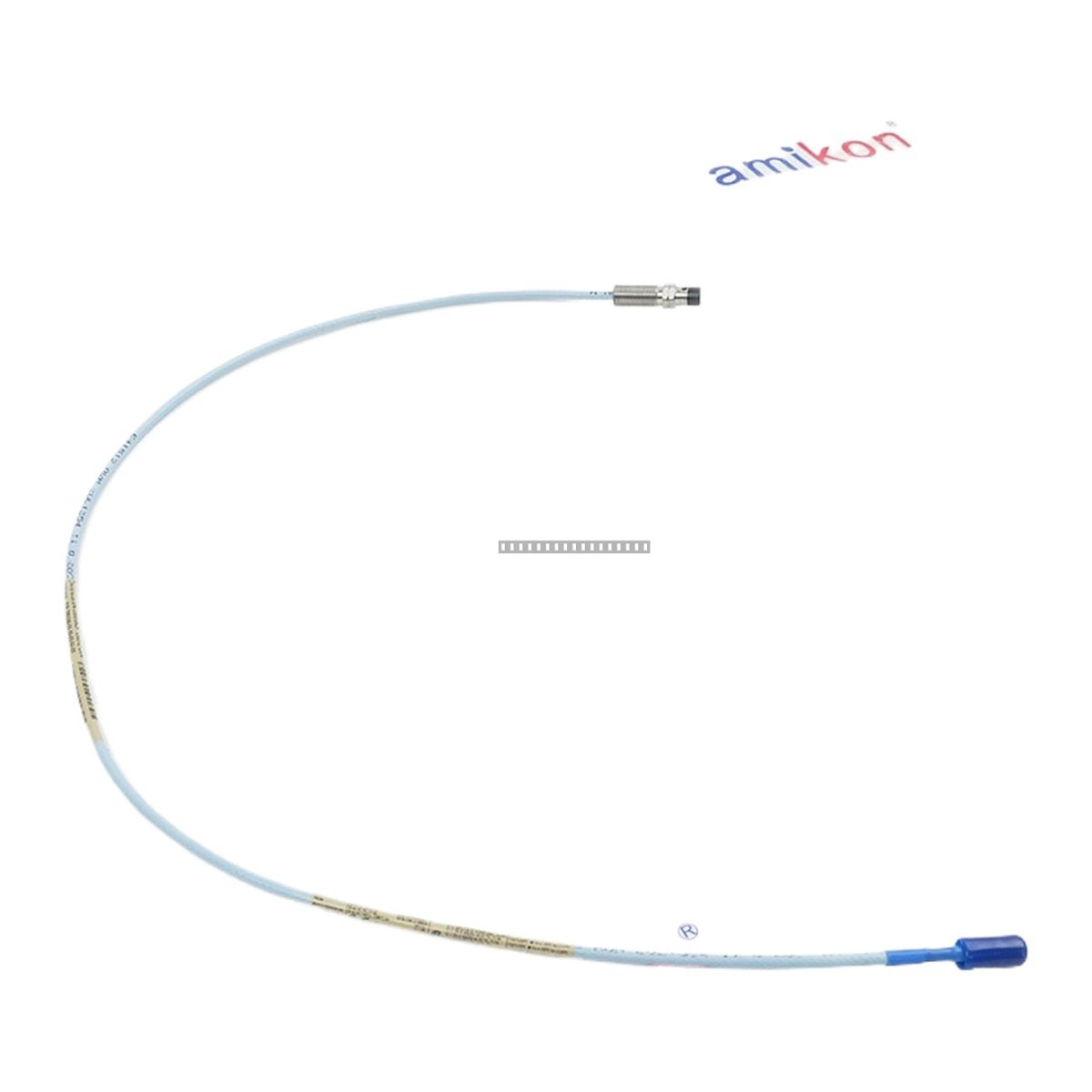

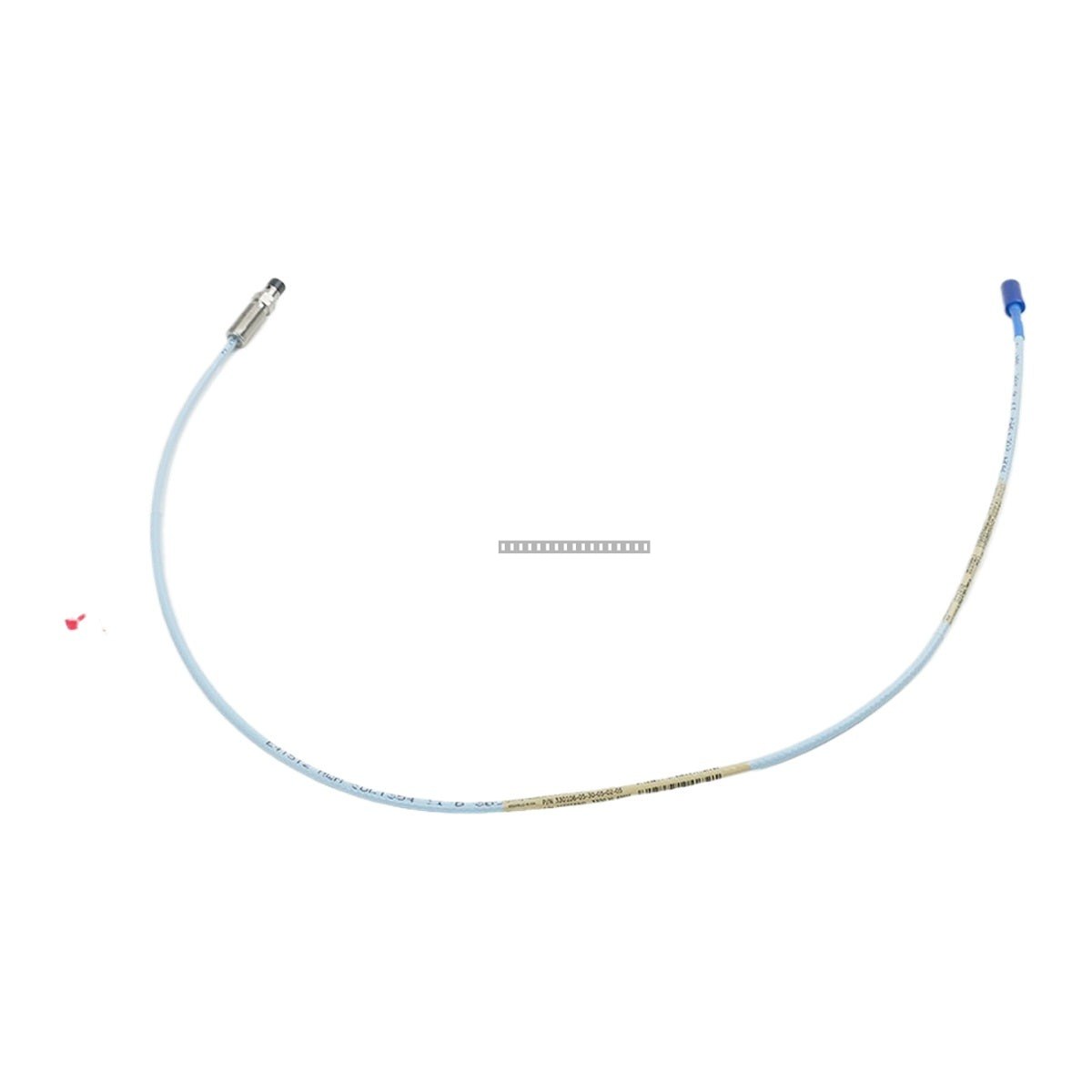

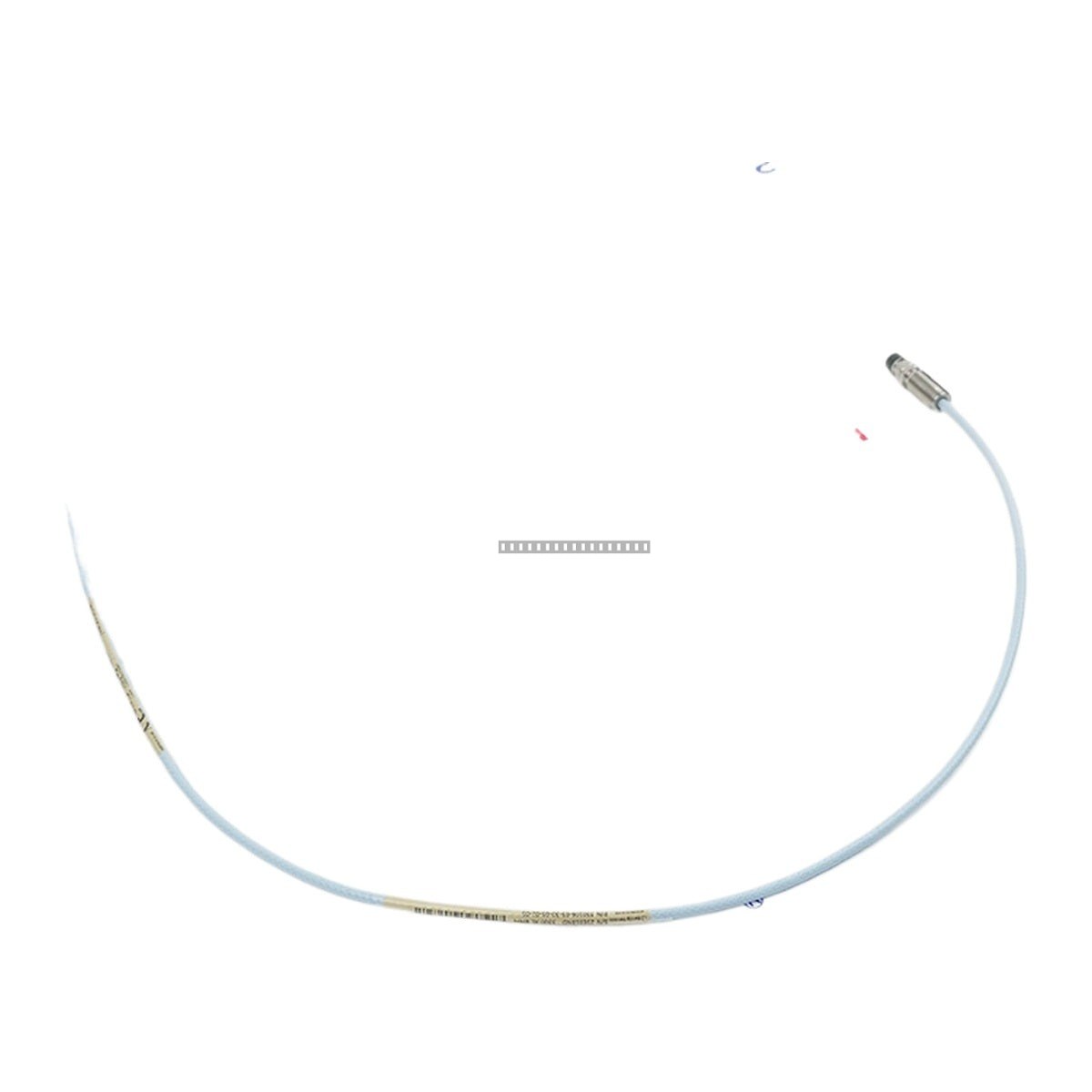

Bently Nevada 330106-05-30-05-02-05 3300 XL 8 mm Reverse Mount Probe

Bently Nevada 330106-05-30-05-02-05 3300 XL 8 mm Reverse Mount Probe

The Bently Nevada 330106-05-30-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe designed for high-performance eddy current transducer systems. It provides precise measurements of shaft-to-bearing clearance, vibration, and...

19 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 330106-05-30-05-02-05
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330106-05-30-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe designed for high-performance eddy current transducer systems. It provides precise measurements of shaft-to-bearing clearance, vibration, and position in rotating machinery, ensuring operational integrity in demanding industrial environments.

Features

  • Designed for 3300 XL 8 mm proximity transducer systems.
  • Reverse mount configuration with M10 x 1 threads.
  • Complete interchangeability of probes, extension cables, and Proximitor sensors.
  • Complies with API 670 standards for mechanical configuration, linear range, and accuracy.
  • Includes Miniature ClickLoc coaxial connector for secure signal transmission.
  • CSA, ATEX, and IECEx hazardous area approvals.

Applications

  • Steam turbines and generator bearings in power plants.
  • Centrifugal and reciprocating compressors in oil and gas facilities.
  • Large blowers and fans in steel metallurgy.
  • Pulp and water treatment pumps.

Technical Specifications

Model 330106-05-30-05-02-05
Probe Type 3300 XL 8 mm Reverse Mount
Thread Size M10 x 1
Cable Length 0.5 meter (1.6 feet)
Connector Miniature ClickLoc coaxial
Approvals CSA, ATEX, IECEx
Output Resistance 50 Ohm
Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical

Installation Guidelines

  • Ensure the probe is mounted securely using the provided M10 x 1 threads to maintain consistent gap measurement.
  • Route coaxial cables away from high-EMI sources and high-voltage power lines to prevent signal interference.
  • Verify that the probe tip is clear of obstructions and correctly gapped according to the specific machine's monitoring requirements.
  • Handle with care to avoid damage to the probe tip or the coaxial connector interface.
  • Always power down the associated monitoring system before connecting or disconnecting the transducer system components.

FAQs

What is the primary function of this probe?

This probe measures the distance between the probe tip and a conductive surface, providing data for static position and dynamic vibration monitoring in rotating machinery.

Is this probe interchangeable?

Yes, the 3300 XL 8 mm system is designed for complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component bench calibration.

What materials are used in the construction?

The probe tip is constructed from Polyphenylene sulfide (PPS), and the probe case is manufactured from AISI 303 or 304 stainless steel.
