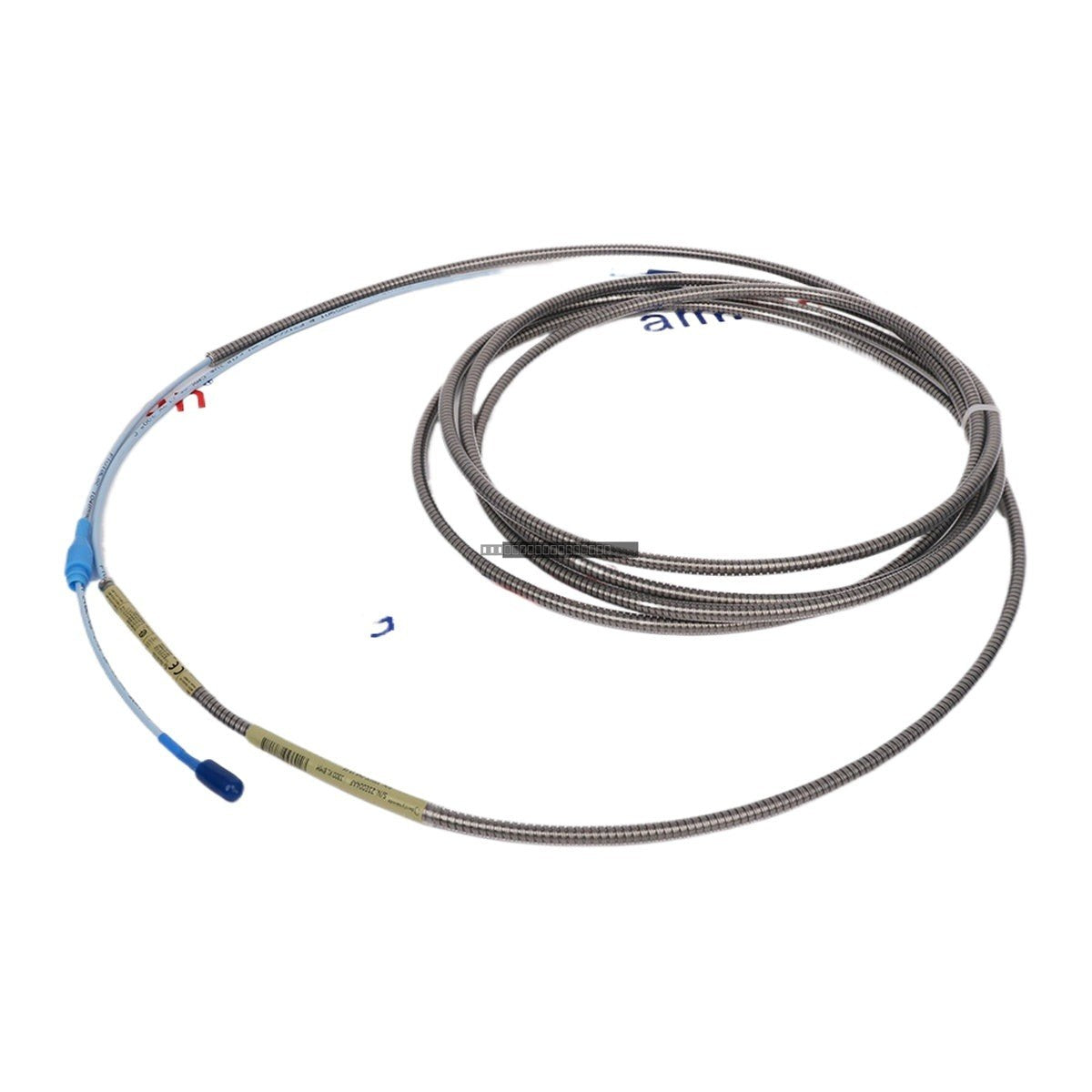

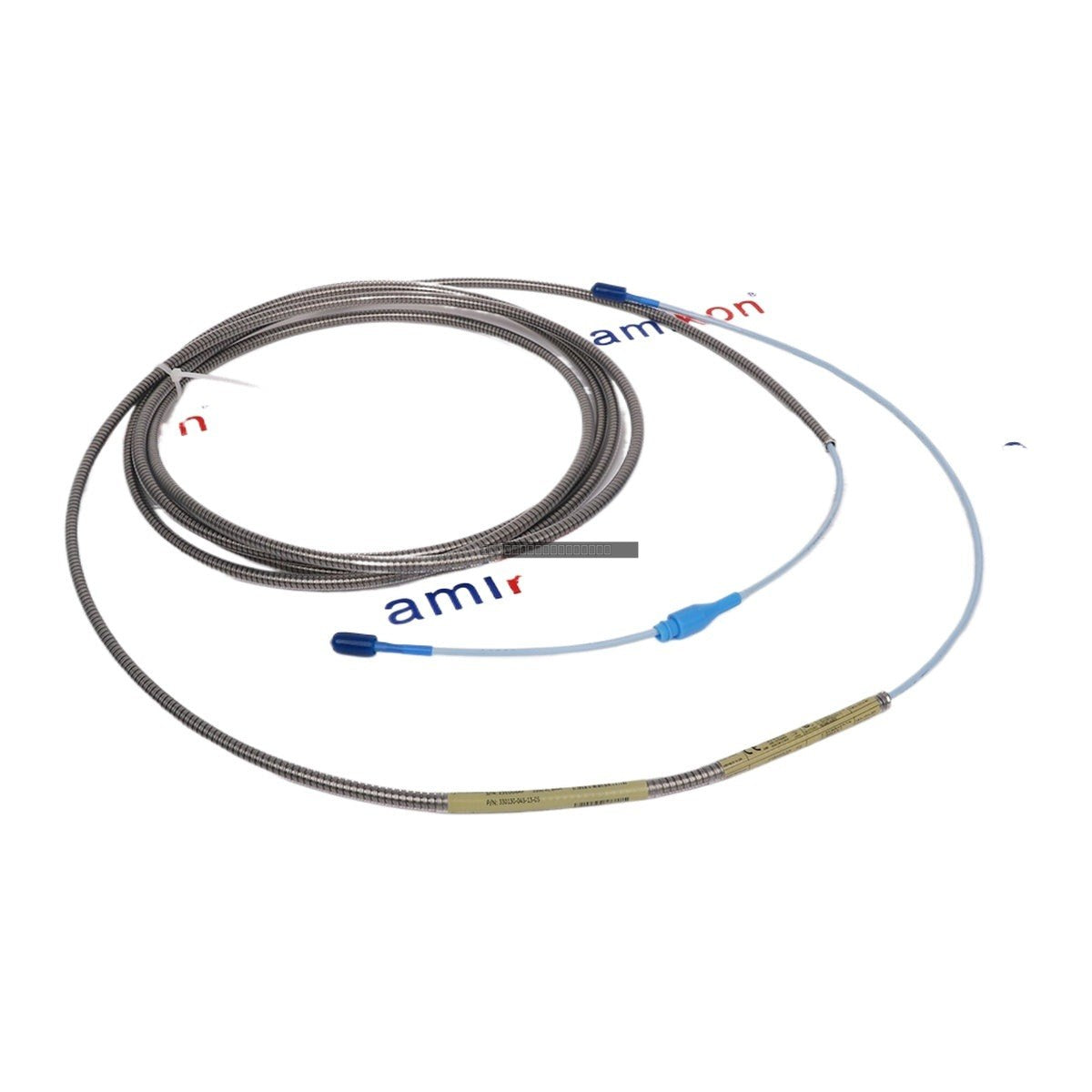

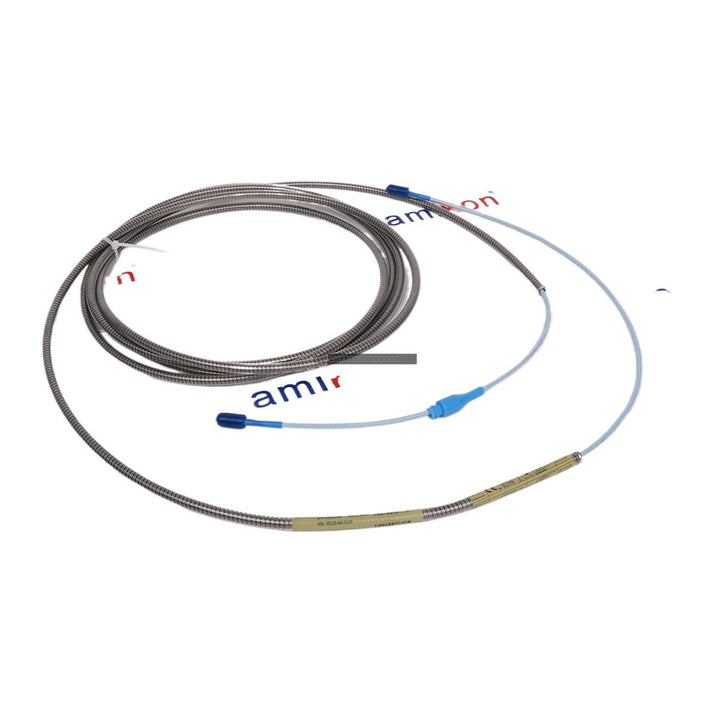

Bently Nevada 330130-045-13-05 3300 XL Standard Extension Cable

Bently Nevada 330130-045-13-05 3300 XL Standard Extension Cable

The Bently Nevada 330130-045-13-05 is a 3300 XL standard extension cable designed for integration within the 3300 5mm Proximity Transducer System. This cable serves as the critical link between a...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: 330130-045-13-05
Proveedora: Bently Nevada
tipo: Proximity Transducer Extension Cable
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330130-045-13-05 is a 3300 XL standard extension cable designed for integration within the 3300 5mm Proximity Transducer System. This cable serves as the critical link between a 3300 5mm probe and a 3300 XL Proximitor Sensor, facilitating accurate vibration, position, Keyphasor, and speed measurements on rotating machinery such as fluid-film bearing turbines and compressors.

Features

  • Designed for the 3300 XL Proximity Transducer System.
  • Equipped with corrosion-resistant, gold-plated brass ClickLoc connectors.
  • Features a specialized locking mechanism requiring only finger-tight torque, eliminating the need for specialized installation tools.
  • Armored FluidLoc cable construction for enhanced durability in harsh industrial environments.
  • Includes factory-installed connector protectors.
  • Supports complete system interchangeability, removing the requirement for individual component matching or bench calibration.

Applications

  • Power Generation: Shaft vibration monitoring for steam, gas, and hydro turbines.
  • Oil & Gas: Condition monitoring for compressors, pumps, and offshore processing equipment.
  • Refining & Petrochemical: Providing critical data from motors and fans to plant control systems.
  • Heavy Industry: Signal transmission for mining, pulp mills, and large-scale pumping stations.

Technical Specifications

Model 330130-045-13-05
Cable Length 4.5 meters (14.8 feet)
Cable Type Armored FluidLoc with Connector Protector
Operating Temperature -40 degC to +85 degC
Storage Temperature -50 degC to +90 degC
Output Resistance 50 Ohm
Frequency Response 0 to 10 kHz (+0, -3 dB)
Insulation Resistance > 100 MOhm at 500 VDC
Capacitance 69.9 pF/m

Installation Guidelines

  • Routing: Maintain a minimum separation of 300 mm (12 inches) from high-voltage wiring, AC power lines, and motor leads to prevent EMI interference.
  • Conduit: Do not install sensor extension cables in the same conduit as high-voltage power lines.
  • Securing: Use standard high-temperature cable ties or mounting clamps to secure the cable and relieve strain on the connectors.
  • Handling: Ensure the system components are matched correctly for electrical length. Power down the system before disconnecting or connecting components.

FAQ

What is the primary function of the 330130-045-13-05?

This cable acts as an extension between the proximity probe and the Proximitor sensor, ensuring signal integrity for vibration and position monitoring in industrial machinery.

Is this cable compatible with other 3300 series components?

Yes, the 3300 XL series is designed for complete interchangeability, allowing it to be used with other 3300 XL system components without the need for recalibration.

What is the purpose of the ClickLoc connectors?

The ClickLoc connectors provide a secure, vibration-resistant connection that can be installed or removed by hand, reducing maintenance time and the risk of over-tightening.
