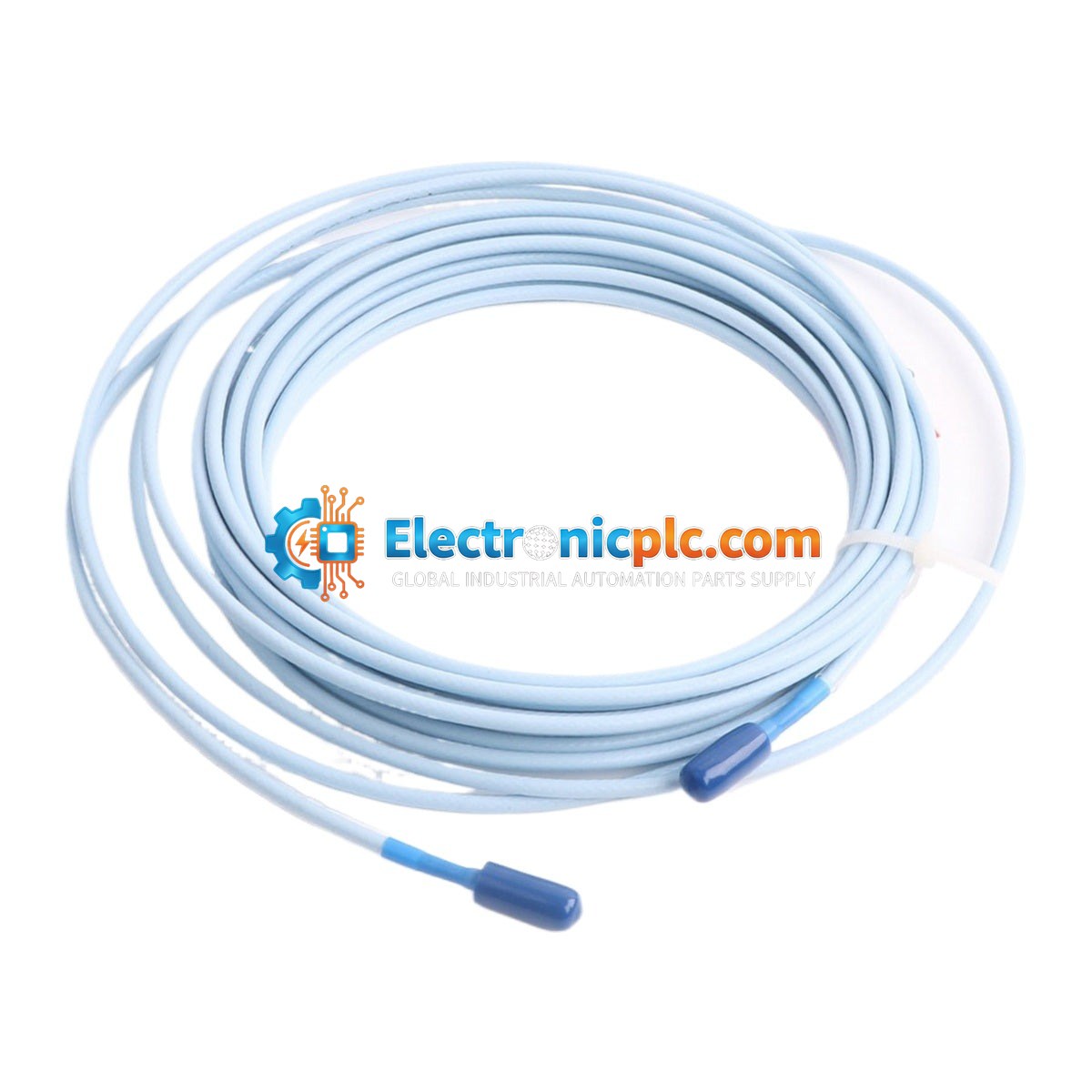

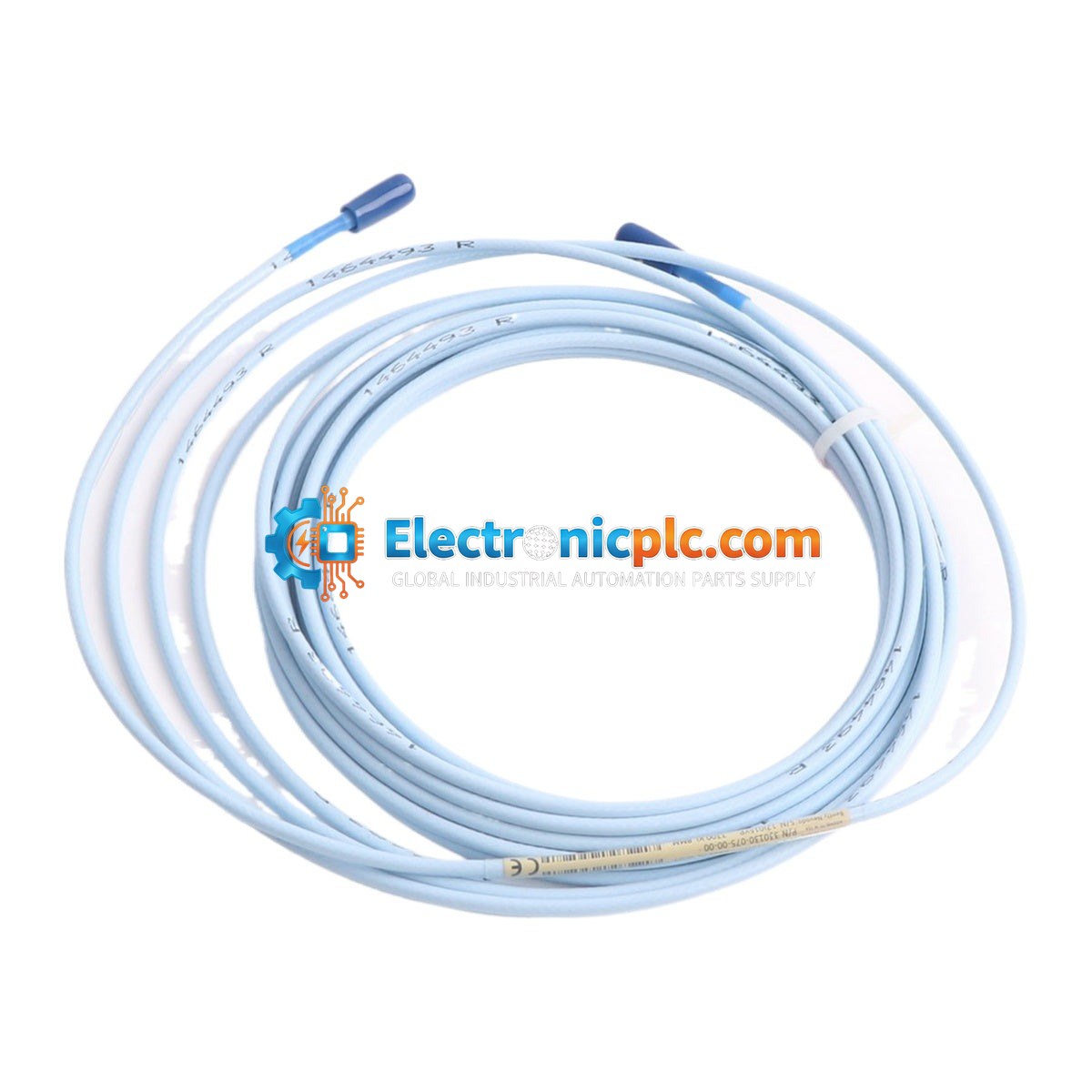

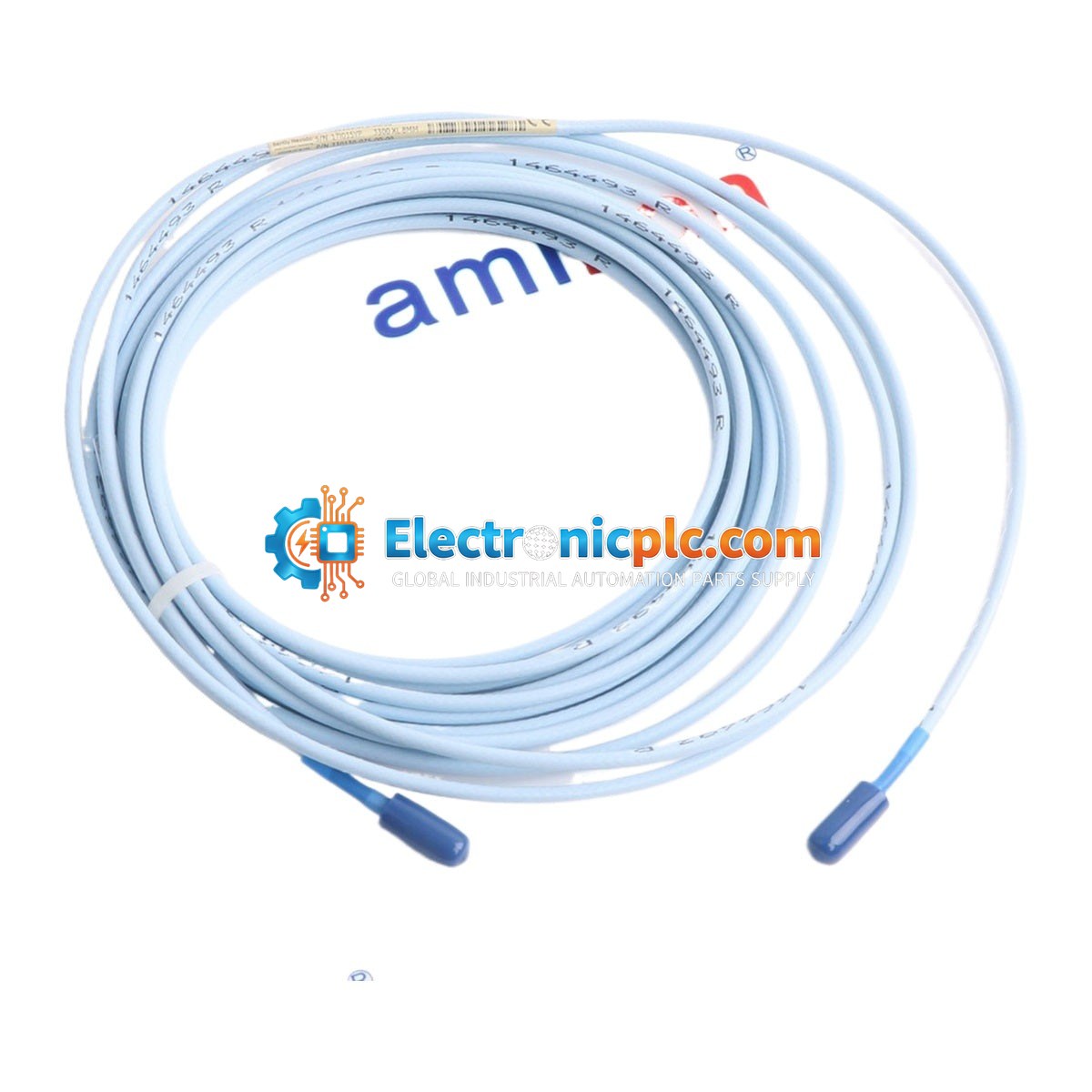

Bently Nevada 330130-075-00-00 3300 XL Standard Extension Cable

Bently Nevada 330130-075-00-00 3300 XL Standard Extension Cable

Description

The Bently Nevada 330130-075-00-00 is a 7.5-meter (24.6-foot) standard extension cable designed for the 3300 XL 8 mm Proximity Transducer System. This cable serves as the critical electrical link between...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: 330130-075-00-00
Proveedora: Bently Nevada
tipo: Proximity Transducer Extension Cable
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330130-075-00-00 is a 7.5-meter (24.6-foot) standard extension cable designed for the 3300 XL 8 mm Proximity Transducer System. This cable serves as the critical electrical link between the 3300 XL proximity probe and the 3300 XL Proximitor sensor. It is engineered to maintain the precise calibrated characteristics of the eddy current transducer system, ensuring accurate shaft vibration and position measurements in rotating machinery.

Features

  • Compatible with 3300 XL 8 mm Proximity Transducer Systems.
  • 7.5 m (24.6 ft) length for flexible installation.
  • 75 Ohm triaxial cable construction for optimal signal integrity.
  • Gold-plated ClickLoc connectors for secure, vibration-resistant mechanical and electrical coupling.
  • FEP-insulated conductors providing high resistance to oil, moisture, and extreme industrial temperatures.
  • Minimum bend radius of 25.4 mm (1 inch) for ease of routing in tight machinery enclosures.

Applications

  • Power Generation: Safeguarding steam and gas turbine generator sets.
  • Oil & Gas: Monitoring upstream and downstream rotating machinery.
  • Petrochemical Refining: Protecting continuous-duty process compressors.
  • Fluid-Film Bearings: Non-contact positioning and vibration monitoring for massive rotating assemblies.

Technical Specifications

Product Model 330130-075-00-00
Cable Length 7.5 meters (24.6 feet)
Cable Type Standard Triaxial
Characteristic Impedance 75 Ohm
Insulation Resistance > 500 MΩ at 500 VDC
Dielectric Strength 1,000 VAC RMS, 60 Hz, 1 minute
Connector Type Gold-plated ClickLoc
Operating Temperature -35 degC to +177 degC

Installation Guidelines

  • Connector Handling: Use the ClickLoc connectors by tightening finger-tight until a distinct "click" is felt. This ensures the locking mechanism is engaged to prevent loosening due to machine vibration.
  • Environmental Protection: It is highly recommended to wrap coaxial connections in silicone tape or use connector protectors to prevent moisture, dust, and turbine oil ingress.
  • Routing: Maintain a minimum bend radius of 25.4 mm (1 inch). Avoid routing cables near high-EMI sources or power lines to prevent signal interference.
  • System Integrity: Ensure all connections are clean and free of debris before mating. The 3300 XL system is designed for component interchangeability; no bench recalibration is required when replacing cables within the same system family.

FAQ

What is the 330130-075-00-00?

The Bently Nevada 330130-075-00-00 is a 7.5-meter standard extension cable for the 3300 XL Proximity Transducer System.

What type of connectors does the cable use?

It features specialized gold-plated ClickLoc connectors. These latch securely to eliminate loose connections caused by machine vibrations.

Can I mix and match this extension cable with different probe or Proximitor models?

Yes. All 3300 XL 8 mm system components feature a modular design, allowing complete interchangeability of probes, extension cables, and Proximitor sensors without requiring individual component matching or bench recalibration.
