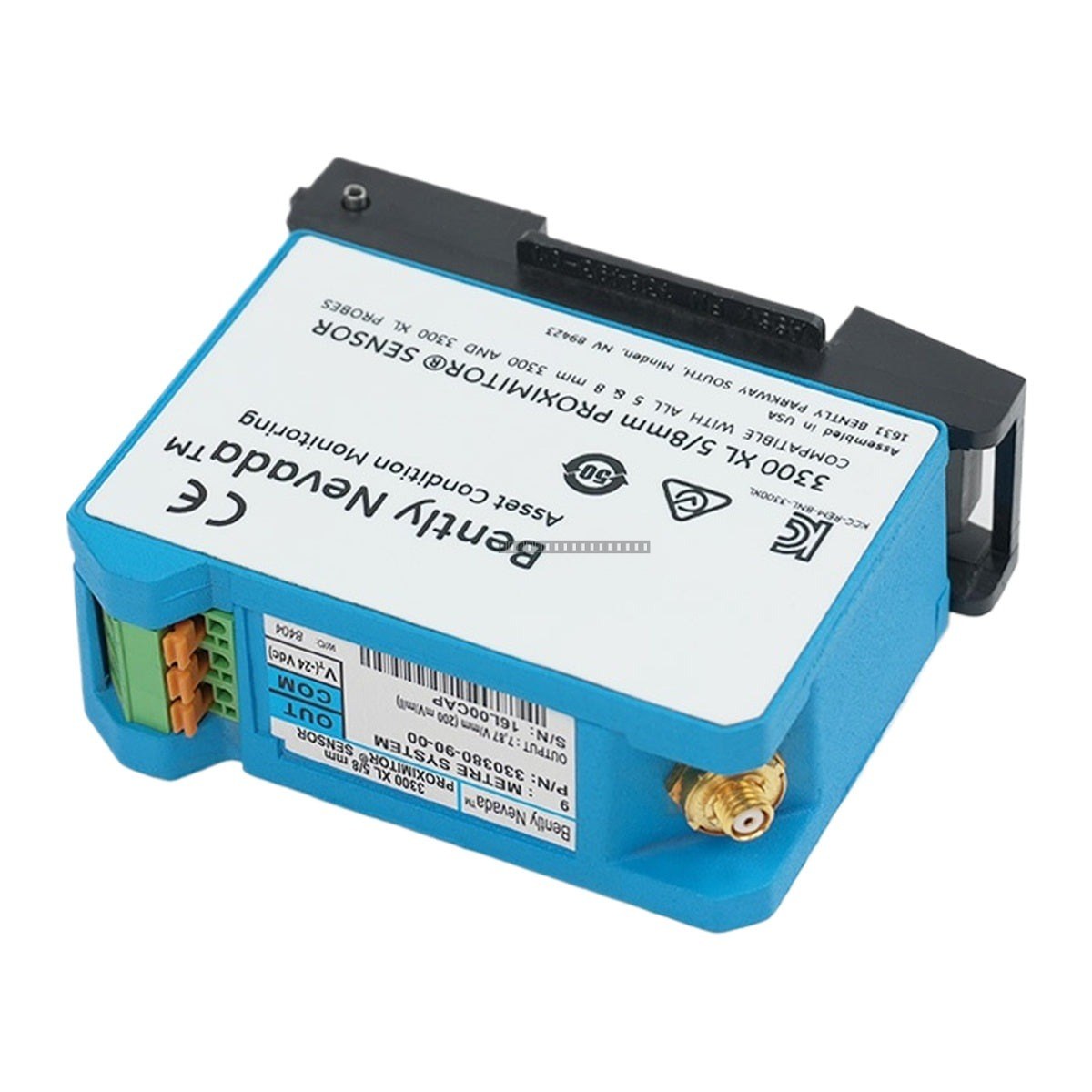

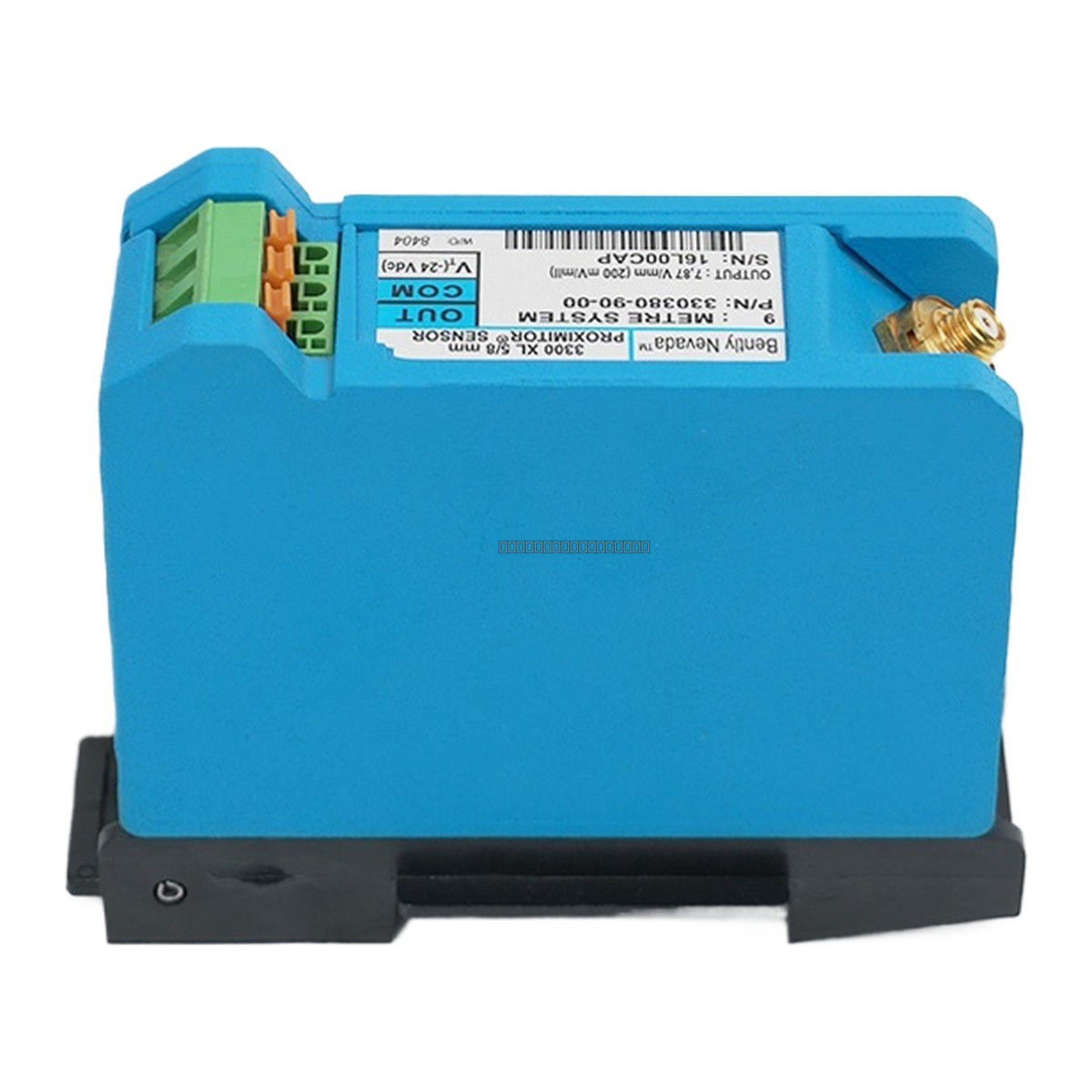

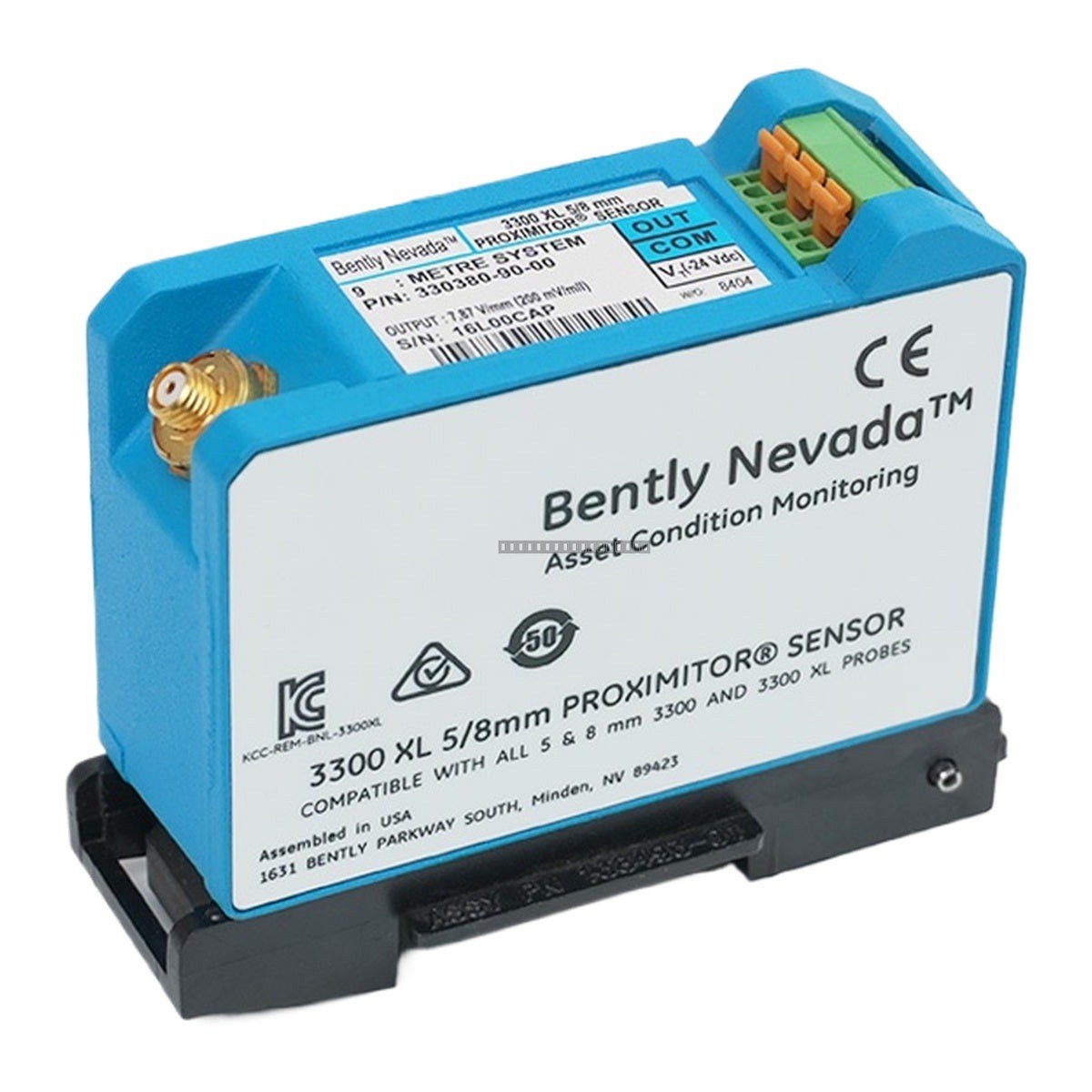

Bently Nevada 330380-90-00 3300 XL 16mm High Temperature Proximitor Sensor

Bently Nevada 330380-90-00 3300 XL 16mm High Temperature Proximitor Sensor

The Bently Nevada 330380-90-00 is a 3300 XL 16mm High Temperature Proximitor Sensor designed for non-contacting proximity measurements in extreme environments. As part of the 3300 XL High Temperature Proximity...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 330380-90-00
Proveedora: Bently Nevada
tipo: Proximity Sensor
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330380-90-00 is a 3300 XL 16mm High Temperature Proximitor Sensor designed for non-contacting proximity measurements in extreme environments. As part of the 3300 XL High Temperature Proximity System (HTPS), this sensor is engineered to convert the physical distance (gap) between a probe and a target into a proportional 3.94 V/mm (100 mV/mil) voltage signal, facilitating critical machine protection and diagnostic monitoring.

Features

  • Designed for continuous operation in extreme environments with probe tip ratings up to +350 degC (+662 degF).
  • 4 mm (160 mils) linear measurement range suitable for hot-section machine monitoring.
  • Hermetically-sealed ceramic probe tip provides robust protection against moisture and contaminants.
  • Compatible with standard Bently Nevada monitoring and diagnostic equipment.
  • Integrated hardline cable assembly for reliable signal transmission through high-temperature zones.

Applications

  • Steam turbines and large-scale power generation equipment.
  • Large centrifugal compressors and gas turbine drive pump sets.
  • Heavy-duty rotor equipment in steel and paper mills.
  • Hydroelectric generating units for axial trajectory and deflection monitoring.
  • Mode shape analysis for turbine R&D and troubleshooting.

Technical Specifications

Model 330380-90-00
System Length 9 meters
Probe Tip Material Ceramic
Signal Output 3.94 V/mm (100 mV/mil)
Linear Range 4 mm (160 mils)
Output Resistance 50 Ohm
Probe Case Torque 81 N.m (720 in.lb)
Operating Temp (Proximitor) -51 degC to +100 degC

Installation Guidelines

  • Ensure the probe is mounted securely using the specified torque to prevent vibration-induced measurement errors.
  • Route hardline cables carefully to avoid exceeding minimum bend radii, especially near high-temperature zones.
  • Maintain proper grounding practices for the Proximitor sensor housing to minimize EMI/RFI interference.
  • Verify that the total system length (probe + extension cable) matches the calibration requirements of the monitoring system.
  • Always power down the monitoring system before connecting or disconnecting the sensor to prevent electrical damage.

FAQ

What is the primary function of the 330380-90-00?

It is a proximity sensor used to measure vibration, thrust position, and differential expansion in hot areas of rotating machinery, converting gap distance into a proportional voltage signal.

What is the total system length for this model?

The 330380-90-00 is configured for a total system length of 9 meters.

Does this sensor require armor?

This specific model is provided without armor; armored versions are typically handled as custom configurations.
