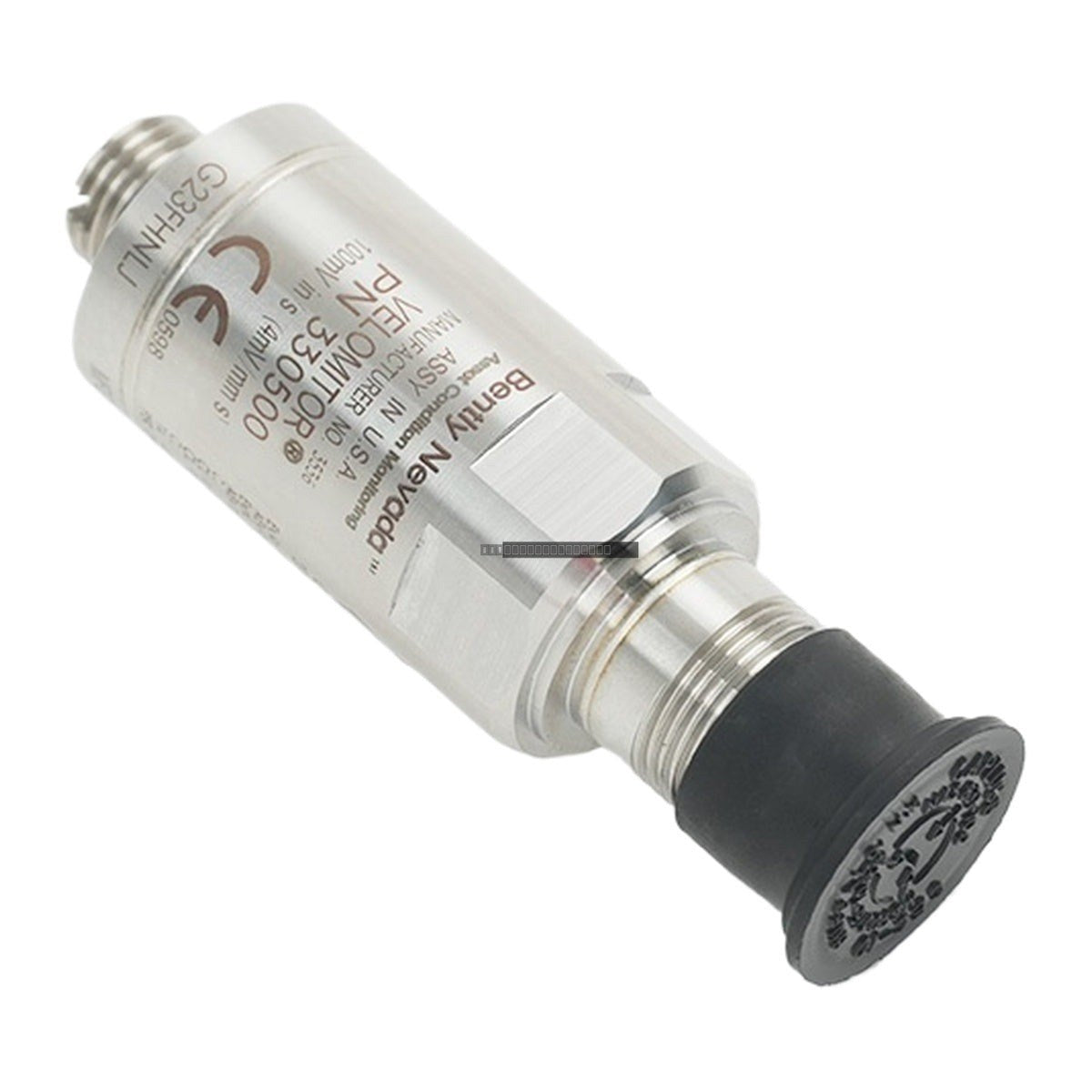

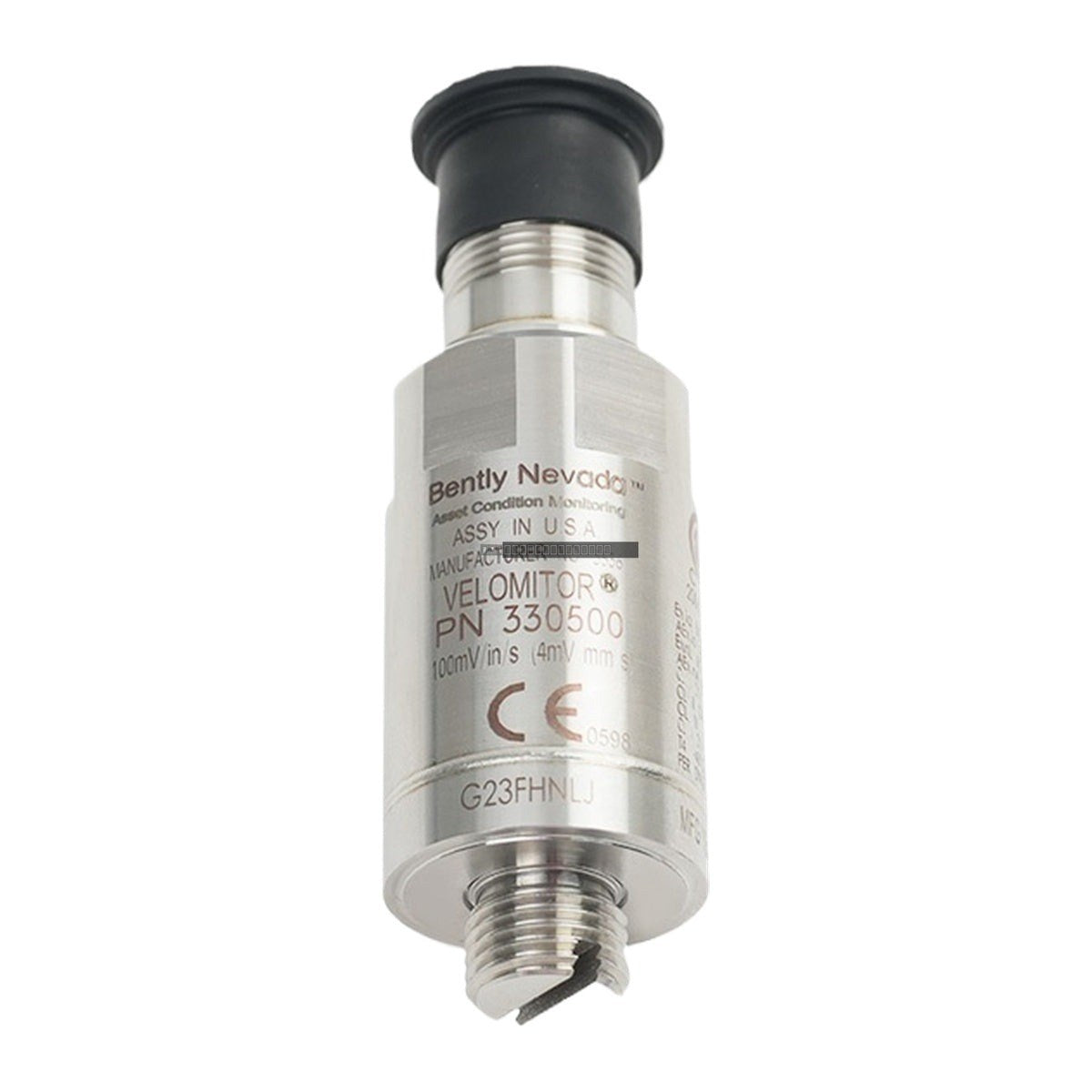

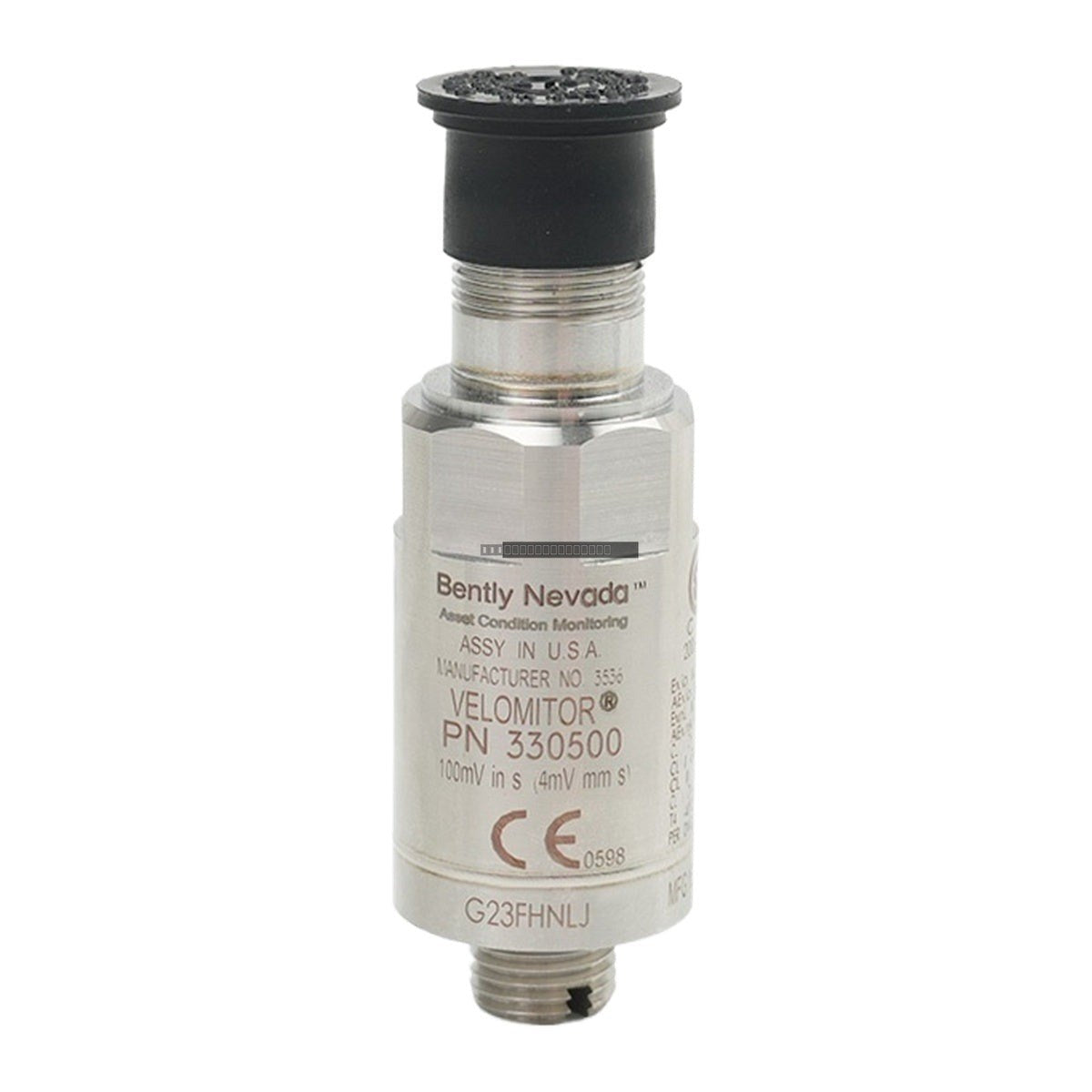

Bently Nevada 330500-01-01 Velomitor Piezo-Velocity Sensor

Bently Nevada 330500-01-01 Velomitor Piezo-Velocity Sensor

The Bently Nevada 330500-01-01 is a high-performance Velomitor Piezo-velocity sensor designed for the measurement of absolute vibration on bearing housings, machine casings, and structural components. By utilizing advanced piezoelectric accelerometer...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 330500-01-01
Proveedora: Bently Nevada
tipo: Vibration Monitor Sensor
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330500-01-01 is a high-performance Velomitor Piezo-velocity sensor designed for the measurement of absolute vibration on bearing housings, machine casings, and structural components. By utilizing advanced piezoelectric accelerometer technology with integrated solid-state electronics, this sensor provides a reliable velocity output without the mechanical wear associated with traditional moving-coil transducers.

Features

  • Solid-state design with no moving parts for extended service life.
  • Integrated electronics allow for mounting in any orientation (vertical, horizontal, or angled).
  • Immune to mechanical degradation common in older velocity transducer technologies.
  • Standard 1/2-20 UNF mounting thread for secure installation.
  • CSA/US/C certified for hazardous area compliance.

Applications

  • Turbines: Monitoring absolute bearing housing vibration in steam and gas turbine sets.
  • Compressors and Fans: Ideal for centrifugal and axial compressors, as well as cooling tower blowers.
  • Pumps and Motors: Suitable for horizontal and vertical pump trains and electric motor drive systems.
  • Industrial Processing: Widely used in power generation, oil and gas, petrochemical, and steel manufacturing facilities.

Technical Specifications

Model 330500-01-01
Sensitivity 3.94 mV/mm/s (100 mV/in/s) +/- 5%
Velocity Range 1270 mm/s (50 in/s) peak
Amplitude Linearity +/- 2% to 152 mm/s (6 in/s) peak
Mounting Thread 1/2-20 UNF
Approvals CSA/US/C

Installation Guidelines

  • Connector Engagement: Secure the 2-pin Mil-C-5015 connector firmly. If a protective boot is utilized, ensure it is seated correctly over the lip above the hex flats.
  • Polarity: Pin A provides a positive signal relative to Pin B when the sensor case moves toward the connector.
  • Cable Management: Maintain a minimum cable bend radius of 38.1 mm (1.5 inches) to prevent internal conductor damage.
  • Signal Integrity: The sensor supports cable runs up to 305 meters (1,000 feet) without significant signal degradation.
  • Handling: As a precision instrument, handle with care to avoid impact damage to the piezoelectric element. Ensure the mounting surface is clean and flat for accurate vibration transmission.

FAQ

What is the primary function of the 330500-01-01?

The sensor is designed to measure absolute vibration relative to free space, converting acceleration signals into a velocity output for monitoring bearing housing and structural health.

Can this sensor be mounted in any position?

Yes, because the unit utilizes solid-state electronics and contains no moving parts, it is not position-sensitive and can be installed at any angle.

What is the significance of the -01-01 suffix?

The first -01 indicates the 1/2-20 UNF mounting thread configuration, and the second -01 denotes the specific agency approval package (CSA/US/C).
