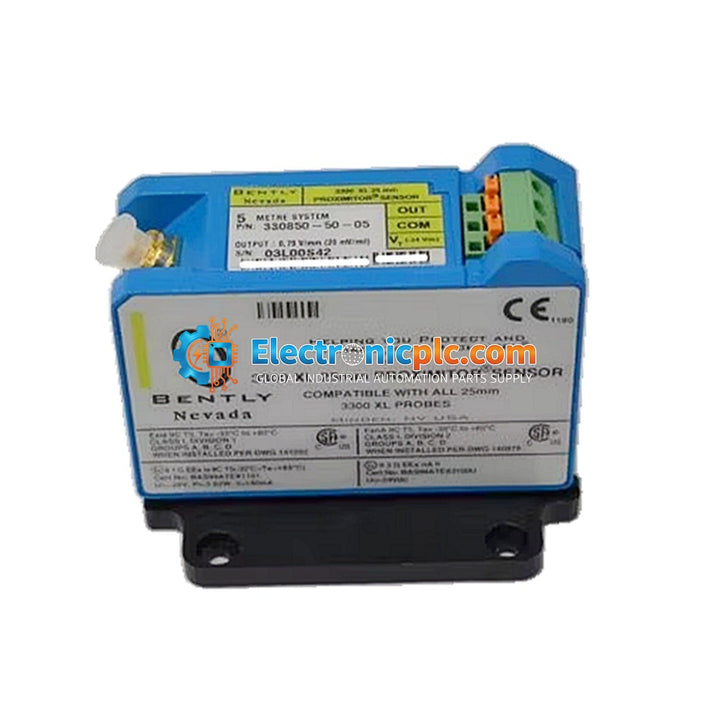

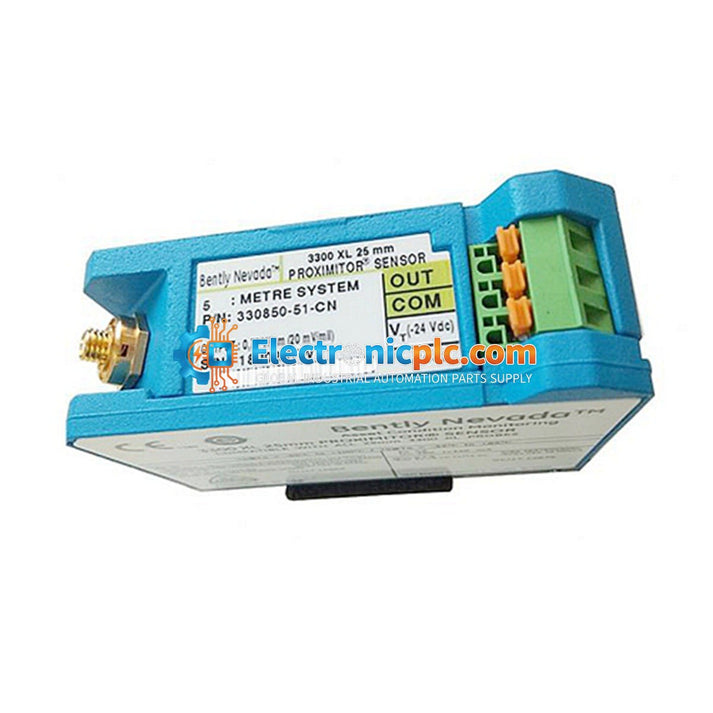

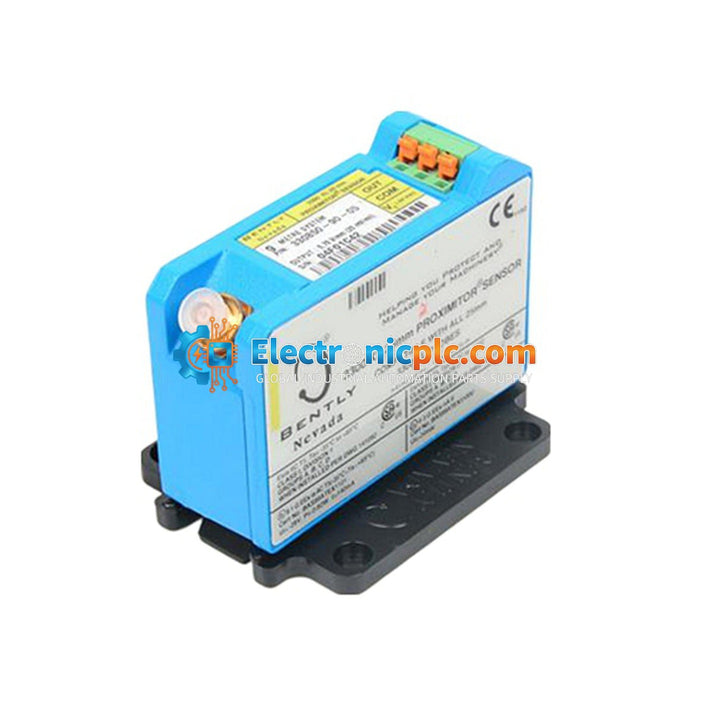

Bently Nevada 330850-51-05 3300 XL 25 mm Proximitor Sensor

Bently Nevada 330850-51-05 3300 XL 25 mm Proximitor Sensor

Description

The Bently Nevada 330850-51-05 is a high-performance 3300 XL 25 mm Proximitor Sensor designed for non-contacting, eddy-current measurement of shaft position and vibration. As a critical component of the 3300...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 330850-51-05
Proveedora: Bently Nevada
tipo: Proximitor Sensor
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330850-51-05 is a high-performance 3300 XL 25 mm Proximitor Sensor designed for non-contacting, eddy-current measurement of shaft position and vibration. As a critical component of the 3300 XL 25 mm Transducer System, it provides reliable monitoring for large rotating machinery. This specific model is configured for a 5.0-meter system length and features DIN-rail mounting capabilities for flexible installation in industrial cabinets.

Features

  • System Length: 5.0 metres (16.4 feet) for precise signal calibration.
  • Mounting: Versatile design supporting DIN-rail or traditional panel mount configurations.
  • Advanced Immunity: Enhanced RFI/EMI immunity allows for reliable operation near high-frequency radio signals without requiring special mounting considerations.
  • SpringLoc Terminals: Integrated SpringLoc terminal strips facilitate robust, tool-free field wiring connections.
  • Backward Compatibility: Compatible with various non-3300 XL series transducer system components.

Applications

  • Power Generation: Monitoring steam turbines, generators, and feedwater pumps in thermal, nuclear, and hydropower plants.
  • Oil & Gas: Vibration and position monitoring for gas turbines, reciprocating/rotary compressors, and delivery pumps.
  • Petrochemical: Essential for heavy equipment such as ethylene plants and ammonia synthesis units.
  • Heavy Industry: Suitable for blast furnace fans, large gearboxes, and industrial blowers in metallurgy and steel production.

Technical Specifications

Product Model 330850-51-05
Sensor Type 3300 XL 25 mm Proximitor Sensor
System Length 5.0 metres (16.4 feet)
Mounting DIN Rail
Output Resistance 50 Ohm
Sensitivity (ASF) 0.787 V/mm (20 mV/mil) nominal
Agency Approvals Multiple Approvals

Installation Guidelines

  • Handling: Ensure the system is powered down before installing or removing the module from the DIN rail.
  • ESD Protection: Handle the sensor and associated cables with standard electrostatic discharge (ESD) precautions.
  • Wiring: Utilize the SpringLoc terminals for secure connections. Ensure that the total system length (probe + extension cable) matches the 5.0-meter calibration of this Proximitor sensor.
  • EMI/RFI: While the unit features improved immunity, avoid routing signal cables alongside high-voltage power lines or heavy inductive loads.
  • Environment: Ensure the installation area is within the specified temperature ratings and protected from direct environmental contaminants.

FAQs

What is the primary function of the 330850-51-05?

It acts as the signal conditioning interface for a 25 mm proximity probe, converting the eddy-current signal into a proportional voltage output for monitoring shaft vibration and position.

Can this sensor be used in older systems?

Yes, the 3300 XL series is designed with backward compatibility in mind, allowing integration with many legacy Bently Nevada transducer system components.

What is the maximum field wiring distance?

While the calibrated system length (probe + extension cable) is 5.0 meters, the field wiring between the Proximitor sensor and the monitoring system can extend up to 305 meters (1000 feet).
