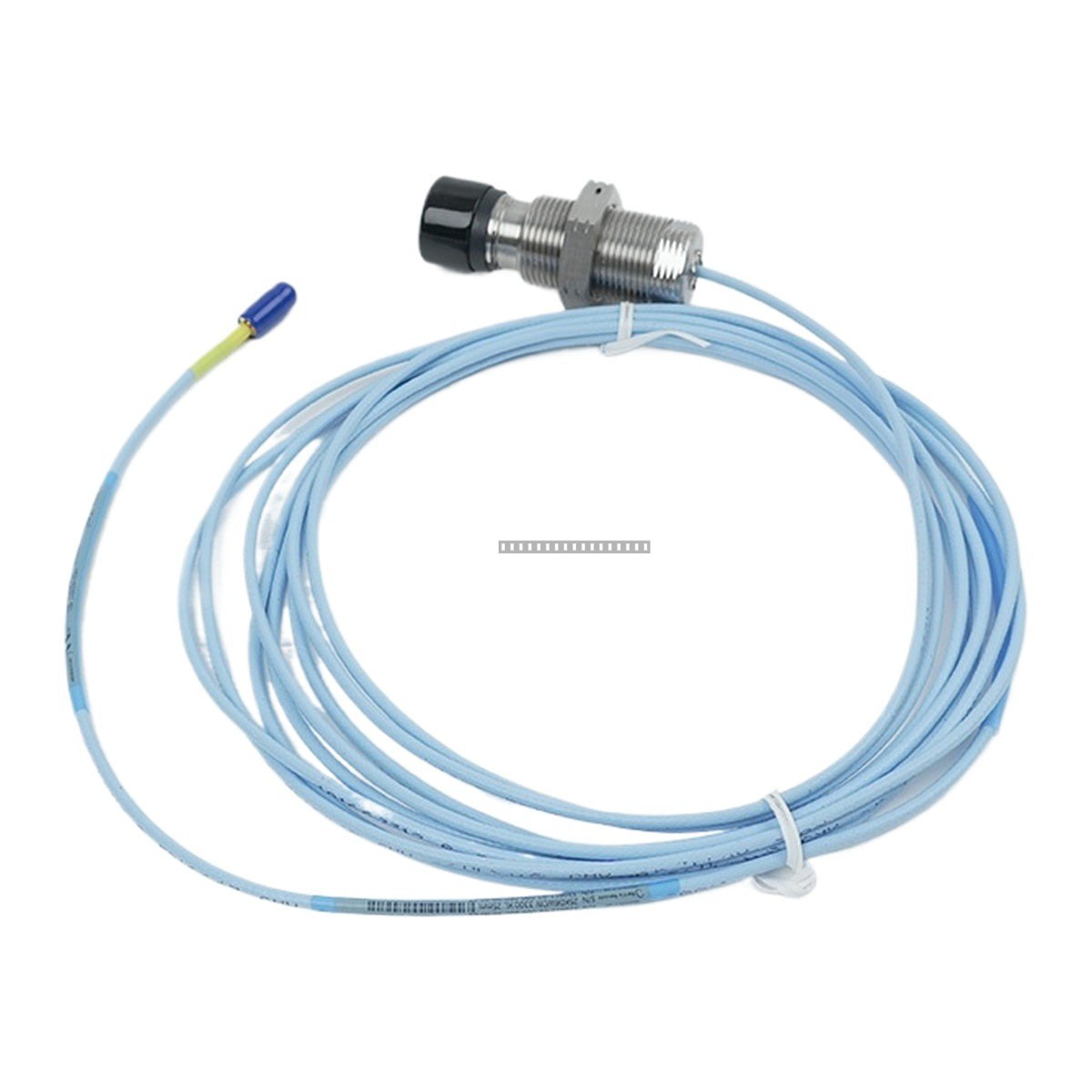

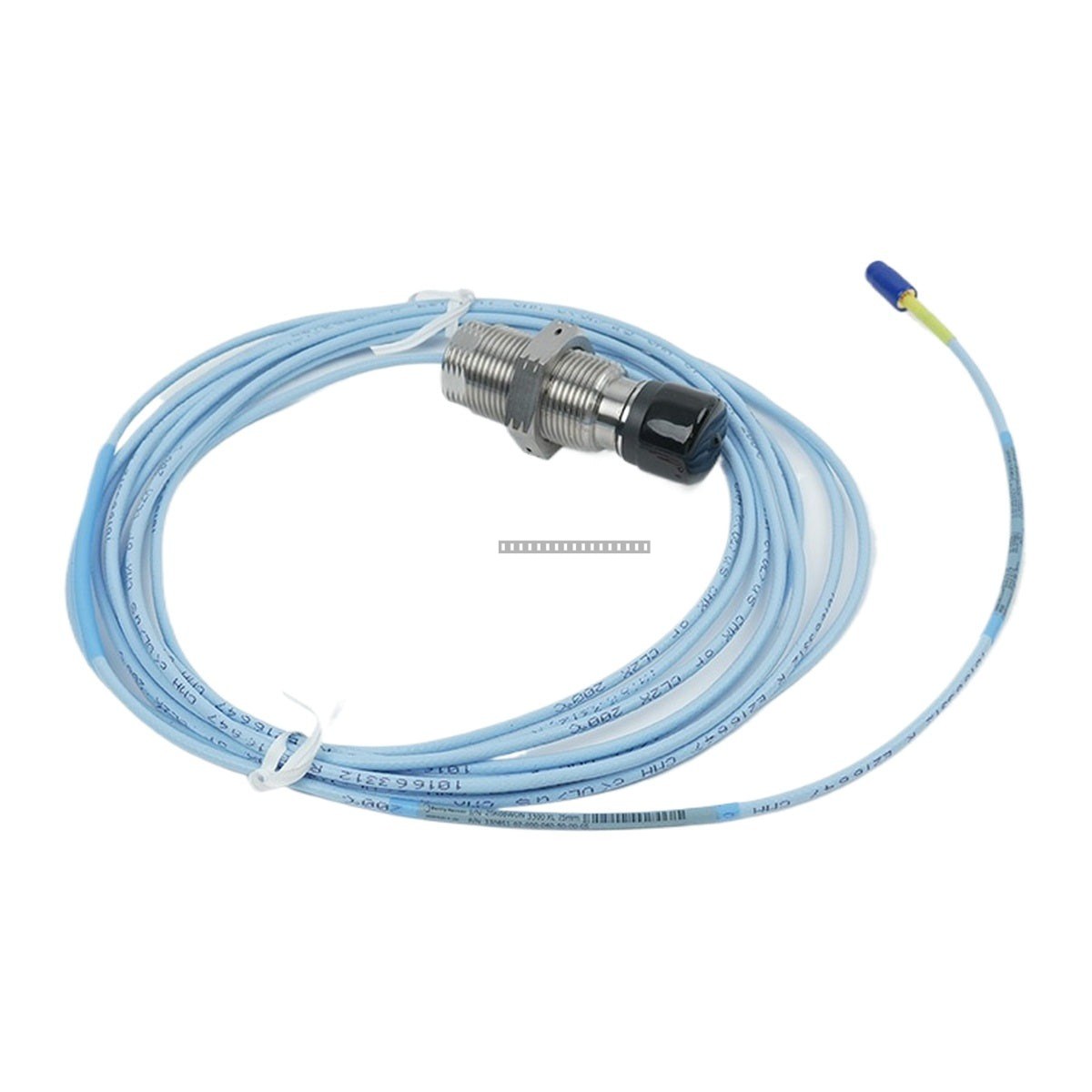

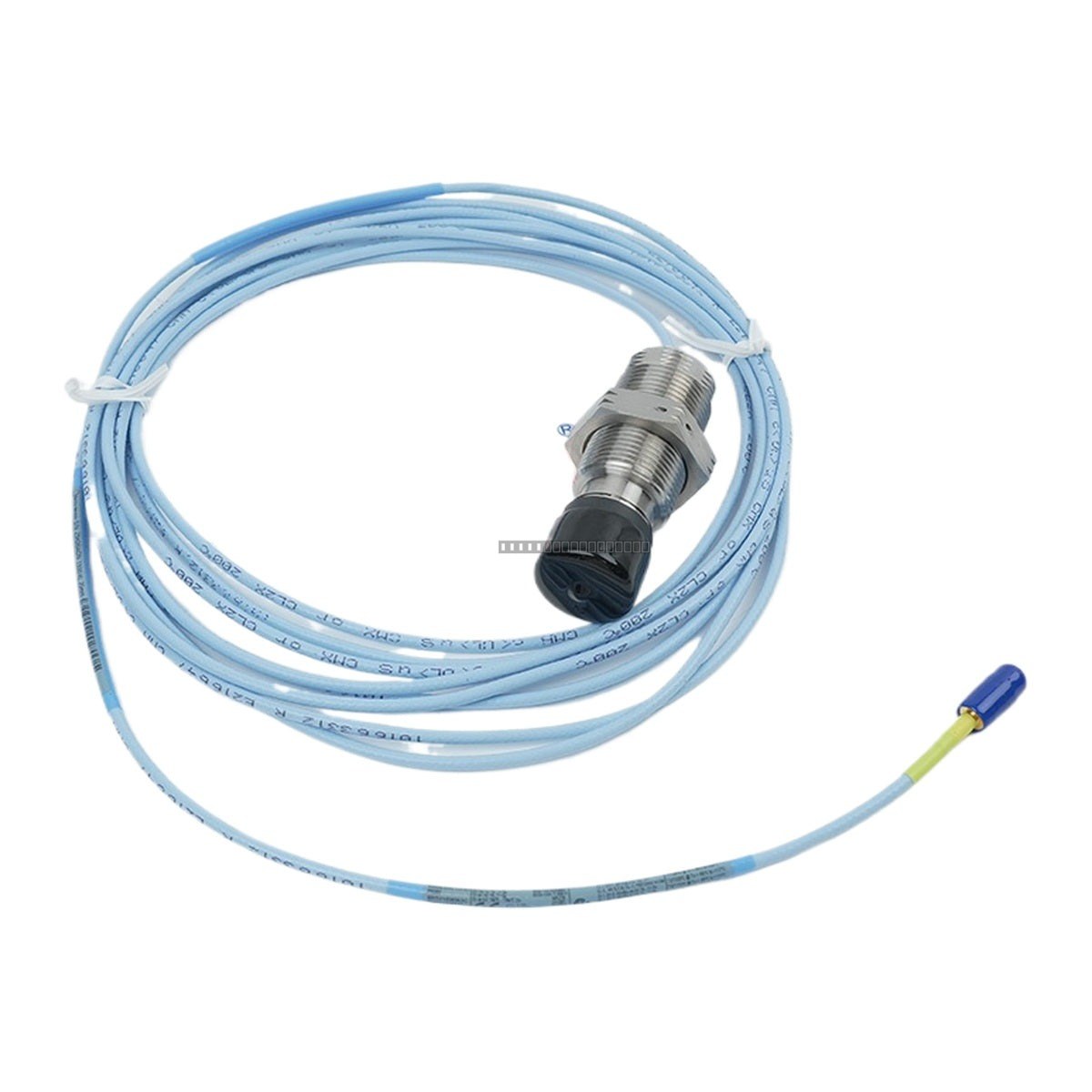

Bently Nevada 330851-02-000-060-50-00-05 3300 XL 25 mm Proximity Probe

Bently Nevada 330851-02-000-060-50-00-05 3300 XL 25 mm Proximity Probe

The Bently Nevada 330851-02-000-060-50-00-05 is a 3300 XL 25 mm Proximity Probe designed for high-precision, non-contact measurement of differential expansion in large rotating machinery. As part of the 3300 XL...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 330851-02-000-060-50-00-05
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330851-02-000-060-50-00-05 is a 3300 XL 25 mm Proximity Probe designed for high-precision, non-contact measurement of differential expansion in large rotating machinery. As part of the 3300 XL 25 mm Transducer System, this probe provides a linear range of 12.7 mm (500 mils), making it ideal for monitoring the thermal growth differences between turbine rotors and machine casings.

Features

  • Extended linear range of 12.7 mm (500 mils) for large displacement monitoring.
  • Dual-Seal design with FluidLoc cable technology to prevent fluid migration.
  • PEEK probe tip construction with an AISI 304 stainless steel case for durability.
  • Extreme temperature survivability up to 250 degC.
  • Standard sensitivity of 0.787 V/mm (20 mV/mil).

Applications

  • Steam Turbine Generators: Monitoring thermal growth and internal clearances.
  • Large Industrial Gas Turbines: Tracking rotor behavior under high-temperature cycles.
  • High-Capacity Process Compressors: Measuring axial movement and shaft expansion.
  • Heavy-Duty Industrial Pumps and Motors: Preventing mechanical rubbing in high-horsepower machinery.

Technical Specifications

Model Number 330851-02-000-060-50-00-05
Probe Case Type M30x2 Thread
Unthreaded Length 0 mm
Overall Case Length 60 mm
Total Length 5.0 metres (16.4 feet)
Armor No Armor
Agency Approvals Multiple Approvals
Weight 0.55 kg

Installation Guidelines

  • It is highly recommended to install the probe into an official Bently Nevada Sliding Bracket Assembly to allow for proper positioning and calibration.
  • The base plate should be securely bolted to the turbine casing structure.
  • The probe sits within a moveable sliding carriage, which allows technicians to simulate shaft collar movements and verify electrical scaling without opening the turbine housing.
  • Ensure the probe is handled with care to avoid damage to the PEEK tip.
  • Verify that the cable routing is protected from high-EMI sources and mechanical stress.

FAQ

What is the primary application of a 25 mm proximity probe?

Unlike standard 8 mm probes used for radial vibration, the 25 mm probe is specifically engineered for differential expansion measurements where larger physical displacement ranges are expected.

What is the sensitivity and scale factor?

The standard scale factor for this 3300 XL 25 mm probe system is 0.787 V/mm (20 mV/mil).

What are the operating temperature limits?

The probe head and its integrated FluidLoc triaxial cable are designed for extreme conditions, supporting a continuous operating temperature range from -35 degC to +200 degC (-31 degF to +392 degF).
