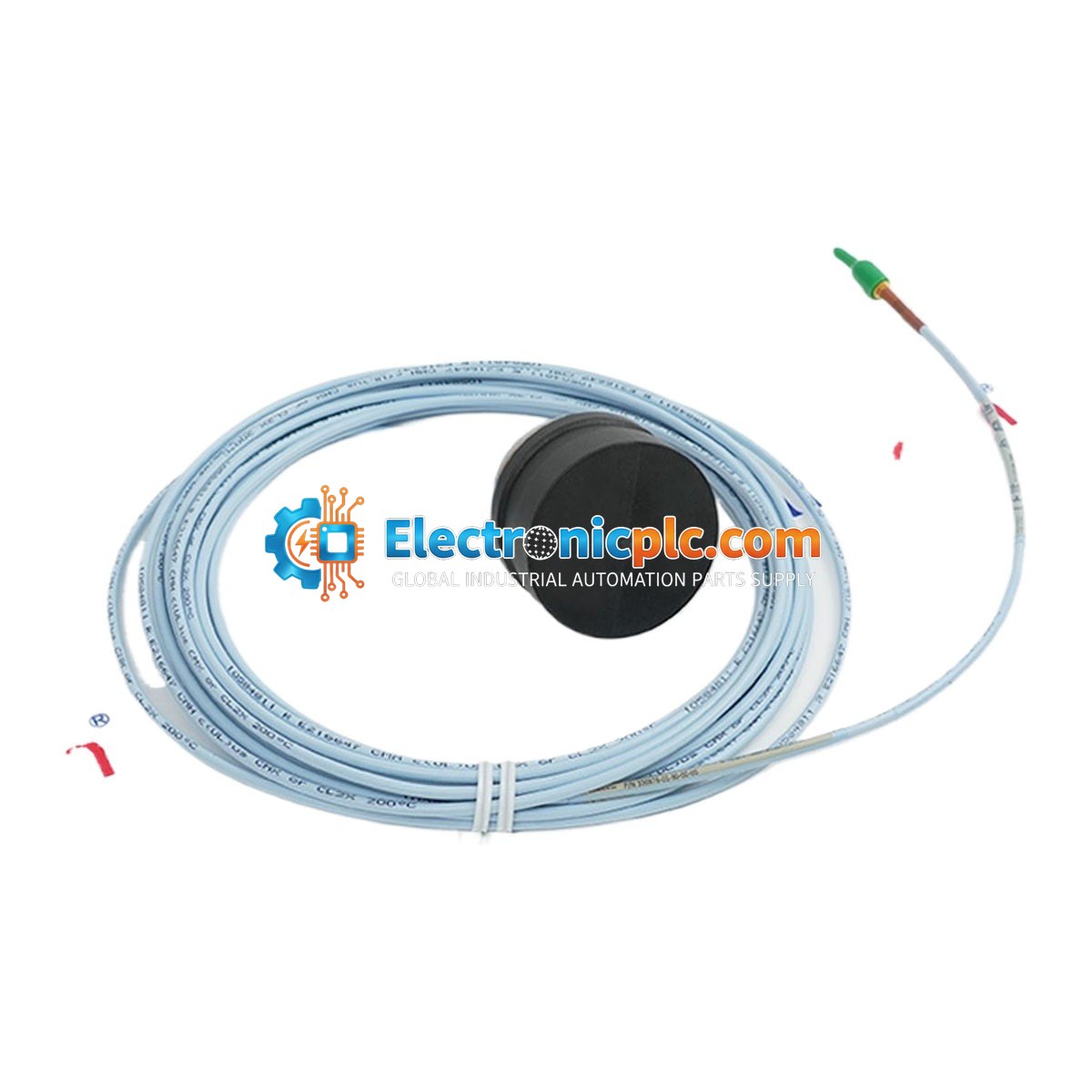

Bently Nevada 330876-01-90-00-00 3300 XL 50 mm Proximity Probe

Bently Nevada 330876-01-90-00-00 3300 XL 50 mm Proximity Probe

Description

The Bently Nevada 330876-01-90-00-00 is a high-performance 3300 XL 50 mm Proximity Probe designed for critical rotating machinery. As a core component of the 3300 XL 50 mm Transducer System,...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 330876-01-90-00-00
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330876-01-90-00-00 is a high-performance 3300 XL 50 mm Proximity Probe designed for critical rotating machinery. As a core component of the 3300 XL 50 mm Transducer System, this eddy-current sensor is engineered for precise measurement of differential expansion, shaft position, and vibration in large steam turbines and turbine-generator units. Its large 50 mm sensing coil provides an extended linear range, ensuring accurate data acquisition during critical operational phases such as startup, shutdown, and significant load changes.

Features

  • 3300 XL 50 mm proximity probe with 1/2-20 UNF thread.
  • Side-exit case style featuring two 1/4-20 mounting holes for flexible installation.
  • 90-inch (2286 mm) total system length.
  • High-temperature FluidLoc cable construction to prevent moisture wicking.
  • Gold-plated ClickLoc connectors for superior corrosion resistance and signal integrity.
  • Designed for operation in temperatures up to 200 degC (392 degF) continuous.

Applications

  • Differential expansion (DE) and rotor expansion (RX) monitoring.
  • Large steam turbine generator shaft position sensing.
  • High-temperature industrial turbine environments.
  • Applications requiring long-range displacement measurement.

Technical Specifications

Product Model 330876-01-90-00-00
Probe Type 3300 XL 50 mm Proximity Probe
Average Scale Factor 394 mV/mm (10 mV/mil) nominal
Operating Temperature -51 degC to +200 degC
Output Resistance 50 Ohm
Cable Capacitance 69.9 pF/m (21.3 pF/ft)
Probe Tip Material Polyphenylene Sulfide (PPS)
Relative Humidity To 95%, non-condensing

Installation Guidelines

  • Thread Engagement: Ensure internal matching threads do not exceed 1.5 times the nominal thread diameter to prevent binding.
  • Sideview Clearance: Maintain an open radius around the 50 mm probe tip to avoid interference with surrounding metallic structures.
  • Target Requirements: Use a Bently Nevada AISI 4140 steel target with a minimum diameter of 102 mm (4.0 inches) to maintain specified accuracy.
  • Securing: Tighten the locknut using the predrilled safety wire holes to ensure the probe remains fixed against machine vibration.
  • Connector Care: Use the provided connector protectors and installation tool to keep contacts free of contamination during routing.

FAQ

What is the 330876-01-90-00-00?

The Bently Nevada 330876-01-90-00-00 is a 3300 XL 50 mm Proximity Probe designed for high-temperature steam turbine environments, measuring shaft position and vibration.

Is this product brand new?

Yes, this unit is supplied as new, original, and unused equipment.
