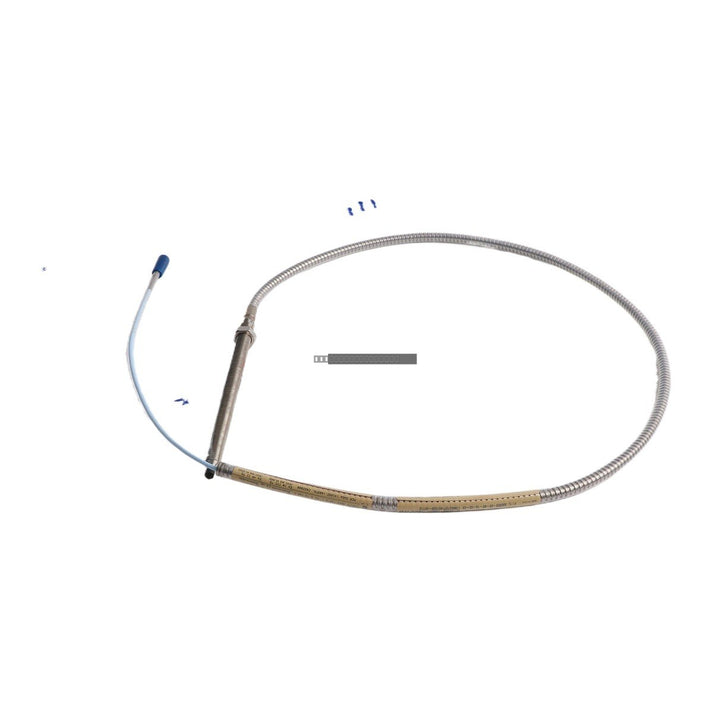

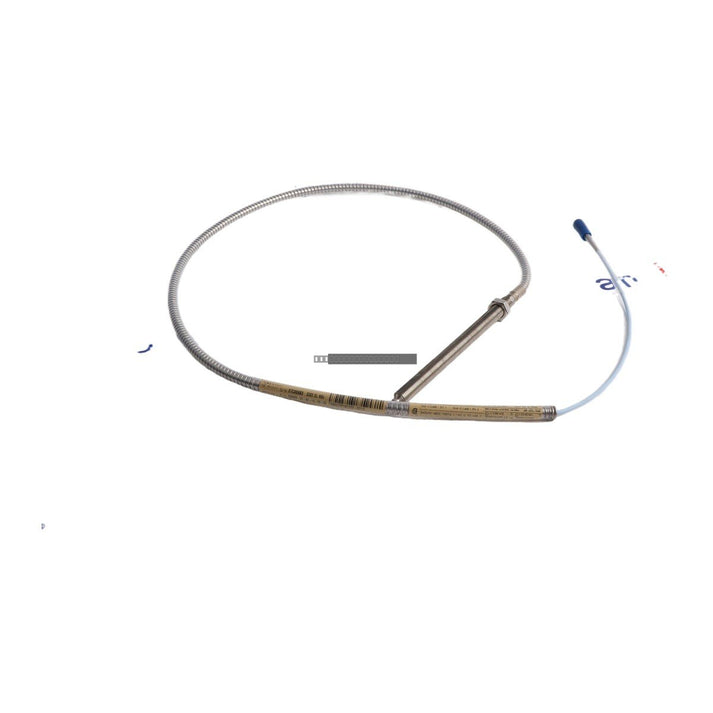

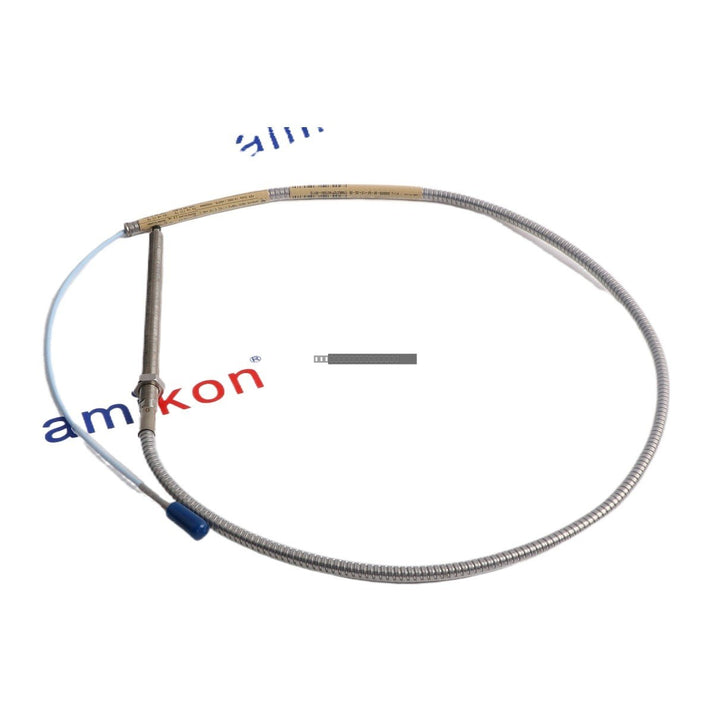

Bently Nevada 330909-00-60-10-02-05 3300 NSv Proximity Probe

Bently Nevada 330909-00-60-10-02-05 3300 NSv Proximity Probe

Description

The Bently Nevada 330909-00-60-10-02-05 is a high-performance 3300 NSv (Near-field) proximity probe designed for precision vibration and position monitoring in industrial rotating machinery. This probe is specifically engineered for applications...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 330909-00-60-10-02-05
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330909-00-60-10-02-05 is a high-performance 3300 NSv (Near-field) proximity probe designed for precision vibration and position monitoring in industrial rotating machinery. This probe is specifically engineered for applications where space is limited or where target materials require the specialized sensing capabilities of the NSv system. It provides reliable, non-contact measurement of shaft displacement and position, ensuring critical diagnostic data for predictive maintenance programs.

Features

  • Designed for 3300 NSv proximity transducer systems.
  • 3/8-24 UNF thread configuration for standard mounting compatibility.
  • Integrated armor for enhanced cable protection in harsh industrial environments.
  • Equipped with a miniature coaxial ClickLoc connector for secure, reliable signal termination.
  • Standard cable length of 1.0 meter (39 inches).
  • Multiple agency approvals for global industrial compliance.

Technical Specifications

Model Number 330909-00-60-10-02-05
Thread Size 3/8-24 UNF
Case Length 6.0 inches
Minimum Unthreaded Length 0.0 inches
Cable Length 1.0 meter (39 inches)
Connector Type Miniature coaxial ClickLoc
Approvals Multiple Approvals

Installation Guidelines

  • Ensure the probe is mounted in a rigid, vibration-free bracket to prevent false signal readings.
  • Handle the probe tip with extreme care; any damage or scratches to the sensing face can degrade measurement accuracy.
  • Route the coaxial cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Use appropriate thread-locking compounds if required by the specific machine housing design, ensuring the probe is tightened to the manufacturer's recommended torque.
  • Always perform a system calibration after installation to verify the gap voltage and ensure the transducer is operating within the linear range.
  • Verify that the ClickLoc connector is fully seated and locked to prevent intermittent signal loss due to vibration.

FAQ

What is the primary application for the 3300 NSv probe? The 3300 NSv probe is typically used in applications where standard 3300 XL probes may not fit or where smaller target areas require the specialized near-field sensing characteristics of the NSv series.

Does this probe include the cable? Yes, this model includes a standard cable with a miniature coaxial ClickLoc connector as specified in the part configuration.
