Description

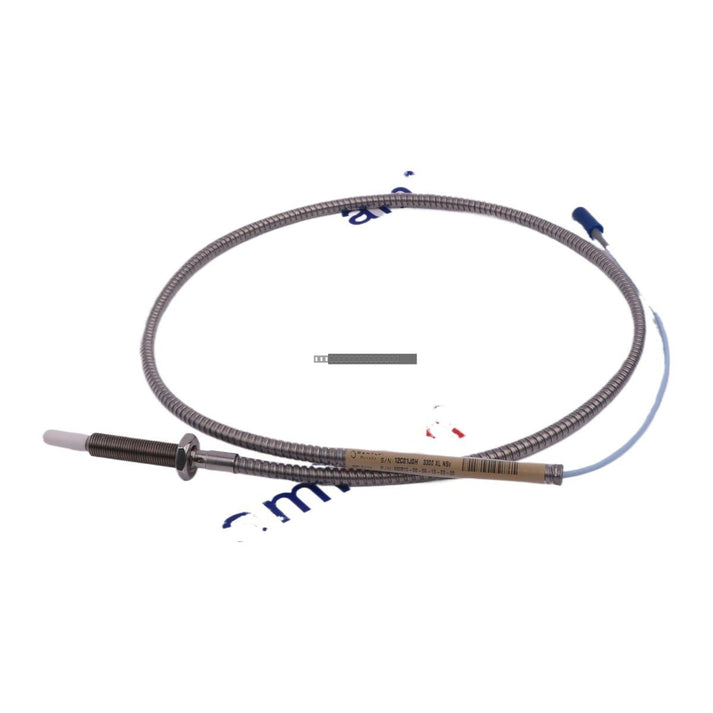

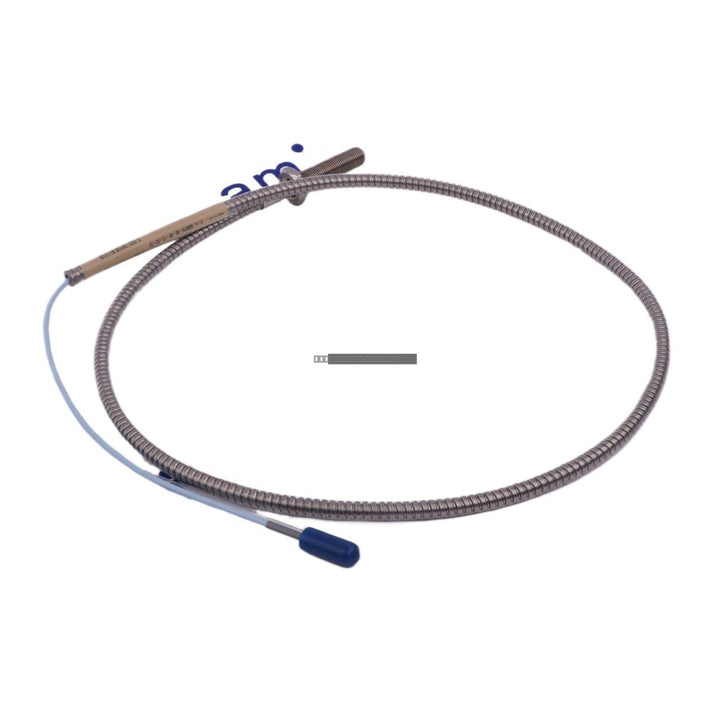

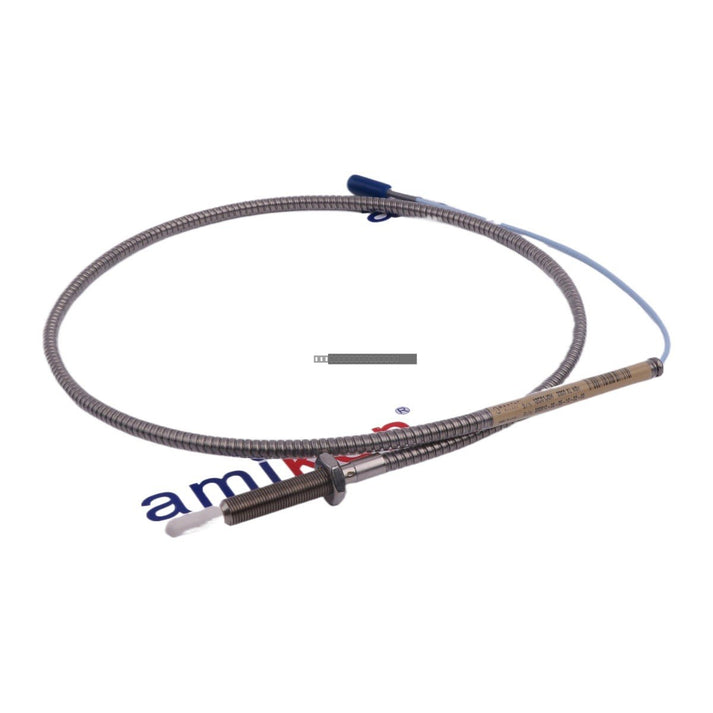

The Bently Nevada 330910 3300 NSv Proximity Probe is a specialized transducer designed for measuring vibration and position in industrial machinery, particularly in applications with limited space or small-shaft requirements. This probe is part of the 3300 NSv (Near-field) system, engineered to provide accurate gap measurements in environments where standard proximity probes may be too large or lack the necessary resolution for small-diameter targets.

Features

• Designed for small-shaft applications and tight radial clearances.
• M10 x 1 thread configuration for precise mounting.
• Equipped with a robust armored cable for enhanced mechanical protection in harsh industrial environments.
• Features a miniature coaxial ClickLoc connector for secure, reliable signal transmission.
• 1.0-meter cable length suitable for close-proximity junction box terminations.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance that could interfere with vibration readings.
• Handle the probe tip with care; avoid contact with hard surfaces to prevent damage to the sensing element.
• Route the armored cable away from high-voltage power lines and sources of significant electromagnetic interference (EMI).
• Verify that the ClickLoc connector is fully seated and locked to maintain signal integrity.
• Ensure the probe gap is set according to the specific machine's monitoring requirements during the initial calibration phase.

FAQ

What is the primary application for the 3300 NSv probe?

The 3300 NSv system is specifically designed for small-diameter shafts or applications where the target area is too small for standard 3300 XL proximity probes, allowing for accurate monitoring in constrained mechanical spaces.

Does this probe come with agency approvals?

No, the specific order code 330910-00-05-10-02-00 indicates that no additional agency approvals were selected for this unit.
