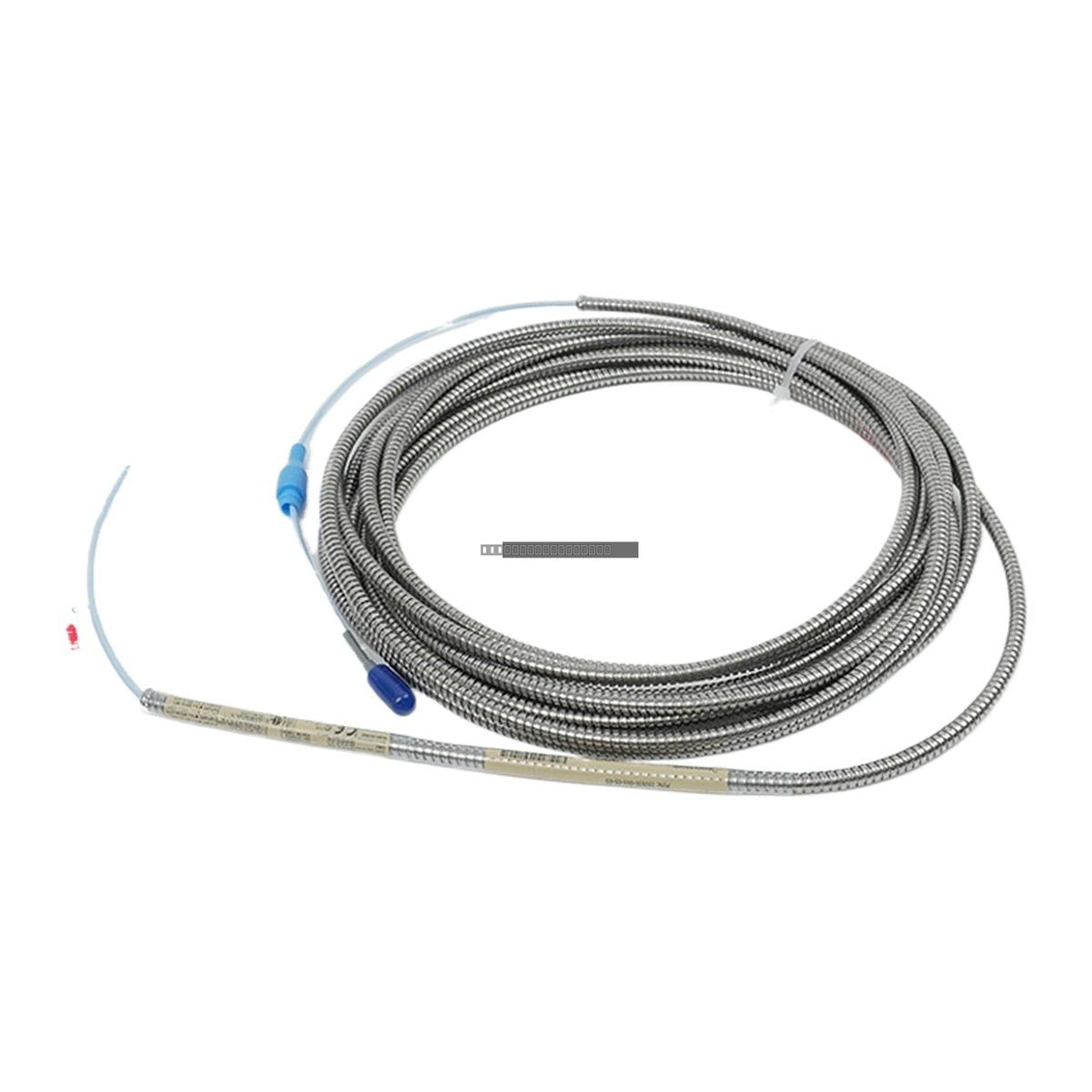

Bently Nevada 330930-065-05-05 3300 NSv Extension Cable

Bently Nevada 330930-065-05-05 3300 NSv Extension Cable

The Bently Nevada 330930-065-05-05 is a specialized extension cable designed for the 3300 XL NSv Proximity Transducer System. It is engineered for machinery with restrictive installation geometries, such as centrifugal...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 330930-065-05-05
Proveedora: Bently Nevada
tipo: Proximity Sensor Extension Cable
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 330930-065-05-05 is a specialized extension cable designed for the 3300 XL NSv Proximity Transducer System. It is engineered for machinery with restrictive installation geometries, such as centrifugal air compressors, refrigeration units, and process gas compressors where standard 3300 XL 5mm or 8mm probe systems cannot be accommodated.

Features

  • Optimized for tight installation requirements and small target applications.
  • Average Scale Factor of 7.87 V/mm (200 mV/mil).
  • Patented CableLoc design providing 220N (50 lbf) of pull strength.
  • Enhanced chemical resistance compared to legacy 3300 RAM systems.
  • Mechanically and electrically compatible with 3000-series and 7000-series 190 transducer systems.

Applications

  • Radial vibration and radial position measurements on small shafts (less than 51mm).
  • Axial (thrust) position measurements on flat targets smaller than 15mm.
  • Tachometer and zero speed measurements.
  • Phase reference (Keyphasor) signals on fluid-filmed bearing machines.

Technical Specifications

Product Model 330930-065-05-05
Cable Length 6.5 meters (21.3 feet)
Configuration Stainless steel armor, no FEP jacket, with connector protector
Output Resistance 50 Ohm
Extension Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical
Linear Range 1.5 mm (60 mils)

Installation Guidelines

  • Ensure the system is powered down before connecting or disconnecting the extension cable to prevent signal noise or damage to the Proximitor sensor.
  • Route cables away from high-EMI sources and high-voltage power lines to maintain signal integrity.
  • The 3300 XL NSv system is calibrated for AISI 4140 steel targets; ensure target material compatibility to avoid measurement errors.
  • For radial vibration, a typical gap setting of -9 Vdc is recommended.
  • Use the integrated connector protector to maintain the integrity of the connection in harsh industrial environments.

FAQ

What is the function of the 330930-065-05-05 cable?

This cable acts as the critical link between the 3300 NSv proximity probe and the 3300 XL NSv Proximitor sensor, ensuring accurate signal transmission for vibration and position monitoring.

Is this cable compatible with older Bently Nevada systems?

Yes, the 330930 NSv series extension cables are designed to be mechanically and electrically interchangeable with previous 3300 RAM proximity probe and extension cable systems.

What is the primary advantage of the NSv system?

The NSv system provides a smaller footprint and enhanced side-view characteristics, making it the preferred solution for small-diameter shafts and limited-clearance installations where standard eddy current transducers are too large.
