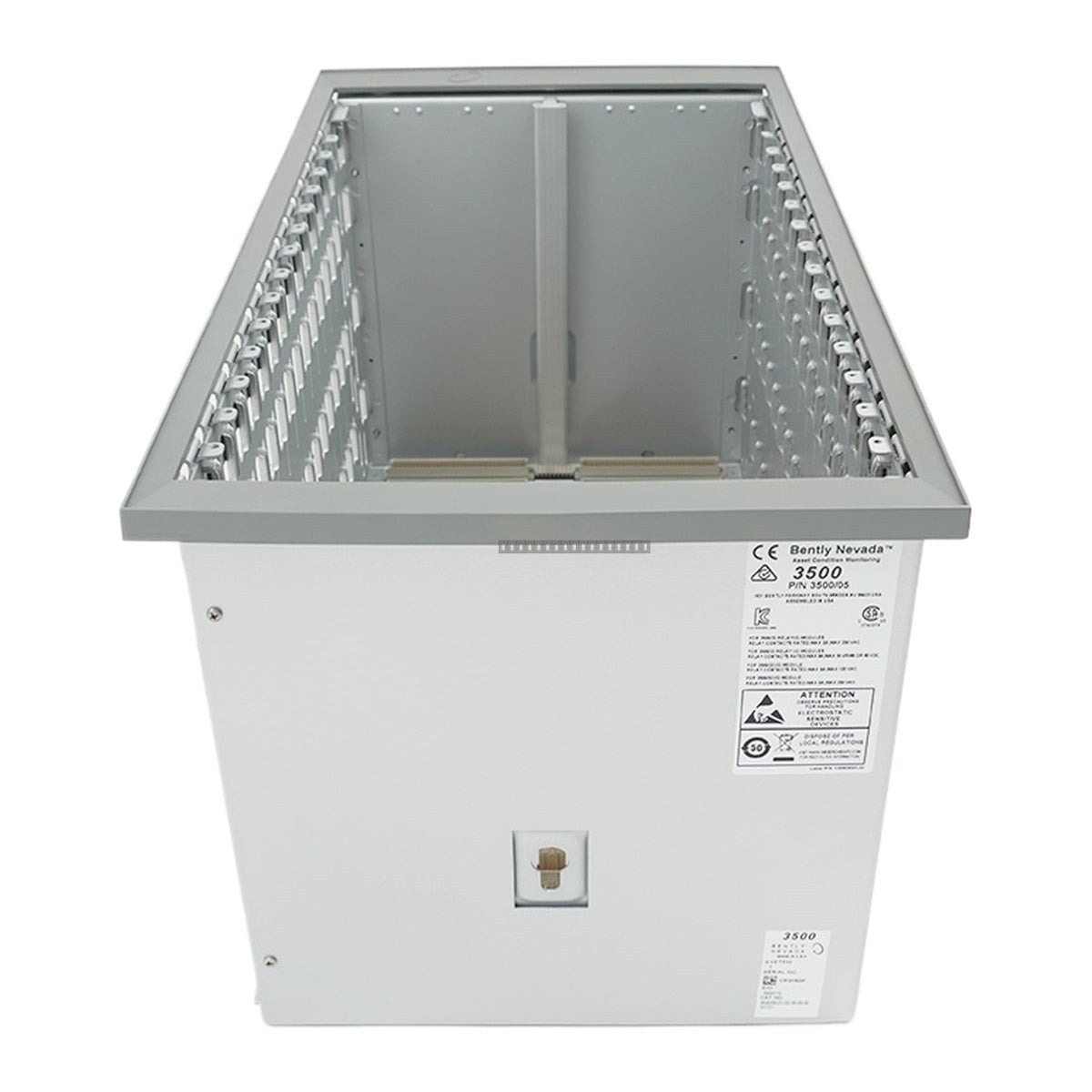

Bently Nevada 3500/05-01-02-00-00-00 19-Inch Rack (14 Module Slots)

Bently Nevada 3500/05-01-02-00-00-00 19-Inch Rack (14 Module Slots)

The Bently Nevada 3500/05-01-02-00-00-00 is a full-size 19-inch system rack designed for the 3500 Machinery Protection System. It serves as the central platform for housing monitor modules, power supplies, communication...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: 3500/05-01-02-00-00-00
Proveedora: Bently Nevada
tipo: Vibration Monitor Rack
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 3500/05-01-02-00-00-00 is a full-size 19-inch system rack designed for the 3500 Machinery Protection System. It serves as the central platform for housing monitor modules, power supplies, communication modules, and the Rack Interface Module (RIM). The rack provides the essential backplane infrastructure for power distribution and high-speed data communication across the entire monitoring system.

Features

  • 19-inch EIA rack format with 14 available module slots.
  • Provides dedicated slots for power supplies and Rack Interface Module (RIM) on the far-left side.
  • Supports integration of monitor modules, relay modules, Keyphasor modules, and communication gateways.
  • Backplane design facilitates real-time data sharing via the proprietary TDI bus.
  • Robust construction suitable for industrial control rooms and equipment monitoring cabinets.

Applications

  • Oil & Gas: Production, refining, and pipeline monitoring.
  • Power Generation: Nuclear, fossil fuel, and renewable energy plants.
  • Chemical Processing: Monitoring large-scale reactors and processing machinery.
  • Manufacturing: Pulp and paper, steel, and cement production.

Technical Specifications

Model 3500/05-01-02-00-00-00
Rack Size 19-inch (Full-Size)
Module Slots 14 (plus 3 reserved for power/RIM)
Mounting Rack Mount (19-inch EIA)
Operating Temperature -20 degC to +65 degC
Storage Temperature -40 degC to +85 degC
Relative Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Ensure the rack is mounted in a stable, vibration-dampened environment suitable for sensitive electronic instrumentation.
  • The power supplies and Rack Interface Module must occupy the three leftmost slots.
  • Use a grounded wrist strap when handling modules or touching internal backplane components to prevent ESD damage.
  • Ensure adequate ventilation around the rack to maintain operating temperatures within the specified range.
  • Verify all rear-panel wiring connections are secure before applying system power.
  • Store and transport modules in electrically conductive bags or foil to prevent static accumulation.

FAQ

What is the function of the 3500/05 rack?

It acts as the physical housing and communication backplane for the 3500 series, allowing modules to share data and receive regulated DC power.

What is the power distribution capability?

The rack is designed to house one or two 3500 rack power supplies, which convert line power and distribute it to all installed modules.

What are the mounting options?

This specific model is configured for 19-inch EIA rack mounting. Other configurations include panel mount and bulkhead mount formats.
