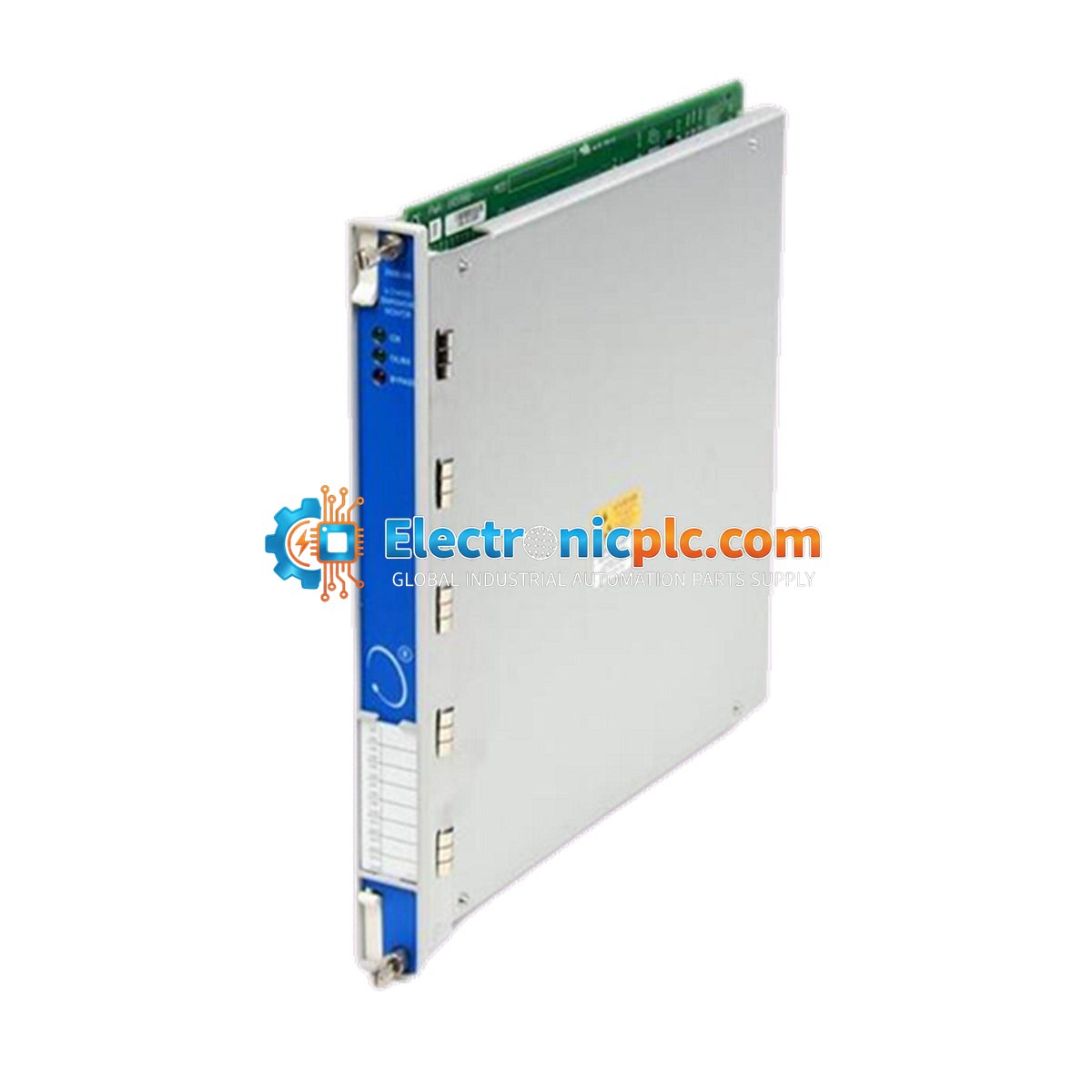

Bently Nevada 3500/22-01-01-01 Transient Data Interface Module

Bently Nevada 3500/22-01-01-01 Transient Data Interface Module

Description

The Bently Nevada 3500/22-01-01-01 Transient Data Interface (TDI) Module serves as the primary communication gateway for the 3500 Series Machinery Protection System. This module acts as the critical interface between...

24 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 3500/22-01-01-01
Proveedora: Bently Nevada
tipo: Transient Data Interface Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 3500/22-01-01-01 Transient Data Interface (TDI) Module serves as the primary communication gateway for the 3500 Series Machinery Protection System. This module acts as the critical interface between the 3500 rack and external software platforms, including System 1 Condition Monitoring and Diagnostic Software. It facilitates high-speed data collection, transient event capture, and advanced machinery diagnostics required for critical asset management.

Features

  • Continuous online monitoring and high-speed transient data capture.
  • Seamless integration with System 1 software for predictive maintenance.
  • Supports high-speed Ethernet communication (10BASE-T/100BASE-TX).
  • Front panel LED indicators for OK, TX/RX, and Bypass status.
  • Designed for critical turbomachinery applications including turbines, compressors, and pumps.
  • Compliance with API 670 standards for machinery protection systems.

Applications

The 3500/22 TDI module is intended for use in industrial environments where critical rotating machinery requires continuous protection and diagnostic analysis. It is essential for plants utilizing the Bently Nevada 3500 rack system to monitor vibration, position, and process variables for predictive maintenance strategies.

Technical Specifications

Manufacturer Bently Nevada
Model / Order Code 3500/22-01-01-01
Module Type Standard Transient Data Interface
I/O Module Type Ethernet 10BASE-T/100BASE-TX
Agency Approval CSA/NRTL/C
Operating Temperature -30 degC to +65 degC
Storage Temperature -40 degC to +85 degC
Humidity 95% non-condensing
Power Consumption 6 W (typical)

Installation Guidelines

  • Ensure the 3500 rack is powered down before inserting or removing the TDI module or its associated I/O module.
  • The module must be installed in the designated communication slot of the 3500 rack.
  • Ensure proper seating of the module into the backplane to prevent intermittent communication failures.
  • Use shielded Ethernet cabling for all network connections to minimize EMI interference in industrial environments.
  • Handle the module using ESD-safe practices to prevent damage to internal circuitry.
  • Verify that the rear I/O module is correctly aligned and secured to the rack chassis.

FAQ

What is the primary function of the 3500/22 TDI module?

The TDI module acts as the communication bridge between the 3500 rack and external software, such as System 1, allowing for real-time data transfer and transient data capture for machinery diagnostics.

Does this module support Ethernet communication?

Yes, the 3500/22-01-01-01 includes an Ethernet 10BASE-T/100BASE-TX I/O module for high-speed connectivity.

Is this module compliant with safety standards?

This specific configuration (01) includes CSA/NRTL/C approval for use in hazardous or industrial locations as specified by the certification.
