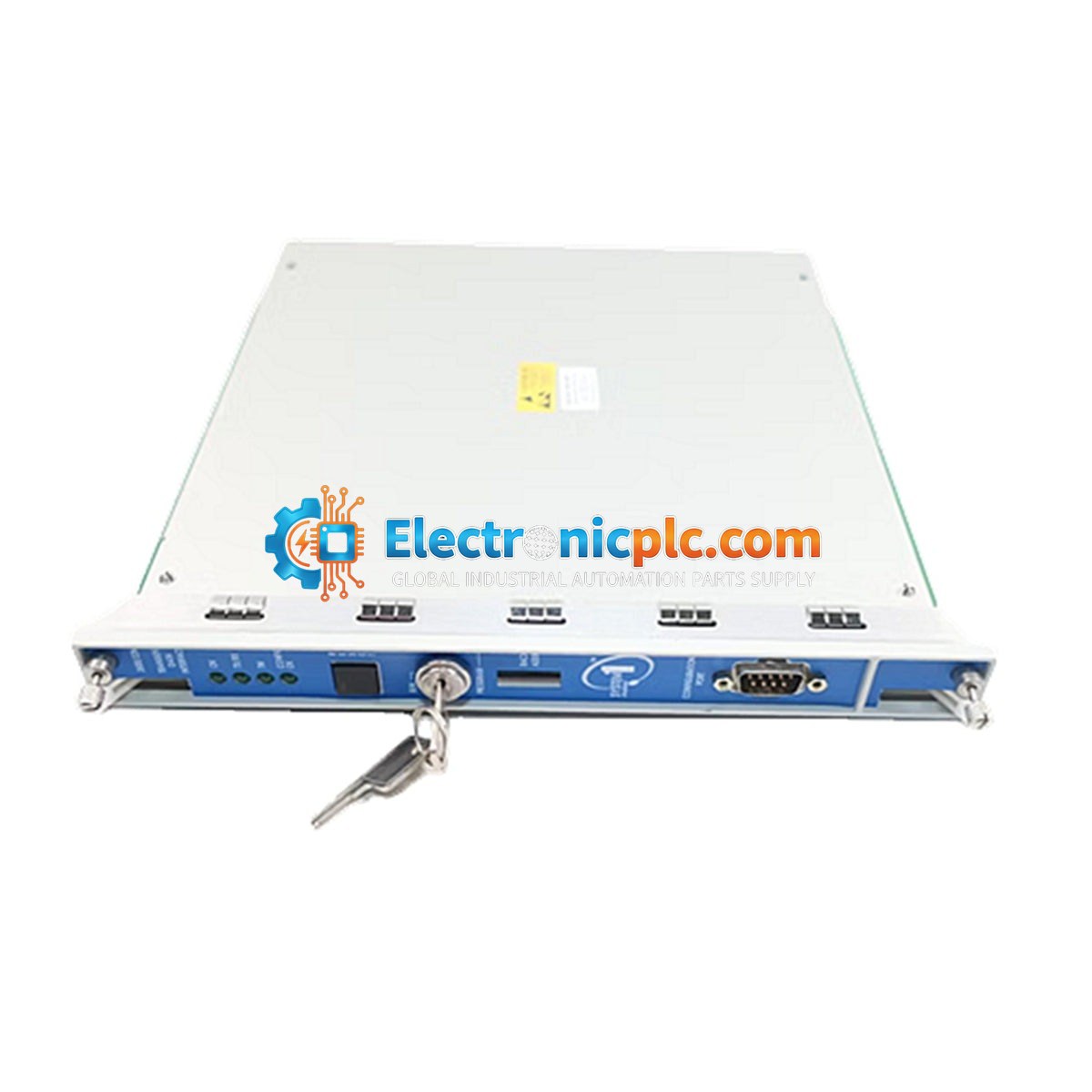

Bently Nevada 138607-01 3500/22M Transient Data Interface (TDI)

Bently Nevada 138607-01 3500/22M Transient Data Interface (TDI)

Description

The Bently Nevada 3500/22M Transient Data Interface (TDI) serves as the primary communication gateway between the 3500 Machinery Protection System and external software platforms, including System 1 Condition Monitoring and...

24 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 138607-01
Proveedora: Bently Nevada
tipo: Transient Data Interface Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 3500/22M Transient Data Interface (TDI) serves as the primary communication gateway between the 3500 Machinery Protection System and external software platforms, including System 1 Condition Monitoring and Diagnostic software. By integrating the functionality of a 3500/20 Rack Interface Module (RIM) with the high-speed data collection capabilities of a communication processor, the TDI enables continuous monitoring of steady-state and transient dynamic waveform data.

The 138607-01 is the standard version of the TDI module, designed to occupy the dedicated slot (Slot 1) immediately adjacent to the power supplies in a 3500 rack. It facilitates Ethernet-based communication to host software for advanced machinery diagnostics.

Features

  • Integrates 3500/20 RIM functionality with advanced communication processing.
  • Supports continuous collection of steady-state and transient (waveform) data.
  • Enables high-resolution diagnostic analysis via System 1 software.
  • Features a physical keylock for secure switching between RUN and PROGRAM modes.
  • Standard static data capture with optional dynamic data capability.

Applications

  • Power Generation: Monitoring of steam, gas, and hydro turbines for early-stage mechanical fault detection.
  • Oil & Gas: Critical protection and analysis for high-value pumps, compressors, and motors in refineries.
  • Heavy Manufacturing: Vibration monitoring for large rotating equipment in steel and paper mills.
  • Predictive Maintenance: Facilitates long-term trend analysis and post-event failure investigation.

Technical Specifications

Model 3500/22M 138607-01
Module Type Transient Data Interface (TDI)
Power Consumption 10.5 Watts
Operating Temperature -30 degC to +65 degC
Storage Temperature -40 degC to +85 degC
Humidity 95%, non-condensing
Front Interface RS232 Serial Port (9-pin)
Rack Position Slot 1 (adjacent to power supplies)

Installation Guidelines

  • Slot Placement: The TDI must be installed in Slot 1 of the 3500 rack, directly next to the power supply modules.
  • Handling: Use standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.
  • Power: Ensure the rack power is stable; the module is hot-swappable in most configurations, but verify system requirements before removal.
  • Configuration: Use the front-panel serial port for local configuration. Ensure the keylock is set to the appropriate mode (RUN/PROGRAM) during operation.
  • Cabling: Use shielded Ethernet cabling for the host software connection to minimize EMI interference in industrial environments.

FAQ

What is the function of the 3500/22M 138607-01?

It acts as the interface between the 3500 rack and System 1 software, capturing both steady-state and transient vibration data for detailed machinery health analysis.

Is this module still in production?

The 138607-01 is a legacy version and has been superseded by the 288055-01. The newer version replaces the serial port with a USB-B interface for easier connectivity.

Can this be used in TMR systems?

The 138607-01 is the standard version. For Triple Modular Redundant (TMR) applications, a specific TMR version of the TDI is required to perform monitor channel comparison.
