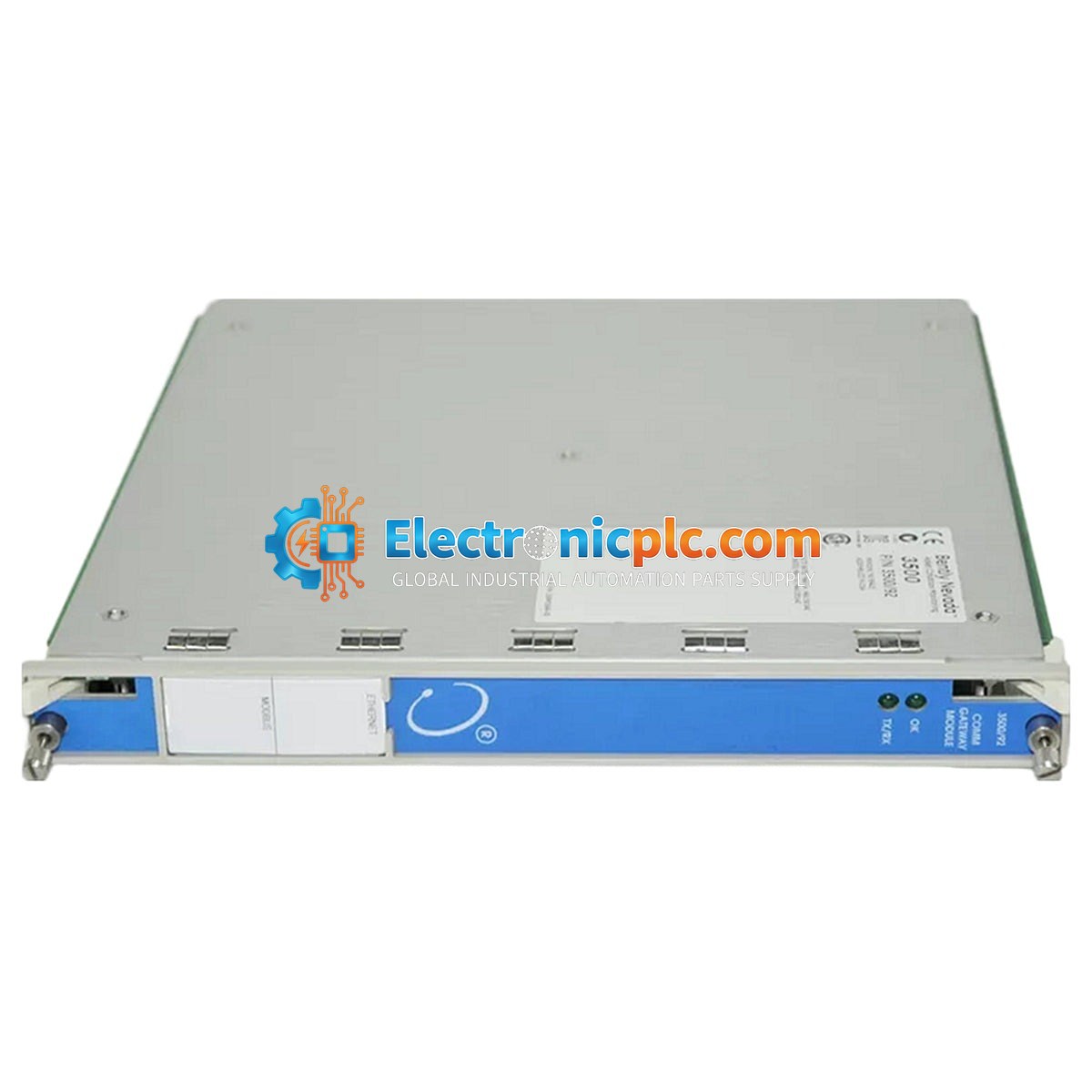

Bently Nevada 3500/92 136180-01 Communication Gateway Module

Bently Nevada 3500/92 136180-01 Communication Gateway Module

Description

The Bently Nevada 3500/92 136180-01 Communication Gateway Module serves as a critical interface for the 3500 Machinery Protection and Condition Monitoring System. It facilitates the exchange of rack-monitored values, alarm...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 136180-01
Proveedora: Bently Nevada
tipo: Communication Gateway Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 3500/92 136180-01 Communication Gateway Module serves as a critical interface for the 3500 Machinery Protection and Condition Monitoring System. It facilitates the exchange of rack-monitored values, alarm statuses, and diagnostic data between the 3500 monitoring rack and external supervisory systems, including DCS, PLC, and SCADA platforms. This module provides robust connectivity via Ethernet TCP/IP and serial interfaces, ensuring seamless integration into plant-wide automation architectures.

Features

  • Supports Ethernet TCP/IP (10BASE-T) and serial (RS-232, RS-422, RS-485) communication protocols.
  • Includes a Configurable Modbus Register Utility for flexible data mapping.
  • Compatible with Bently Nevada 3500 Rack Configuration and Data Acquisition software.
  • Standard RJ45 Ethernet connection for 10 Mbps star configuration networks.
  • Designed for integration with process control and asset management systems.

Applications

  • Power Generation: Monitoring of turbines, generators, and boiler feed pumps.
  • Oil & Gas / Petrochemical: Tracking of pumps, mixers, and reactors for process safety.
  • Water & Wastewater: Supervision of pumps and blowers for distribution reliability.
  • Process Industries: Steel production, mining, and pulp/paper operations.
  • Manufacturing: Monitoring of motors, gearboxes, and fans to optimize maintenance.

Technical Specifications

Model 3500/92 136180-01
Manufacturer Bently Nevada
Communication Link Ethernet (10Mbps, IEEE 802.3)
Protocols Modbus/TCP, Modbus RTU, Proprietary BNC
Operating Temperature -30 degC to +65 degC
Storage Temperature -40 degC to +85 degC
Humidity 95% non-condensing
Weight 0.8 kg

Installation Guidelines

  • ESD Protection: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage.
  • Slot Requirements: The main module occupies one full-height front slot in the 3500 rack; the corresponding I/O module requires the rear slot directly behind it.
  • Firmware: Ensure firmware compatibility when integrating with existing I/O modules; upgrades may require replacing firmware ICs on the PWA.
  • Environment: Ensure adequate ventilation within the rack to maintain operating temperatures within the specified range.

FAQs

What is the primary function of the 3500/92?

The 3500/92 acts as a communication gateway, exporting rack-monitored data and alarm statuses to external control and automation systems.

Which communication protocols are supported?

The module supports Modbus RTU (serial), Modbus/TCP (Ethernet), and the proprietary Bently Nevada protocol used for configuration and data acquisition software.

Can this module communicate via serial?

Yes, the module supports serial communication via RS-232, RS-422, and RS-485 interfaces, typically implemented through an associated I/O module.
