Description

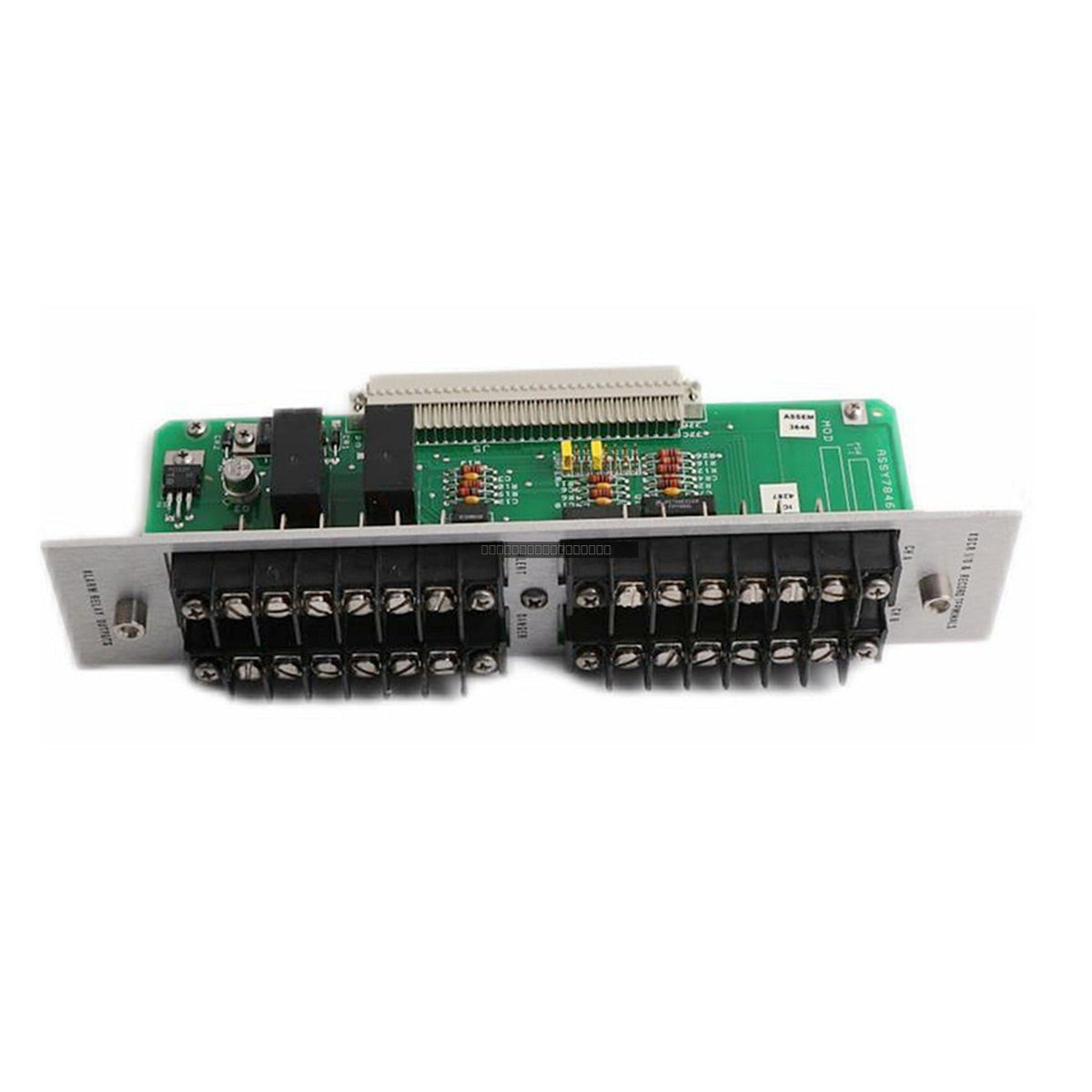

The Bently Nevada 81546-01 is a specialized Signal Input Relay Card designed for integration within Bently Nevada machinery protection systems. This module serves as a critical interface component, translating conditioned signals from monitoring modules into discrete relay outputs. It is engineered to facilitate the reliable transmission of Alert and Danger status signals to external control infrastructure, including Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and emergency shutdown circuits.

Features

• Facilitates Alert and Danger alarm relay actuation based on input from monitoring modules.
• Provides dry contact electromechanical relay outputs for robust interfacing.
• Supports integration with external trip circuits, alarm annunciators, and plant-wide control systems.
• Designed for high-reliability operation in critical machinery protection environments.
• Supports redundant relay configurations to enhance system availability and fault tolerance.

Applications

• Turbine and centrifugal compressor protection systems.
• Industrial alarm annunciation and monitoring racks.
• Shutdown logic interfacing for rotating machinery.
• Predictive maintenance and condition monitoring signal routing.

Technical Specifications

Installation Guidelines

• Ensure the rack system is powered down before inserting or removing the relay card to prevent electrical damage or unintended relay actuation.
• Verify proper seating of the card within the 3300/3500 rack backplane to ensure reliable signal path continuity.
• Use shielded cabling for all external relay output connections to minimize electromagnetic interference (EMI) in industrial environments.
• Maintain proper grounding of the rack system in accordance with Bently Nevada installation manuals to protect against transient surges.
• Observe standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to sensitive internal components.

FAQ

What is the primary function of the 81546-01 relay card?

The 81546-01 acts as an interface between monitoring modules and external control systems, providing dry contact relay outputs that trigger when Alert or Danger alarm conditions are met.

Is this module compatible with standard PLC systems?

Yes, the relay card is designed to interface with external control systems, including PLCs and DCS, by providing discrete contact closures that these systems can monitor as digital inputs.

What environmental conditions are required for this card?

This module is rated for operation within an ambient temperature range of 0 to 60 degC. It should be installed in a clean, controlled environment typical of industrial rack-mounted monitoring systems.
