Description

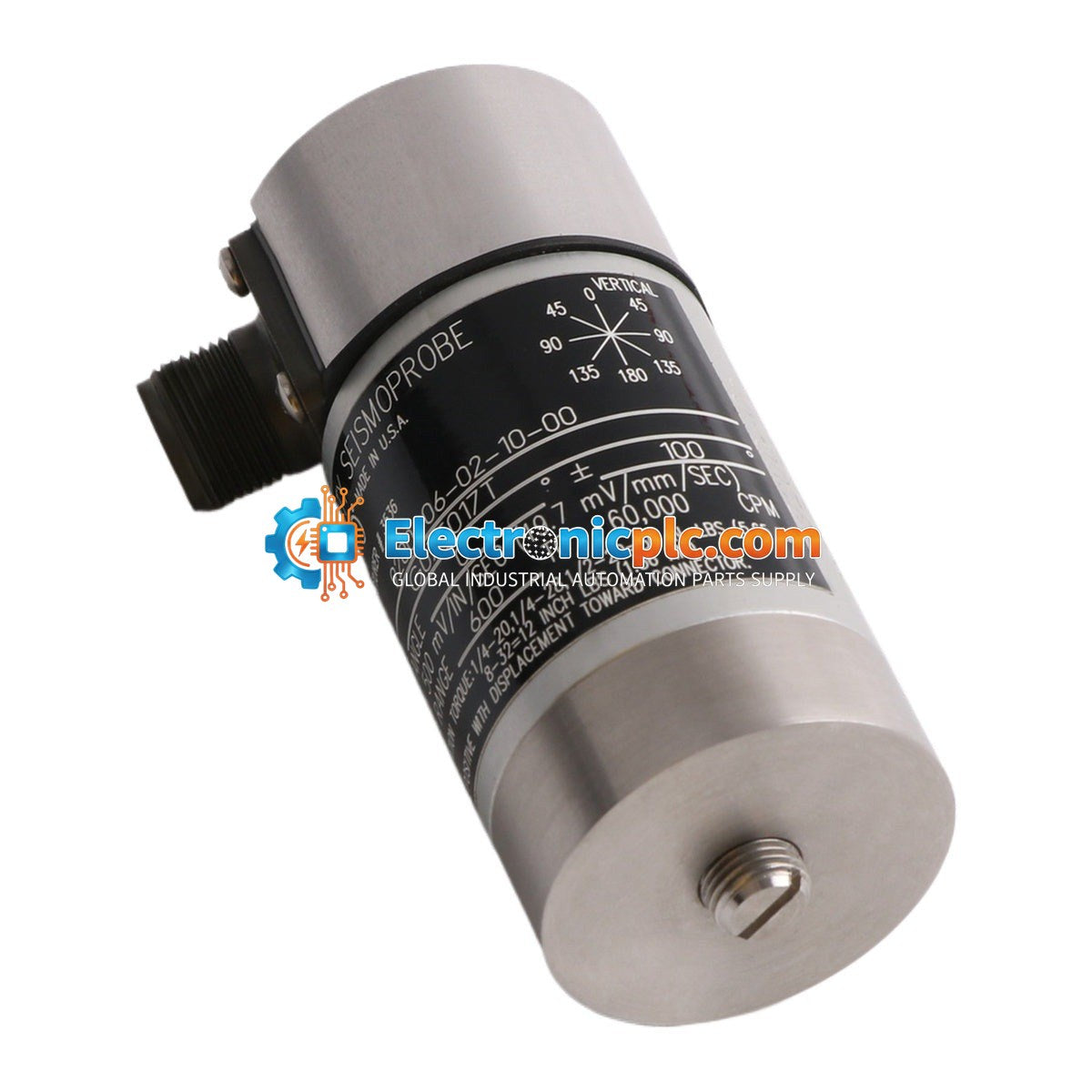

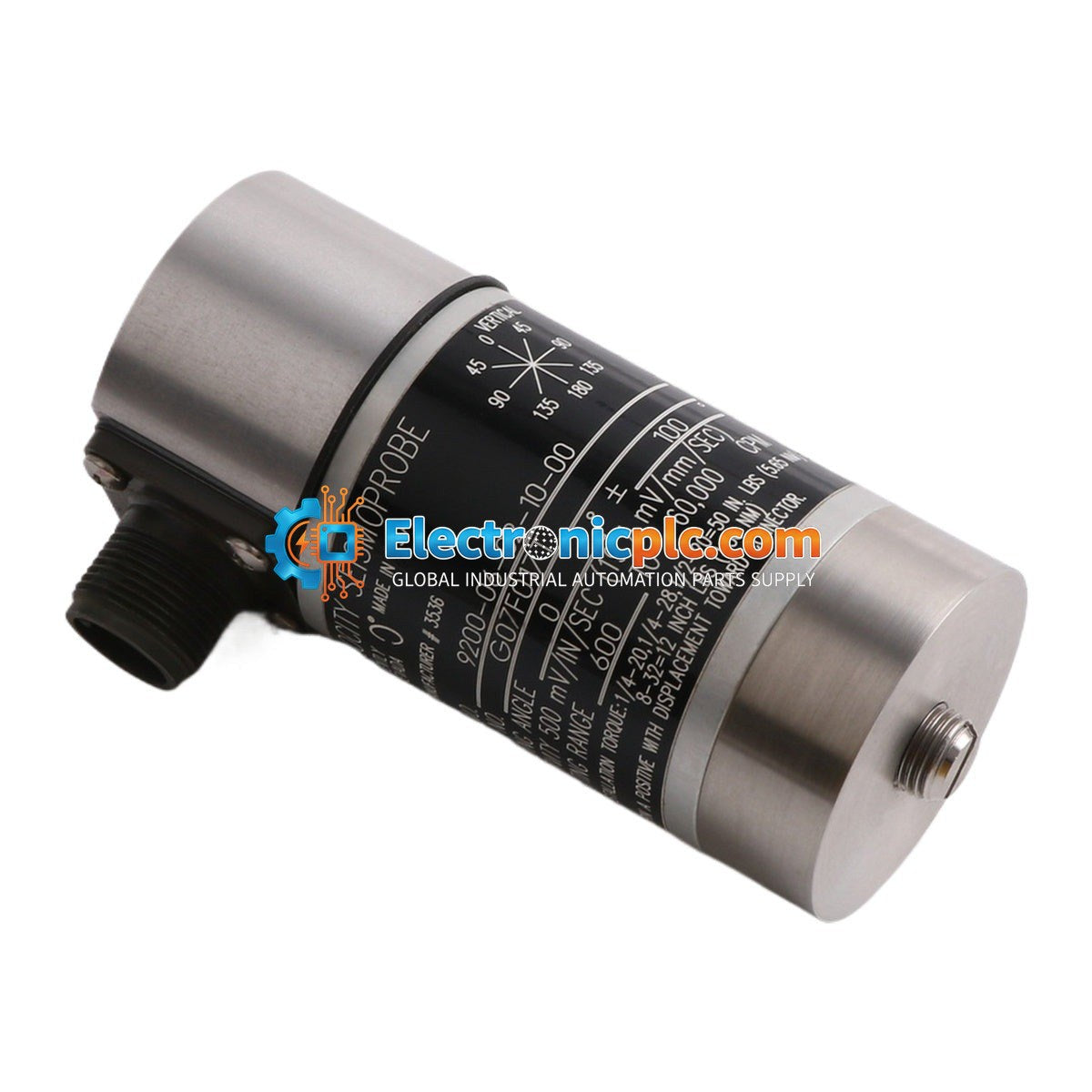

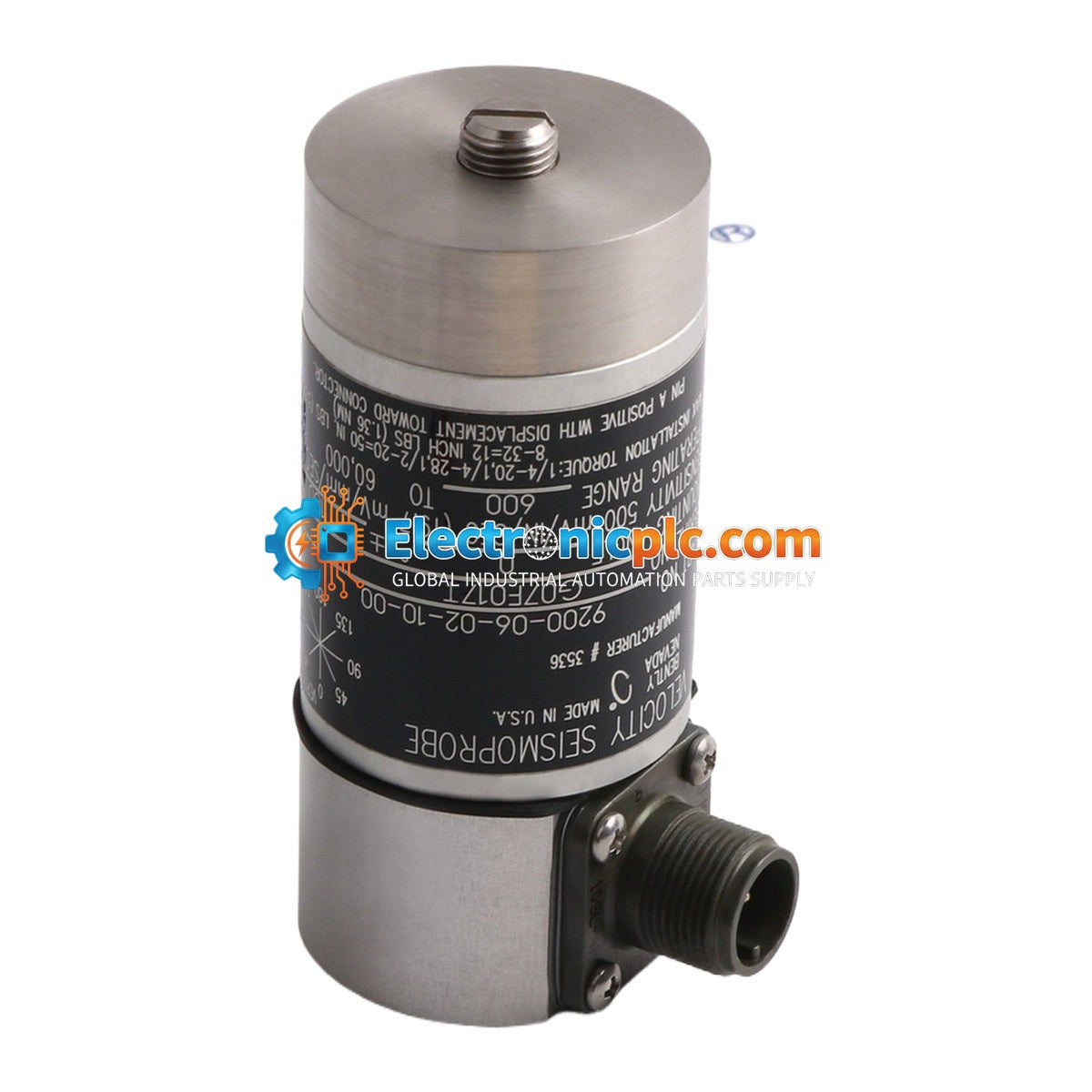

The Bently Nevada 9200-06-02-10-00 is a two-wire Seismoprobe velocity transducer engineered for the continuous monitoring of absolute bearing housing, casing, or structural vibrations. Utilizing proven moving-coil technology, this transducer provides a voltage output directly proportional to the vibration velocity of the monitored surface. It is designed to be robust and less sensitive to impulsive excitation or mechanical impact compared to solid-state accelerometers with integrated electronics.

Features

• Measures absolute casing and structural vibration
• Two-wire system design for simplified integration
• Sensitivity: 20 mV/mm/s (500 mV/in/s)
• Moving-coil technology for high durability in industrial environments
• Side-mount connector configuration
• M10 x 1 mounting stud

Applications

• Steam and Gas Turbines: Monitoring absolute casing vibration in high-temperature or legacy systems.
• Centrifugal and Axial Compressors: Detecting unbalance and resonance via housing vibration analysis.
• Large Electric Motors and Generators: Tracking mechanical looseness and alignment issues.
• Industrial Pumps and Blowers: Providing continuous bearing housing stability monitoring.
• Gearboxes: Identifying low-to-mid frequency vibration signatures.

Technical Specifications

Installation Guidelines

• Surface Preparation: Ensure the mounting surface is flat, clean, and free of paint, oil, or debris to ensure accurate vibration transmission.
• Mounting: Drill and tap the mounting hole specifically for the M10 x 1 stud. Use a wrench on the designated hex flats to tighten the transducer securely.
• Torque: Apply sufficient torque to ensure a rigid connection, but avoid over-tightening to prevent thread damage.
• Orientation: Mount the sensor in the required axis (vertical or horizontal) to capture the intended vibration vectors.
• Handling: As a precision instrument, handle with care to avoid damage to the internal coil assembly.

FAQs

What is the 9200-06-02-10-00?

The Bently Nevada 9200-06-02-10-00 is a two-wire Seismoprobe velocity transducer designed for continuous monitoring of absolute casing vibration in industrial rotating machinery.

What is it used for?

It is used for measuring bearing housing, casing, or structural vibration on rotating equipment to detect mechanical faults such as unbalance, misalignment, or looseness.

Does it require external power?

Yes, as a two-wire device, it is powered through the signal loop, typically integrated into a 24Vdc vibration monitoring system.

Is it compatible with diagnostic equipment?

Yes, the 9200 series is suitable for both continuous monitoring and periodic measurements when connected to compatible test or diagnostic instruments.
