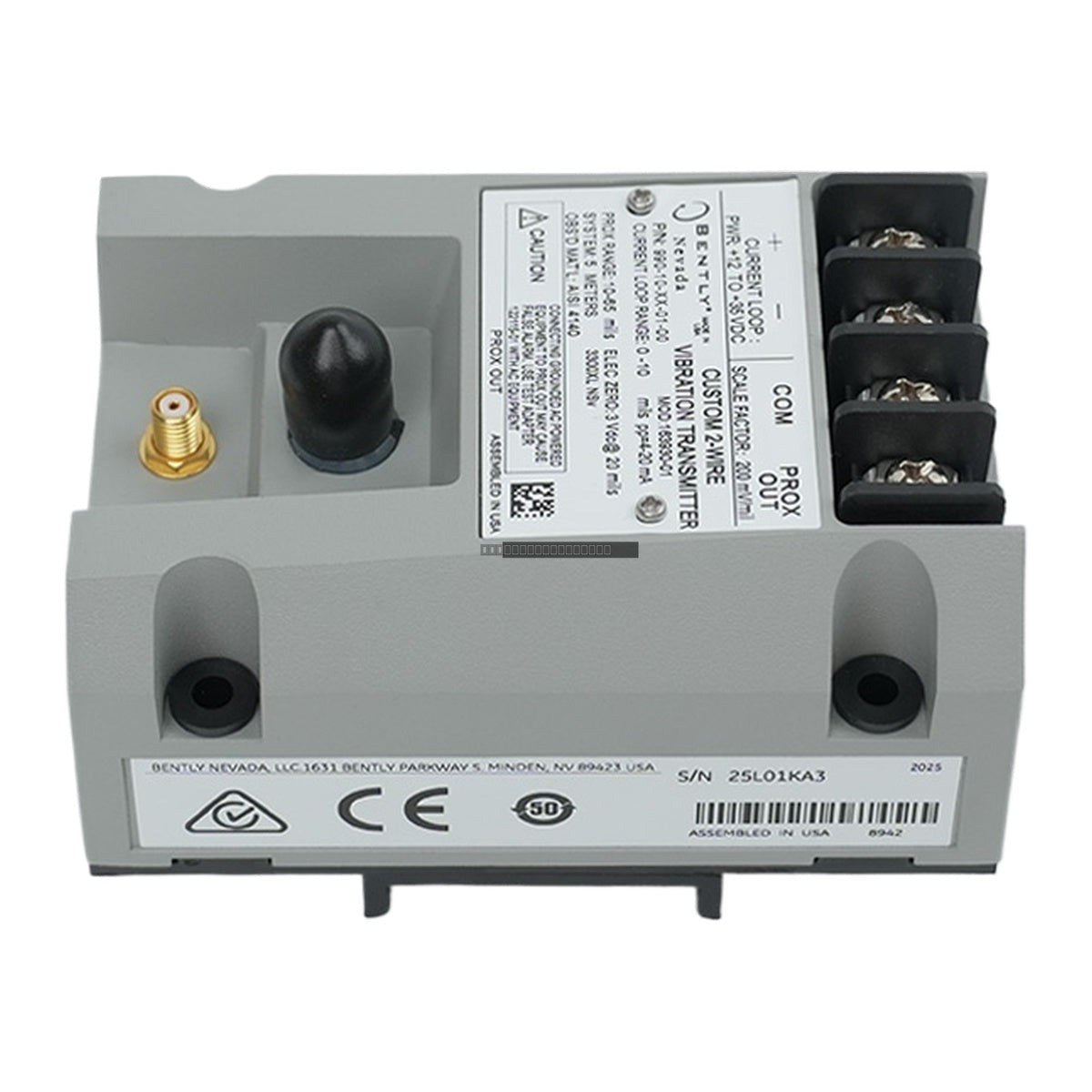

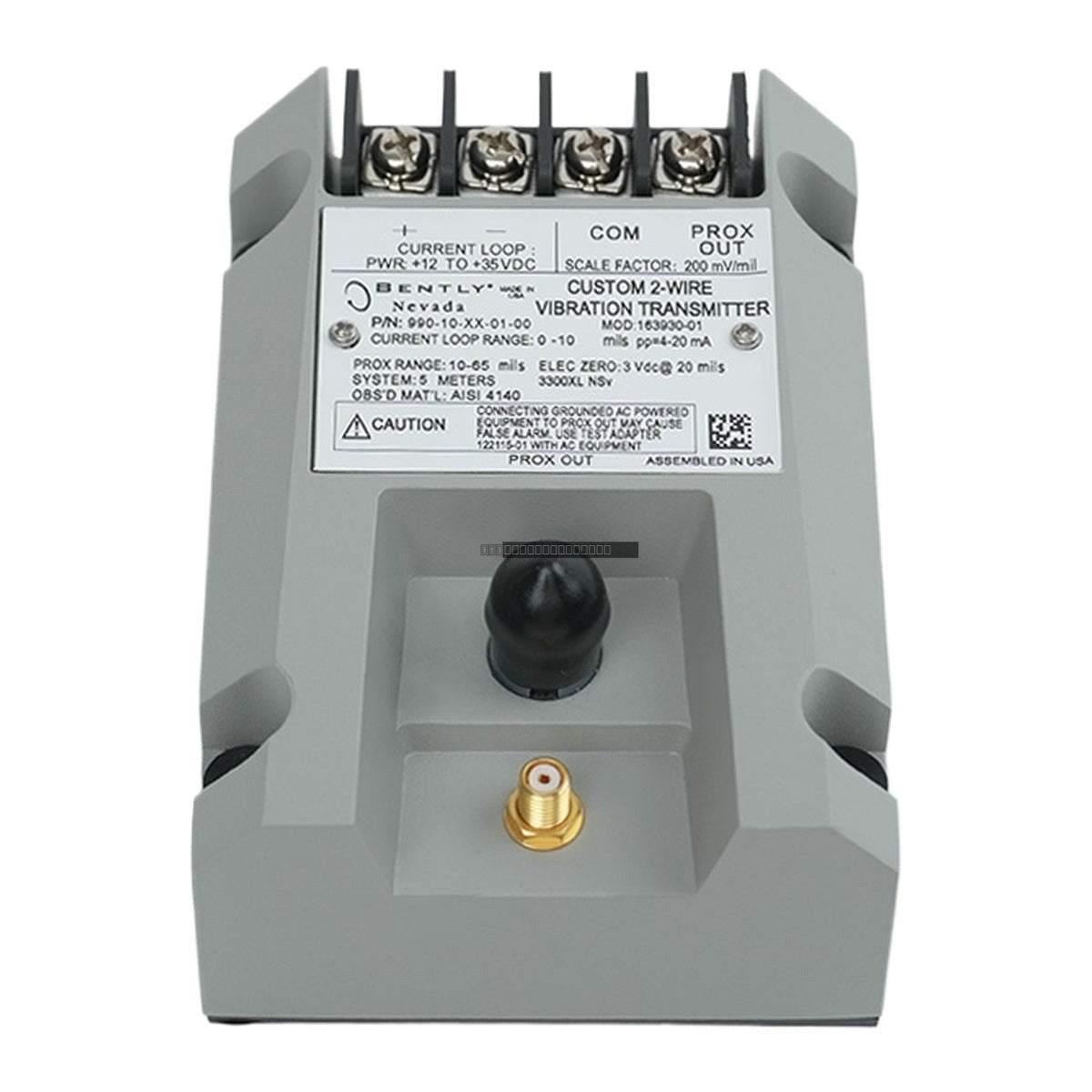

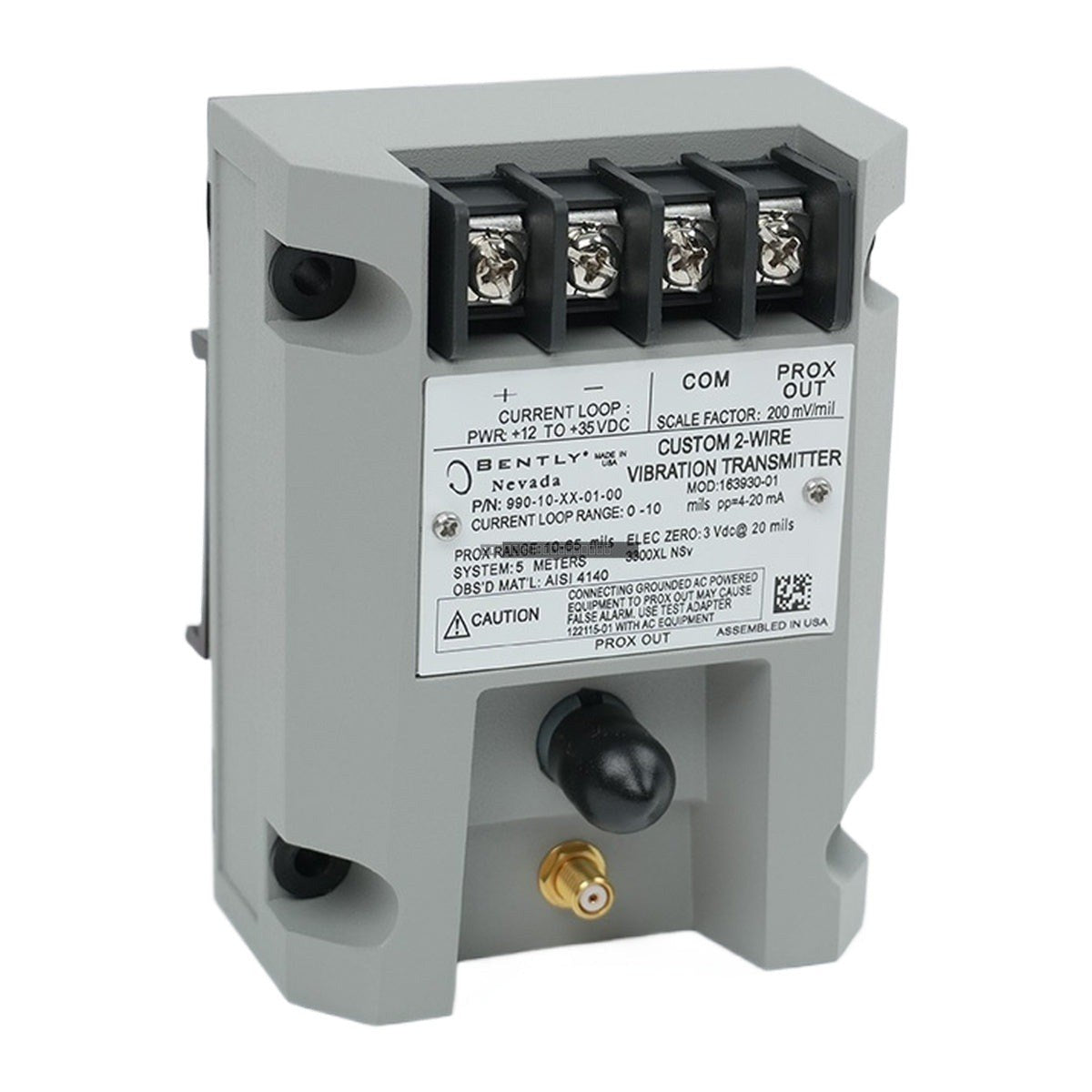

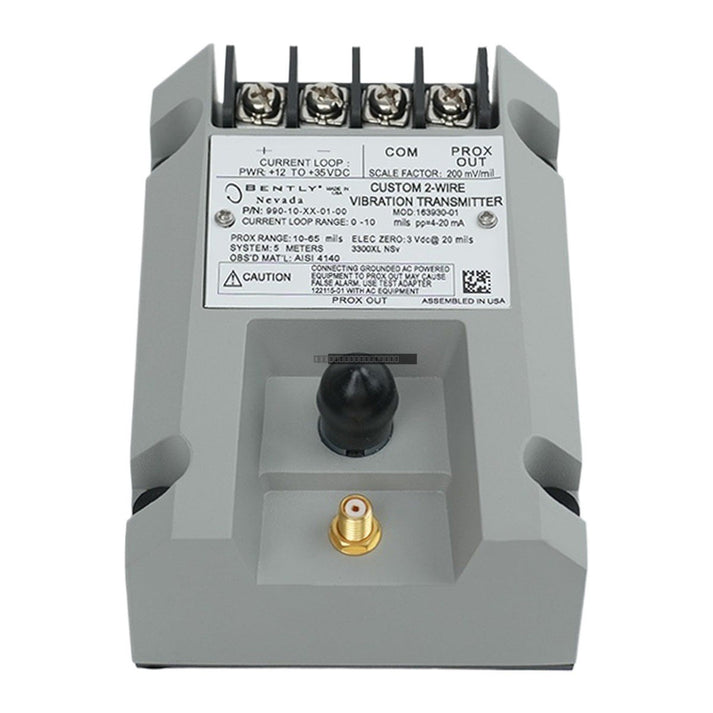

Bently Nevada 990-10-XX-01-00 MOD 163930-01 990 Vibration Transmitter

Bently Nevada 990-10-XX-01-00 MOD 163930-01 990 Vibration Transmitter

The Bently Nevada 990-10-XX-01-00 (MOD 163930-01) is a two-wire, loop-powered vibration transmitter designed to provide a 4-20 mA proportional signal for machinery control systems. This device integrates the Proximitor sensor...

27 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 990-10-XX-01-00 MOD 163930-01
Proveedora: Bently Nevada
tipo: Vibration Transmitter
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 990-10-XX-01-00 (MOD 163930-01) is a two-wire, loop-powered vibration transmitter designed to provide a 4-20 mA proportional signal for machinery control systems. This device integrates the Proximitor sensor directly into the transmitter housing, eliminating the need for external signal conditioning units. It is specifically engineered for OEM applications involving small pumps, motors, fans, and centrifugal air compressors.

Features

  • Integrated Proximitor sensor functionality for reduced installation complexity.
  • Non-isolated PROX OUT and COM terminals, supplemented by a coaxial connector.
  • Non-interacting zero and span potentiometers for precise calibration.
  • Dedicated test input pin for rapid verification of loop signal output.
  • Not OK/Signal Defeat circuit to prevent false alarms or erroneous high outputs.
  • Potted construction suitable for high-humidity environments, including up to 100% condensing conditions.

Applications

  • Centrifugal air compressor monitoring.
  • Vibration trending for small pumps and motors.
  • Integration into PLC-based machinery protection systems.
  • General-purpose vibration monitoring in industrial environments.

Technical Specifications

Model 990-10-XX-01-00 MOD 163930-01
Full-scale Range 0-10 mils pp (0-250 um pp)
System Length 5.0 meters or 7.0 meters
Mounting 35 mm DIN rail clips
Device Type 2-wire, loop-powered transmitter
Compatible Probes 3300 NSv proximity probes
Output Signal 4-20 mA

Installation Guidelines

  • Ensure the system is powered down before performing any wiring, installation, or removal of the module.
  • Mount the transmitter on a 35 mm DIN rail in a location protected from excessive heat and direct moisture.
  • Use shielded cabling for the 4-20 mA loop to minimize electromagnetic interference (EMI).
  • Verify that the proximity probe and extension cable match the system length requirements (5m or 7m) specified for the transmitter.
  • Ensure proper grounding of the signal shield at the control system end to maintain signal integrity.
  • Handle the device with standard ESD precautions to prevent damage to internal circuitry.

FAQ

What is the primary function of the 990-10-XX-01-00?

This transmitter is designed to convert vibration data from a 3300 NSv proximity probe into a 4-20 mA signal, allowing standard PLCs to monitor vibration levels on rotating machinery.

Is this unit compatible with System 1 software?

No, the 4-20 mA output provides peak-to-peak trending data only and does not support the advanced diagnostic capabilities required for systems like Bently Nevada System 1 or Rule Paks.

What system lengths are supported?

The 990-10-XX-01-00 is compatible with 5.0-meter and 7.0-meter system length configurations.
