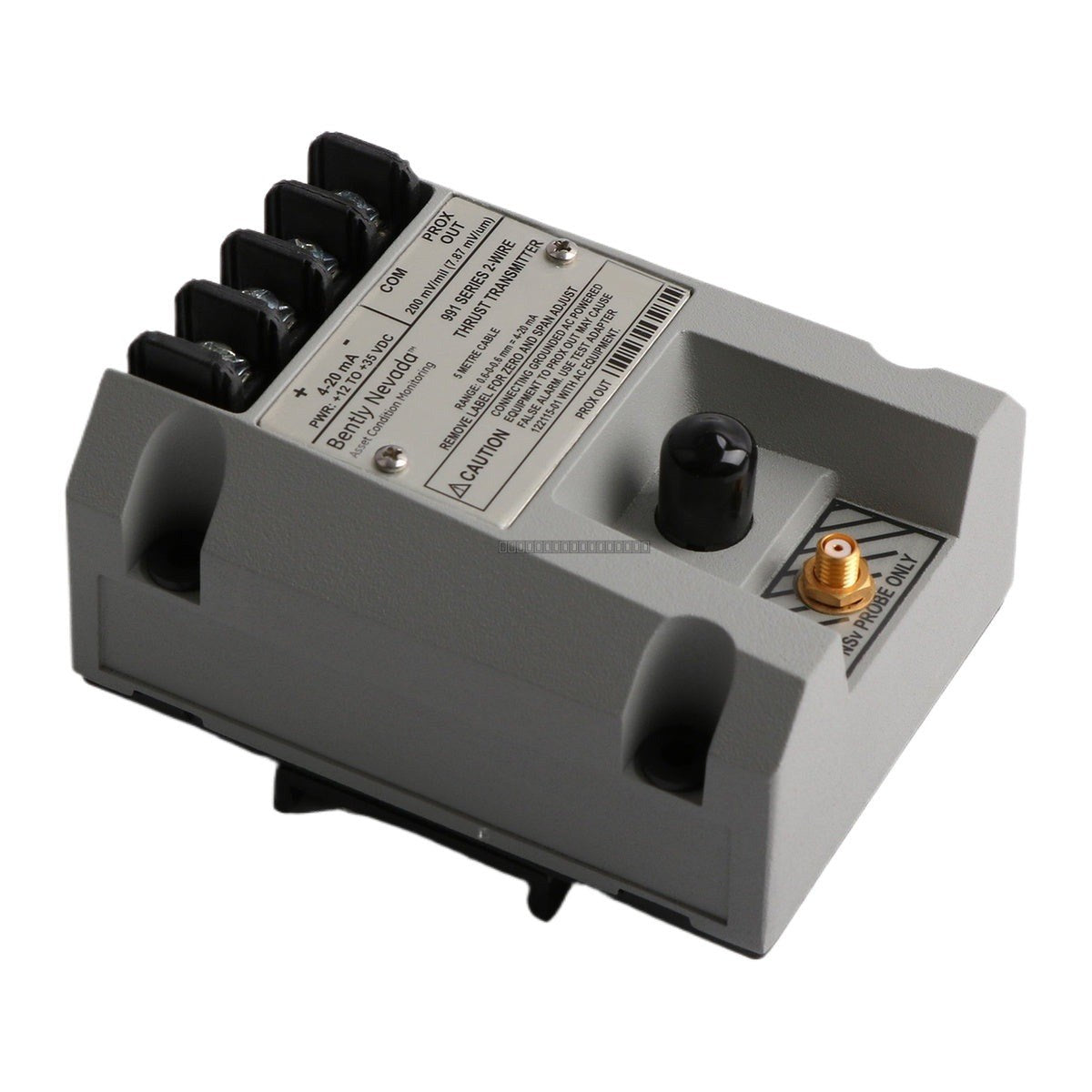

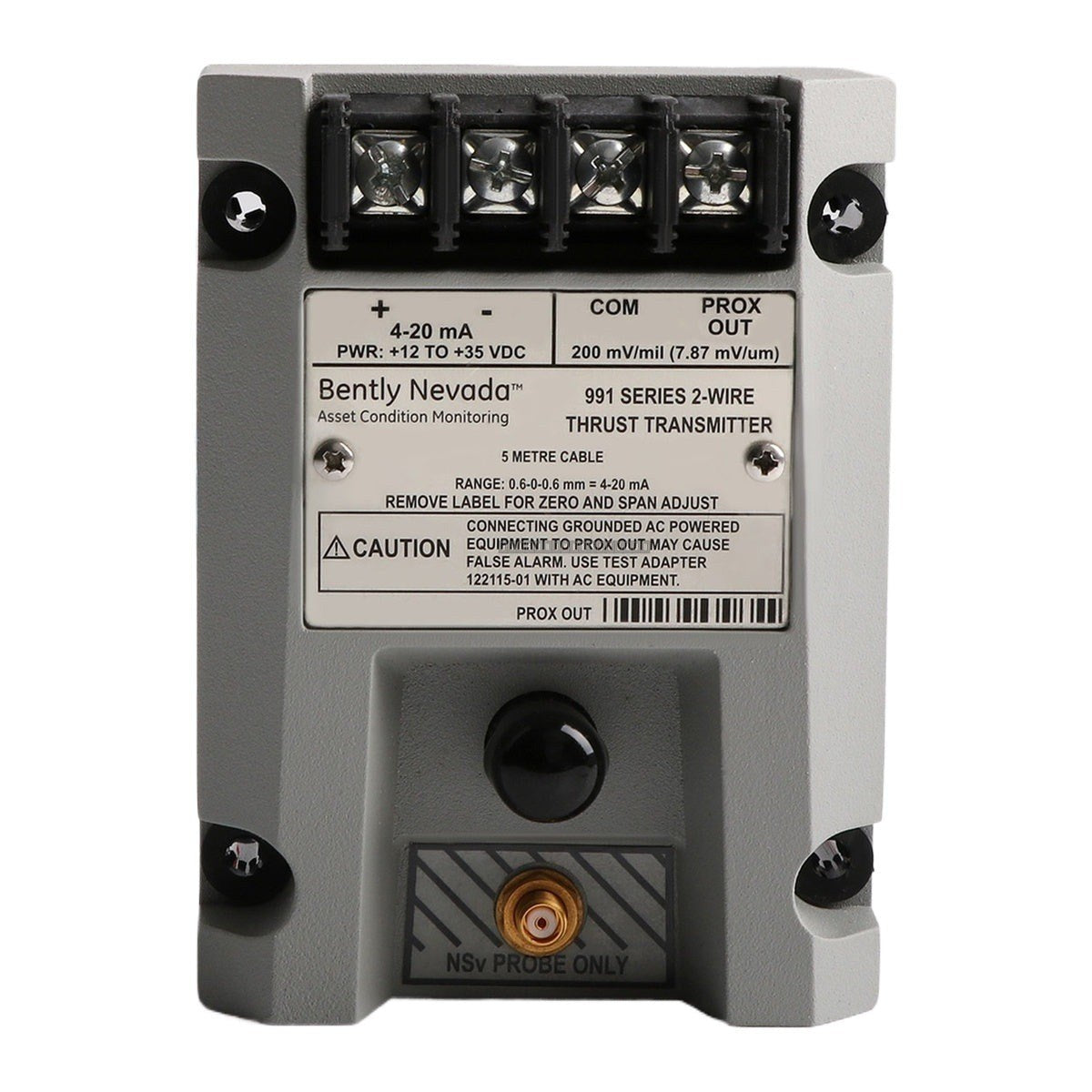

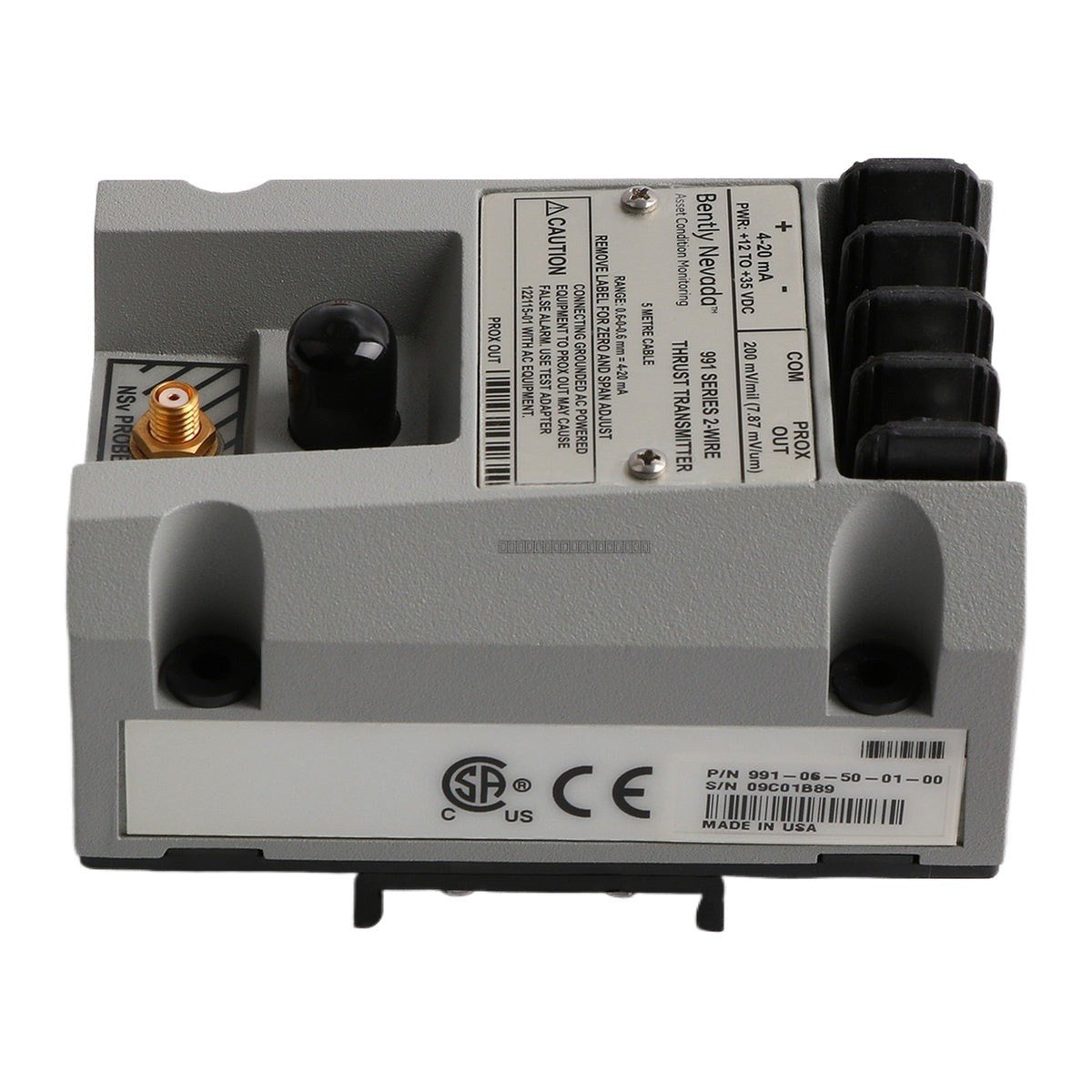

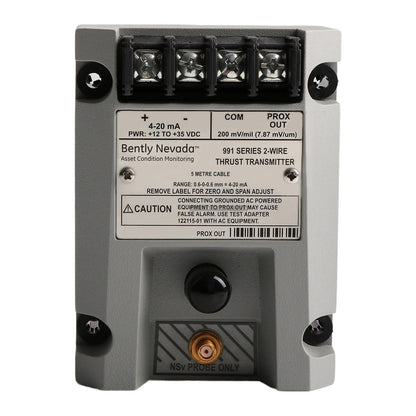

The Bently Nevada 991-06-50-01-00 is a dedicated thrust transmitter designed for continuous monitoring of axial position in rotating machinery. This unit provides a reliable 4-20 mA output proportional to the measured thrust displacement, facilitating integration into PLC, DCS, or SCADA systems for machinery protection and condition monitoring.

Features

• Provides a linear 4-20 mA output proportional to the thrust position.
• Features non-interacting external adjustments for zero and span, allowing for precise calibration without disrupting the loop.
• Designed for standard industrial mounting using 35 mm DIN-rail clips.
• Includes current limiting circuitry to protect the loop and connected instrumentation.
• Compatible with standard proximity probe systems for accurate non-contact displacement measurement.

Applications

• Axial position monitoring for centrifugal compressors, turbines, and pumps.
• Integration into plant-wide machinery protection systems.
• Retrofitting legacy monitoring loops with modern 4-20 mA transmitter technology.

Technical Specifications

Installation Guidelines

• Ensure the transmitter is mounted in a clean, dry, and vibration-isolated environment.
• Use shielded twisted-pair cabling for the 4-20 mA loop to minimize electromagnetic interference (EMI).
• Verify that the proximity probe target area meets the minimum diameter requirement of 9.5 mm to ensure measurement accuracy.
• Power down the loop before making any wiring connections or adjustments to the transmitter terminals.
• Ensure proper grounding of the cable shield at the control system end to prevent ground loops.

FAQ

What is the primary function of the 991-06-50-01-00?
This device acts as a signal converter, taking input from a proximity probe and outputting a 4-20 mA signal that represents the axial thrust position of a machine shaft.

Can the zero and span be adjusted?
Yes, the unit features non-interacting external adjustments, allowing you to calibrate the transmitter output without affecting the zero setting.
