Bently Nevada 991-06-XX-01-05 MOD:164113-01 Thrust Transmitter

Bently Nevada 991-06-XX-01-05 MOD:164113-01 Thrust Transmitter

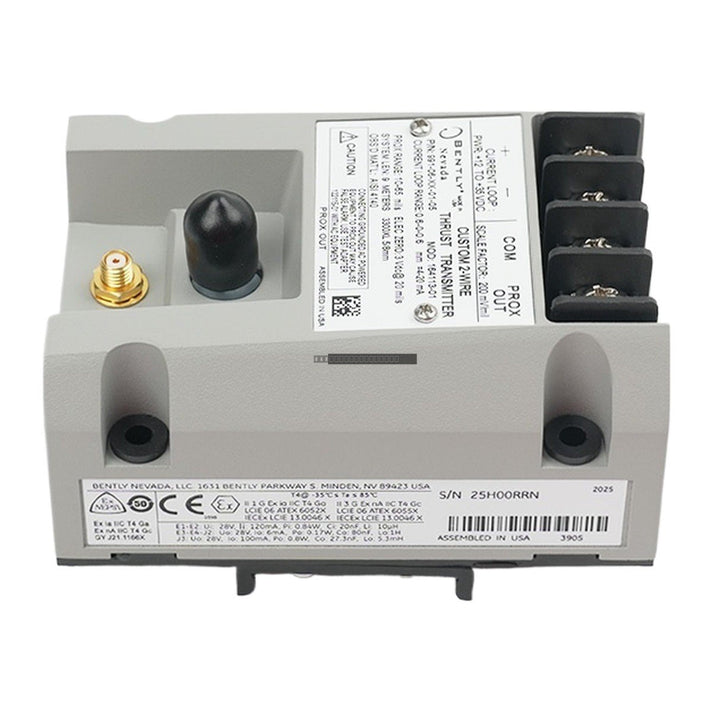

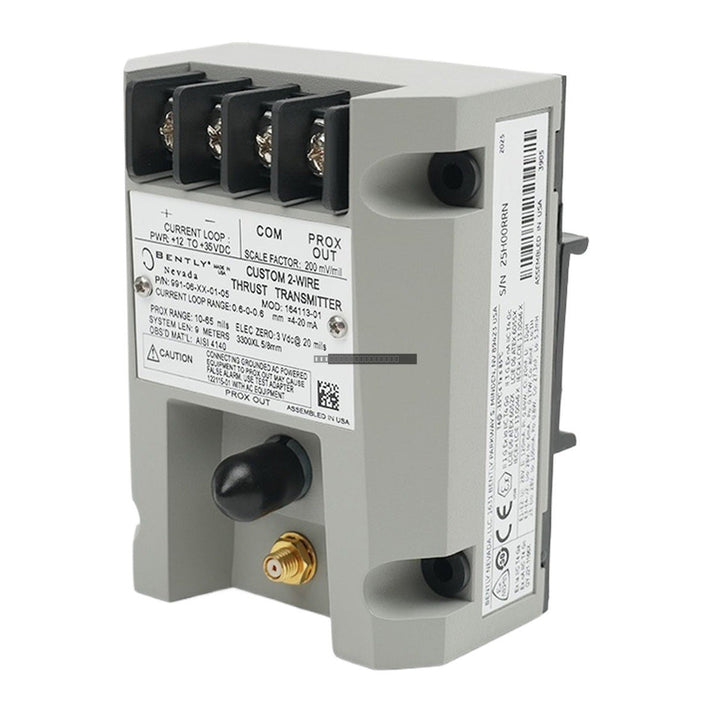

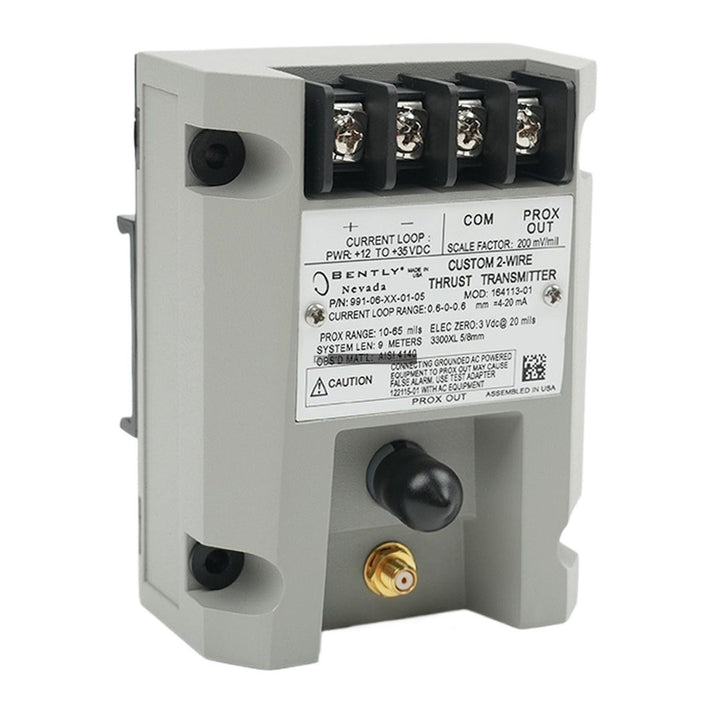

The Bently Nevada 991-06-XX-01-05 MOD:164113-01 is a specialized 2-wire, loop-powered thrust transmitter designed for monitoring axial shaft displacement. This device is engineered for integration into machinery control systems, providing a...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 991-06-XX-01-05 MOD:164113-01
Proveedora: Bently Nevada
tipo: Thrust Transmitter
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 991-06-XX-01-05 MOD:164113-01 is a specialized 2-wire, loop-powered thrust transmitter designed for monitoring axial shaft displacement. This device is engineered for integration into machinery control systems, providing a standard 4 to 20 mA output proportional to the shaft's axial position. It is primarily utilized by original equipment manufacturers (OEMs) for monitoring non-critical rotating machinery such as centrifugal air compressors, small pumps, motors, and fans.

Features

  • Integrated Proximitor sensor functionality, eliminating the need for an external sensing unit.
  • Power-up Inhibit circuit designed to prevent signal errors caused by line voltage transients.
  • Potted construction for high reliability in high-humidity environments (up to 100% condensing).
  • Flexible mounting options including 35 mm DIN-rail clips or bulkhead mounting screws.
  • Compatible with Bently Nevada 3300 NSv proximity probes and matching extension cables.

Applications

  • Centrifugal Air Compressors: Provides real-time axial position data to OEM control systems.
  • Small Pumps and Motors: Offers a simple 4-20 mA interface for standard industrial assets.
  • Industrial Fans and Blowers: Monitors axial displacement to detect potential mechanical issues.
  • Oil, Gas, and Petrochemical: Suitable for monitoring critical rotating assets in processing plants.
  • Power Generation: Used for basic monitoring of auxiliary motors and small rotating equipment.

Technical Specifications

Model 991-06-XX-01-05 MOD:164113-01
Full-scale Range 0.6-0-0.6 mm
System Length 5.0 meters / 7.0 meters
Mounting 35 mm DIN-rail clips
Agency Approvals CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS Maritime
Weight 0.5 kg

Installation Guidelines

  • Ensure the system is powered down before performing any wiring or module installation.
  • The unit is designed for 35 mm DIN-rail mounting; ensure the rail is properly grounded to the cabinet chassis.
  • Use shielded twisted-pair cabling for the 4-20 mA loop to minimize EMI interference.
  • Maintain proper separation between signal wiring and high-voltage power lines.
  • Verify that the proximity probe and extension cable lengths match the transmitter configuration (5m or 7m).
  • Handle with care to avoid damage to the potted housing and connector interfaces.

FAQ

What is the Bently Nevada 991-06-XX-01-05?

The 991 is a 2-wire, loop-powered transmitter designed for measuring shaft thrust (axial position) in rotating machinery. It provides a 4-20 mA proportional signal for direct input into machine control systems.

Does the 991-06-XX-01-05 need an external Proximitor?

No, the unit features an integrated Proximitor sensor, which eliminates the requirement for an external unit.

What proximity probes are compatible with this transmitter?

This transmitter is designed to work specifically with Bently Nevada 3300 NSv proximity probes and their corresponding 5-meter or 7-meter extension cables.
