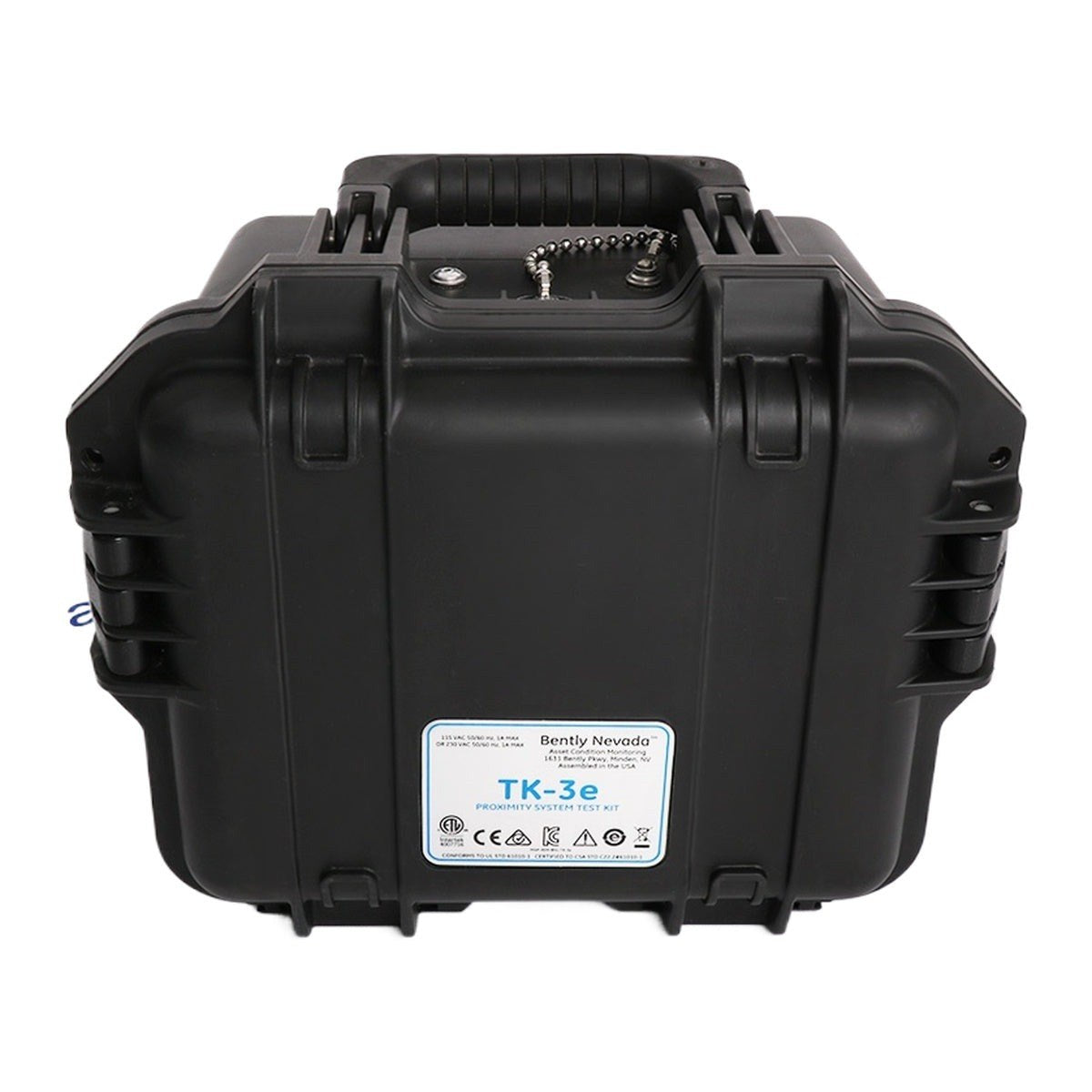

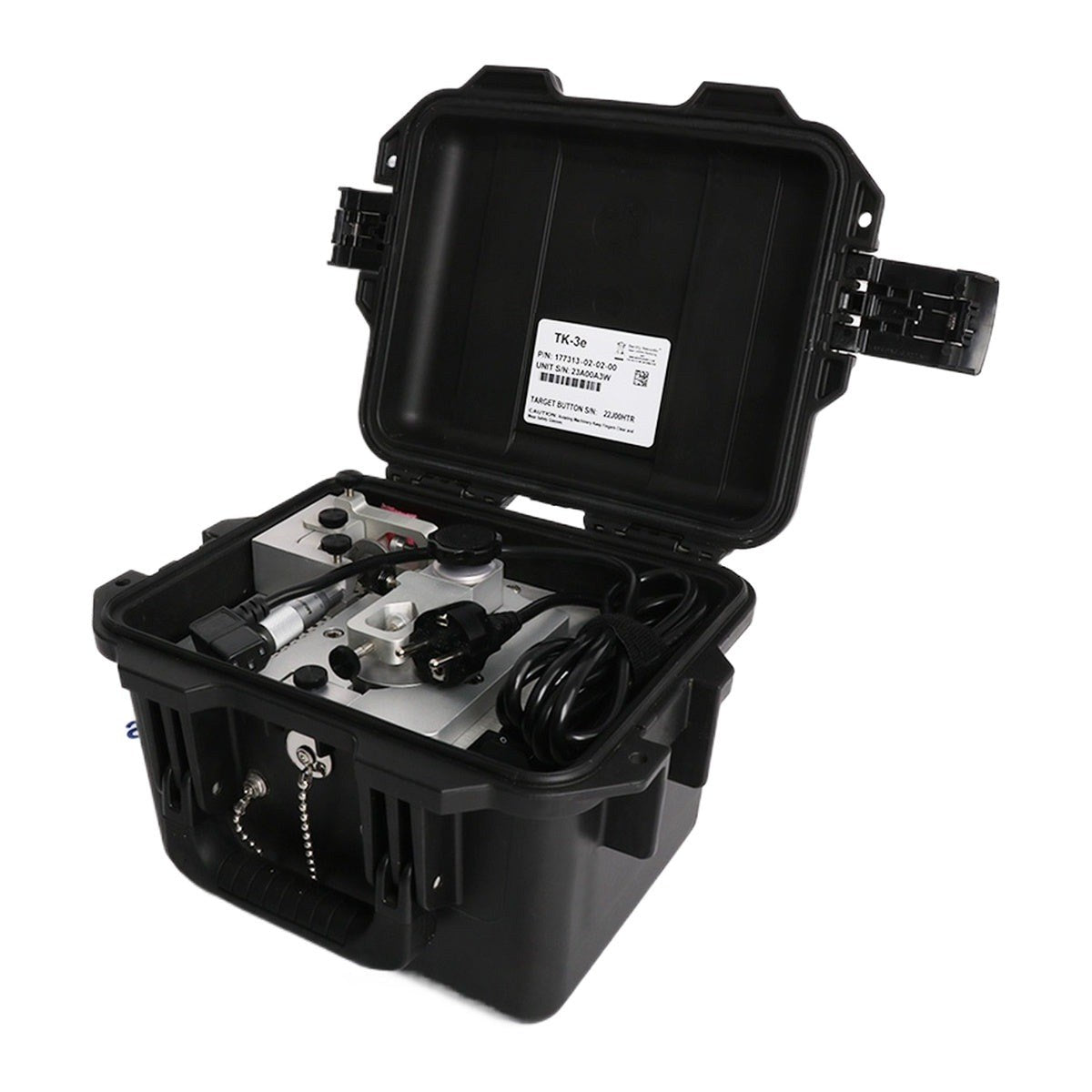

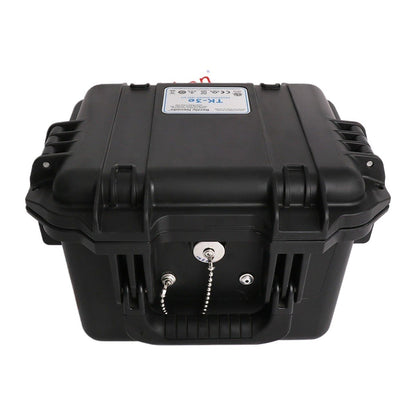

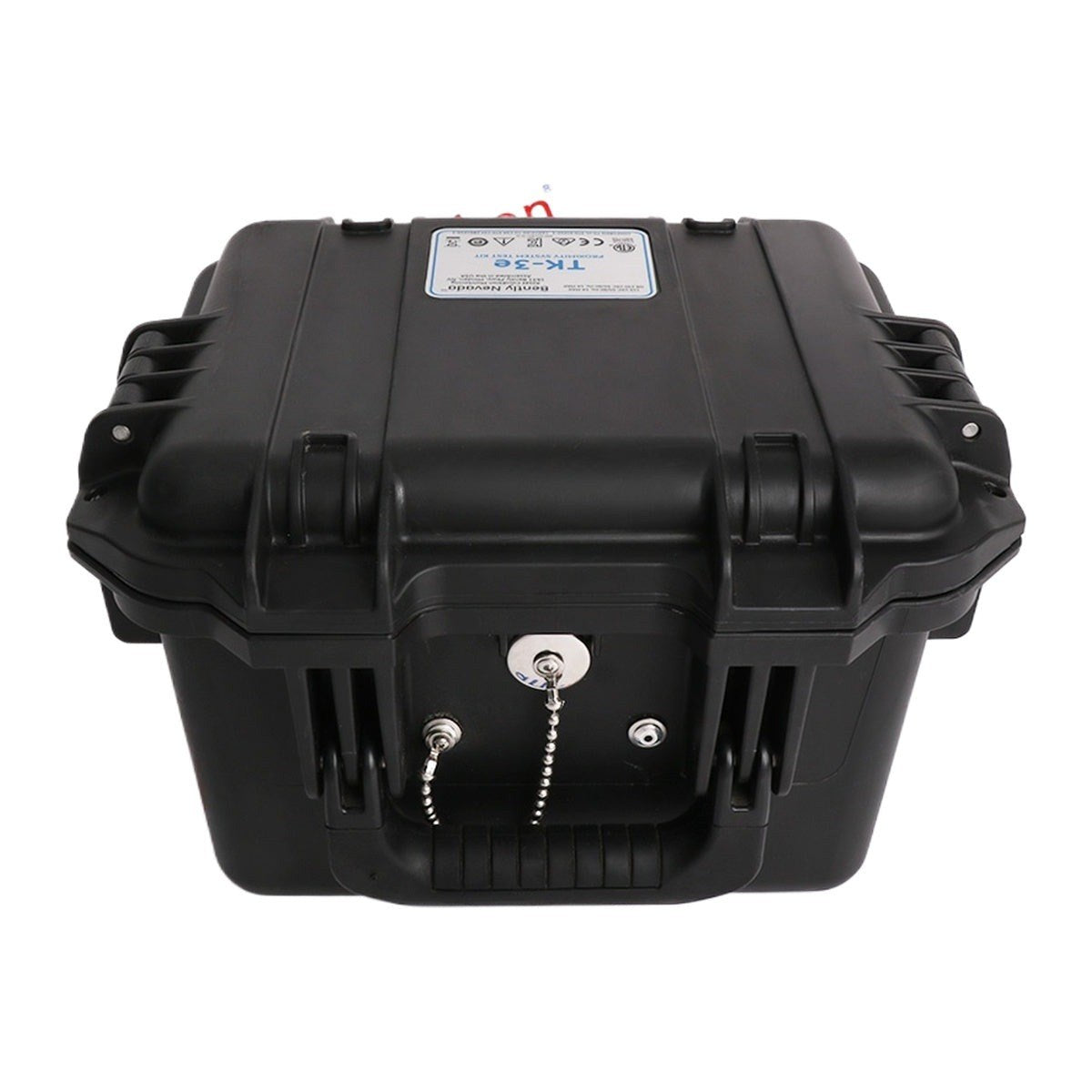

The Bently Nevada TK-3E 177313-02-02-00 is a motorized, portable proximity system test kit designed to simulate shaft vibration and position for the calibration and verification of Bently Nevada eddy current proximity transducer systems. This kit ensures that transducer inputs and monitor readouts remain accurate, supporting critical machinery condition monitoring.

Features

• Electric-driven calibration system for proximity transducers
• Simulates shaft vibration and axial/radial displacement
• Precision spindle micrometer assembly for controlled probe positioning
• Universal probe mount accommodating diameters from 5 mm to 19 mm
• Integrated target wheel assembly with AISI 4140 alloy steel target
• Rugged, foam-lined carrying case for field and laboratory use

Applications

• Power Generation: Calibration of vibration monitoring loops in thermal, hydroelectric, and nuclear plants
• Oil, Gas, & Petrochemicals: Verification of proximity sensors in refineries and offshore processing facilities
• Rotating Equipment: Routine maintenance and commissioning for centrifugal compressors, steam turbines, and large industrial fans
• Machinery Protection: Checking thrust position drift and radial vibration linearity to prevent rotor-to-stator contact

Technical Specifications

Installation Guidelines

• Ensure the test kit is placed on a stable, level surface. The base includes vibration isolation feet to minimize external interference.
• Verify the power supply voltage setting (115V or 230V) matches the local power source before connecting.
• When mounting the proximity probe, ensure it is securely held in the universal mount without over-tightening the clamp.
• Connect the Proximitor sensor to the probe using the appropriate extension cable and provide the required -24 VDC power to the sensor.
• Use a digital multimeter to monitor the gap voltage while adjusting the micrometer in calibrated increments to verify the Incremental Scale Factor (ISF).
• Always power down the test kit and disconnect from the power source before performing maintenance or cleaning.

FAQ

What is the TK-3E 177313-02-02-00?

The Bently Nevada TK-3E 177313-02-02-00 is an electrically driven proximity system test kit used to calibrate vibration monitors and verify the operational condition of proximity transducer systems.

Do I need an oscilloscope to use the TK-3E?

No, an oscilloscope is not required. You can use a standard digital multimeter to read the gap voltage and evaluate the vibration signal.

What is the power requirement for this kit?

The unit operates on 95–125 Vac or 190–250 Vac, 50/60 Hz.

What are the environmental limits?

It is rated for indoor use up to an altitude of 2000 meters. The operational temperature range is 0 degC to 50 degC in up to 95% non-condensing humidity.
