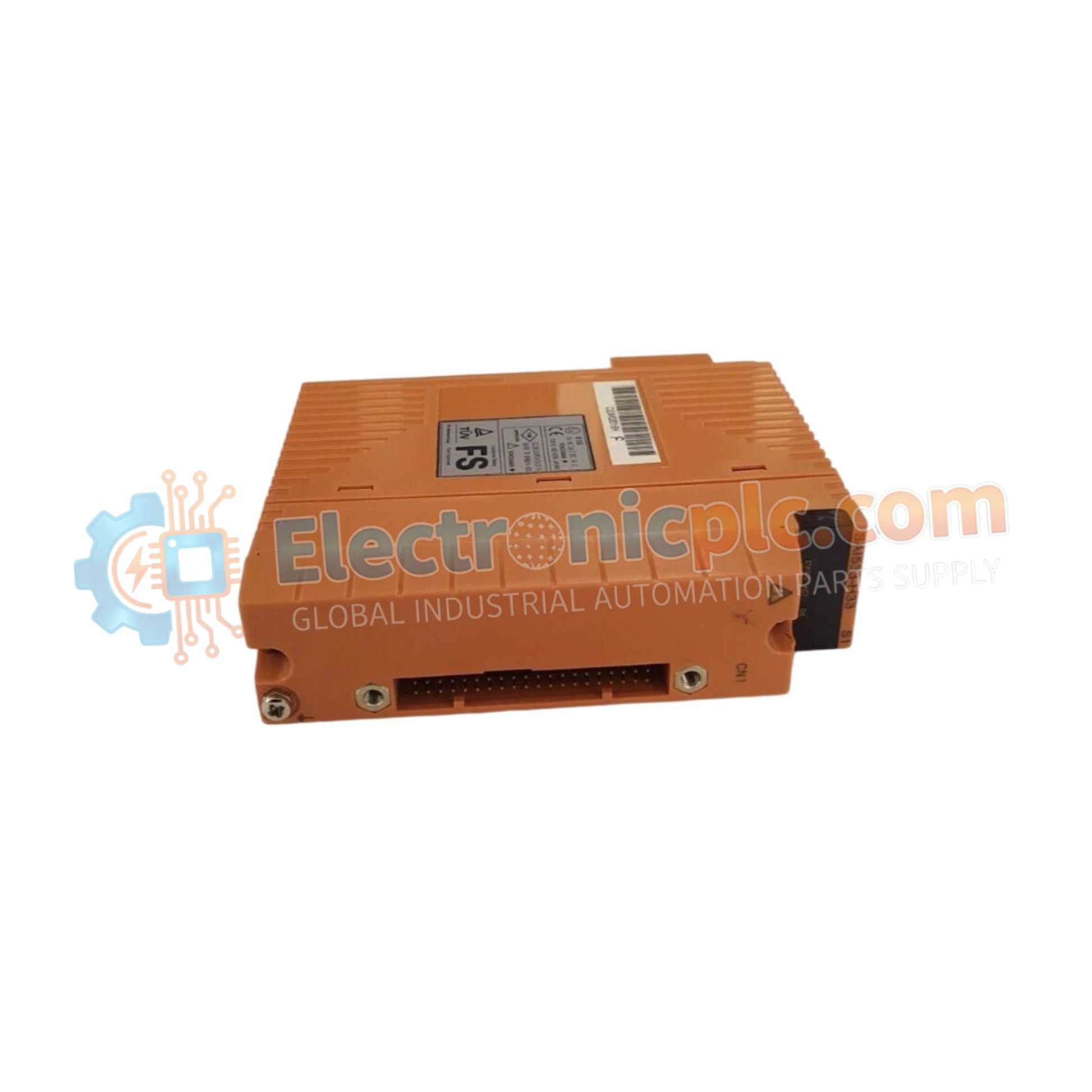

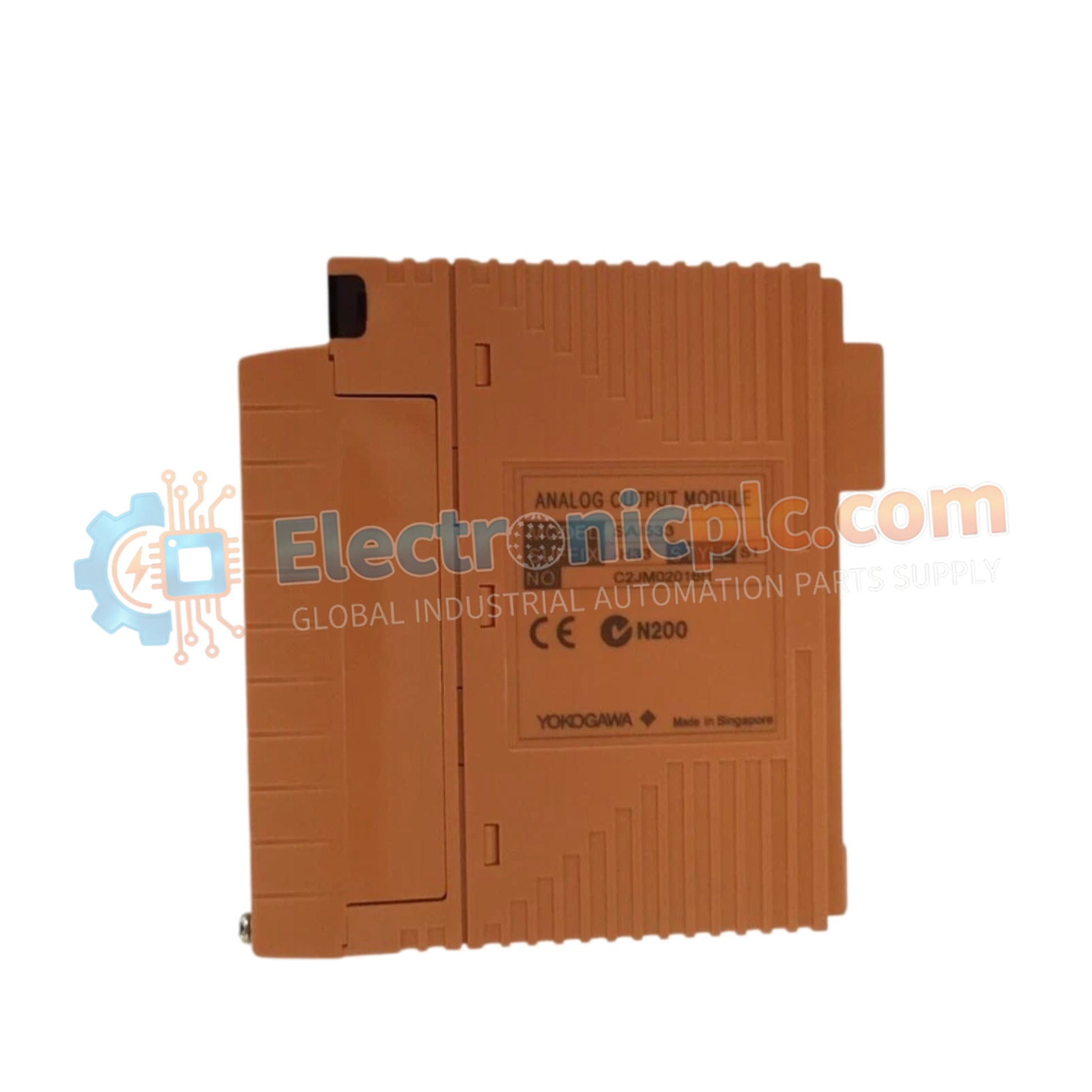

Configured for precision analog current generation in distributed control platforms, the Yokogawa SAI533-H33 S1 (SAI533-H33 Current Output Module) provides direct physical/electrical execution.
| Parameter | ...
|---|
| Parameter | Specification |
|---|---|
| Model | SAI533-H33 S1 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.3 kg |
| Dimensions | 3.2 cm x 10.7 cm x 13.0 cm |
| Operating Temp | 0 deg C to 50 deg C |
| Power Consumption | 24 VDC, 0.2 A max |
| Signal Channels | Multi-channel analog output |
The hardware configuration maintains strict electrical isolation across output loops to eliminate ground loop interference and mitigate common-mode voltage fluctuations in multi-channel control loops. Integration with 4-20 mA HART loop protocol parameters ensures continuous diagnostic feedback, transmitter verification, and transparent digital communication overlay without interrupting analog control signals.
Q: What are the restrictions regarding hot-swapping the SAI533-H33 S1 module?
A: Hot-swapping requires explicit node redundancy configuration or controller-level maintenance mode activation to prevent undesirable output states on field actuators.
Q: How is loop power distributed across the output channels?
A: Loop power is supplied via internal isolated power distribution circuitry routed through the backplane architecture to connected field actuators.
Mount the unit directly into the designated slot of the node base, ensuring physical alignment with backplane connectors before securing fastening screws. Route analog signal cables using shielded twisted-pair wiring separated from high-voltage power conduits. Terminate cable shielding and ground drain wires securely to the designated cabinet earth grounding bar.
