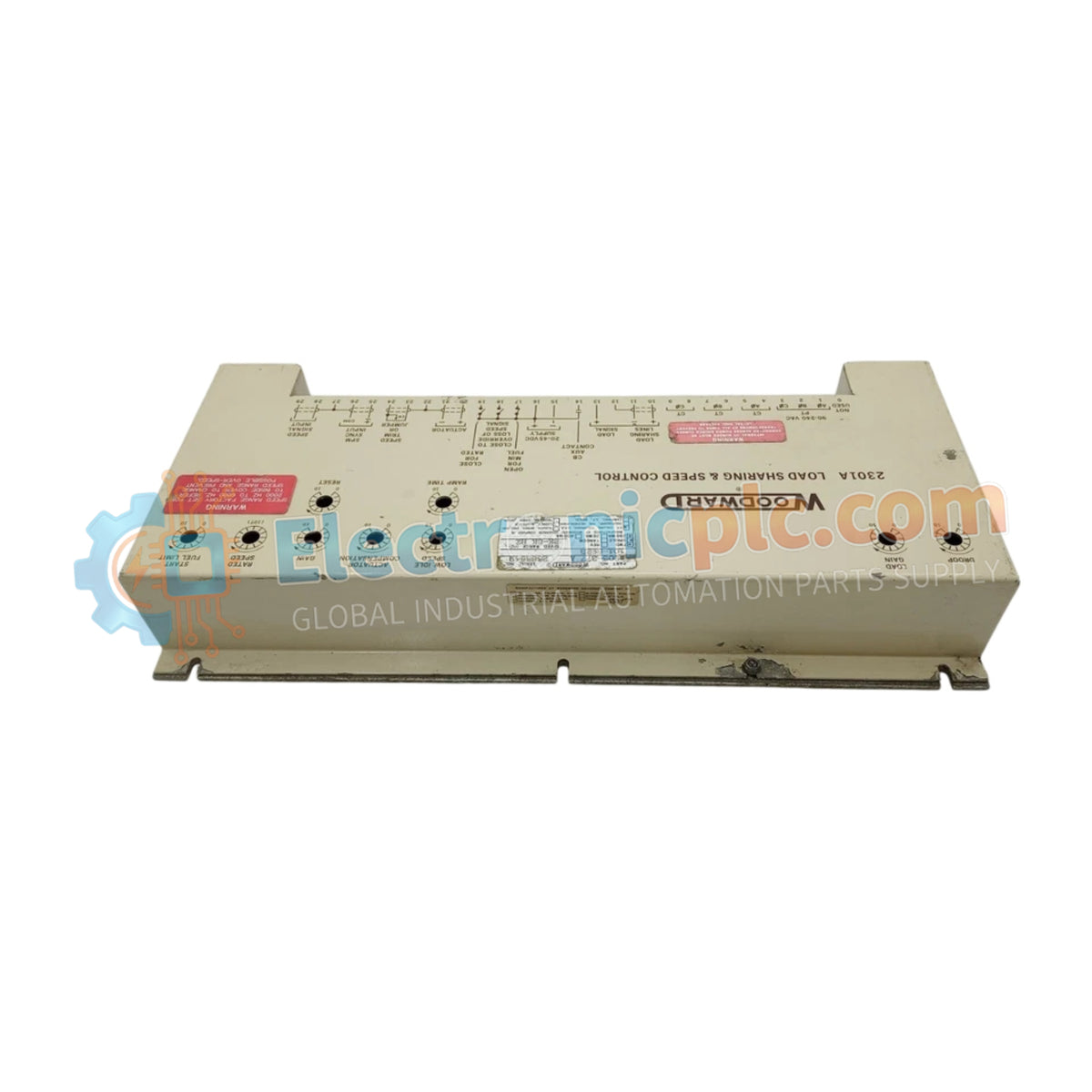

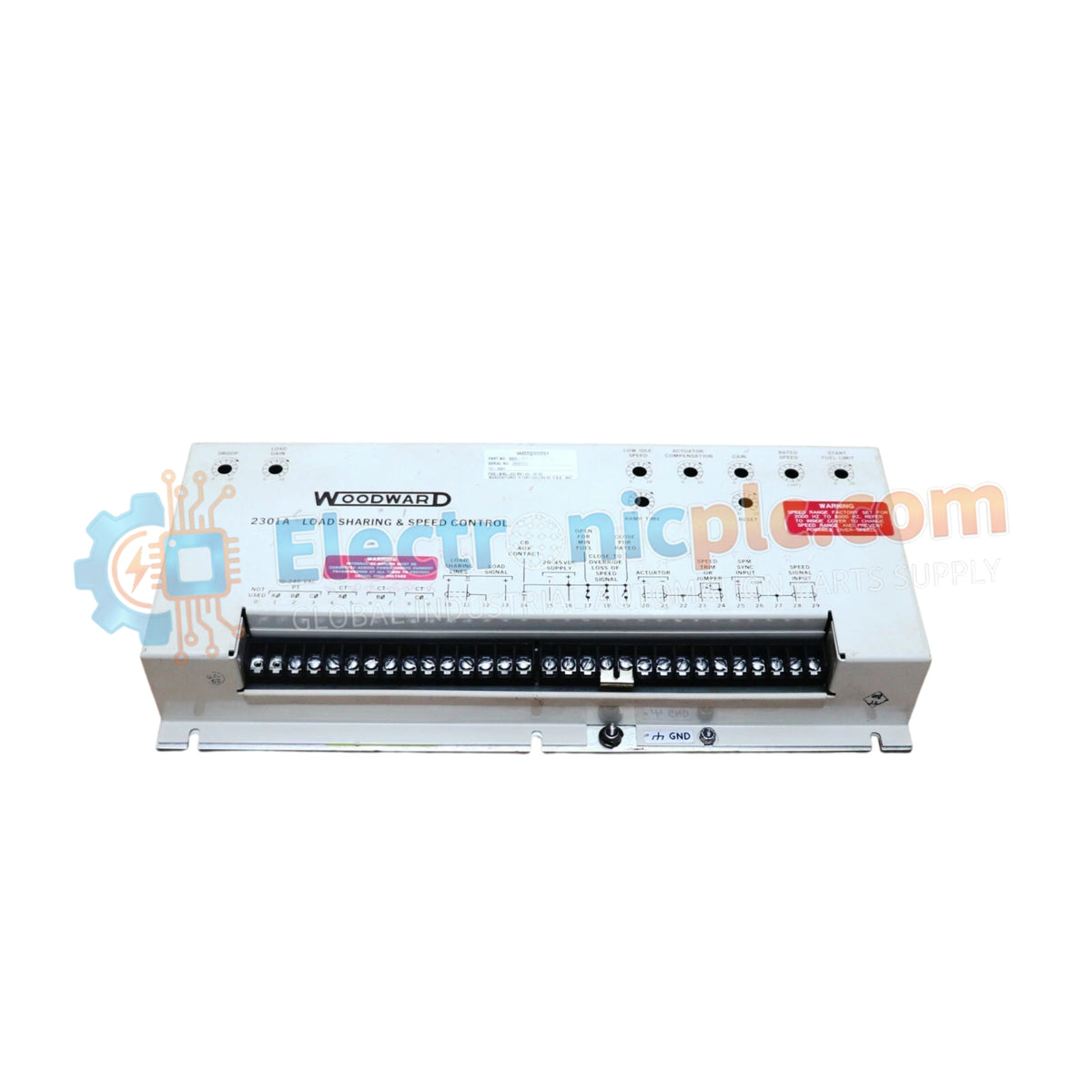

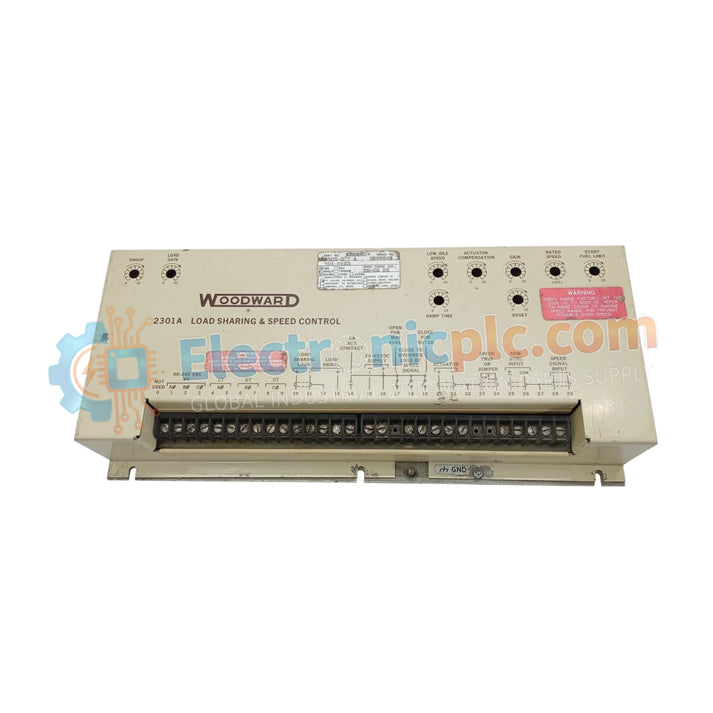

The Woodward 9905-377, also cataloged as the 9905-377 Speed Control Module, operates as a dedicated hardware component for prime mover governing and generator power balancing within industrial power management systems.

Hardware Specifications

Thermal Heat Sink Dissipation & Actuator Loop Feedback

Dual AC/DC internal power supplies and output driver electronics generate thermal energy transferred through the IP65/NEMA 4 sealed enclosure. Efficient thermal heat sink dissipation supports continuous operation across harsh thermal environments ranging from -40 to +85 deg C. High-resolution 12-bit processing combined with 1500 VDC signal isolation ensures stable actuator loop feedback response, delivering precise 0-10 VDC bias commands for transient speed correction and equal real-power load distribution.

Frequently Asked Questions

• Q: How should RS-485 serial communication cabling be installed to ensure Modbus network reliability?
• A: Modbus communications require shielded twisted-pair wire terminated with 120 ohm resistors at both ends of the RS-485 network line to prevent signal reflection.
• Q: What flexibility does the dual power supply specification offer during installation?
• A: The internal power architecture accepts broad AC inputs (90 to 240 VAC) or low-voltage DC inputs (20 to 40 VDC), accommodating standard station battery banks or plant AC distribution lines.
• Q: How does 1500 VDC isolation protect control logic from field wiring disturbances?
• A: High-voltage galvanic barriers isolate internal microprocessor logic from field inputs and ground loops, preventing common-mode voltage spikes from degrading signal accuracy.

Field Installation Guidelines

• Secure the IP65/NEMA 4 housing to a solid, vibration-damped mounting surface using all designated mounting points.
• Route speed sensing input cables and analog output wiring in grounded metal conduits physically isolated from high-current power cables.
• Connect the module frame earth lug directly to the local station ground bus using a short, heavy-gauge conductor.
• Verify power supply selection and voltage levels before tightening terminal block connections and energizing the system.
