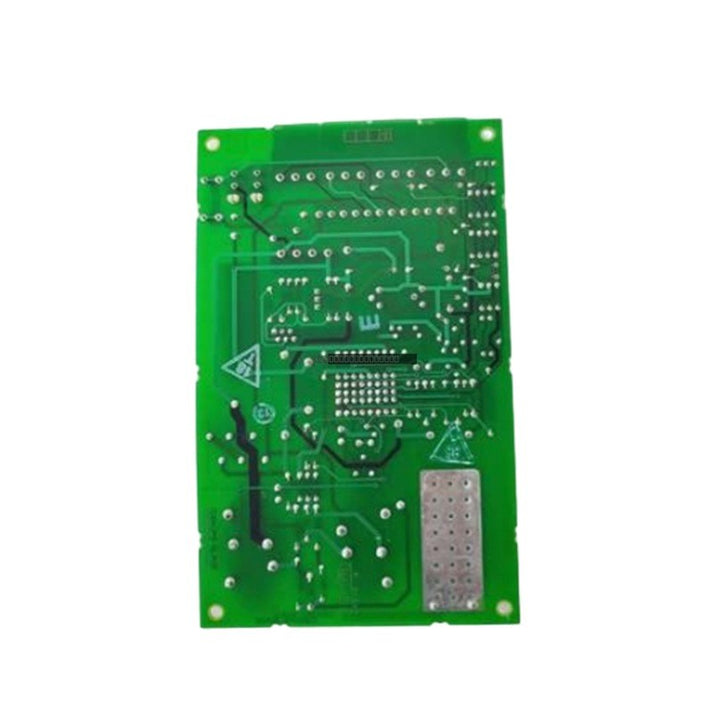

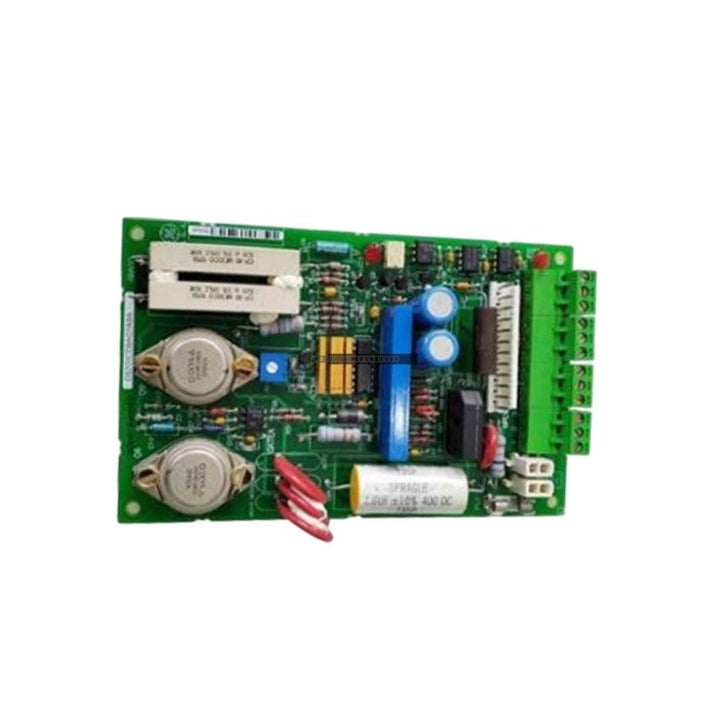

GE Fanuc DS200CDBAG1A Contactor Driver Board

GE Fanuc DS200CDBAG1A Contactor Driver Board

The GE Fanuc DS200CDBAG1A is a specialized contactor driver board designed for the Driver Control series. This PCB assembly serves as a critical interface for managing contactor switching operations in...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: DS200CDBAG1A
Proveedora: GE FANUC
tipo: Contactor Driver Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The GE Fanuc DS200CDBAG1A is a specialized contactor driver board designed for the Driver Control series. This PCB assembly serves as a critical interface for managing contactor switching operations in industrial environments, such as power generation and heavy manufacturing. It provides stable coil voltage regulation and includes integrated protection features to support reliable system performance.

Features

  • Integrated 4A, 125V fuse (FU1) for overcurrent protection.
  • Supports a wide input power range of 75 to 140 V ac/dc.
  • Regulates contactor coil voltage output between 30 and 40 V dc.
  • Onboard LED indicator for real-time monitoring of the local contact close command status.
  • Three dedicated test points referenced to CDBA common (ACOM) for diagnostic troubleshooting.

Applications

This driver board is primarily utilized in GE drive control systems to facilitate the reliable operation of contactors. It is commonly found in industrial automation setups where precise control of electromagnetic switching components is required to maintain system stability and reduce operational downtime.

Technical Specifications

Model DS200CDBAG1A
Brand General Electric (GE Fanuc)
Series Driver Control
Input Power 75 to 140 V ac/dc
Coil Voltage Output 30 to 40 V dc
Fuse Rating 4A, 125V
Diagnostic Interfaces 3 Test Points, 1 LED Status Indicator

Installation Guidelines

  • Ensure all power is disconnected from the drive system before attempting to remove or install the PCB.
  • Use appropriate ESD protection when handling the board to prevent static damage to sensitive components.
  • When replacing an existing board, the potentiometer RV1 must be manually calibrated to match the setting of the original unit. Failure to set RV1 correctly, especially when used with DS304-type contactors, may lead to coil failure.
  • Diagnostic measurements must be performed using isolated test equipment. Because the ACOM reference is distinct from the drive common, standard non-isolated equipment may cause short circuits or signal interference.

FAQ

Is the ACOM reference the same as the drive common?

No, the CDBA common (ACOM) is electrically distinct from the drive common. Technicians must use isolated measurement tools to avoid damaging the board or obtaining incorrect readings.

What is the function of the potentiometer RV1?

RV1 is used to calibrate the output characteristics of the board. It is essential that this setting is transferred from the old unit to the new unit during replacement to ensure compatibility with the connected contactor.
