GE Fanuc DS200RTBAG3AEB Relay Terminal Module

GE Fanuc DS200RTBAG3AEB Relay Terminal Module

Description

The DS200RTBAG3AEB is a Relay Terminal Module designed for the General Electric EX2000 excitation system. This module functions as a critical interface board within the drive or exciter cabinet, facilitating...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: DS200RTBAG3AEB
Proveedora: GE FANUC
tipo: Relay Terminal Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

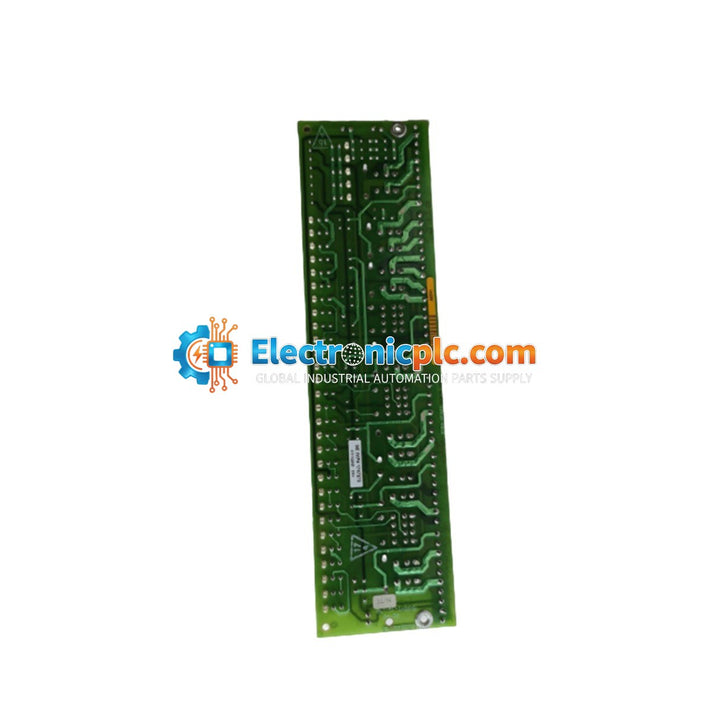

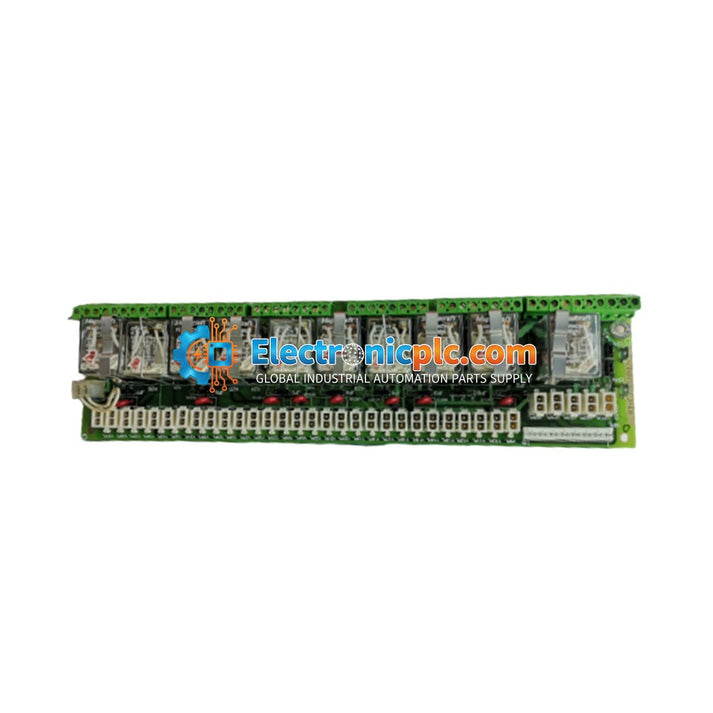

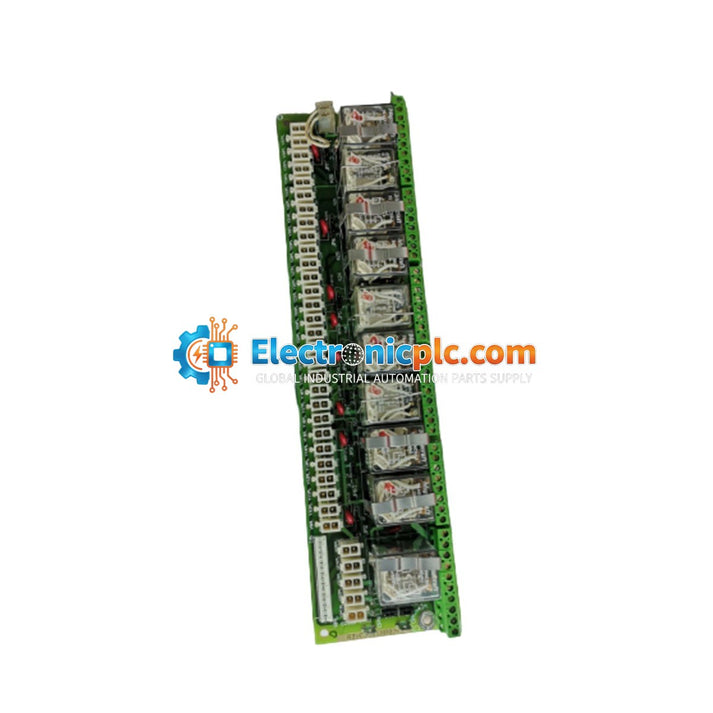

The DS200RTBAG3AEB is a Relay Terminal Module designed for the General Electric EX2000 excitation system. This module functions as a critical interface board within the drive or exciter cabinet, facilitating heavy-duty industrial switching for auxiliary control signals. It is engineered to provide robust electrical isolation, protecting sensitive control electronics from field-side disturbances and ensuring reliable operation in demanding environments such as power generation, mining, and petrochemical facilities.

Features

  • Equipped with 10 high-reliability relays for versatile control switching.
  • Hybrid relay configuration: 7 DPDT relays (2 Form C contacts) and 3 relays (4 Form C contacts).
  • Extensive jumper-selectable logic for customized signal routing and control power configuration.
  • Dedicated CPH and CPN stab connectors for control power input.
  • Integrated interface connectors (RPL, OPTPL) for communication with the LAN I/O Terminal Board (LTB).
  • Pluggable circuit connectors (C1PL-C5PL and Y9PL-Y37PL) for simplified peripheral integration.

Applications

This module is specifically intended for use in GE EX2000 excitation systems. Its primary role is to manage auxiliary control signals, provide physical isolation between field devices and control logic, and support flexible signal routing in industrial automation and power utility applications.

Technical Specifications

Model DS200RTBAG3AEB
Brand General Electric (GE)
Series EX2000 Excitation
Total Relays 10
Relay Configuration A 7 x DPDT (2 Form C)
Relay Configuration B 3 x 4 Form C
Connectors 16-pin (RPL), 2-pin (OPTPL)
Power Input CPH, CPN Stab Connectors
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C

Installation Guidelines

  • Ensure the system is fully powered down before installing or removing the module to prevent electrical damage or injury.
  • Verify that all jumpers are configured according to the specific site requirements before final mounting.
  • Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
  • Ensure all pluggable connectors (C1PL-C5PL, Y9PL-Y37PL) are securely seated to maintain signal integrity.
  • Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.

FAQ

Is the DS200RTBAG3AEB compatible with systems other than the EX2000?

No, this module is specifically designed for the GE EX2000 excitation system and is not intended for use in other drive or control platforms.

Can the relay logic be modified?

Yes, the module features extensive jumper-selectable logic, allowing users to configure signal routing and control power sources to meet specific operational requirements.
