Description

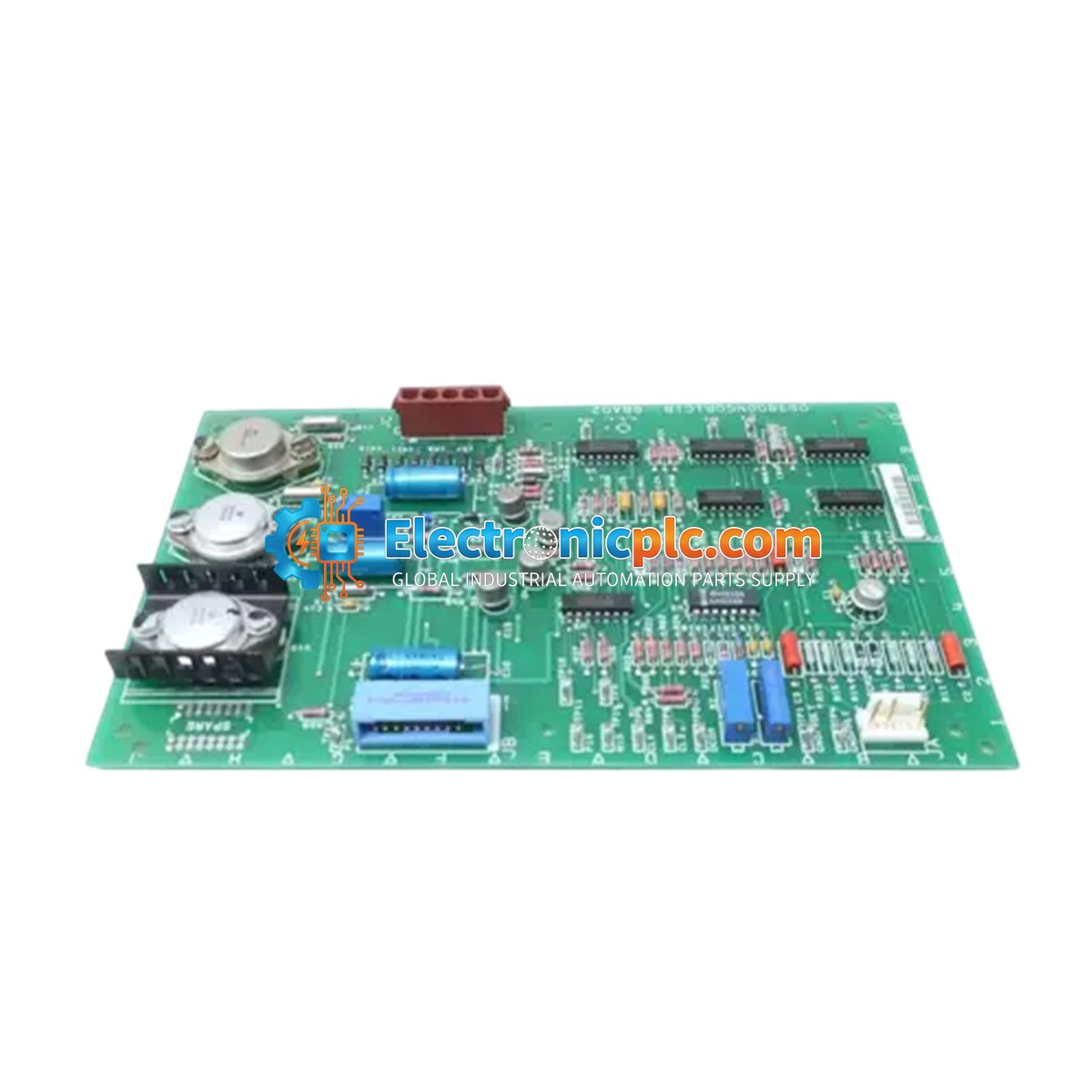

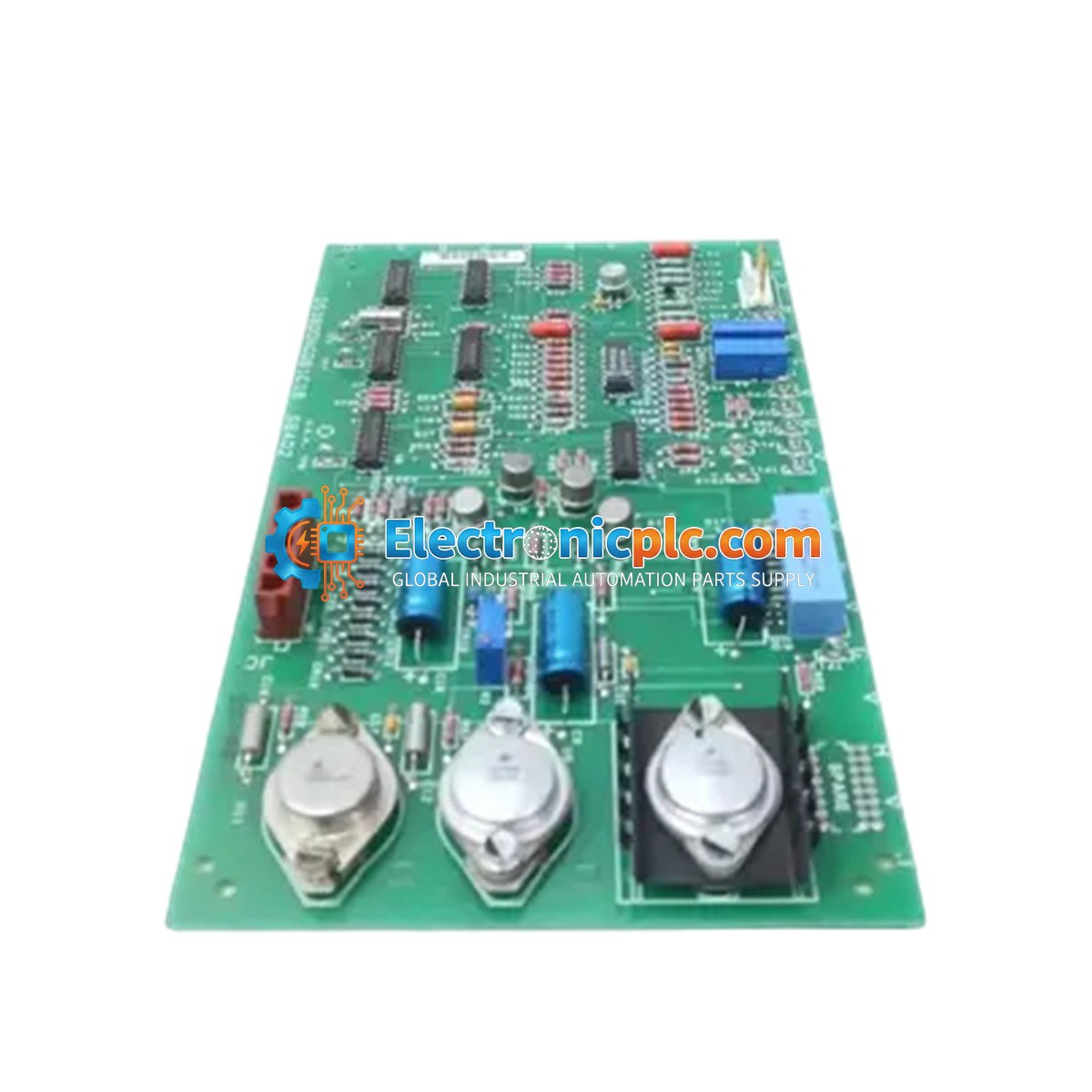

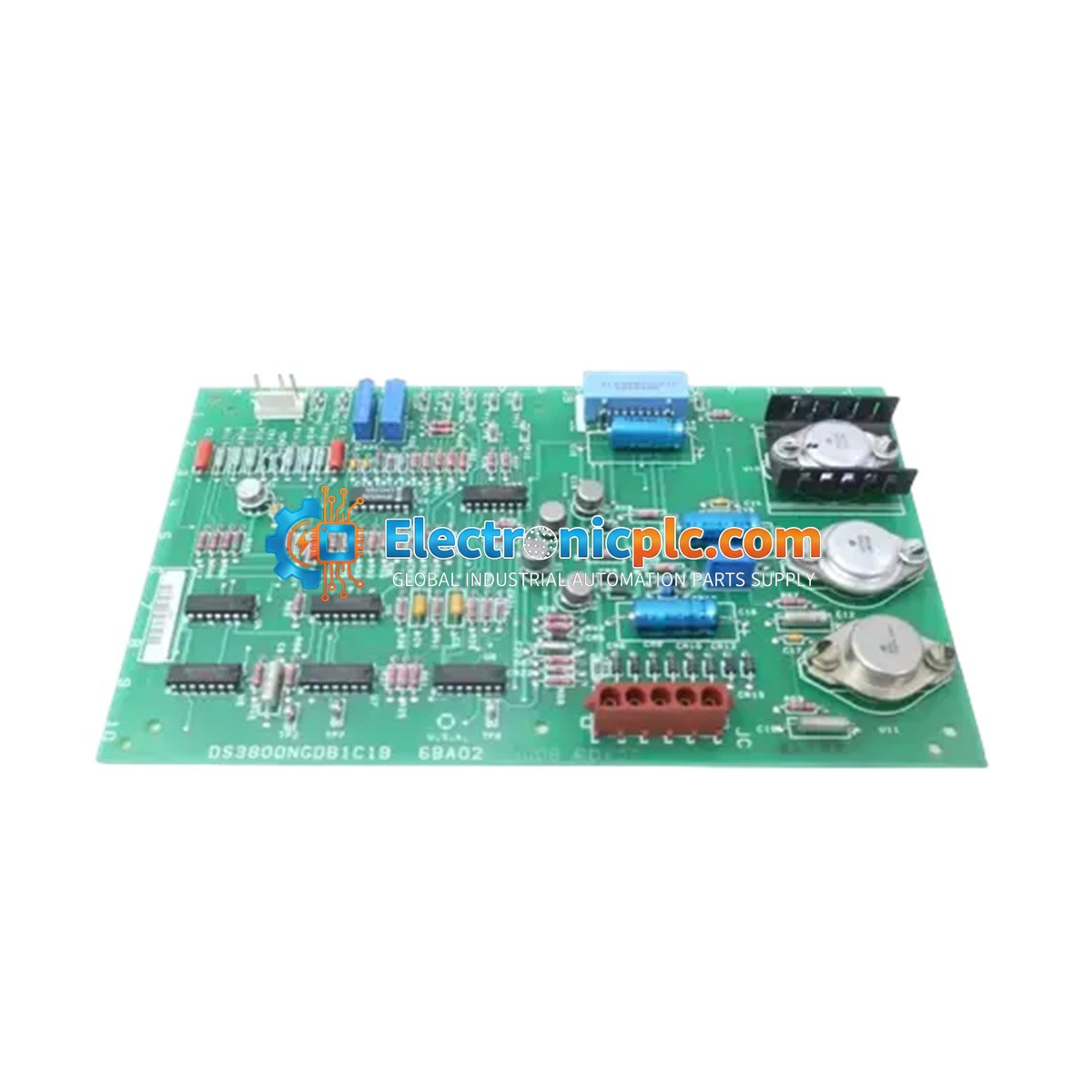

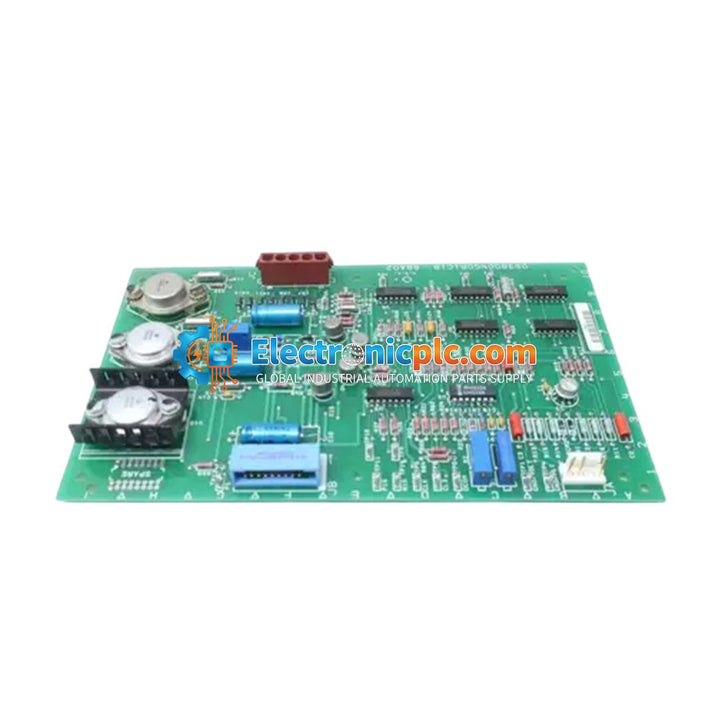

The DS3800NGDD1C1B is a specialized Field Ground Detector Card developed by General Electric for the Speedtronic Mark IV turbine control system. This module provides critical protection by continuously monitoring the isolation resistance between the generator field windings and the chassis ground. Engineered for the demanding environments of power plants and heavy industrial turbine sites, it detects leakage currents that indicate insulation breakdown. By identifying ground faults at an early stage, the DS3800NGDD1C1B helps prevent short circuits and rotor damage, serving as a vital component in maintaining the structural integrity of the excitation system.

Features

• Designed specifically for the GE Speedtronic Mark IV turbine control platform.
• Monitors generator field winding isolation resistance to detect insulation degradation.
• Features high-impedance sensing inputs for accurate ground fault detection.
• Includes onboard potentiometers for precise threshold calibration of ground fault sensitivity.
• Equipped with diagnostic test points for system troubleshooting and maintenance.
• Modular PCB architecture designed for standard Mark IV card rack mounting.

Applications

This module is used in heavy industrial turbine control applications, specifically within power generation facilities utilizing the Speedtronic Mark IV control system. It is essential for protecting generator excitation systems from ground faults and insulation failures.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before inserting or removing the card from the rack.
• Handle the PCB by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
• Verify that the card is fully seated in the backplane connector to ensure reliable signal contact.
• Ensure adequate ventilation within the cabinet to maintain operating temperatures within the 0 to 55 deg Celsius range.
• Use shielded cabling for all field signal connections to minimize electromagnetic interference (EMI).
• Perform calibration of sensitivity potentiometers only by qualified personnel using appropriate diagnostic tools.

FAQ

What does the 1C1B suffix indicate?

The 1C1B suffix represents the hardware revision level of the board. 1C denotes the specific circuit pattern and layout, while 1B indicates a minor revision for improved thermal stability and signal filtering, maintaining full backward compatibility with earlier versions.

Is this card compatible with other Speedtronic systems?

The DS3800NGDD1C1B is specifically engineered for the Mark IV system. It is not intended for use in other generations of Speedtronic controls unless explicitly specified by the manufacturer.
