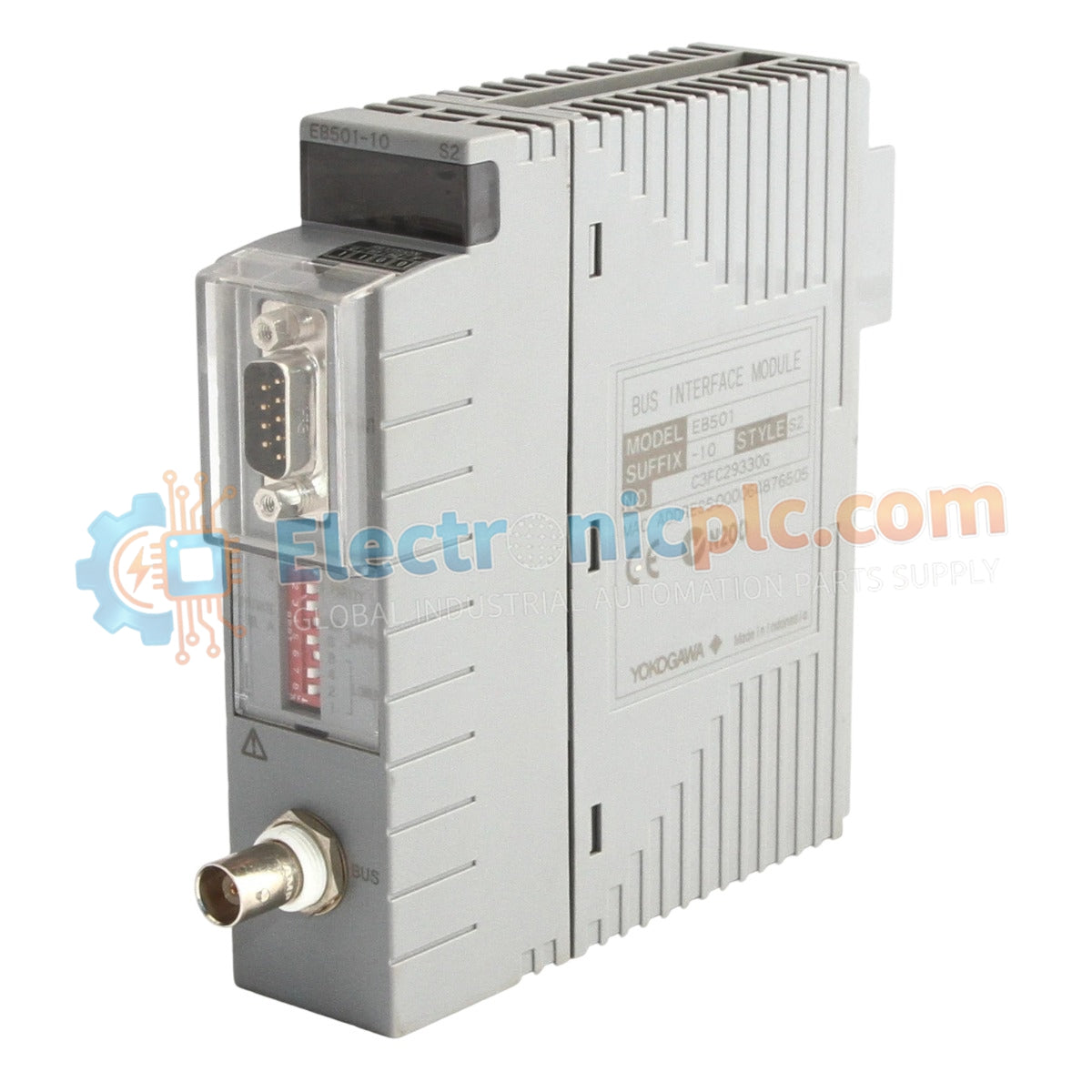

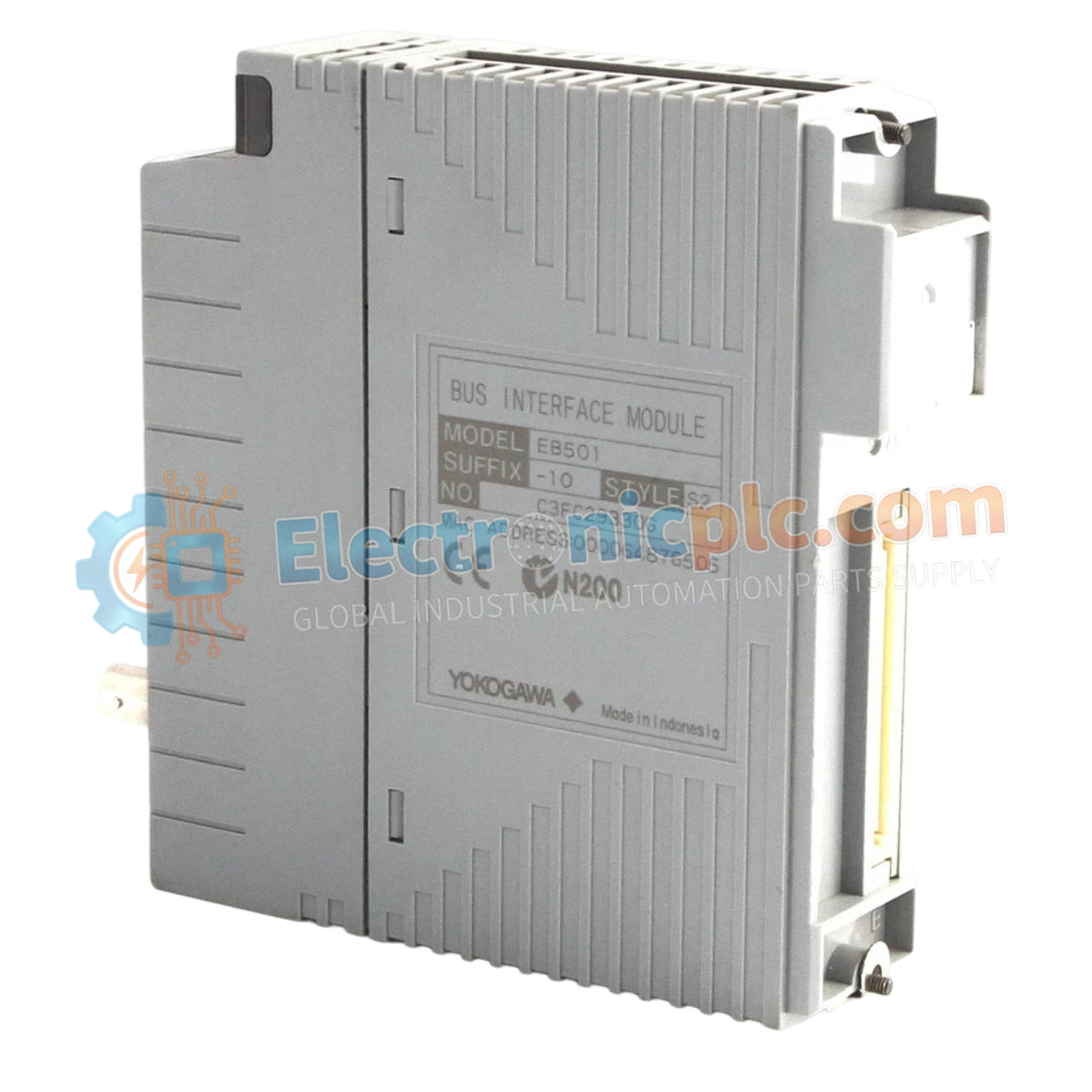

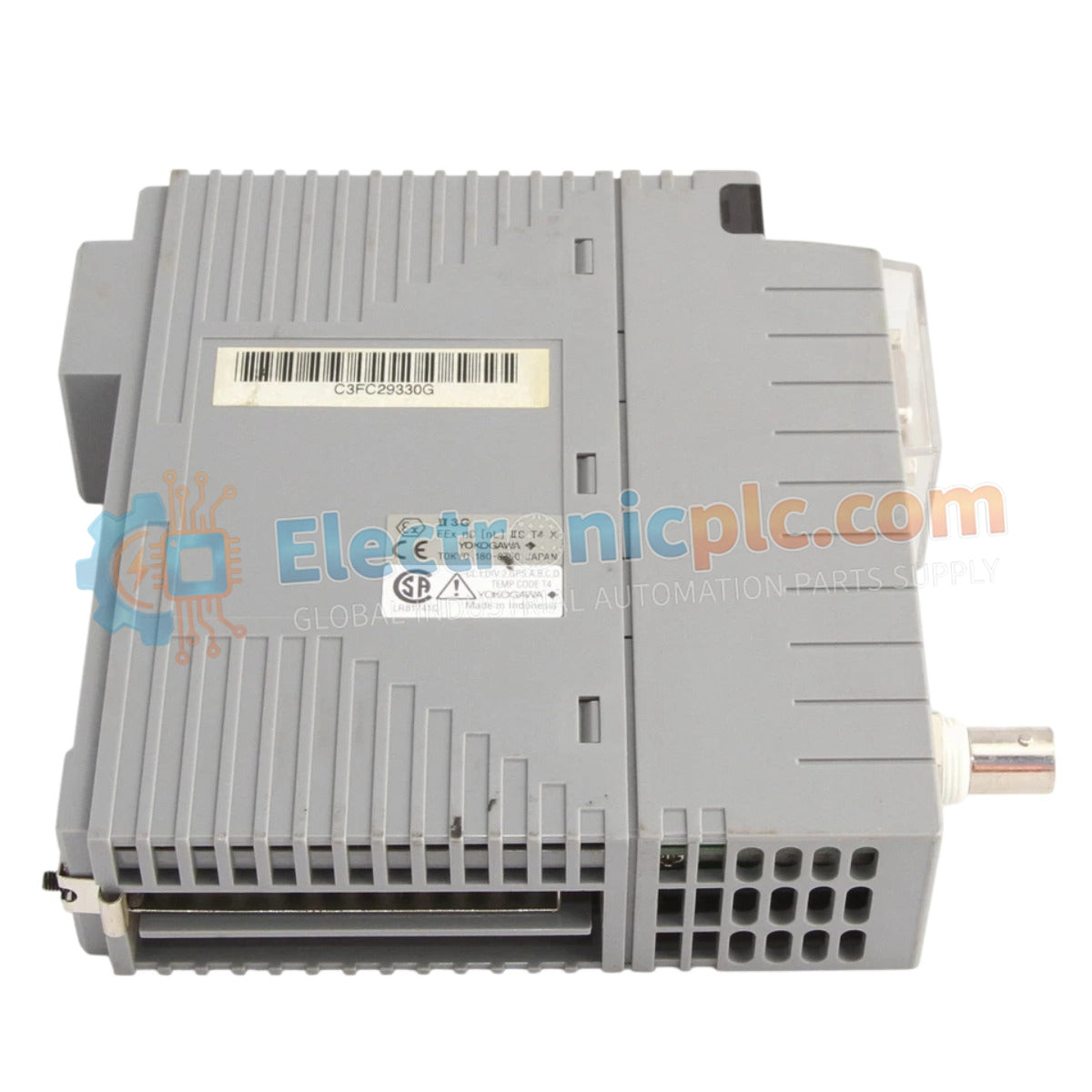

The Yokogawa EB501-10 (EB501 Bus Interface Module) serves as the primary EB501 interface component utilized to execute ER bus data acquisition and control command transmission across Centum VP and CS 3000 platform networks.

Hardware Specifications

Network Connectivity and Physical Layer Execution

The EB501-10 manages the physical layer interface for ER bus communication, utilizing a BNC connector for 10BASE-2 coaxial transmission. This module acts as the bridge for real-time data acquisition from remote field devices, ensuring deterministic command latency within the DCS architecture. Proper termination is required for 10BASE-2 segments to prevent signal reflection at the bus endpoints.

Frequently Asked Questions (FAQ)

Q: What is the maximum distance supported by this module for the ER bus? A: The module supports transmission distances up to 185 meters when utilized with compatible cabling such as the YCB141. Distances exceeding this limit require active signal repeaters to maintain communication integrity.

Q: Is the BNC connector sensitive to mechanical vibration in the cabinet? A: Yes, BNC connections can suffer from intermittent contact if subjected to high-frequency vibration. Ensure that the coaxial cable is properly supported with strain relief near the module to prevent the cable weight from applying stress to the BNC connector interface.

Field Installation Guidelines

• Ensure the 50 ohm terminator is installed at the end of the 10BASE-2 coaxial segment to maintain proper line impedance and minimize data collisions.
• Avoid routing coaxial bus cables in parallel with high-voltage AC lines; maintain a minimum separation distance as defined by local electrical safety standards to reduce EMI.
• Check the BNC connection for tight physical engagement; a loose connection is a primary cause of packet loss and bus communication errors.
• Use a multimeter to verify shielding continuity of the coaxial cable before finalizing installation to ensure the bus is protected from ground potential noise.
