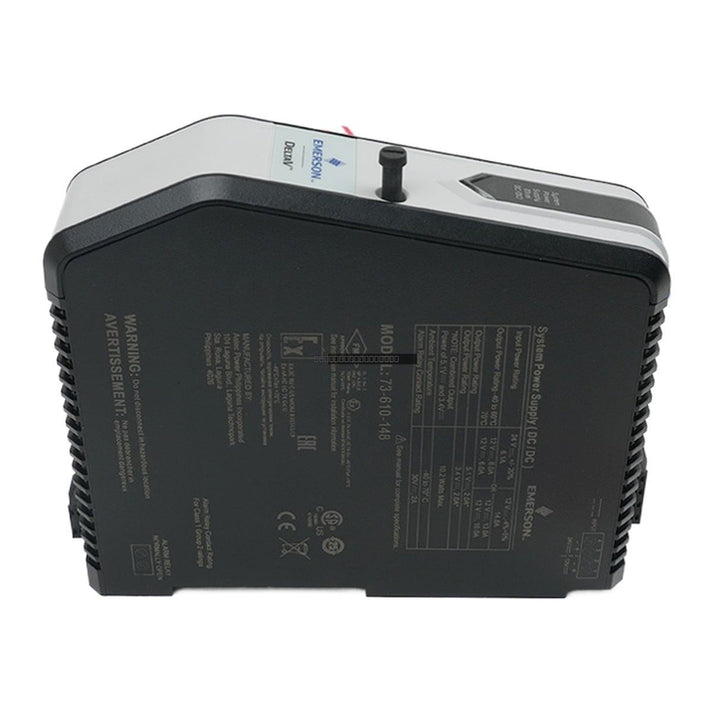

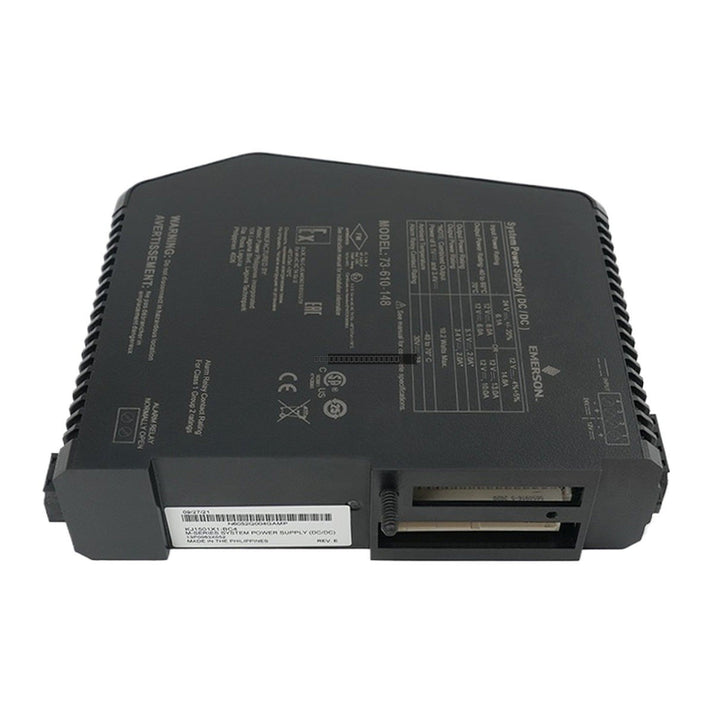

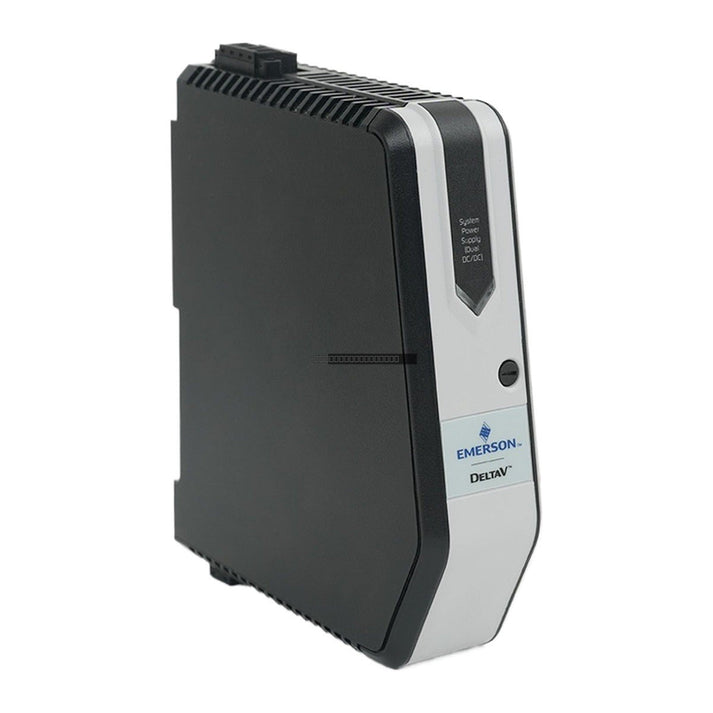

Emerson DeltaV KJ1501X1-BC4 13P0063X052 System Power Supply

Emerson DeltaV KJ1501X1-BC4 13P0063X052 System Power Supply

The Emerson KJ1501X1-BC4 (13P0063X052) is a dual DC/DC system power supply module engineered for the DeltaV M-Series distributed control system. This module provides stable, regulated power to controllers and I/O...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: KJ1501X1-BC4 13P0063X052
Proveedora: Emerson
tipo: System Power Supply
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Emerson KJ1501X1-BC4 (13P0063X052) is a dual DC/DC system power supply module engineered for the DeltaV M-Series distributed control system. This module provides stable, regulated power to controllers and I/O cards mounted within a horizontal carrier assembly. It is designed to integrate into a 2-Wide Power/Controller Carrier, supporting configurations for single power supply operation or redundant power setups.

Features

  • Dual DC/DC power conversion for M-Series architecture.
  • Provides combined output power of 10.2 W from +5.1 VDC and +3.4 VDC rails.
  • Designed for high-reliability operation in industrial control environments.
  • Integrated alarm contact for system monitoring.
  • Supports operation in hazardous locations (Class I, Division 2).

Applications

  • Distributed Control Systems (DCS) for process automation.
  • Powering controllers for vibration and speed diagnostics in rotating machinery.
  • Safety Instrumented Systems (SIS) logic solver support.
  • Modular process skids for water treatment and chemical processing.
  • Industrial HVAC and climate control systems.

Technical Specifications

Model KJ1501X1-BC4 (13P0063X052)
Input Rating 12 VDC at 13.8 A / 24 VDC at 4.5 A
Output Rating 5.1 VDC at 2.0 A / 3.4 VDC at 2.0 A
Total Output Power 10.2 W
Alarm Contact Rating 30 VDC at 2.0 A
Operating Temperature -40 degC to +70 degC
Shock Rating 10g, 1/2 Sinewave, 11msec
Vibration Rating 1mm P-P (2-13.2Hz); 0.7g (13.2-150Hz)

Installation Guidelines

  • Power-Down Requirement: This module must not be inserted or removed while system power is energized. Ensure the carrier is de-energized before installation.
  • Hazardous Area Safety: Verify that the environment is classified as safe before handling the module.
  • Voltage Limits: In 12 VDC passthrough mode, the source must not exceed 12.6 VDC and must not exceed 16 A maximum.
  • Maintenance: This unit contains no user-serviceable parts. Do not attempt to disassemble or repair.
  • Calibration: The module is factory-calibrated and requires no field adjustments during its service life.

FAQ

What is the primary function of the KJ1501X1-BC4?

The KJ1501X1-BC4 is a system dual DC/DC power supply module specifically designed to provide regulated voltage to DeltaV M-Series controllers and I/O cards.

Can this module be hot-swapped?

No. Unlike some other DeltaV components, this specific power supply module must not be inserted or removed while the system is powered.

What are the input power requirements for this unit?

When operating in 12 VDC passthrough mode, the input source must not exceed 12.6 VDC and must be limited to a maximum of 16 A.
