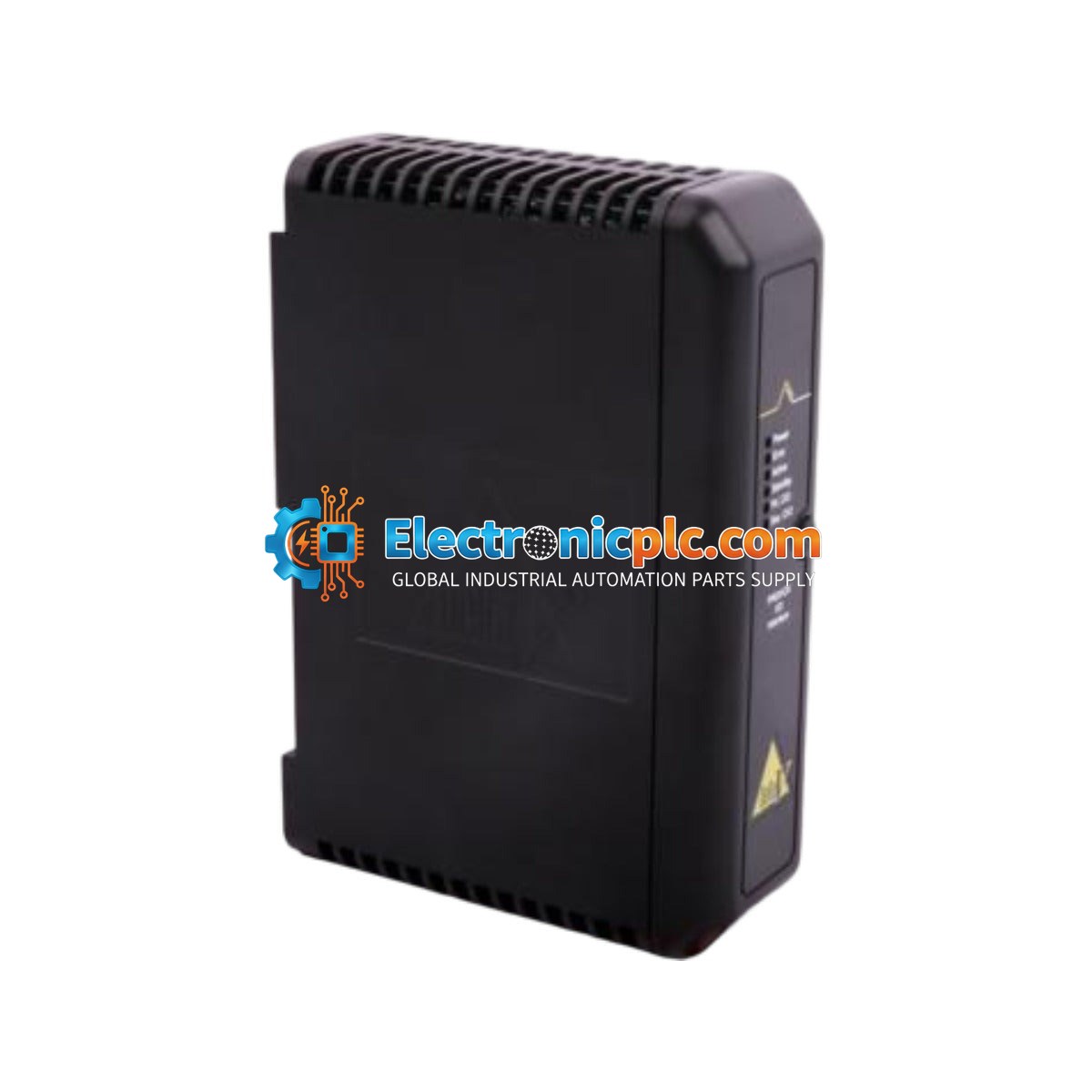

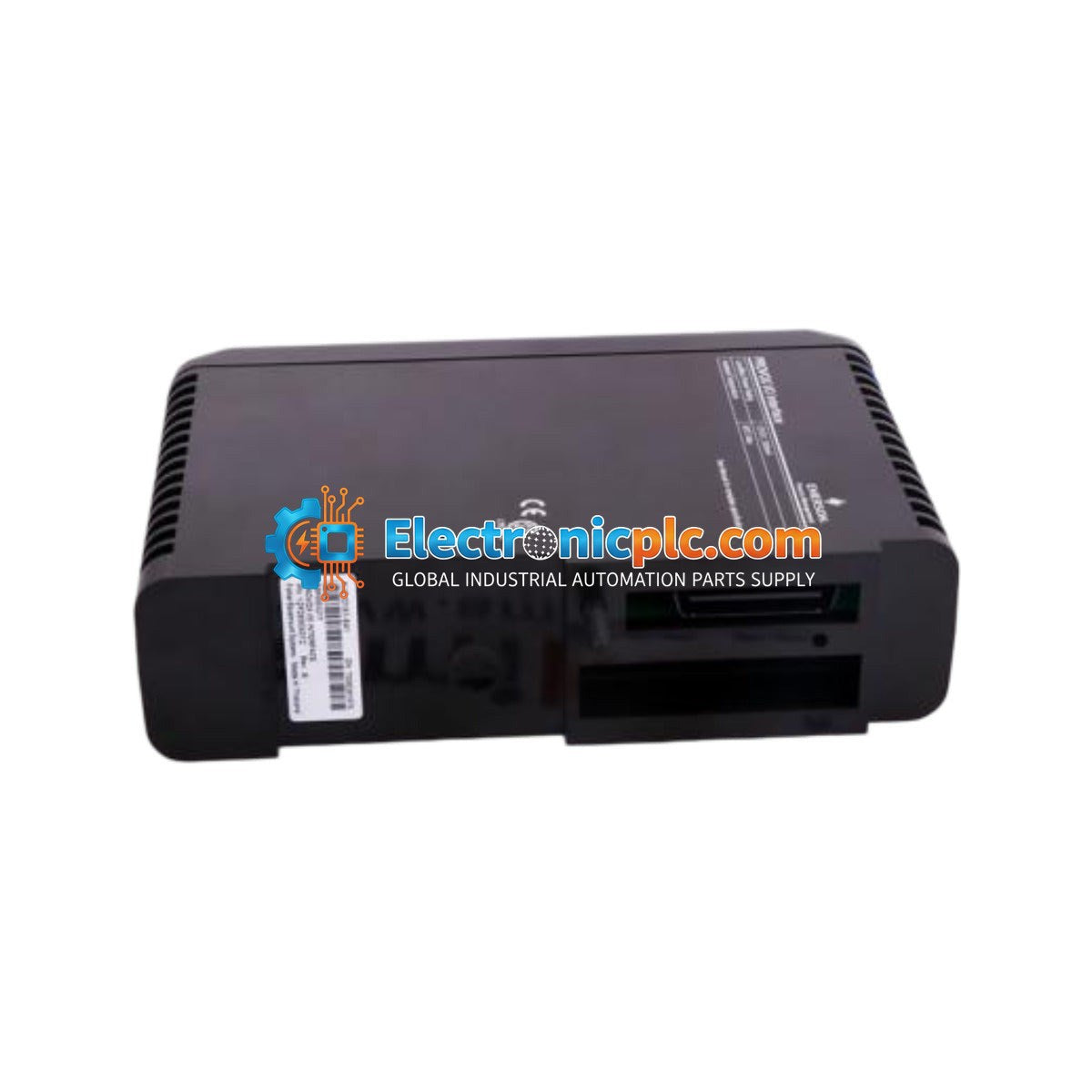

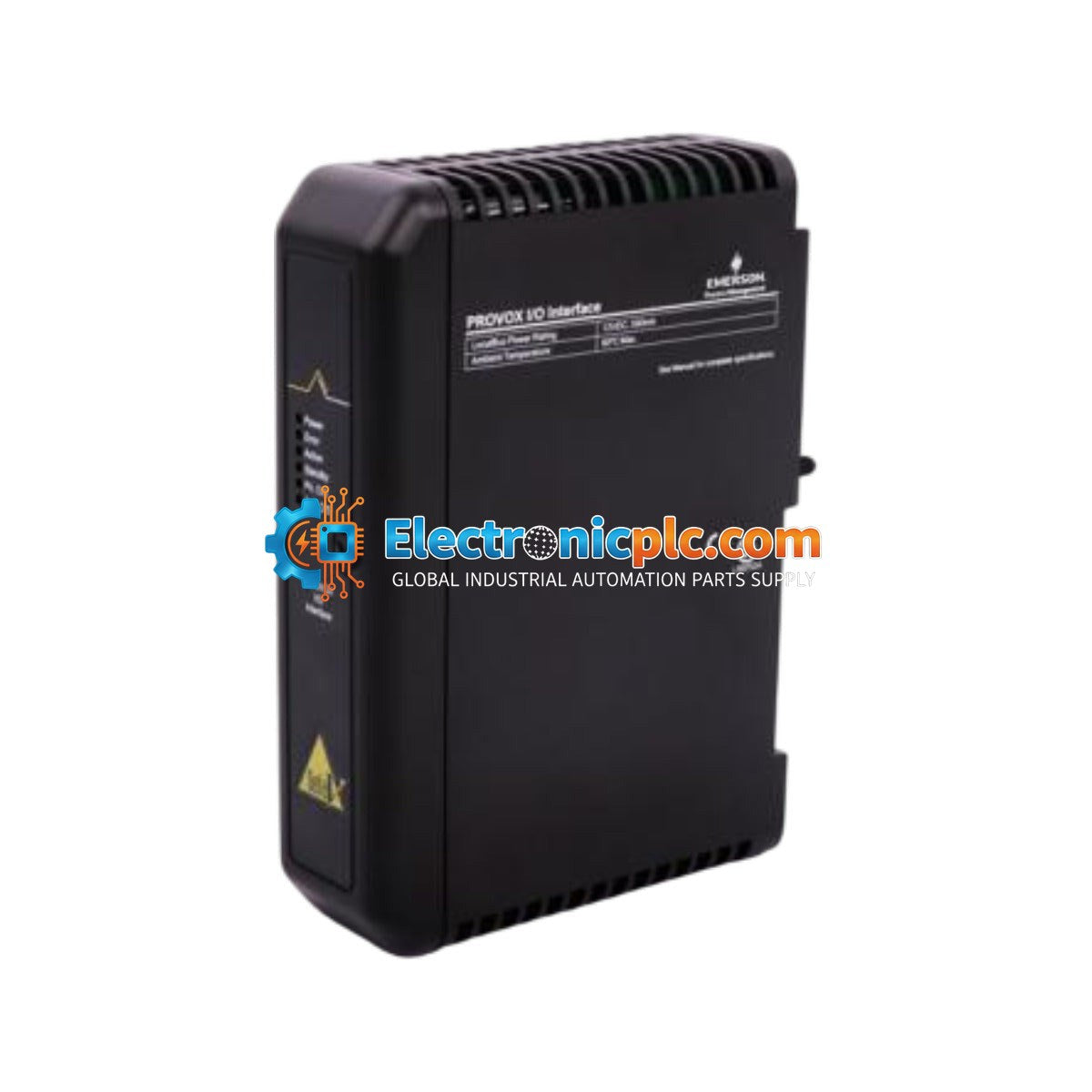

Emerson DeltaV KJ2101X1-BA 12P2690X012 PROVOX I/O Interface Module

Emerson DeltaV KJ2101X1-BA 12P2690X012 PROVOX I/O Interface Module

Description

The Emerson DeltaV KJ2101X1-BA (12P2690X012) is a specialized I/O interface module designed to bridge legacy PROVOX subsystems with the modern DeltaV automation platform. This module enables industrial facilities, such as...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: KJ2101X1-BA 12P2690X012
Proveedora: Emerson
tipo: I/O Interface Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Emerson DeltaV KJ2101X1-BA (12P2690X012) is a specialized I/O interface module designed to bridge legacy PROVOX subsystems with the modern DeltaV automation platform. This module enables industrial facilities, such as those in chemical processing, power generation, and pharmaceutical manufacturing, to integrate existing PROVOX I/O files into the DeltaV architecture. By facilitating this migration, the unit allows for a phased, low-risk upgrade path that preserves existing field wiring investments while introducing advanced diagnostic capabilities and high-speed data throughput.

Features

  • System Integration: Acts as a high-performance communication gateway, translating proprietary PROVOX I/O bus protocols for compatibility with DeltaV controllers.
  • Redundancy Support: Designed to support redundant configurations, ensuring continuous process availability by allowing a standby unit to assume control seamlessly if the primary interface fails.
  • Broad Compatibility: Interfaces directly with legacy PROVOX I/O files, including those utilized in 20-series and 100-series hardware sets.
  • Data Integrity: Utilizes rigorous error-checking algorithms to maintain signal precision across the legacy-to-modern interface boundary.

Applications

This interface module is intended for use in plant migration projects where legacy PROVOX control systems are being upgraded to DeltaV. It is ideal for environments requiring minimal downtime and the retention of existing field-side instrumentation and wiring.

Technical Specifications

Model KJ2101X1-BA
Part Number 12P2690X012
Input Voltage 24 VDC (via LocalBus)
Power Consumption 5.0 W (max)
Operating Temperature -40 to 70 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95 percent (non-condensing)
Vibration Rating 1 mm peak-to-peak (5-16 Hz); 0.5g (16-150 Hz)
Shock Rating 10g 1/2 Sinewave for 11 msec

Installation Guidelines

  • Mounting: Designed for installation on a DeltaV 2-wide horizontal carrier.
  • Handling: Ensure proper ESD (electrostatic discharge) precautions are taken when handling the module to prevent damage to internal circuitry.
  • Power: Always ensure the system power is disconnected or the carrier is de-energized before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
  • Environment: Ensure the installation location meets the specified temperature and humidity ranges to maintain long-term reliability.
  • Grounding: Verify that the carrier is properly grounded according to DeltaV system installation standards to mitigate EMI and ensure signal integrity.

FAQ

Does this module support redundant configurations?

Yes, the KJ2101X1-BA is designed to support redundant operation, allowing for a seamless transition to a standby module in the event of a primary unit failure.

Is this module compatible with all PROVOX series?

The module is specifically designed for compatibility with PROVOX 20-series and 100-series I/O hardware sets.
