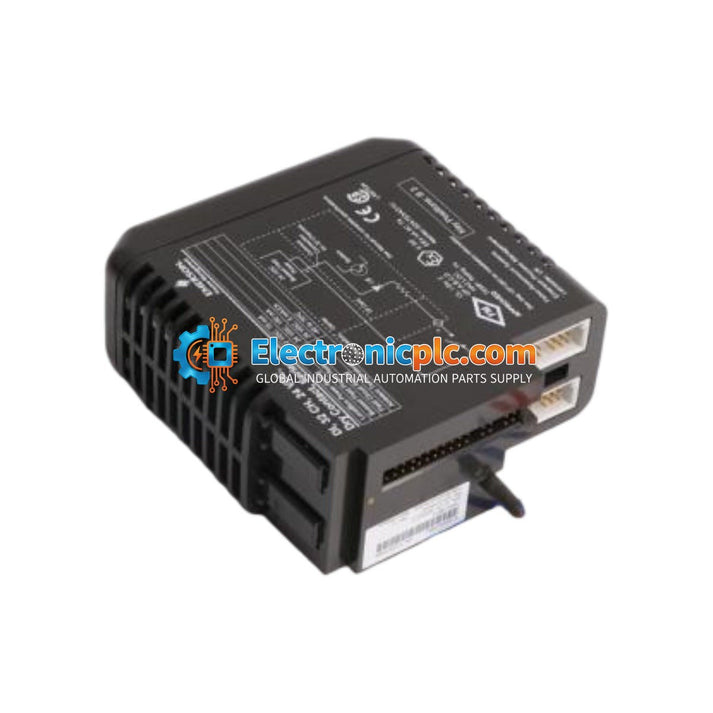

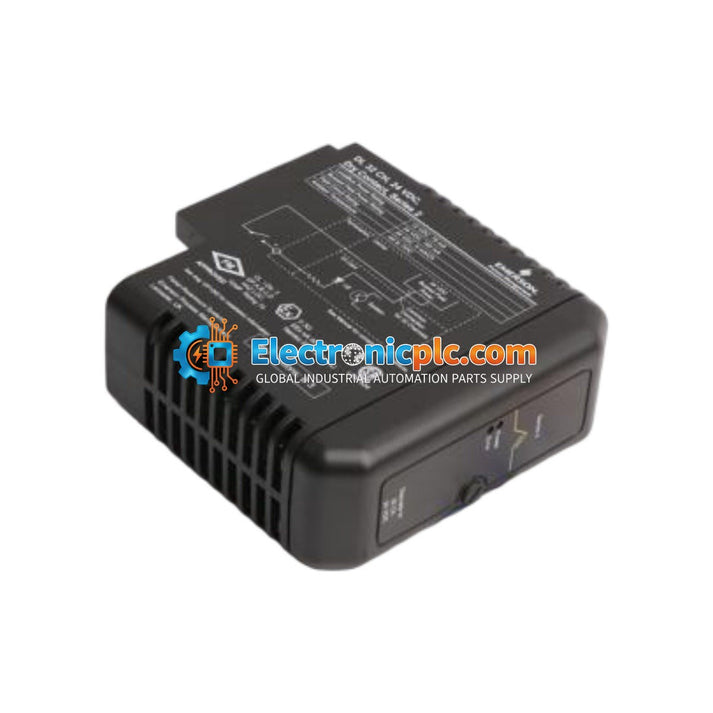

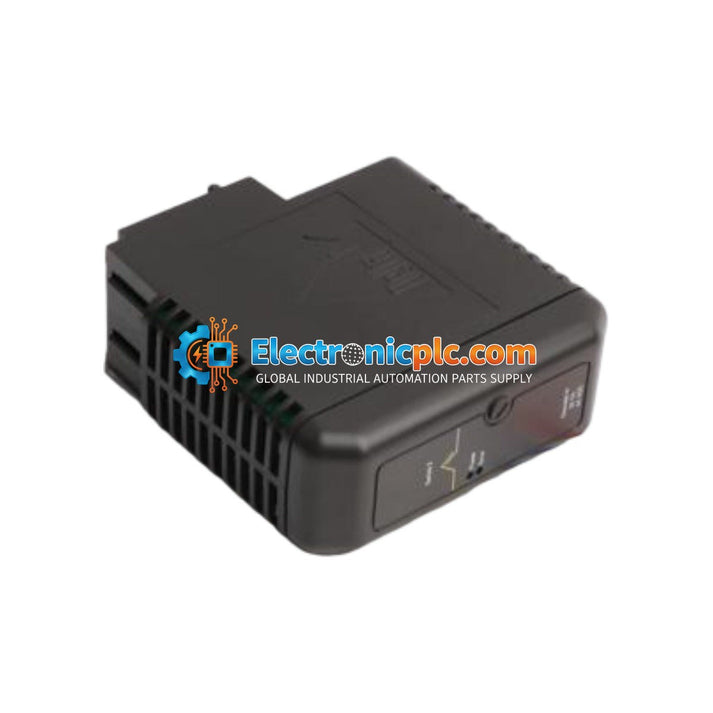

Emerson DeltaV KJ3203X1-BA1 12P3270X032 32-Channel Discrete Input Module

Emerson DeltaV KJ3203X1-BA1 12P3270X032 32-Channel Discrete Input Module

Description

The Emerson DeltaV KJ3203X1-BA1 (Part Number 12P3270X032) is a high-density Series 2 discrete input module engineered for the DeltaV distributed control system. This module provides 32 channels of dry contact...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: KJ3203X1-BA1 12P3270X032
Proveedora: Emerson
tipo: Discrete Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Emerson DeltaV KJ3203X1-BA1 (Part Number 12P3270X032) is a high-density Series 2 discrete input module engineered for the DeltaV distributed control system. This module provides 32 channels of dry contact sensing, delivering 24 VDC excitation to monitor the status of field-mounted switches and relays. Designed for high-availability applications, it is suitable for demanding industrial environments including oil and gas, chemical processing, and power generation facilities.

Features

  • 32-channel high-density digital input architecture.
  • Optimized for dry contact sensing with 24 VDC excitation.
  • Conformal coated electronics meeting ISA-S71.04-1985 Class G3 standards for corrosion resistance.
  • Supports hot-swapping in non-hazardous area conditions.
  • Integrates directly with the DeltaV LocalBus for high-speed data synchronization and system diagnostics.
  • Keyed for B3 terminal block compatibility to prevent incorrect module insertion.

Applications

This module is designed for critical process control applications requiring high-density digital signal acquisition. It is commonly deployed in hazardous locations (Zone 2) where reliable monitoring of field switches, emergency stop buttons, and relay status is required for safety and operational efficiency.

Technical Specifications

Model KJ3203X1-BA1
Part Number 12P3270X032
Card Type 32-Channel Discrete Input (Dry Contact)
LocalBus Power 12 VDC at 75 mA
Bussed Field Power 24 VDC at 150 mA
Field Circuit Rating 24 VDC at 5 mA per channel
Operating Temperature -40 to 70 deg C
Relative Humidity 5 to 95 percent (Non-condensing)
Shock Resistance 10g half-sinewave (11 msec)
Vibration Limit 1mm P-P (5-16 Hz); 0.5g (16-150 Hz)
Protection Rating IP 20

Installation Guidelines

  • Ensure the system power is off before installing or removing the module from the carrier, unless performing an authorized hot-swap in a non-hazardous area.
  • Verify that the terminal block is keyed to position B3 before seating the module.
  • Handle with standard ESD precautions to prevent damage to sensitive internal components.
  • Ensure proper grounding of the carrier and shield routing for field wiring to minimize EMI interference.
  • Maintain adequate ventilation clearance to ensure the module operates within the specified -40 to 70 deg C temperature range.

Compliance and Certifications

This module is rated for use in hazardous areas under ATEX II 3 G (Nemko 02ATEX431U / EEx nL IIC T4) certification.

FAQ

Is this module compatible with all DeltaV systems?

The KJ3203X1-BA1 is a Series 2 module designed for use with DeltaV systems. Always verify your specific controller and carrier hardware compatibility before installation.

What does the B3 keying mean?

The B3 keying is a physical mechanical alignment feature on the terminal block that ensures only the correct module type can be inserted into that specific slot, preventing electrical damage from mismatched modules.
