Description

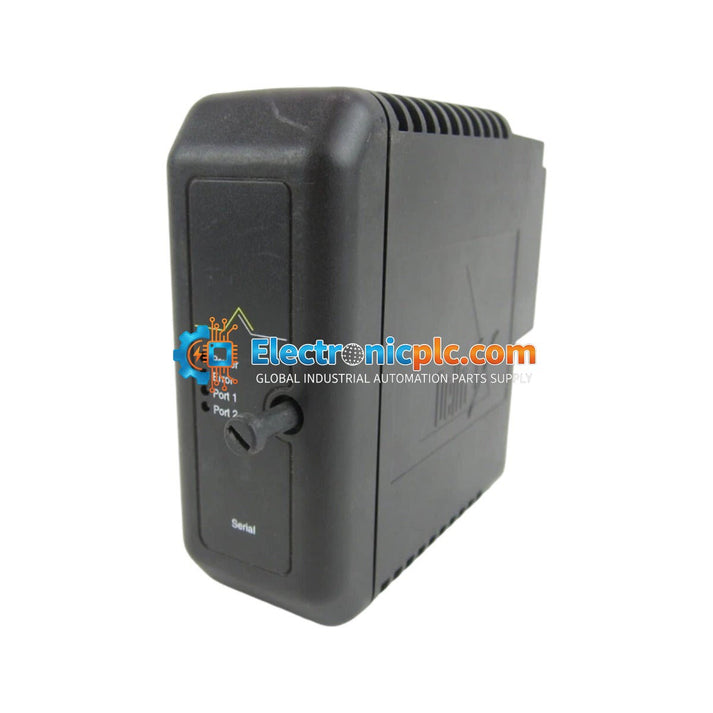

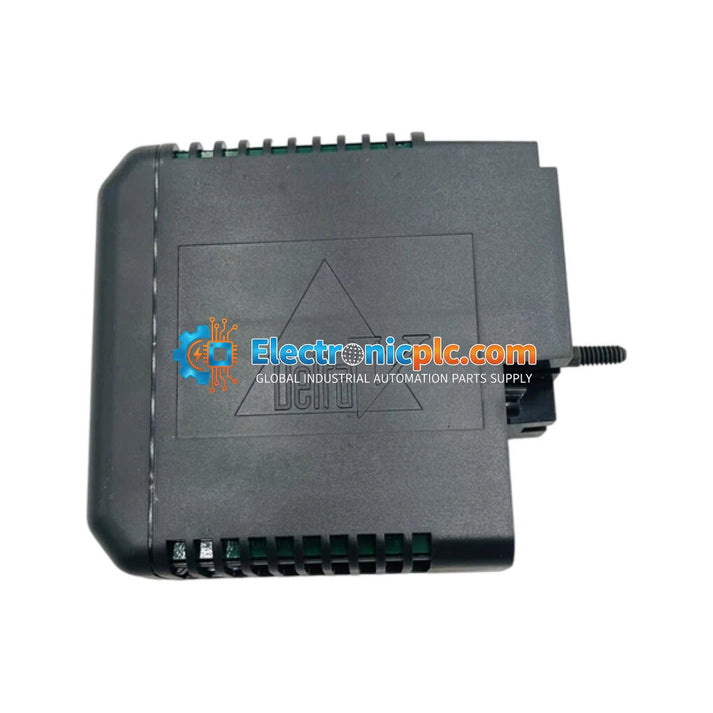

The Emerson DeltaV KJ3209X1-BA1 (12P3905X012) is a high-density discrete output terminal block designed for integration within the DeltaV distributed control system. This component functions as the critical physical and electrical interface between the system's I/O bus and field-level actuators. Engineered for reliability in demanding process automation environments, such as oil refineries, chemical processing plants, and mineral extraction facilities, it ensures secure signal transmission and robust circuit protection.

Features

• Designed for seamless integration with DeltaV M-series and S-series hardware architectures.
• Supports 32 discrete output channels for high-density signal distribution.
• Integrated fuse protection for each channel to isolate and prevent electrical faults from impacting the system backplane.
• Features a mechanical keying system to prevent the installation of incorrect I/O cards.
• Supports hot-swapping capabilities, allowing for maintenance and system expansion without requiring a full power-down of the control segment.
• Vibration-resistant design suitable for industrial field cabinets.

Applications

This terminal block is primarily utilized in large-scale industrial automation systems where high-density digital output control is required. It is commonly deployed in applications involving solenoid valves, relays, and other discrete field actuators that require reliable 24 VDC control signals.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down or follow site-specific hot-swap safety procedures before installing or removing the module.
• Mount the terminal block securely to the designated DIN rail or carrier, ensuring proper alignment with the backplane connectors.
• Verify that the mechanical keying matches the intended I/O card to prevent improper insertion.
• Use appropriate shielded cabling for field connections to minimize EMI interference.
• Maintain adequate ventilation around the module to ensure operation within the specified -40 to 70 deg C temperature range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

Is this module compatible with all DeltaV systems?

The KJ3209X1-BA1 is designed for use within the DeltaV M-series and S-series architectures. Please verify your specific controller hardware and system revision to ensure compatibility.

Does this unit include the I/O card?

This product is a terminal block (field interface). The I/O card is typically ordered separately unless otherwise specified.

Can this module be hot-swapped?

Yes, the architecture supports hot-swapping under controlled conditions, allowing for maintenance without de-energizing the entire control segment.
